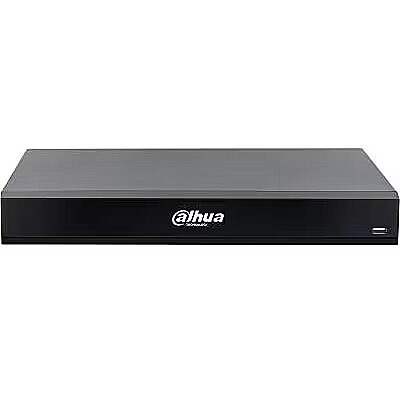

Dahua NET VIDEO RECORDER 16CH/NVR5216-XI

15pin D-sub Input/Output connectors - 1
Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - DHI-NVR5216-XI
Category - Network Video Recorders (NVR)
Category Code - NVR
Colour - Black
Description - NVR5216-XI 16CH 1U 2HDDs WizMind Network Video Recorder > Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. > Max. decoding capability: 32 × 1080p@30 fps > Max. 512/512/512 Mbps incoming/recording/outgoing bandwidth. > Supports IP cameras with a resolution up to 32 MP. > Supports AcuPick with up to 16 channels. > AI by Recorder supports 8-channel face detection and recognition, up to 20 face databases and 200,000 face images; 8-channel metadata; 16-channel perimeter protection; 16-channel SMD Plus. > AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting. > Supports N+M cluster, ISCSI. > Supports EPTZ, and one-click arming and disarming.
Desktop/pedestal Mounting Type - Yes
Dimensions - 375.0 × 282.9 x 56.0 mm
Features - Certification - FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014
CE-LVD: EN 62368-1: 2014
Features - Compatible products - Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec
Features - On/off switch - Yes
Features - Product colour - Black
Features - Rack mounting - Yes
Full Description Line - Channels 16|Desktop/pedestal|Rack|SATA|1x15pin D-sub|1xHDMI|1xAudio-In|1xAudio-Out|1xRS232|1xUSB 2.0|1xUSB 3.0|1xRS-485|1xAlarm In|1xAlarm Out|Power supply requirements 12 VDC, 4 A|Dim. 375.0 × 282.9 x 56.0 mm|Colour Black
GTIN - 6923172510143
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 20 TB
Hard drive - Number of HDDs supported - 2
HDMI Input/Output connectors - 1
LongDesc -
LongProductName - 16CH 1U 2HDDs WizMind Network Video Recorder
LongSummaryDescription - Dahua Technology WizMind NVR5216-XI. Video input channels: 16 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 1080p, 2160p. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Compatible products: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic,..., Certification: FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2:.... Power consumption (typical): 10 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz
Model - NVR5216-XI
Number of Channels - 16
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 65 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Alarm input channels - 4
Performance - Alarm output channels - 2
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, G.726, PCM
Performance - Face detection - Yes
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Supported resolutions - 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
Performance - Video formats supported - H.264, H.264+, H.265, H.265+, M-JPEG
Performance - Video input channels - 16 channels
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p, 1080p, 2160p
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 8
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - RS-485 ports - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 10 W
Power - Power over Ethernet (PoE) power per port - 25.5 W
Power supply requirements - 12 VDC, 4 A
Processor - Built-in processor - Yes
ProductName - NVR5216-XI
Product Net Weight - 1.56 kg
Rack Mounting Type - Yes
RS-485 Input/Output connectors - 1
RS232 Input/Output connectors - 1
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 43.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 36 cm
Shipping Box Weight Shipping/Package Box Dimensions - 2.84 kg
Shipping Box Width Shipping/Package Box Dimensions - 13.5 cm
ShortSummaryDescription - Dahua Technology WizMind NVR5216-XI, 16 channels, 3840 x 2160 pixels, 720p, 1080p, 2160p, 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768, G.711 A-law, G.711 μ-law, G.726, PCM, H.264, H.264+, H.265, H.265+, M-JPEG
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology WizMind NVR5216-XI Black
Unit Box Height - 0.36
Unit Box Length - 0.435
Unit Box Width - 0.135
Unit Calculated Volume - 0.02114 cubm
Unit Calculated Weight - 2.84 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizMind-Series/NVR5-XI/2HDD/NVR5216-XI
USB 2.0 Input/Output connectors - 1
USB 3.0 Input/Output connectors - 1
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/WizMind-Series/NVR5-XI/2HDD/NVR5216-XI
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 283 mm
Weight & dimensions - Height - 56 mm
Weight & dimensions - Package depth - 366 mm
Weight & dimensions - Package height - 141 mm
Weight & dimensions - Package weight - 2.86 kg
Weight & dimensions - Package width - 433 mm
Weight & dimensions - Weight - 1.56 kg
Weight & dimensions - Width - 375 mm
