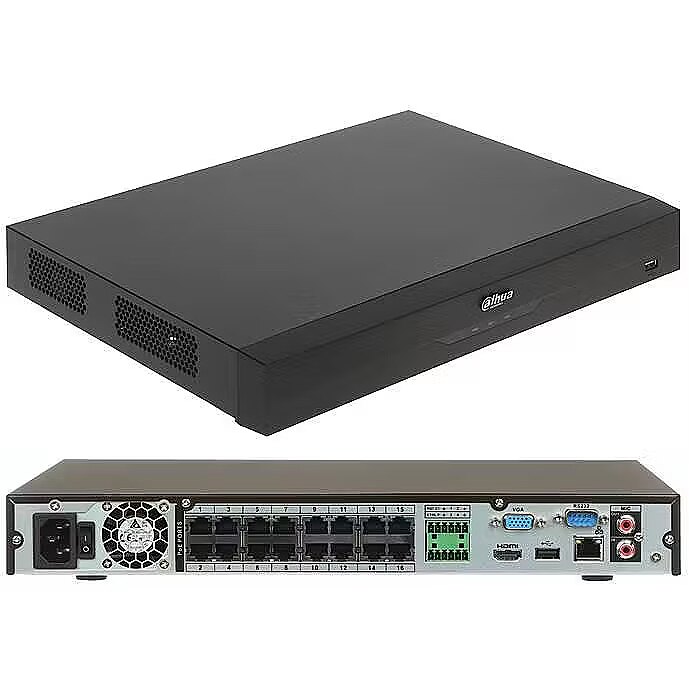

Dahua NET VIDEO RECORDER 16CH 16POE/NVR4216-16P-EI

15pin D-sub Input/Output connectors - 1
Alarm In Input/Output connectors - 4
Alarm Out Input/Output connectors - 2
Brand - Dahua Technology
BrandPartCode - NVR4216-16P-EI
Category - Network Video Recorders (NVR)
Category Code - NVR
Description - - 16 IP channel max, up to 16MP resolution - Max: 256Mbps recording bandwidth, Smart H.265+; H.265; Smart H.264+; H.264; MJPEG - VGA/HDMI up to 4K output, decoding up to 2-channel 16 MP @ 30 fps - 2 SATA III ports, up to 16 TB for a single HDD - PoE 16 ports, 10/100 Mbps, IEEE 802.3 af/at, total 130W max - No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1 - Desktop mounted chassis - AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus. - AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map.Free IP monitoring software available, ONVIF 22.06 (Profile T; Profile S; Profile G); CGI; SDK - Other brands IP cameras supported
Dimensions - 375.0 mm × 329.3 mm x 53.0 mm
Features - Brand compatibility - Any brand
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Full Description Line - Channels 16|Drives/bays 2|1x15pin D-sub|1xHDMI|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements 100–240 VAC, 47-63 Hz|Dim. 375.0 mm × 329.3 mm x 53.0 mm|Temp. range –10 °C to +55 °C
GTIN - 6923172585790
Hard drive - Maximum storage capacity - 16 TB
Hard drive - Number of HDDs supported - 2
HDMI Input/Output connectors - 1
LongDesc -
LongProductName - 2 channels, 10 IVS rules for each channel, 16 channels, HDMI, VGA, 100–240 VAC, 47-63 Hz, 2.60 kg
LongSummaryDescription - Dahua Technology Lite NVR4216-16P-EI. Video input channels: 16 channels, Maximum resolution: 1920 x 1080 pixels, Supported resolutions: 1920x1080, 1280x1024, 1280x720, 1024x768. Maximum storage capacity: 16 TB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP. Rack capacity: 1U, Brand compatibility: Any brand, Product colour: Black. Power consumption (typical): 30 W, AC input voltage: 100 - 240 V, AC input frequency: 47/63 Hz
Model - NVR4216-16P-EI
Number of Channels - 16
Number of drives/bays - 2
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Alarm input channels - 4
Performance - Alarm output channels - 2
Performance - Backup function - Yes
Performance - Bit rate - 8192 Kbit/s
Performance - Maximum resolution - 1920 x 1080 pixels
Performance - Number of motion detection zones - 396
Performance - Number of users - 128 user(s)
Performance - On Screen Display (OSD) - Yes
Performance - Operating system installed - Embedded LINUX
Performance - Playback controls - Yes
Performance - Playback modes - Backup selection, Digital zoom, Forward, Full screen, Next camera, Pause, Play, Previous camera, Repeat, Reverse, Shuffle, Speed Adjust, Stop
Performance - PTZ control - Yes
Performance - Recording modes - Manual, Schedule, Stop
Performance - Recording time - 120 min
Performance - Snapshot - Yes
Performance - Split screen - Yes
Performance - Supported resolutions - 1920x1080, 1280x1024, 1280x720, 1024x768
Performance - Two-way talk - Yes
Performance - Video formats supported - H.264, M-JPEG
Performance - Video input channels - 16 channels
Performance - Video loss detection - Yes
Performance - Video motion detection - Yes
PoE ports - 16
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Internal SATA ports quantity - 2
Ports & interfaces - Networking standards - IEEE 802.3af, IEEE 802.3at
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 16
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - Supported network protocols - HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - AC input frequency - 47/63 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 30 W
Power - Power over Ethernet (PoE) power per port - 25.5 W
Power - Total Power over Ethernet (PoE) budget - 130 W
Power supply requirements - 100–240 VAC, 47-63 Hz
Processor - Built-in processor - Yes
Processor - Processor cores - 2
ProductName - NVR4216-16P-EI
Product Net Weight - 2.6 kg
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 75 cm
Shipping Box Height Shipping/Package Box Dimensions - 44 cm
Shipping Box Weight Shipping/Package Box Dimensions - 21 kg
Shipping Box Width Shipping/Package Box Dimensions - 47 cm
ShortSummaryDescription - Dahua Technology Lite NVR4216-16P-EI, 16 channels, 1920 x 1080 pixels, 1920x1080, 1280x1024, 1280x720, 1024x768, 8192 Kbit/s, 128 user(s), H.264, M-JPEG
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology Lite NVR4216-16P-EI network video recorder 1U Black
Unit Box Height - 0.42
Unit Box Length - 0.455
Unit Box Width - 0.145
Unit Calculated Volume - 0.03102 cubm
Unit Calculated Weight - 4.2 kg
Units per Shipping Box - 5
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4216-16P-EI
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/2-HDD/NVR4216-16P-EI
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 329.3 mm
Weight & dimensions - Height - 53 mm
Weight & dimensions - Package depth - 425 mm
Weight & dimensions - Package height - 147 mm
Weight & dimensions - Package weight - 3.8 kg
Weight & dimensions - Package width - 451 mm
Weight & dimensions - Weight - 2.6 kg
Weight & dimensions - Width - 375 mm
