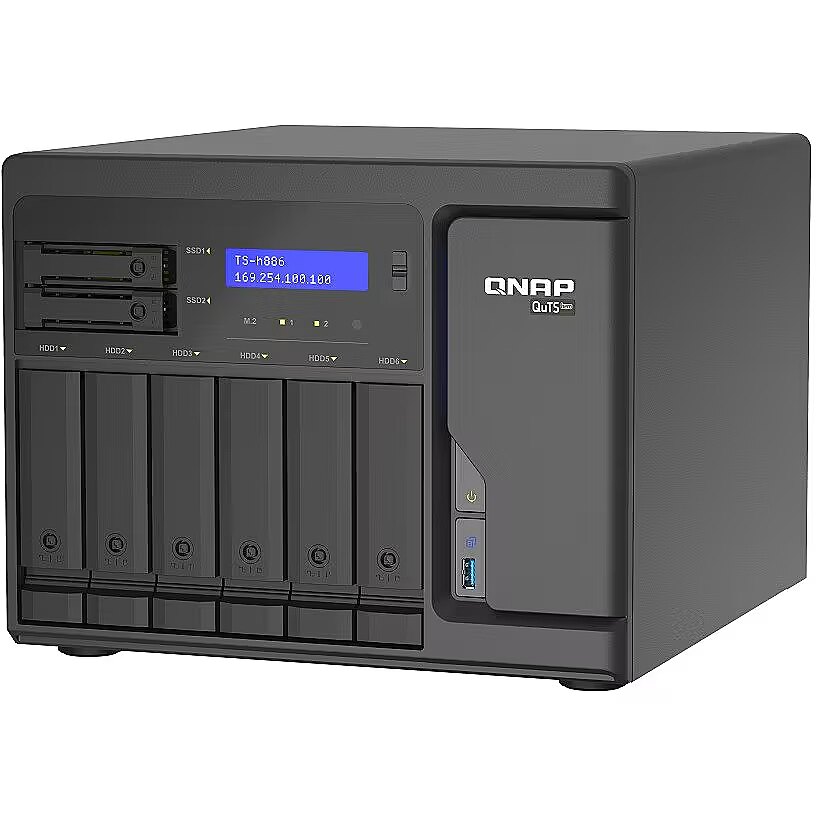

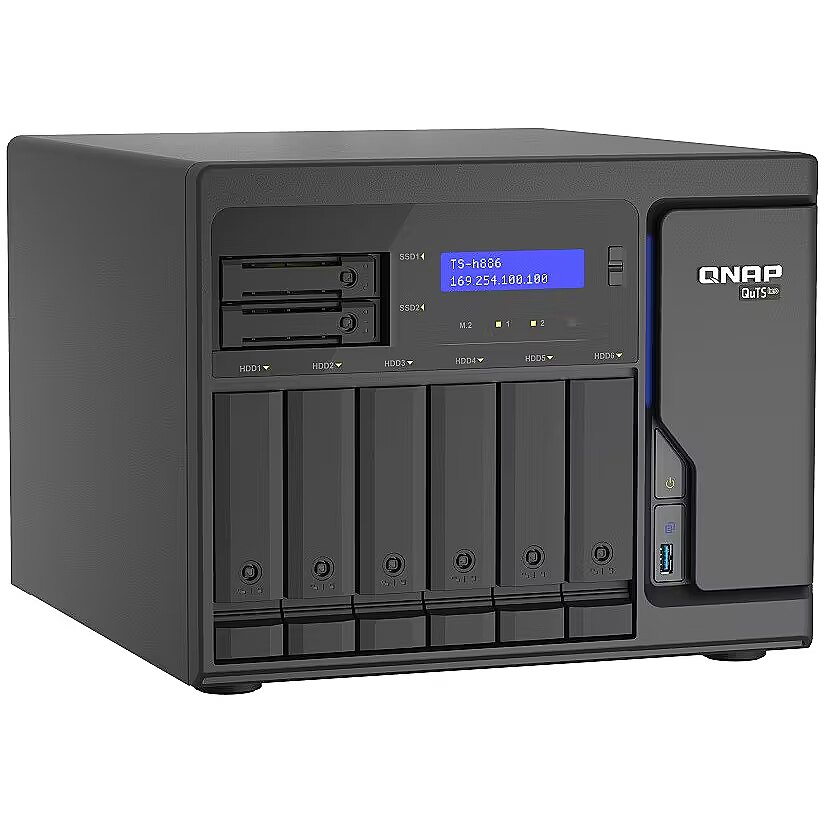

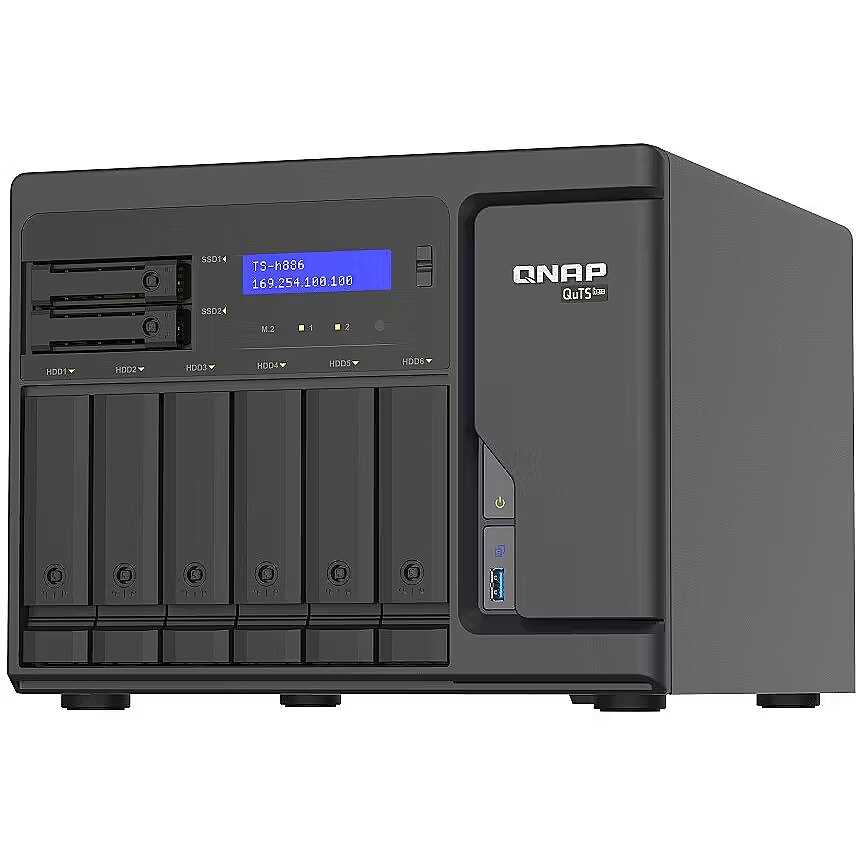

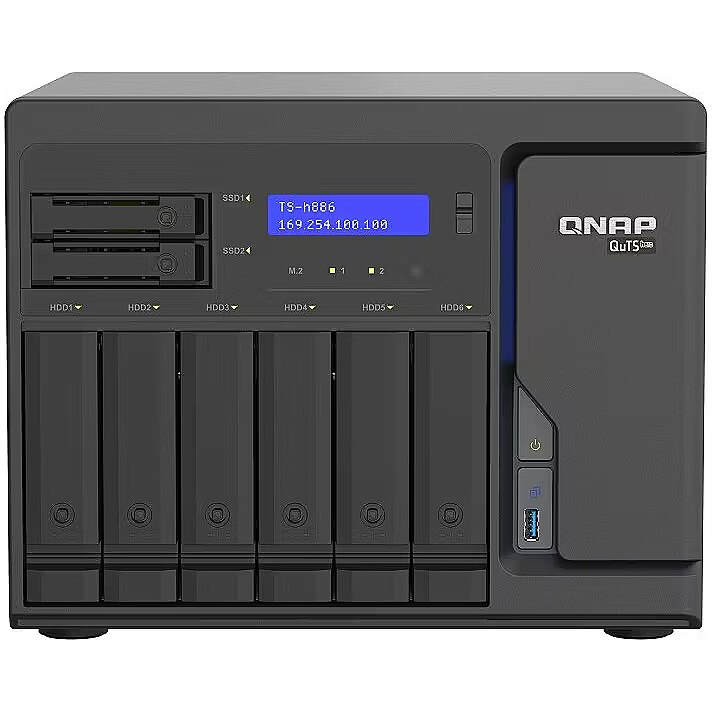

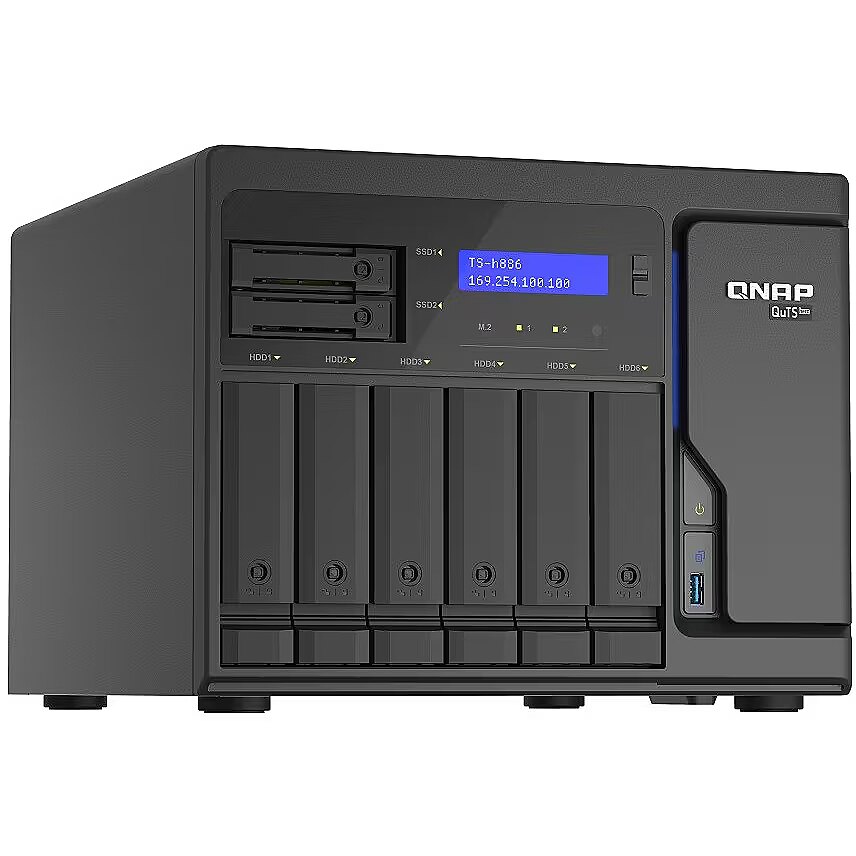

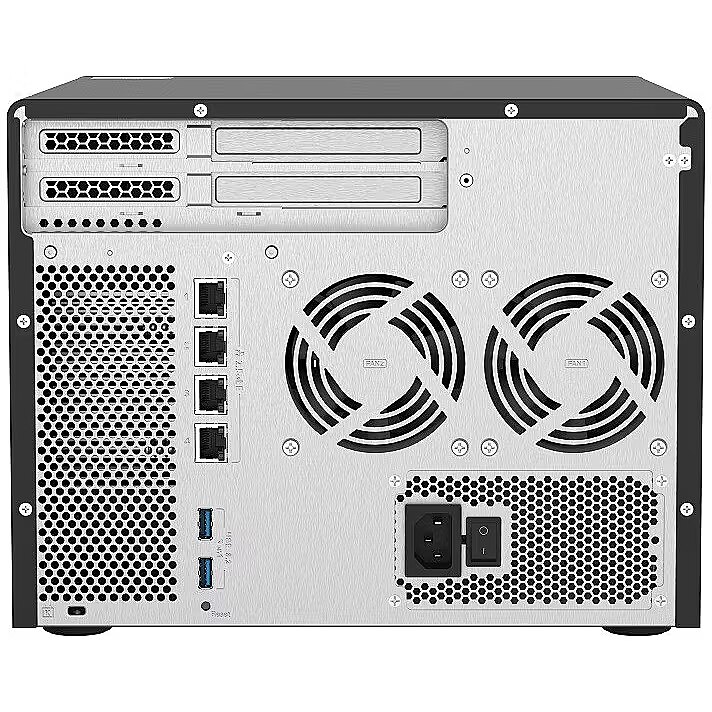

Qnap TS-h886-D1602-8G, 8-Bay (6x 3.5" + 2x 2.5")

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 944226 Product code: TS-h886-D1602-8G
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years
2,293.72 €
Delivery options More about shipping
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 21.05.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 21.05.2024
  • Delivery to address in Riga 3.99 €: 21.05.2024
  • Delivery to address in Latvia 6.99 €: 21.05.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 16.05.2024 after 15:00
Main product parameters All parameters
  • HDD included: Nav
  • Maximum number of drives: 8
All parameters
CPU : Intel Xeon D-1602
CPU core clock : 2.50 GHz
CPU cores : 2
eSATA ports : Not
Form factor : Tower
HDD included : Nav
Hot-Swap support : Yes
Maximum number of drives : 8
RAM : 8 GB
RJ45 (LAN) ports : 4
USB2.0 ports : Not
USB3.0 ports : 3
More detailed specification
Accessories included -
ARTIKEL1 - TS-H886-D1602-8G 8BAY 2.5GHZDC
ARTIKEL2 - 8GB ECC 4X2.5GBE 3XUSB 3.2 I
Brand - QNAP
BrandPartCode - TS-H886-D1602-8G
Breite - 0
Built-in flash memory - 5 GB
Built-in RAM memory - 8 GB
Category - NAS & Storage Servers
Description - TS-h886 QuTS hero desktop NAS with Intel Xeon D processor and four 2.5GbE ports designed for real-time SnapSync backup and virtual machine applications. Offering enterprise-grade performance at a SMB price point, the TS-h886 features an Intel Xeon D processor and DDR4 ECC (Error Correcting Code) memory (upgradable to 128GB) for extreme reliability. Powered by the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync applications. The TS-h886 helps businesses achieve reliable SLA rates in a variety of applications, including mission-critical file servers, virtualization servers, collaborative video editing platforms, and high-performance backup and recovery applications. 2.5GbE connectivity Four 2.5GbE ports accelerate file sharing between teams and devices, virtual machine applications or multimedia transmission. ECC memory DDR4 ECC memory detects and corrects memory errors down to the bit level, offering high reliability for mission-critical applications. 2 M.2 PCIe slots Two M.2 NVMe Gen 3 x4 SSD slots (up to 3.2GB/s each) enable SSD caching for improved read and write performance. Flexible PCIe expansion Two PCIe slots allow the use of 5GbE/10GbE/25GbE/40GbE cards, QM2 cards or simple graphics cards to increase application performance. Virtualization applications Scalable storage that supports virtual machines, containerized applications, centralized storage, backup, sharing and disaster recovery. ZFS file system The QuTS hero operating system combines the benefits of the ZFS file system with the QTS App Center ecosystem, giving businesses powerful capabilities.
Design - Built-in display - Yes
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Tower
Design - Cooling type - Active
Design - Display type - LCD
Design - Fan diameter - 8 cm
Design - Fan diameter 2 - 9 cm
Design - LED indicators - M.2, Status, System, USB
Design - Number of fans - 3 fan(s)
Design - Product colour - Black
dimension depth - 350 mm
dimension height - 395 mm
Dimensions - 231.9 × 292.9 × 319.8 mm
dimension weight - 10000 g
dimension width - 430 mm
Disk type - HDD
Disk type - SSD
ean - 4711103083246
EANCode -
Expansion slots - 2 x M.2
Expansion slots - 2 x PCIe 3.0 x 8
Fan - 8 cm
Fan - 9 cm
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Gewicht - 10.3
GRUPPE1 - Storage
GRUPPE2 - Raid System
GTIN - 4711103083246
guarantee - 36
guarantee_type - normal
HDD interface - SATA II - 3 Gb/s
HDD interface - SATA III - 6 Gb/s
HERSTELLER - QNAP SYSTEMS
Hoehe - 0
Hot-swapping support - Yes
Housing - Tower
HSTNUMMER - TS-H886-D1602-8G
I/O connectors - 3 x USB 3.0
I/O connectors - 4 x RJ-45 LAN
Laenge - 0
LongDesc - Intel® Xeon® D desktop QuTS hero NAS with four 2.5GbE ports, designed for real-time SnapSync data backup and virtual machine applicationsDelivering enterprise performance at SMB prices, the TS-h886 features an Intel® Xeon® D processor and DDR4 ECC (Error Correcting Code) memory (expandable to 128 GB) with dependable reliability. With the ZFS-based QuTS hero operating system, the TS-h886 ensures data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, and real-time SnapSync. The TS-h886 helps your business achieve reliable service-level agreement performance in various use cases, including mission-critical file servers, virtualization servers, collaborative video editing, or efficient data backup and recovery applications.Powerful Intel® Xeon® D processor with up to 128 GB DDR4 ECC memoryThe TS-h886 uses an Intel® Xeon® D-1600 series processor and DDR4 ECC memory that can detect and correct single-bit memory errors as they occur to prevent downtime and data loss. Supporting up to 128 GB RAM to cope with higher workloads, the TS-h886 provides a high-performance and reliable NAS solution for demanding business IT environments.Set SSD caching to boost IOPS with M.2 NVMe SSDWhile SSD prices continue to fall, and SSD capacity and performance continue to increase, organizations can easily take advantage of SSD strengths. The TS-h886 comes with two 2.5-inch SSD drive bays and two M.2 NVMe Gen3 x4 SSD slots that allow you to flexibly configure SSD caching to increase IOPS performance and reduce storage volume latency. This is especially perfect for databases and virtual machine applications. Without occupying any 3.5-inch drive bays, the TS-h886 allows you to maximize both your storage capacity and performance. Quad-port 2.5GbE meets today’s high-bandwidth demandsFeaturing four native 2.5GbE RJ45 LAN ports (backwards compatible with 1G/100M), the TS-h886 allows you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The support of Port Trunking and failover further satisfies bandwidth and reliability demanding applications including virtualization, large file transfers, high-speed backup/restoration, and any real-time application. QNAP also offers numerous options of managed and unmanaged 10GbE/2.5GbE switches, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.Verified as Veeam Ready ObjectQuObjects is verified Veeam® Ready, ensuring both compatibility and reliability for achieving efficient backup and recovery with Veeam Backup & Replication.ZFS-based QuTS hero operating system enhances NAS performance and data integrityQuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.Data integrity is keyQuTS hero’s self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.Data reduction improves storage efficiency and performanceInline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.Multi-level cache technologyMain memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.RAID Z enables robust data protectionMultiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.QSAL (QNAP SSD Antiwear Leveling) enhances data protectionRAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.App Center ecosystem extends NAS functionalityApps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h886.Inline data deduplication, compression, and compaction drives big data storage efficiencyQuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h886 optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era.Real-time SnapSync ensures minimal RPO with real-time disaster recoveryReal-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.Snapshots multiply backup protectionAttain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.HBS simplifies 3-2-1 backup plansHBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h886 to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.All-in-one virtual machine and container hosting solutionYou can count on Virtualization Station and Container Station for comprehensive virtualization support. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.Virtualization StationRun multiple Windows®, Linux®, UNIX®, and Android™ virtual machines and access them via a web browser or Virtual Network Computing (VNC). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.Container StationExperience LXC and Docker® lightweight virtualization technologies, download apps from the built-in Docker Hub Registry®, import and export containers, and create abundant microservices.Single Root I/O Virtualization (SR-IOV)By installing an SR-IOV compatible PCIe SmartNIC in the TS-h886, you can allocate bandwidth resources from a physical network card directly to VMs. With traffic bypassing the Hypervisor vSwitch, it helps enhance I/O throughout and network efficiency, ensuring reliable VM applications and reduced CPU overheads.PCIe expansion for upgrading 10GbE transmission or enabling GPGPU computingThe TS-h886 features two PCIe Gen 3 x8 slots (each slot provides up to 64 Gb/s bandwidth) and supports installing expansion cards to enable additional functions and greater application potential.Move business data to the cloud and enjoy low latency access to cloud-based dataThe TS-h886 perfectly integrates NAS with mainstream cloud services. By deploying cloud storage gateways and enabling local caching on the TS-h886 using M.2 SSD slots (M.2 SSDs purchased separately), organizations can seamlessly use the cloud for storage, backup, and data recovery with low-latency access. This greatly helps in realizing cost-effective, flexible and secure hybrid cloud applications.HybridMount file-based cloud gatewayFlexibly expand storage capacity by connecting to cloud storage. You can leverage QuTS hero apps to manage and edit your cloud files or multimedia files. HybridMount is ideal for file server online collaboration and file-level data analysis.VJBOD Cloud block-based cloud gatewayVJBOD Cloud supports streamlined NAS backup to object cloud storage. The block-based data transmission uploads random data and large files to the cloud in blocks, and only transmits block-based volume or LUN changes (such as addition, modification, or deletion). This is ideal for enterprise-level applications with large file transfer requirements, such as databases, VM volumes, and videos.Switch operating systems to upgrade current storageThe TS-h886 can also switch to using QTS - QNAP’s standard NAS operating system. This allows you to migrate drives from your current QTS-based NAS to the more powerful TS-h886 to upgrade your storage infrastructure.
LongProductName - Intel Xeon D-1602, 8 GB UDIMM DDR4 ECC, 5GB Flash, 6 x 3.5" SATA, 2 x 2.5" SATA, 2 x M.2, RJ-45, USB 3.2 Gen 1, 8.5 kg
LongSummaryDescription - QNAP TS-h886. Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA II, Serial ATA III, Storage drive sizes supported: 2.5,3.5". Processor family: Intel® Xeon® D, Processor manufacturer: Intel, Processor model: D-1602. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 128 GB. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Supported network protocols: IPv4, IPv6. Chassis type: Tower, Cooling type: Active, Product colour: Black
Management, monitoring, configuration -
Max. number of disks - 8
Max memory size - 128 GB
Memory - ECC - Yes
Memory - Flash memory - 5000 MB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 128 GB
Memory - Memory form factor - UDIMM
Memory - Memory slots - 4
Memory type - DDR4
name - Server NAS TS-h886-D1602-8G 0xHDD Intel Xeon D-1602 8GB
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Network - iSCSI support - Yes
Network - Jumbo frames support - Yes
Network - Supported network protocols - IPv4, IPv6
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 4 x 10/100/1000/2500 Mbit/s
Network protocols -
Number of available memory slots - 2
Number of fans - 3
Number of HDDs installed - 0
Number of memory slots used - 2
Operational conditions - Operating relative humidity (H-H) - -20 - 70%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - 5 - 95 °C
Other disk parameters -
Other features -
Other features - Fibre Channel - Yes
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Drive tray key included - Yes
Packaging content - Number of screws - 36
Packaging content - Power cables quantity - 1
Packaging content - Quick installation guide - Yes
Performance - Access Control List (ACL) - Yes
Performance - Backup features - USB drive, iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Device class - Home & Home Office
Performance - Disk scan - Yes
Performance - Hot spare - Yes
Performance - Multilingual support - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - 256-bit AES, FIPS 140-2
Performance - Share folder - Thick, Thin
Performance - Snapshot - Yes
Performance - System log - Yes
Performance - Type - NAS
Performance - USB copy function - Yes
Ports & interfaces - Concurrent connections - 10000
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - PCI Express x8 (Gen 3.x) slots - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 3
Ports & interfaces - USB port - Yes
Power - AC input voltage - 100 - 240 V
Power - Power consumption (typical) - 75.79 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 250 W
Power supply - PSU: 250W PSU, 100-240
Processor - 2-core/4-thread Intel Xeon D-1602 processor up to 3.2 GHz
Processor - CPU configuration (max) - 1
Processor - Processor boost frequency - 3.2 GHz
Processor - Processor cores - 4
Processor - Processor family - Intel® Xeon® D
Processor - Processor manufacturer - Intel
Processor - Processor model - D-1602
Processor - Processor threads - 8
Processor special features - Embedded options available - No
Processor special features - Enhanced Intel SpeedStep Technology - Yes
Processor special features - Execute Disable Bit - Yes
Processor special features - Idle States - Yes
Processor special features - Intel 64 - Yes
Processor special features - Intel QuickAssist Technology - No
Processor special features - Intel Trusted Execution Technology - Yes
Processor special features - Intel TSX-NI - Yes
Processor special features - Intel Virtualization Technology (VT-x) - Yes
Processor special features - Intel Virtualization Technology for Directed I/O (VT-d) - Yes
Processor special features - Intel VT-x with Extended Page Tables (EPT) - Yes
producer - QNAP
ProductName - TS-h886
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RAID levels - 50 (5+0)
RAID levels - 60 (6+0)
ShortSummaryDescription - QNAP TS-h886, NAS, Tower, Intel® Xeon® D, D-1602, Black
Software - Linux operating systems supported - CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04
Software - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Software - Operating system installed - QuTS hero
Software - Operating system version - h4.5.1
Software - Other operating systems supported - IBM AIX 7.1, IBM AIX 7.2, Solaris 10
Software - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Software - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Stck_Kart - 0
Stck_Pal - 0
Storage - Disk roaming - Yes
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives supported - 8
Storage - Online RAID expansion - Yes
Storage - RAID levels - 0, 1, 5, 6, 10, 50, 60
Storage - RAID rebuild - Yes
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5,3.5"
Storage - Supported file systems - FAT32, HFS+, NTFS, ZFS, ext3, ext4
Storage - Supported storage drive interfaces - Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Storno - Y
Title - QNAP TS-h886 NAS Tower Ethernet LAN Black D-1602
Total number of memory slots - 4
URL - https://www.qnap.com/en/product/ts-h886
vendpn - TS-h886-D1602-8G
WarrantyInfo - 3 Years
Weight - 8.5 kg
Weight & dimensions - Depth - 319.8 mm
Weight & dimensions - Height - 231.9 mm
Weight & dimensions - Package weight - 10.1 kg
Weight & dimensions - Weight - 8.5 kg
Weight & dimensions - Width - 292.9 mm
