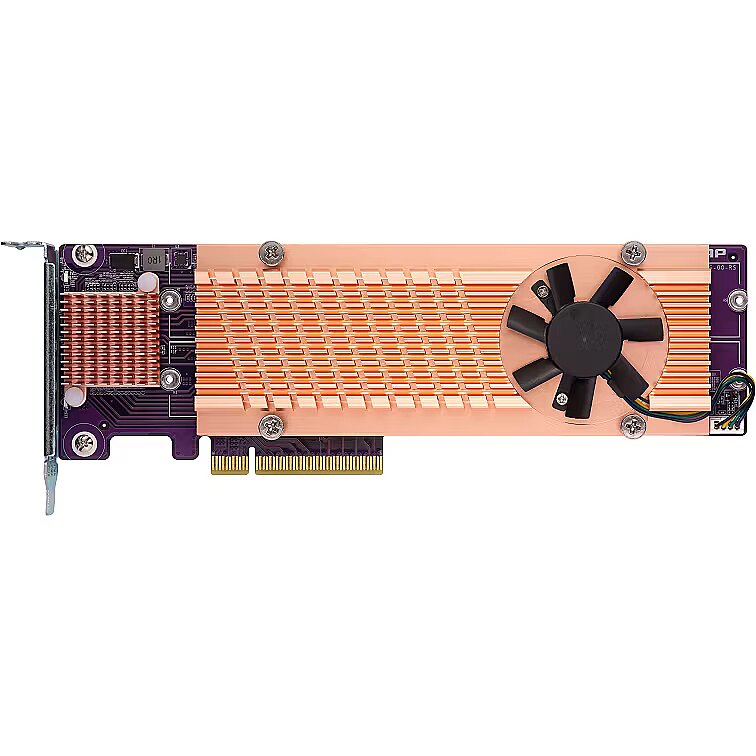

Qnap QM2-4P-384 Quad M.2 2280 PCIe NVMe SSD expansion card

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 698307 Product code: QM2-4P-384
Can be ordered 6 units Availability: 14 days after order approval
Warranty: 2 years
199.71 €
Delivery options More about shipping
  • Delivery to Omniva parcel machine free of charge: 05.08.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 05.08.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 05.08.2024
  • Delivery to address in Riga 3.99 €: 05.08.2024
  • Delivery to address in Latvia 6.99 €: 05.08.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 01.08.2024 after 15:00
Main product parameters All parameters
  • HDD included: Nav
  • Maximum number of drives: 4
All parameters
CPU core clock : N/A
CPU cores : N/A
eSATA ports : Not
Form factor : Expansion Enclosure
HDD included : Nav
Hot-Swap support : No
Maximum number of drives : 4
RJ45 (LAN) ports : Not
USB2.0 ports : Not
USB3.0 ports : Not
NAS hard drive #1
NAS hard drive #2
NAS hard drive #3
NAS cietais disks #4
More detailed specification
Accessories included -
Brand - QNAP
BrandPartCode - QM2-4P-384
Category - Interface Cards/Adapters
Category - Root/Electronics/Networks and communication/NAS - file servers
Category Code - NIC
Chipset type -
Controller type - SSD
Description - Quad M.2 2280 PCIe NVMe SSD expansion card Connector: 4 x M.2 2280 PCIe (Gen3 x 4) NVMe SSD slots PCIe and Lanes: PCIe Gen3 x 8 Bracket: Low-profile (default). Low-profile flat and Full-height brackets are also included. Dimensions (L x W x H): 204.95 x 68.9 x 20.6 mm; 8.07 x 2.71 x 0.81 inch.
Description - The QM2 Series PCle cards provide additional support for M.2 NVMe SSDs on a QNAP NAS, allowing users to configure an SSD cache, cache pool or Qtier volume to improve overall NAS performance. The QM2 series enhances performance with additional M.2 SSDs. These cards do not occupy 3.5-inch drive bays, maximising both storage capacity and performance. M.2 SSDs can be installed to create a cache pool or auto-tiering volume. Ability to enable SSD cache for increased performance and optimise storage performance with Qtier technology. M.2 SSD thermal sensors allow real-time monitoring of M.2 SSD temperature. Quiet cooling module (heatsink and intelligent fan) minimises the risk of overheating and maintains consistently high performance. LED indicators to monitor the status of the M.2 SSD. The PCIe QM2 expansion card makes it easy to add M.2 NVMe SSDs to your PC/workstation. Compared to the SATA interface, the PCIe QM2 interface provides a higher data transfer rate, which contributes to higher computing and data access speeds. No additional drivers are required to use the QM2 expansion card. SSD M.2 thermal sensors enable real-time temperature monitoring of M.2 SSD drives. Quiet cooling module (heatsink and intelligent fan) minimises the risk of overheating ensuring consistent high performance. LED indicators to monitor the status of the M.2 SSD drive.
Design - Cooling type - Active
Design - Internal - Yes
Design - Number of fans - 1 fan(s)
dimension depth - 50 mm
dimension height - 120 mm
Dimensions - 204,95 × 68,9 × 20,6 mm
dimension weight - 325 g
dimension width - 250 mm
EAN - 4713213512944
ean - 4713213513491
Eans - 4713213513491
Gross Weight Kg - 0,3
GTIN - 0885022015429
GTIN - 885022015429
GTIN - 4713213512944
GTIN - 4713213513491
guarantee - 24
guarantee_type - normal
Interface - PCIe
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The PCIe QM2 expansion card allows you to easily add M.2 SSDs to your PC/workstation. Compared with the SATA interface, the QM2's PCIe interface provides higher bandwidth to deliver faster computing speed and data access. No extra drivers are required to use this QM2 expansion card.Enhanced performance for demanding applicationsThe QM2 expansion card allows for adding M.2 SSDs to increase the storage capacity of your Windows/Linux PC/workstation, while also boosting overall IOPS performance by offloading bandwidth-demanding tasks to the SSD to minimize application loading times. It is ideal for resource-demanding applications, such as inline video-editing, gaming and more.Tackle performance bottlenecksQM2 boosts performance by adding M.2 SSDs. It doesn’t occupy any 3.5-inch drive bays, allowing you to maximize both your storage capacity and performance.
LongProductName - QM2 Expansion Card, PCIe 3.0 x8, 4x M.2 2280 PCIe 3.0 x4 NVMe SSD
LongSummaryDescription - QNAP QM2-4P-384. Host interface: PCIe, Output interface: PCIe, Expansion card standard: PCIe 3.0. Cooling type: Active, Number of fans: 1 fan(s). Width: 68.9 mm, Depth: 204.9 mm, Height: 20.6 mm
Manufacturer Code - QM2-4P-384
Manufacturer Name - QNAP
name - QM2-4P-384 Quad M.2PCIe SSD expansion card M.2
Name - QNAP karta rozszerzeń QM2-4P-384
Other features -
Packaging data - Quantity - 1
Ports - 4 x M.2 PCIe
Ports & interfaces - Expansion card standard - PCIe 3.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Number of M.2 (M) slots - 4
Ports & interfaces - Output interface - PCIe
producer - QNAP
Producer - Qnap
ProducerCode - QM2-4P-384
ProductName - QM2-4P-384
Shipping Box Depth Shipping/Package Box Dimensions - 26.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 5.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.32 kg
Shipping Box Width Shipping/Package Box Dimensions - 12 cm
ShortDescription -
Short description - QNAP Quad M.2 PCIe SSD Erweiterung PCIe Gen3 x8 QM2-4P-384
ShortSummaryDescription - QNAP QM2-4P-384, PCIe, PCIe, PCIe 3.0, Active, 1 fan(s), 68.9 mm
System Requirements - The BIOS and operating system must support NVMe PCIe SSDs
Title - QNAP QM2-4P-384 interface cards/adapter Internal PCIe
Unit Box Height - 0.055
Unit Box Length - 0.265
Unit Box Width - 0.12
Unit Brutto Volume - 0.001749 cubm
Unit Gross Weight - 0.32 kg
Unit Net Weight - 0.28 kg
URL - https://www.qnap.com/en/product/qm2-m.2ssd_pc
Vendor Homepage - www.qnap.com/en/product/qm2-m.2ssd
vendpn - QM2-4P-384
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Depth - 204.9 mm
Weight & dimensions - Height - 20.6 mm
Weight & dimensions - Width - 68.9 mm
