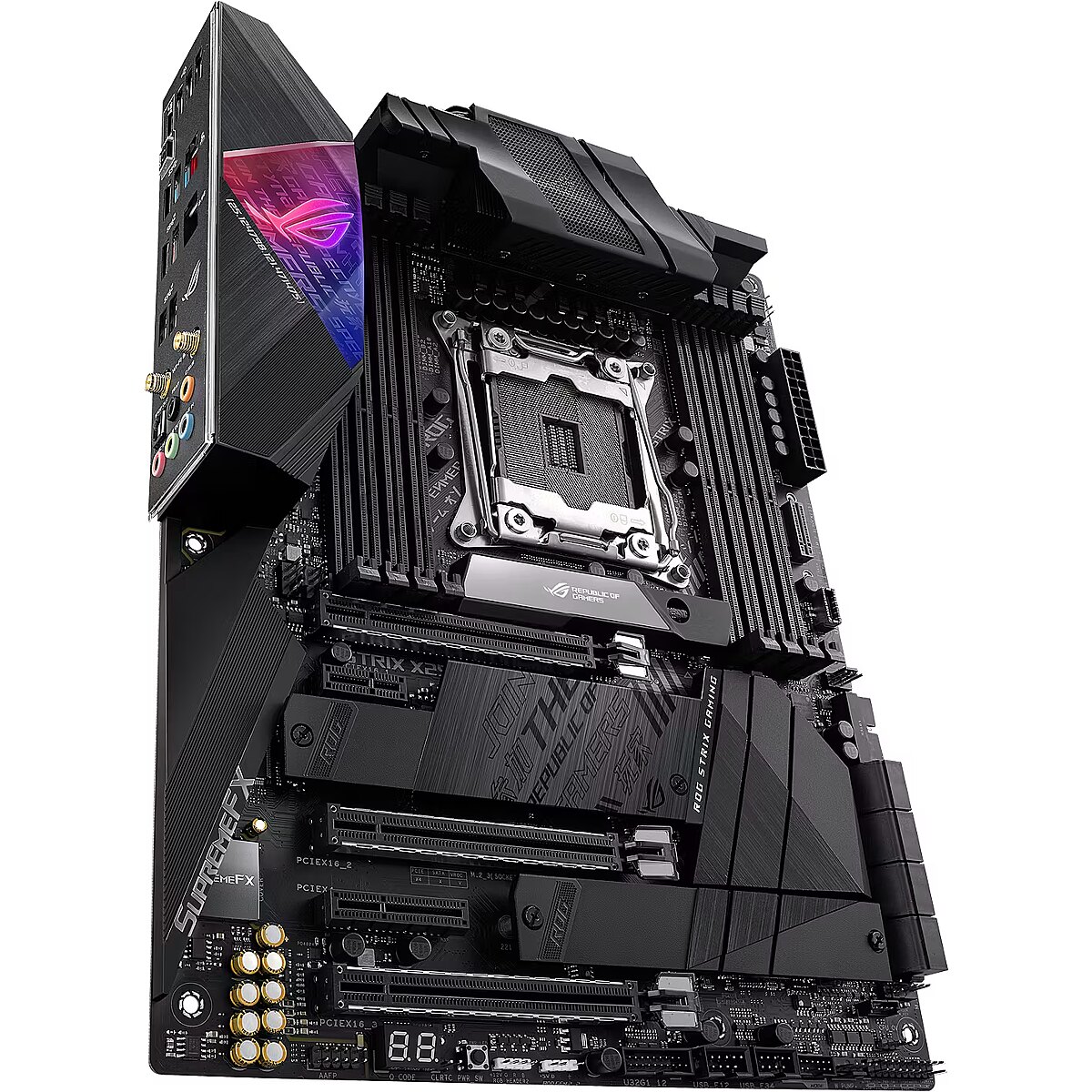

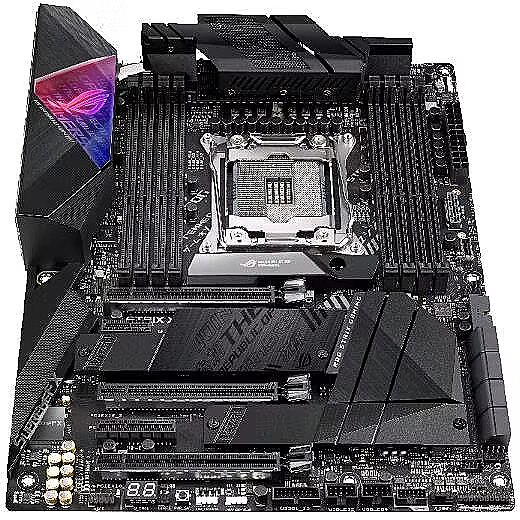

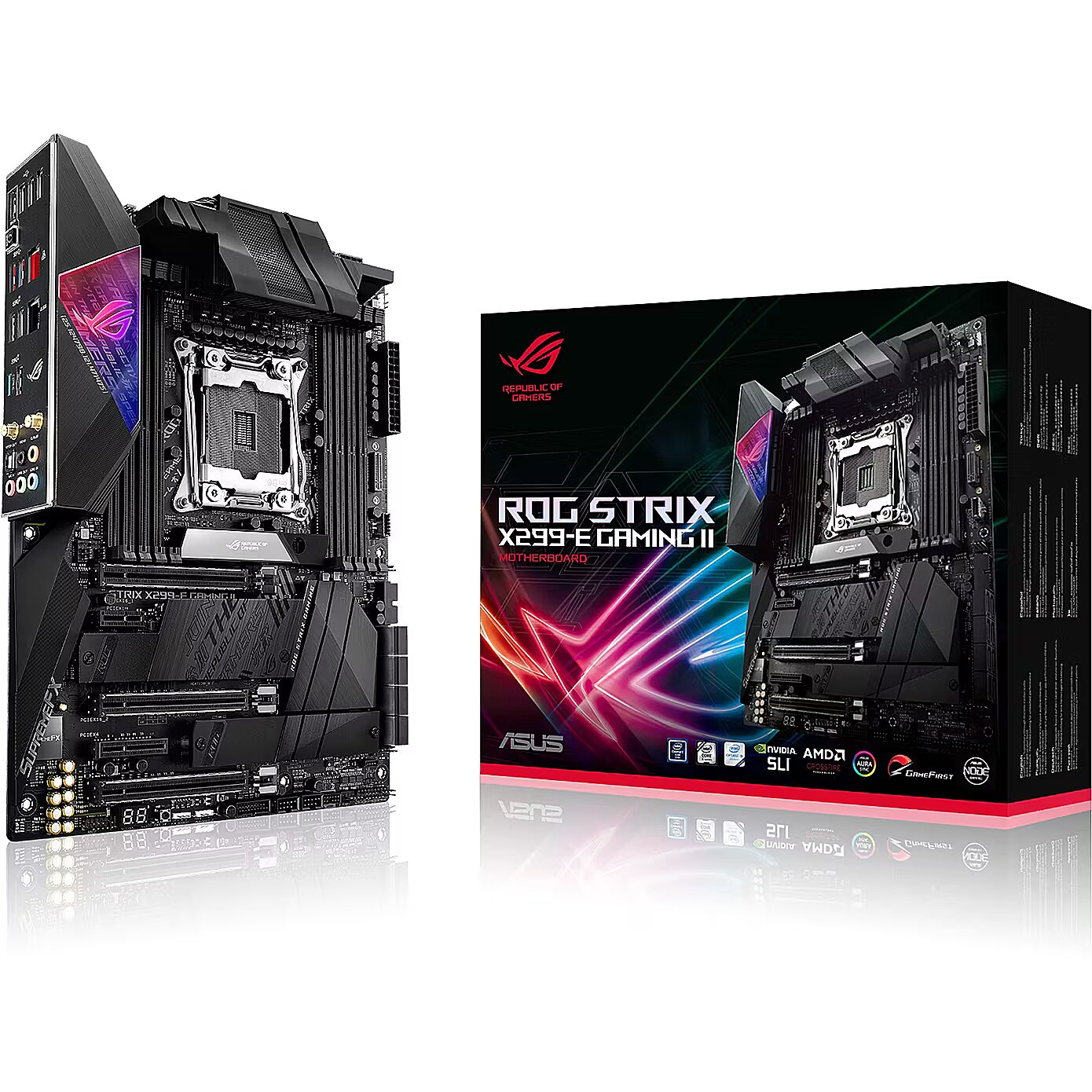

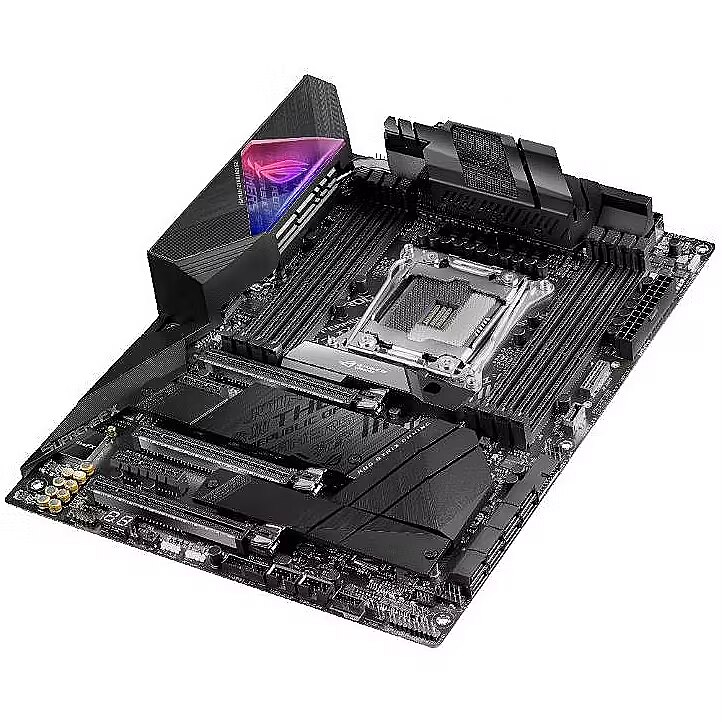

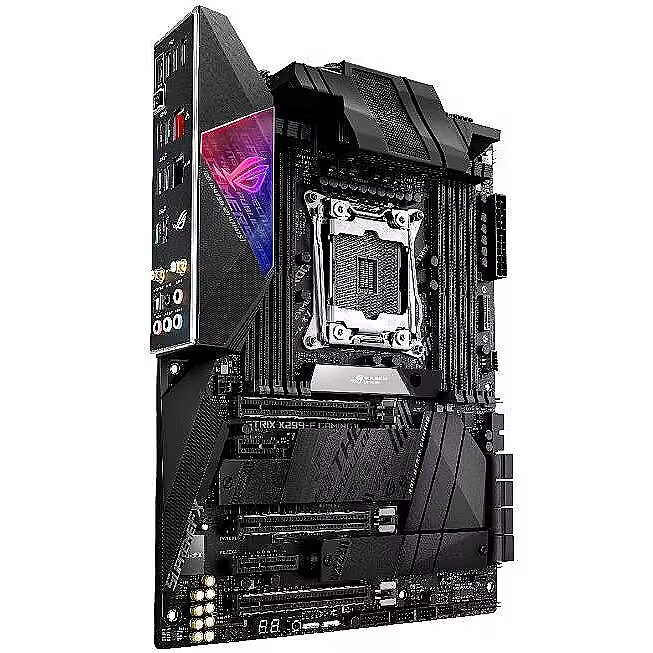

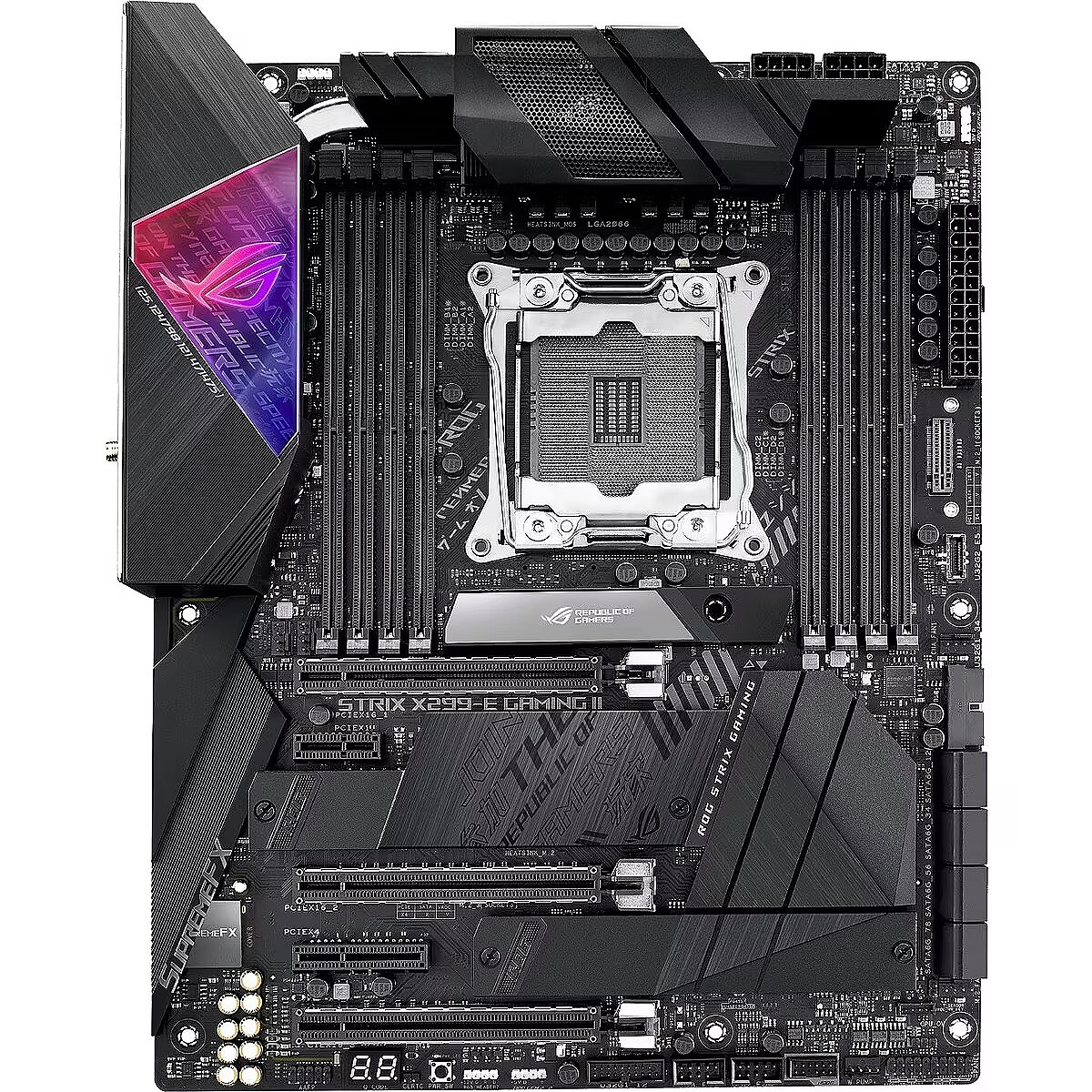

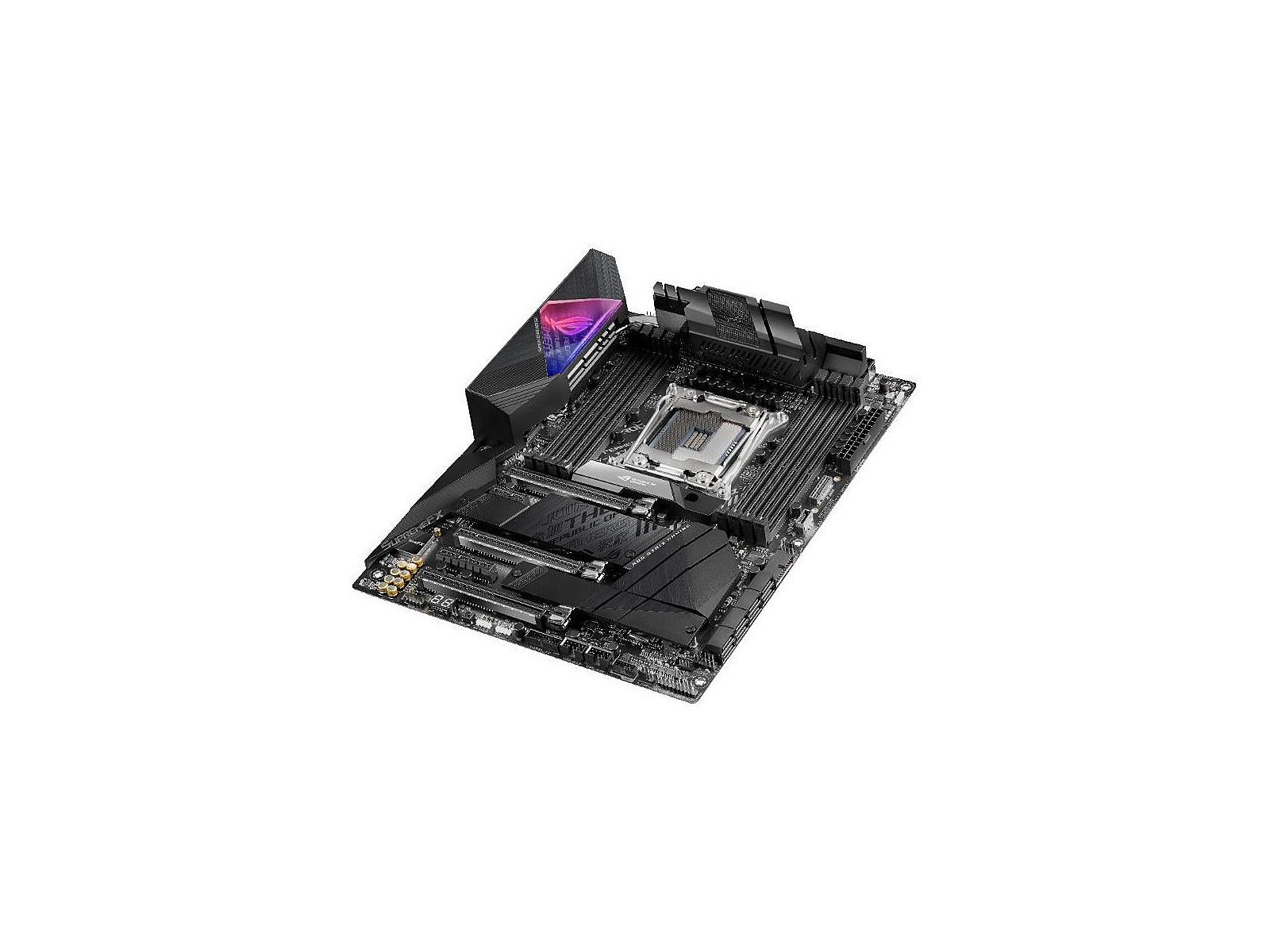

Asus ROG STRIX X299-E GAMING II

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 471757 Product code: ROG STRIX X299-E GAMING II
Can be ordered 18 units Availability: 14 days after order approval
Warranty: 3 years
429.55 €
Delivery options More about shipping
  • Delivery to Omniva parcel machine free of charge: 16.04.2024
  • Piegāde uz DPD Pickup Paku Skapi free of charge: 16.04.2024
  • Delivery to Latvian post office, parcel locker or Circle K free of charge: 16.04.2024
  • Delivery to address in Riga 3.99 €: 16.04.2024
  • Delivery to address in Latvia 6.99 €: 16.04.2024
  • Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 12.04.2024 after 15:00
Main product parameters All parameters
  • Series: ASUS ROG Strix
  • CPU Socket: LGA 2066
  • Chipset: Intel X299
  • Form factor: ATX
  • Type: DDR4
  • RAM Slots: Eight Core
  • Built-in Wi-Fi: Ir
Basic information
Series : ASUS ROG Strix
CPU Socket LGA 2066
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset Intel X299

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)
Type : DDR4
RAM Slots Eight Core
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR4 2933 (OC 4266)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
Video card port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Nav

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
PCI ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub : 0
DVI : 0
HDMI : 0
DisplayPort : 0
Integrated sound card : SupremeFX
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB Type-C : 1
External USB 2.0 : 4
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 4
Internal ports
Internal A-RGB 5V (3-pin) : 0
Internal RGB 12V (4-pin) : 2
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 0
M.2 Port : 3
SATA3 ports : Eight Core
More detailed specification
BIOS - ACPI version - 6.2
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - System Management BIOS (SMBIOS) version - 3.2
Brand - ASUS
BrandPartCode - 90MB11A0-M0EAY0
category - Mainboards Intel Mainboards
Category - Motherboards
code - 90MB11A0-M0EAY0
CPU socket - 2066
dimensionalWeight - 1780
ean - 4718017473231
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 16
Fan connectors (4-Pin PWM) - 6x
Features - Audio chip - SupremeFX S1220A
Features - Audio output channels - 8.0 channels
Features - Component for - PC
Features - Cooling type - Active
Features - Motherboard chipset - Intel® X299
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Number of mounting holes - 9
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 x64
Graphics - Parallel processing technology support - 2-Way CrossFireX
Graphics - Parallel processing technology support - 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI
Graphics - Parallel processing technology support - 2-Way SLI
Graphics - Parallel processing technology support - 3-Way CrossFireX
Graphics - Parallel processing technology support - 3-Way SLI
GTIN - 4718017473231
Internal I/O - 12V power connector - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of EATX power connectors - 1
Internal I/O - Number of SATA III connectors - 8
Internal I/O - RGB LED pin header - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
LED compatibility - ASUS Aura Sync
LED connectors - 2x Digital RGB (3-Pin 5V/12VDG), 2x RGB (4-Pin 5050 12VGRB)
Lighting - yes
Lighting colour - RGB (selectable)
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - SOLID HARDWARE SPECSWith comprehensive cooling options and upgraded power delivery to fuel CPUs with more cores, plus faster storage and memory, ROG Strix X299-E Gaming II provides all the essentials you need to harness the full potential of components in your build for top-tier gaming performance.GAMING ENHANCEMENTROG Strix X299-E Gaming II is engineered with the latest connectivity for the best gaming experiences. Transfer files faster and banish lag as you secure more victories.DDR4 OC 4266MHz+The X299 platform delivers ample bandwidth on multiple fronts. Its quad-channel memory controller supports up to 256 GB of DDR4 memory across eight slots. With optimized trace layout, the ROG Strix X299-E Gaming II can hit memory speeds up to DDR4 4266 MHz or beyond.Three PCIe 3.0 M.2ROG Strix X299-E Gaming II features three M.2 slots. One slot supports both SATA and PCIe 3.0 x4 modes, and the other slots support PCIe 3.0 x4 for NVMe. Together, they give you the fastest and most-flexible M.2 interface available.VROCTake advantage of the Intel® Virtual RAID on CPU (VROC) feature* by connecting two M.2 drives in RAID configurations. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated, so your storage won't be held back by other traffic.NEXT-GEN CONNECTIVITYROG Strix X299-E Gaming II amps up networking with 2.5G Ethernet and next-gen Intel® Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.Wi-Fi 6 (802.11 ax)The latest 802.11ax standard delivers high efficiency wireless connectivity for better gaming enjoyment. As well as providing better network pings in multi-user environments, 802.11ax also greatly improves throughput and coverage over earlier standards.2.5G Ethernet2.5G on-board Ethernet kicks your Ethernet connection up a notch with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.Intel Gigabit EthernetROG Strix X299-E Gaming II features Intel Ethernet (I219-V), ensuring data exchanges with your network and the outside world are fast and smooth. Intel Ethernet reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.SUPREMEFXShielded Audio, Superior SoundImmerse yourself in sound with SupremeFX audio technology. Utilizing the S1220A codec, SupremeFX is the integrated-audio solution that's engineered to provide a flat frequency response for a neutral, detailed sound signature. And to ensure that pristine signature is perfectly preserved, the front-panel output is driven with dual op amps, delivering sonics with the scale and authority to create virtual worlds via your gaming headset.Audio coverEffective shielding against electromagnetic interference preserves the integrity of audio signals for the best sound quality.Audio-line shieldingBlocks electromagnetic interference from the motherboard or add-ons to provide cleaner audio.Dual OP amplifiersWith two op-amps onboard you're able to pump exceptional audio to your favorite cans, with 32-600Ω-headphone impedance for great flexibility.Premium Nichicon™ audio capacitorsFine-quality Japanese-made components that produce a warmer, natural sound with exceptional clarity and fidelity.DESIGN & CUSTOMIZATIONA host of design touches, including a unique cyber-text pattern, plus customization options, comprehensive validation lists, and the most diverse ecosystem of components in the industry make building and personalizing a gaming rig with ROG Strix X299-E Gaming II wonderfully easy.STRIKING NEW DESIGNROG Strix X299-E Gaming II strikes an arresting pose, with or without RGB. The I/O shroud sports a laser-engraved ROG logo that lends understated style. But this is topped with an acrylic plate imprinted with ROG's signature cybertext patterns, so switching on the lights illuminates a whole new aesthetic dimension – unique style with a cyberpunk edge.OUTSHINE THE COMPETITIONROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header — and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware.CERTIFIED COMPATIBILITYHaving the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. That's why ROG Strix undergoes an extensive certification program focused on providing the very best compatibility with the widest range of components and devices. Our extensive list of guaranteed-compatible components is an invaluable aid to building a ROG Strix gaming rig. It specifies thousands of compatible parts, and it includes a dedicated Qualified Vendor List (QVL) for memory — so you can build fuss-free.ASUS NODE CONNECTOR​ASUS Node is a proprietary bi-directional interface that allow ASUS motherboards to communicate with other system components, opening up a wealth of new.​THE ROG STRIX ECOSYSTEM AWAITSGear up with ROG Strix components, from graphics and sound cards, to mice and keyboards, and up your game with complementary aesthetics, control and compatibility — and enjoy more choice than any competing brand.TUNE YOUR RIG YOU WANTThe ROG Strix X299-E Gaming II motherboard features firmware controls and software utilities designed for all skill levels, making setup, tuning and system maintenance simple. With options from overclocking and cooling to managing network performance and audio characteristics, you can configure your ROG Strix gaming build to perform the way you want.THE POWER OF INTEL Intel® X299 chipset.The Intel X299 chipset supports LGA 2066-socket Intel® Core™ X-series processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.2 Gen 1 ports, 8 SATA 6 Gbps ports and up to 32 Gbps M.2 support for faster data retrieval.Intel Core X Series processors for LGA 2066 (R4) socketIntel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCIe 3.0/2.0 lanes.
LongProductName - ATX, Intel X299, LGA 2066, Wi-Fi 6, 2.5 Gbps LAN, USB 3.2 Gen 2, SATA, M.2, OLED and Aura Sync RGB lighting
LongSummaryDescription - ASUS ROG Strix X299-E Gaming II. Processor manufacturer: Intel, Processor socket: LGA 2066 (Socket R4), Compatible processor series: Intel® Core™ X-series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 3.0, SATA, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way CrossFireX, 2-Way SLI, 3-Way CrossFireX, 3-Way SLI. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-CG, Wi-Fi standards: Wi-Fi 6 (802.11ax)
M.2 (PCIe 3.0 x4 / SATA 6G) - 1x
M.2 (PCIe 3.0 x4) - 2x
max. Memory - 256 GB
Memory - Maximum internal memory - 256 GB
Memory - Memory channels - Quad-channel
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 8
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266 MHz
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2800
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3000
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3300
Memory - Supported memory clock speeds - 3333
Memory - Supported memory clock speeds - 3400
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3800
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4266
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory slots - 8x
Memory type - DDR4
Motherboard Chipset - Intel X299
Motherboard form factor - ATX
name - ASUS ROG Strix X299-E Gaming II, Intel X299 Mainboard - Sockel 2066
Network - Bluetooth - Yes
Network - Bluetooth version - 5.0
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125-CG
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Other features - HDD size - 2.5/3.5"
Other features - PCI Express x4 (Gen 3.x) slots - 1
Other features - Utilities included - Yes
Packaging content - Drivers included - Yes
PCIe (3.0) x1 - 1x
PCIe (3.0) x4 (mechanical) - 1x
PCIe (3.0) x16 (mechanical) - 3x
Primary colour - black
Processor - Compatible processor series - Intel® Core™ X-series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 2066 (Socket R4)
Processor - Supported processor sockets - LGA 2066
producerCode - 90MB11A0-M0EAY0
productName - ASUS ROG Strix X299-E Gaming II Intel® X299 LGA 2066 (Socket R4) ATX
ProductName - ROG Strix X299-E Gaming II
productSize - Normal

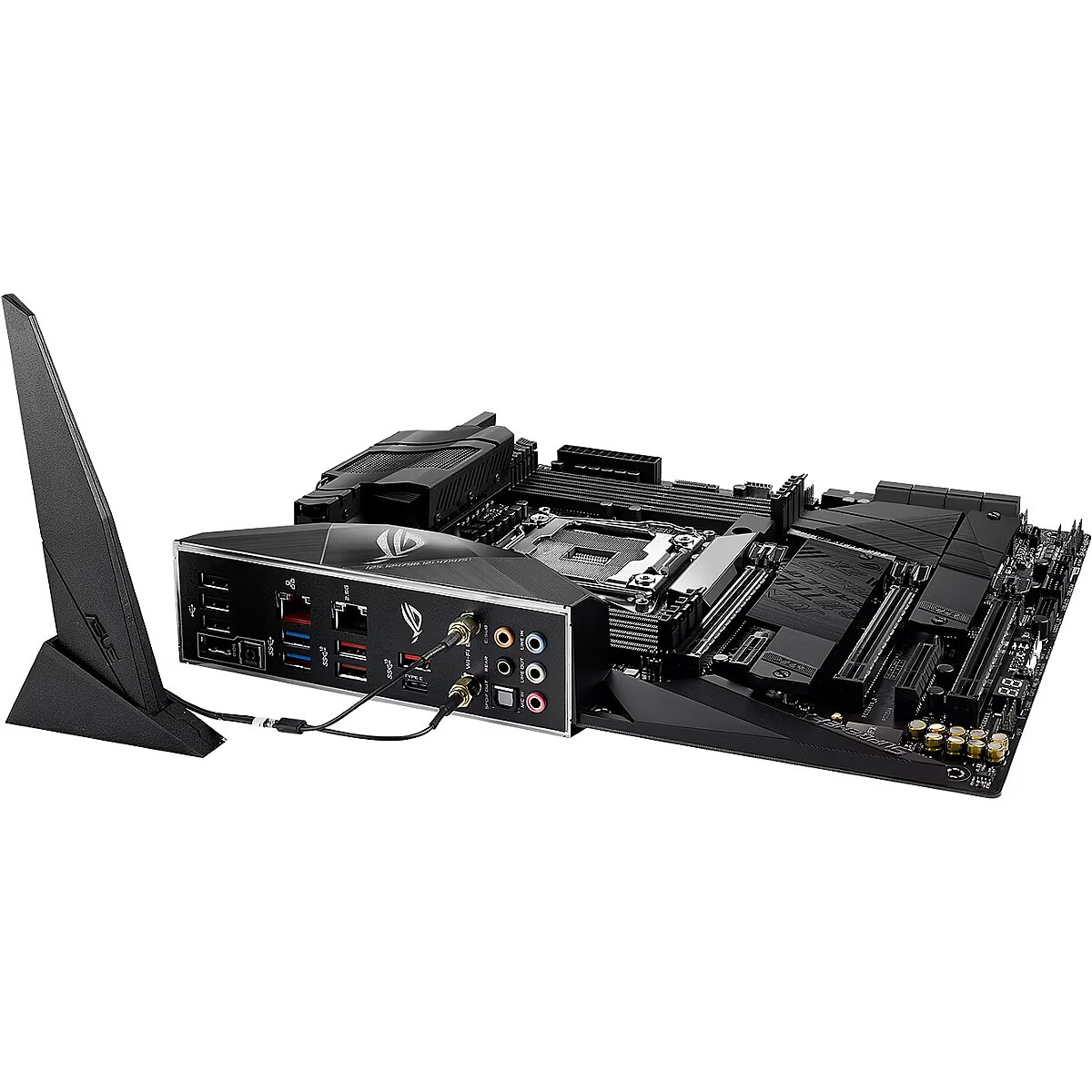

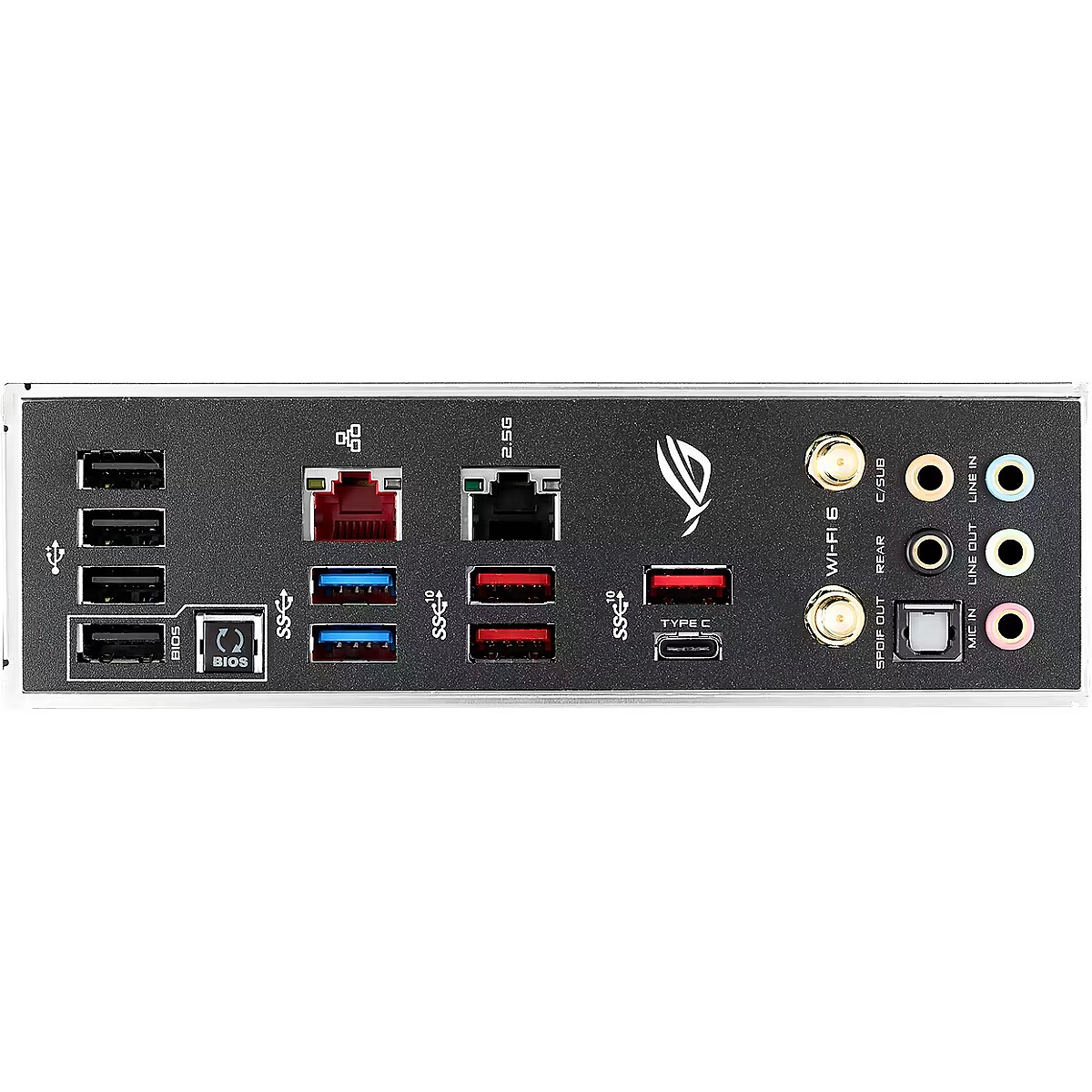

Rear panel I/O ports - Digital audio optical out - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ-45 (LAN) Ports - 1x 1 Gbit/s, 1x 2,5 Gbit/s
SATA 6G internal - 8x
Secondary colour - silver, white
ShortSummaryDescription - ASUS ROG Strix X299-E Gaming II, Intel, LGA 2066 (Socket R4), Intel® Core™ X-series, LGA 2066, DDR4-SDRAM, 256 GB
sizeX - 85
sizeY - 355
sizeZ - 295
Storage controllers - Number of HDDs supported - 8
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - Supported storage drive interfaces - PCI Express 3.0, SATA
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS ROG Strix X299-E Gaming II Intel® X299 LGA 2066 (Socket R4) ATX
URL - https://www.asus.com/Motherboards/ROG-Strix-X299-E-Gaming-II/overview/
USB 3.0 external - 2x
USB 3.1 external (Type A) - 3x
USB 3.1 external (Type C) - 1x
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 2000
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
Wifi & Bluetooth - yes
