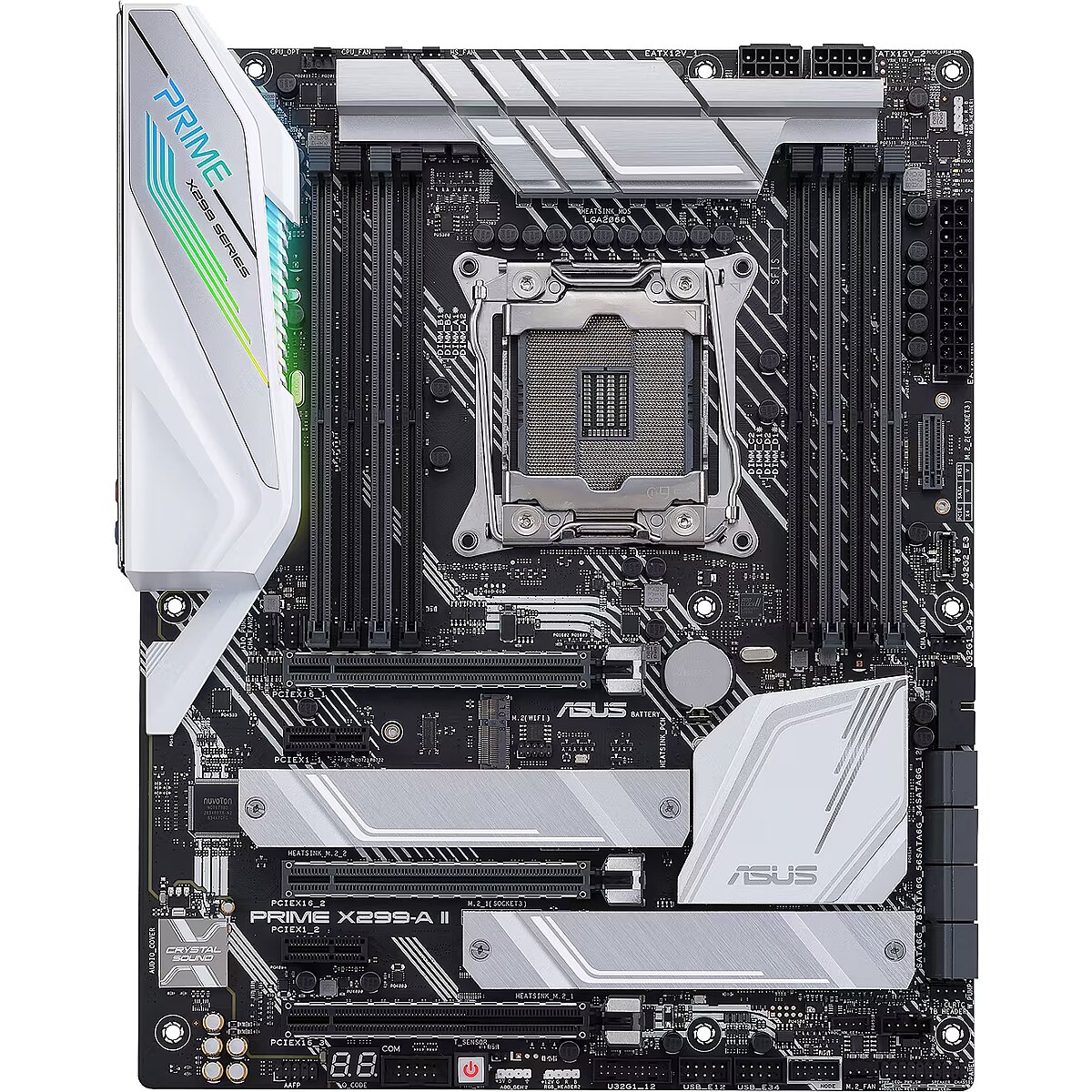

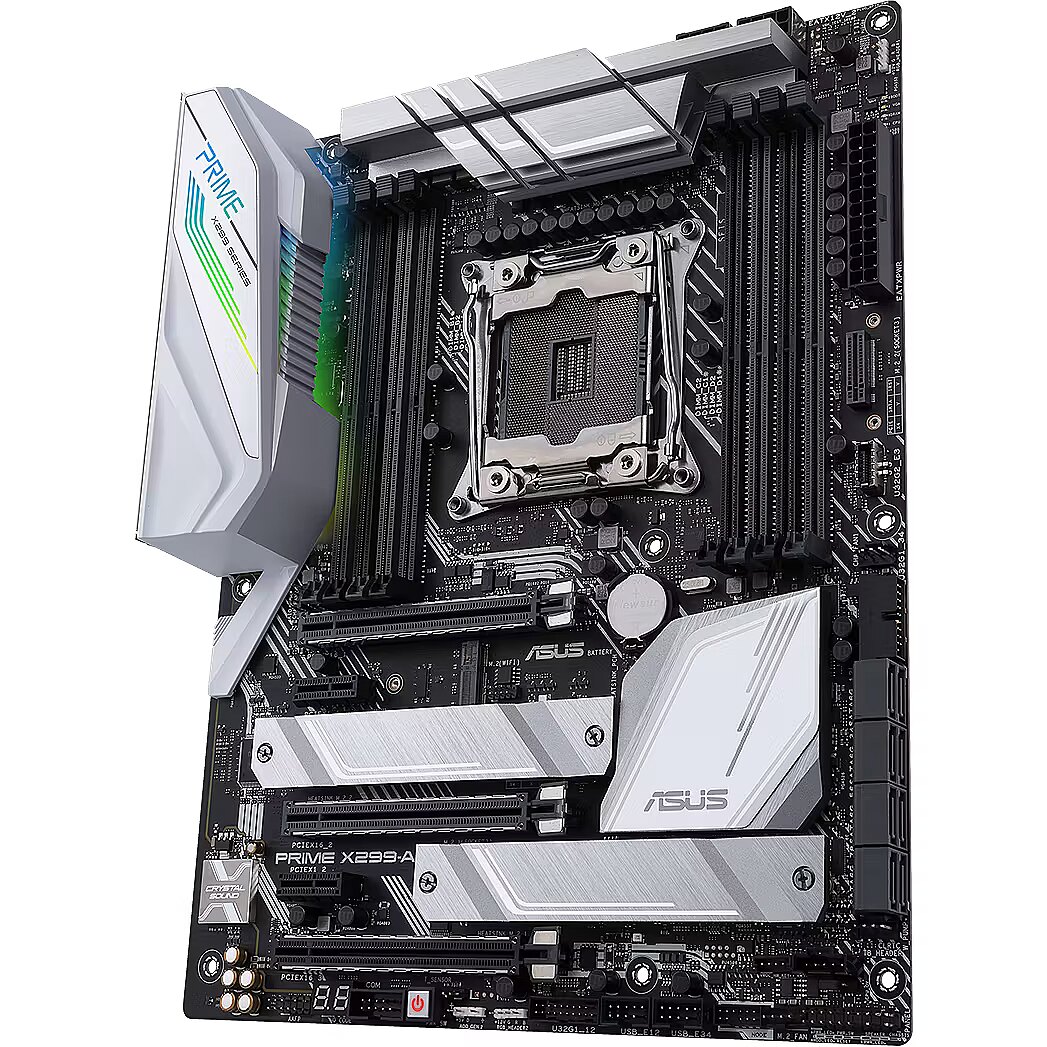

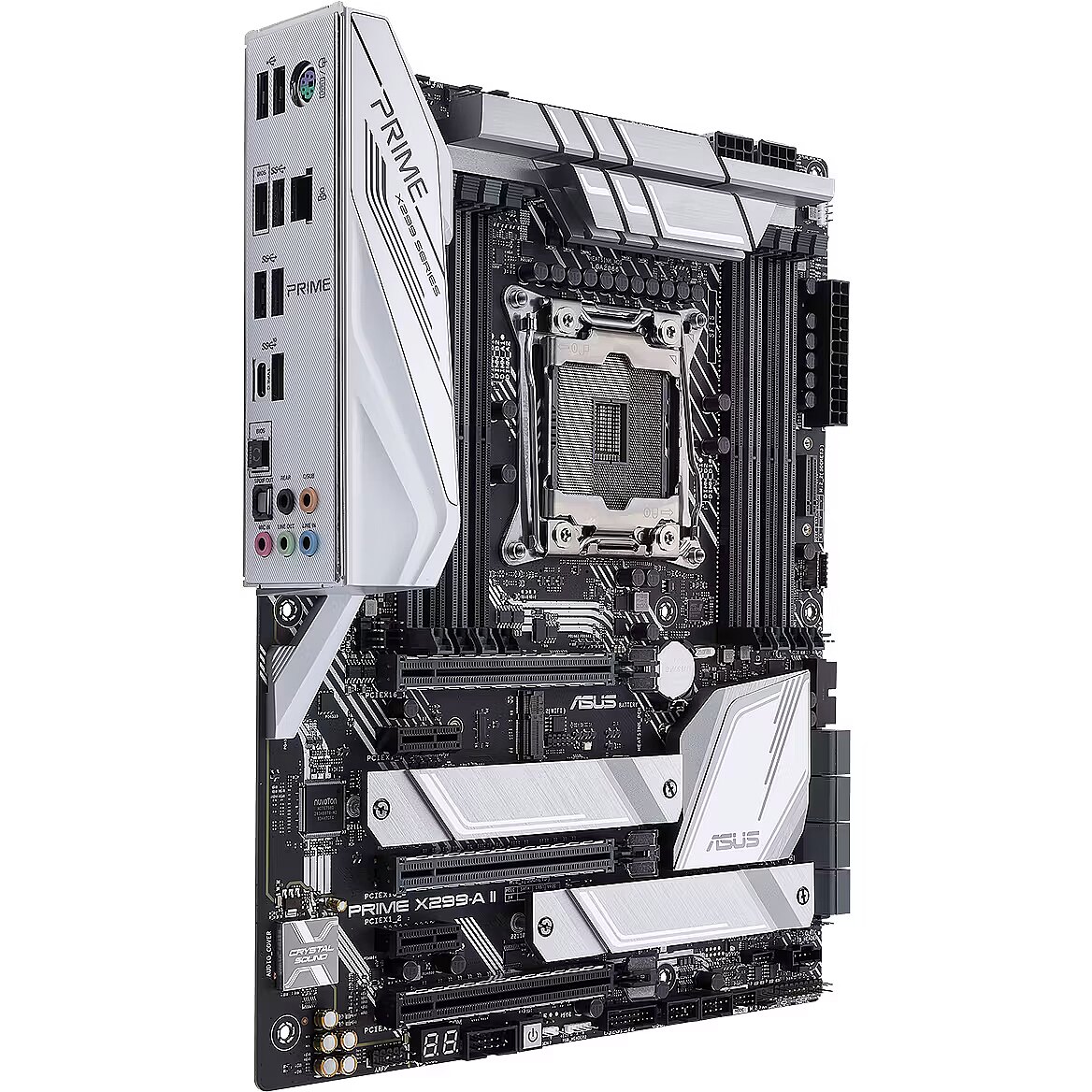

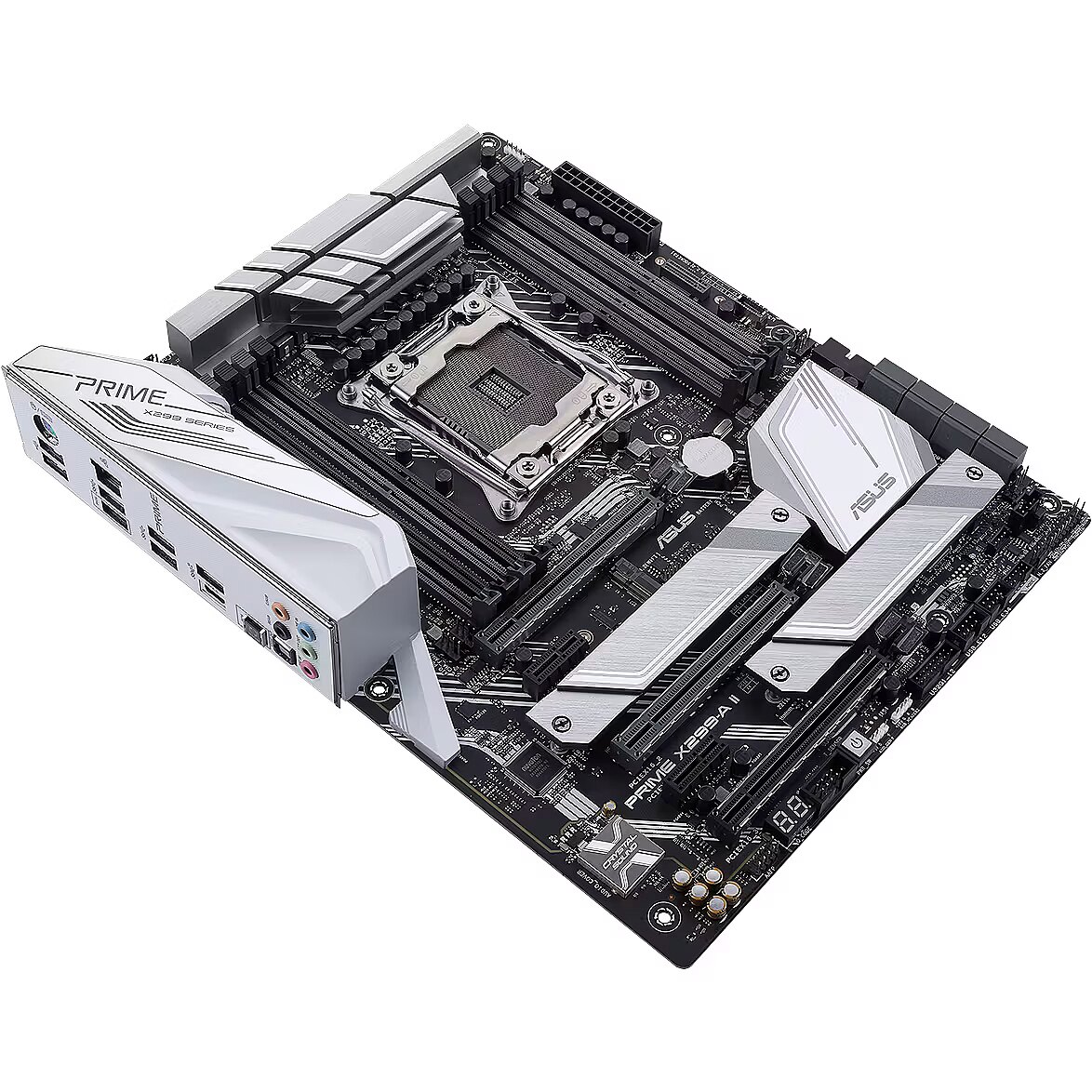

Asus PRIME X299-A II

Name: Asus PRIME X299-A II
Brand: Asus
SKU: 352686
Price: 422.37 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 352686 Product code: PRIME X299-A II

Can be ordered 35 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options More about shipping

Delivery to Omniva parcel machine free of charge: 08.05.2024
Piegāde uz DPD Pickup Paku Skapi free of charge: 08.05.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 08.05.2024
Delivery to address in Riga 3.99 €: 08.05.2024
Delivery to address in Latvia 6.99 €: 08.05.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 03.05.2024 after 15:00

Main product parameters All parameters

Series: ASUS Prime
CPU Socket: LGA 2066
Chipset: Intel X299
Form factor: ATX
Type: DDR4
RAM Slots: Eight Core
Built-in Wi-Fi: Nav

Basic information

Series : ASUS Prime

CPU Socket LGA 2066

The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.

Chipset Intel X299

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.

Form factor ATX

The physical size of the motherboard. Dateks.lv offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Random-access memory (RAM)

Type : DDR4

RAM Slots Eight Core

The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.

Memory support DDR4 2666 (OC 4266)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card

Video card port PCI-EXPRESS

VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.

Integrated graphics Nav

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment

PCI ports 0

PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.

D-Sub : 0

DVI : 0

HDMI : 0

DisplayPort : 0

Integrated sound card : Realtek ALC S1200A

Wireless connections

Built-in Bluetooth : Nav

Built-in Wi-Fi : Nav

External ports

External USB Type-C : 1

External USB 2.0 : 2

External USB 3.0 (USB 3.2 Gen1) : 4

External USB 3.1 (USB 3.2 Gen2) : 2

Internal ports

Internal A-RGB 5V (3-pin) : 2

Internal RGB 12V (4-pin) : 1

Internal USB 2.0 : 2

Internal USB 3.0 : 1

Internal USB Type-C : 1

M.2 Port : 3

SATA3 ports : Eight Core

More detailed specification

Additional information in manufacturers website Asus PRIME X299-A II

BIOS - ACPI version - 6.1
BIOS - BIOS memory size - 128 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - System Management BIOS (SMBIOS) version - 3.1
Brand - ASUS
BrandPartCode - 90MB11F0-M0EAY0
category - Mainboards Intel Mainboards
Category - Motherboards
Category - Root/Electronics/PC parts/Motherboards
Category_1 - Motherboards
Category_2 - Motherboards - Intel 2066
code - 90MB11F0-M0EAY0
ean - 4718017488594
EAN - 4718017488594
Eans - 4718017488594
EAN_code - 4718017488594
Expansion slots - Number of M.2 (M) slots - 3
Expansion slots - PCI Express x1 (Gen 3.x) slots - 2
Expansion slots - PCI Express x16 (Gen 3.x) slots - 3
Features - Audio chip - Realtek ALC S1220A
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel® X299
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - ATX
Features - Power source type - ATX
Features - Windows operating systems supported - Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64
Graphics - Parallel processing technology support - 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI
Gross Weight Kg - 2,07
GTIN - 4718017488594
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of COM connectors - 1
Internal I/O - Number of EATX power connectors - 2
Internal I/O - Number of SATA III connectors - 8
Internal I/O - Thunderbolt headers - 1
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The Prime X299-A II caters to users with serious pursuits: Those who prefer to put their high-core-count processors to more productive use. This high-end desktop board combines cutting-edge performance with our signature features, including an enhanced VRM tailored for running the CPU performance at stock speeds, intuitive cooling control, next-gen connectivity, and extensive customization.Get the most out of all your coresIntel®'s high-end desktop platform raises the stakes with updated Intel Core™ X-Series Processors that boast cores, cache, and bandwidth. The Prime X299-A II is ready for the additional processing power that plows through CPU-intensive tasks, and the extra bandwidth allows you to add more GPUs and NVMe SSDs to accelerate a wide range of work.Robust Power DesignThe LGA 2066 socket is compatible with Intel Core X-Series Processors with up to 18 cores, over 44 PCI Express® lanes, and 165-watt thermal design power (TDP). Those specs require serious power, so the Prime X299-A II is equipped with an enhanced power solution that includes 12 power stages that line up neatly along the top edge of the PCB.Multi-GPU supportFully loaded takes on a new meaning when you have over 44 PCI Express lanes stemming from the CPU. Those lanes can be split in an x16/x16/x8 configuration spanning the board's trio of PCIe x16 slots, allowing you to load up on GPUs to accelerate an increasingly diverse array of work.Achieve speed with onboard M.2Professional applications require fast solid-state storage, which is why the Prime X299-A II is equipped with three M.2 slots that are compatible with the latest NVMe SSDs. All slots support longer 110 mm drives, and they can be configured into bootable RAID arrays connected directly to the CPU via Intel VROC technology.VROCUpgrade your RAIDUse onboard M.2 slots and ASUS Hyper M.2 x16 Card V2* to take advantage of Intel's Virtual RAID on CPU (VROC)** by connecting the three M.2 drives in RAID configurations. With VROC, your RAID arrays are easily configured to be bootable, and traditional DMI bottlenecks are eliminated so that your storage is not held back by other traffic.USB 3.2 Gen 2 front-panel connectorFuture-proof connectivityPlenty of USB ports are provided to support high-end rigs loaded with peripherals, including a front-panel header with faster USB 3.2 Gen 2 connectivity for compatible cases.Intel EthernetMore throughput, less CPU usage and great gaming experiencesThe latest Intel I219-V Ethernet has the advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput for faster, smoother data transfer.Cool to the coreEffective cooling is extremely important, even at stock speeds. That is why the Prime X299-A II allows consolidated cooling control of the entire system, even for the most hardcore rigs. It comes equipped with onboard heatsinks, an array of fan headers, and options for water pump or AIO headers.M.2 HeatsinksTwo M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads.BackplateA reinforced backplate improves the stability of the board, and the included thermal pad efficiently directs heat away from the VRM and other components.Cooler by designPrime X299-A II features the most comprehensive cooling controls ever, configurable via FanXpert 4 or the UEFI BIOS.Each header can dynamically reference three thermal sensors, and via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.Tune it your wayComprehensive controls form the foundation of the ASUS Prime series. The Prime X299-A II packs flexible tools to tune every aspect of your system to deliver the performance that you desire.AI OverclockingASUS AI Overclocking makes automatic tuning faster and smarter than ever before. Available in Windows or directly through the UEFI, it profiles the CPU and cooling to predict the optimal configuration for each individual system.5-way OptimizationOne click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.- An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.- Fans stay quiet as a whisper for everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.- All-new stress test that allows users to optimize and overclock for CPU or memory-centric workloads.UEFI BIOSThe renowned UEFI BIOS provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.Advanced tuning for serious tweakerWhen you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.PredictionAI Overclocking monitors system vitals such as temperature, fan speed, and power draw to estimate overclocking performance.AI Overclocking GuideThe AI Overclocking Guide allows you to enable AI Overclocking or to view a quick guide.Search FunctionQuickly and easily find the option or setting that you're looking for.ASUS User ProfilePort configuration settings between different BIOS versions or share them with friends.Breeze setup with easeDesigned to simplify setup, EZ mode presents all the vital settings and stats on one single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.AI OverclockingEnable AI Overclocking intelligence via shortcutIntuitive Graphical Fan ControlFine-tune individual fans simply by dragging a curve with the mouse.EZ XMPImprove DRAM performance with one click.Aura On/Off mode (Stealth)Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.Little things make a big differenceWe pay careful attention to all the little details that improve your overall experience, from integrating a flashing utility directly into the UEFI to simplifying firmware updates or displaying your system vital signs. Prime X299-A II provides the tools you need to personalize your build and stay on top of things.Pre-mounted I/O ShieldSet up without slip-upsForm meets function in the pre-mounted I/O shield that we pioneered with the ROG series. Now available on Prime X299-A II, this feature streamlines the installation process for budding builders and savvy enthusiasts alike.FlexKeyA multi-purpose buttonThe FlexKey maps the rarely used Reset button on the front-panel of your chassis to a different function. Instead of leaving the button set to a dated function, you can reassign it to change performance profiles, boot directly into the UEFI, toggle Aura Sync lighting, and much more.BIOS FlashBack™Update your BIOS without CPU and DRAMThe Prime X299-A II supports USB BIOS FlashBack™, which can perform low-level firmware updates using only a power supply and a USB stick with the required file.ASUS NodeA header to keep aheadASUS Node is a proprietary bi-directional interface that allows ASUS motherboards to communicate with other system components, opening up a wealth of new options for system builders.Intel Optane memory readyIntel Optane™ is a revolutionary non-volatile memory technology supported by Prime X299-A II. Intel Optane memory modules accelerate attached storage to reduce boot and load times, so everything feels faster and more responsive.Intel X299 chipsetThe Intel X299 chipset supports LGA 2066-socket Intel Core X-Series Processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, X299 provides a maximum 10 USB 3.2 Gen 1 ports, 8 SATA 6 Gbps ports and up to 32 Gbps M.2 support for faster data retrieval.Intel® Core™ X-series processors for LGA 2066 socketIntel Core X-series processors (6-core and above): 4-channel (8-DIMM), over 44 PCI Express 3.0/2.0 lanes.
LongProductName - Socket 2066, Intel X299 Chipset, 8 x DIMM DDR4, 8 x SATA, 3 x M.2, Gigabit LAN, Realtek S1220A, ATX
LongSummaryDescription - ASUS Prime X299-A II. Processor manufacturer: Intel, Processor socket: LGA 2066 (Socket R4), Compatible processor series: Intel® Core™ X-series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way SLI, 3-Way CrossFireX, 3-Way SLI, Quad-GPU CrossFireX, Quad-GPU SLI. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® I219-V
Manufacturer - Asus
Manufacturer Code - 90MB11F0-M0EAY0
Manufacturer Name - Asustek
Manufacturer_code - 90MB11F0-M0EAY0
Memory - Maximum internal memory - 256 GB
Memory - Memory slots type - DIMM
Memory - Non-ECC - Yes
Memory - Number of memory slots - 8
Memory - Supported memory clock speeds - 2133,2400,2666,2800,2933,3000,3200,3300,3333,3400,3466,3600,3733,3800,3866,4000,4133,4266 MHz
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Name - ASUS PRIME X299-A II
name - ASUS Prime X299-A II, Intel X299 Mainboard - Sockel 2066
Name - ASUS PRIME X299-A II - Socket 2066 - mainboard
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Intel® I219-V
Network - Wi-Fi - No
Other features - HDD size - 2.5/3.5"
Other features - Processor lithography - 14 nm
Other features - Utilities included - Yes
Packaging content - Drivers included - Yes
Processor - Compatible processor series - Intel® Core™ X-series
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 2066 (Socket R4)
Processor - Supported processor sockets - LGA 2066
Processor special features - Intel Extreme Memory Profile (XMP) - Yes
Processor special features - Intel® Optane™ Memory Ready - Yes
Producer - Asus
ProducerCode - PRIME X299-A II
ProductName - Prime X299-A II
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 2
Short description - ASUS PRIME X299-A II S2066 3xM.2/Type-C/ATX
ShortDescription - Socket 2066 | Chipset Intel X299 | DDR4 |
ShortSummaryDescription - ASUS Prime X299-A II, Intel, LGA 2066 (Socket R4), Intel® Core™ X-series, LGA 2066, DDR4-SDRAM, 256 GB
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS Prime X299-A II Intel® X299 LGA 2066 (Socket R4) ATX
URL - https://www.asus.com/Motherboards/Prime-X299-A-II/specifications/
WarrantyInfo -
Weight - 2,10
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 305 mm
