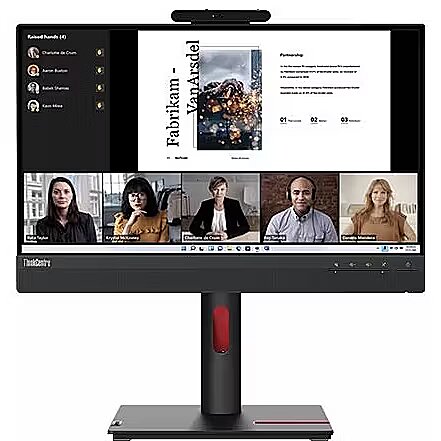

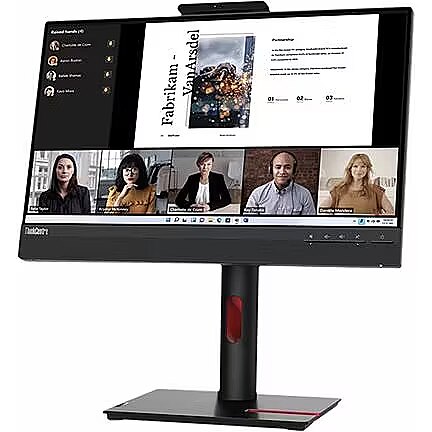

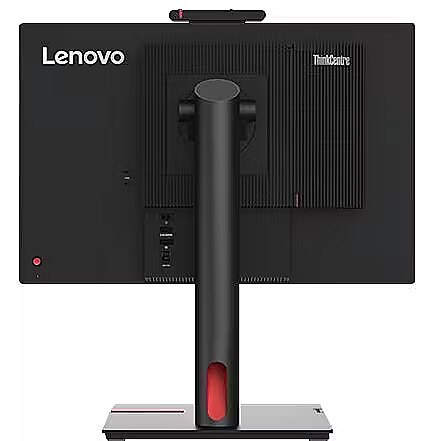

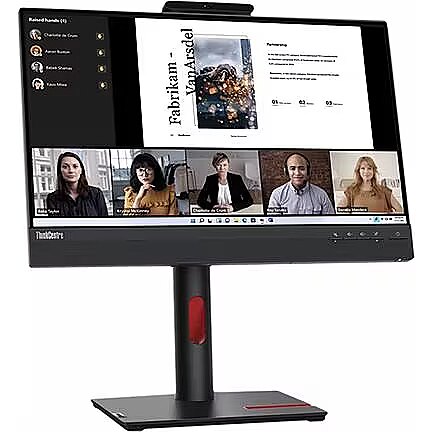

Lenovo ThinkCentre Tiny-in-One, 21.5"

Name: Lenovo ThinkCentre Tiny-in-One, 21.5"
Brand: Lenovo
SKU: 1198982
Price: 275.81 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1198982 Product code: 12N8GAT1EU

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 60 Hz
Response time: 6ms
Contrast ratio: 1000:1
Brightness: 250cd/m2
Size: 21.5"
Resolution: FHD 1920x1080

Similar Products


	This product Lenovo ThinkCentre Tiny-in-One, 21.5"	Lenovo T22I-30, 21.5"	Lenovo Legion Y32p-30, 31.5"	MSI MAG 27CQ6F, 27"	AOC 24B36X, 23.8"
Show similar specs. Hide similar specs.	275.81 €	119.00 €	499.00 €	237.59 €	104.24 €
Model		ThinkVision T22i-30	Legion Y32p-30	MAG 27CQ6F	24B36X
Display characteristics
AMD FreeSync	Nav	Nav	Ir	Nav	Nav
Curved	Nav	Nav	Nav	Ir	Nav
NVIDIA G-SYNC	Nav	Nav	Compatible	Nav	Nav
Panel Type	IPS	IPS	IPS	VA	IPS
Refresh rate	60 Hz	60 Hz	144 Hz	180 Hz	144 Hz
Touchscreen	NO	NO	NO	NO	NO
VESA DisplayHDR	Nav	Nav	Nav	Nav	Nav
Response time	6ms	6ms	2ms	0.5ms	0.5ms
Contrast ratio	1000:1	1000:1	1000:1	5000:1	1500:1
Brightness	250cd/m2	250cd/m2	350cd/m2	300cd/m2	300cd/m2
Basic information
Application	Home & Office	Home & Office	Gaming	Gaming	Gaming
Aspect ratio	16:9	16:9	16:9	16:9	16:9
Color	Black	Black	Black	Black	Black
Size	21.5"	21.5"	31.5"	27"	23.8"
Resolution	FHD 1920x1080	FHD 1920x1080	4K UHD 3840x2160	WQHD 2560x1440	FHD 1920x1080
Functionality
Flicker-free	Ir	Ir	Ir	Ir	Ir
Height adjustment	Ir	Ir	Ir	Nav	Nav
Pivot	Ir	Ir	Nav	Nav	Nav
Swivel	And	And	And	And	None
Tilt	YES	YES	YES	YES	YES
VESA wall mount	100x100 mm	100x100 mm	100x100 mm	100x100 mm	100x100 mm
Ports and equipment
D-SUB	Nav	1	Nav	Nav	Nav
DisplayPort	1	1	1	1	1
DVI	Nav	Nav	Nav	Nav	Nav
HDMI port	1	1	2	2	1
Speakers	Ir	Nav	Ir	Nav	Nav
USB Hub	YES	YES	YES	NO	NO
USB-C Power Delivery	Nav	Nav	75W	Nav	Nav
USB-C video input	0	0	1	0	0

Description

This Lenovo ThinkCentre Tiny-in-One, 21.5" monitor with FHD 1920x1080 resolution is suitable for comfortable work with documents, web content, and multimedia. It provides natural image reproduction, comfortable viewing, and stable performance, satisfying user needs for a universal work screen.

The IPS technology provides a stable image, thanks to wide viewing angles and consistent color reproduction across the entire screen area. Unlike TN and VA panels, IPS maintains accurate colors even when the viewing position is changed, reducing distortions and increasing reliability for precise visual work.

The Flicker-Free technology reduces or completely eliminates flickering in lighting, ensuring a stable and uniform image. The reduced visual vibration lessens eye strain and improves comfort during prolonged use, especially when using the monitor at a lower brightness level.

The Pivot technology allows the screen to be rotated into vertical orientation, ensuring more efficient use of workspace when working with text, documents, or long lists. This design improves readability, reduces the need for scrolling, and enhances convenience.

The Swivel technology allows the monitor to be rotated left and right around the vertical axis, ensuring precise screen positioning in relation to the user. Such a design improves the viewing angle, reduces neck strain, and makes the workspace more comfortable for collaboration or material demonstration.

Tilt mechanism allows to change the screen's vertical angle without moving the whole construction. Such adjustment improves workplace ergonomics, ensures stable image quality and helps to adapt the monitor to the user's individual preferences or specific tasks.

The built-in speakers provide direct sound playback, eliminating the need for external audio devices. This simplifies the setup of the work system and saves space. The speakers are suitable for everyday needs, including online meetings, training, and video viewing, providing adequate sound level.

The monitor comes with a 1 year warranty

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 6ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.dateks.lv recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām Dateks.lv iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black

Size 21.5"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Ir

Swivel : And

Tilt : YES

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website Lenovo ThinkCentre Tiny-in-One, 21.5"

ARTIKEL1 - TIO 22 G5 21.5 FHD IPS 16:9
ARTIKEL2 - 250CD/M L/T/P/S CAM
Brand - Lenovo
BrandPartCode - 12N8GAT1EU
Category - Computer Monitors
Design - Product colour - Black
Display - Anti-glare screen - Yes
Display - Backlight type - W-LED
Display - Colour depth - 8 bit
Display - Colour gamut - 99%
Display - Colour gamut standard - sRGB
Display - Contrast ratio (dynamic) - 3000000:1
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 54.6 cm (21.5")
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - LED backlight - Yes
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Panel type - IPS
Display - Pixel density - 102 ppi
Display - Pixel pitch - 0.248 x 0.248 mm
Display - Response time - 6 ms
Display - Response time (fast) - 4 ms
Display - Screen shape - Flat
Display - sRGB coverage (typical) - 99%
Display - Touchscreen - No
Display - Viewable size, horizontal - 47.6 cm
Display - Viewable size, vertical - 26.8 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 0196804375465
Ergonomics - Adjustable height (max) - 15.5 cm
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - Yes
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Pivot - Yes
Ergonomics - Pivot angle - -5 - 90°
Ergonomics - Swivel angle range - -45 - 45°
Ergonomics - Swivelling - Yes
Ergonomics - Tilt angle range - -5 - 23.5°
Ergonomics - VESA mounting - Yes
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 0196804375465
GTIN - 196804375465
HERSTELLER - LENOVO
HSTNUMMER - 12N8GAT1EU
LongDesc - One machine to connect you with the world.Multitask with multiple devices.The ThinkCentre Tiny-In-One (TIO) 22 Gen 5 is an all-rounder with its 21.5-inch FHD In-Plane Switching panel which provides an immersive video calling experience. This Modular design of the monitor makes it compatible with Lenovo’s range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen, and gives a complete working experience when paired with its VoIP features. This can be installed on your monitor effortlessly and housed on the back of the monitor in a dedicated slot, making your desk cable-free. The classic installation mechanism ensures you have a consistent experience, allowing you to easily and quickly mount last-gen Tiny PCs on the monitor. Designed to be a powerful VoIP machine, this monitor is enhanced with features that make video conferencing a great experience. During online meetings, the 1080p RGB webcam and integrated noise-cancellation microphone produce exceptionally clear audio and video. TIO 22 Gen 5 also has a Smart Traffic Light indicator that alerts everyone in the vicinity to an ongoing meeting, letting you remain focused. If remaining focused and staying in the conversation is of importance to you, then the two built-in 3W speakers ensure that the audio from meetings is always clear and crisp. Easily manage VoIP calls with one toggle to change the volume or mute the call using the dedicated VoIP buttons. Your privacy is in your hands with theThinkShutter, which allows you to cover the camera when not in its use. Lenovo takes care of the environment with green packaging and optional CO2 offset service for zero to minimal carbon emission. In addition to Tiny PCs, this monitor can also be easily connected to other notebooks, towers using the HDMI and DP ports, and to other peripherals using the USB ports. With the ThinkColour software1, customize the screen’s attributes, create screen profiles, and easily switch between them as per your work preference. Protects your eyes from harmful blue light without any color distortion during longhours of screen time with the Natural Low Blue Light technology. The TIO 22 Gen 5 is the perfect option if you’re looking for a clean and clutter-free setup to maximize productivity and enjoy an efficient, all-in-one experience.
LongProductName - 54.6cm (21.5") Full HD 1920 x 1080 W-LED IPS, 16:9, 250cd/m², 16.7M, 6ms, 178°/178°, 1000:1
LongSummaryDescription - Lenovo ThinkCentre Tiny-In-One 22 Gen 5. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 6 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Multimedia - Built-in camera - Yes
Multimedia - Built-in microphone - Yes
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 6 W
Other features - Certification - EU Energy Label (D-class)
ENERGY STAR® Certified
EPEAT™ Gold Registered
TCO Certified 9.0
TCO edge 2.0
Volatile Organic Compound Certification
RoHS compliant
Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort
Other features - Compatible operating systems - Windows 10, Windows 11
Other features - Warranty period - 3 year(s)
Packaging content - Cables included - AC
Packaging content - Power adapter included - Yes
Packaging content - Power cable length - 1 m
Packaging content - Quick start guide - Yes
Packaging content - Stand included - Yes
Packaging data - Package depth - 176 mm
Packaging data - Package height - 422 mm
Packaging data - Package weight - 8.1 kg
Packaging data - Package width - 568 mm
Performance - AMD FreeSync - No
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.4
Ports & interfaces - Number of upstream ports - 1
Ports & interfaces - Number of USB Type-B upstream ports quantity - 1
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Type-A downstream ports quantity - 1
Ports & interfaces - USB upstream port type - USB Type-B
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 33 W
Power - Power consumption (off) - 0.5 W
Power - Power consumption (standby) - 0.3 W
Power - Power consumption (typical) - 13.4 W
Power - Power supply type - External
ProductName - ThinkCentre Tiny-In-One 22 Gen 5
ShortSummaryDescription - Lenovo ThinkCentre Tiny-In-One 22 Gen 5, 54.6 cm (21.5"), 1920 x 1080 pixels, Full HD, LED, 6 ms, Black
Stck_Kart - 1
Stck_Pal - 0
Storno - N
Title - Lenovo ThinkCentre Tiny-In-One 22 Gen 5 LED display 54.6 cm (21.5") 1920 x 1080 pixels Full HD Black
URL - https://psref.lenovo.com/syspool/Sys/PDF/datasheet/ThinkCentre_TIO_22_Gen_5_NonTouch.pdf
WarrantyInfo -
Weight & dimensions - Bezel width (bottom) - 4.6 cm
Weight & dimensions - Bezel width (side) - 2 mm
Weight & dimensions - Bezel width (top) - 2 mm
Weight & dimensions - Depth (without stand) - 72.8 mm
Weight & dimensions - Depth (with stand) - 207.6 mm
Weight & dimensions - Height (without stand) - 339.1 mm
Weight & dimensions - Height (with stand) - 512.3 mm
Weight & dimensions - Weight (without stand) - 3.2 kg
Weight & dimensions - Weight (with stand) - 5.5 kg
Weight & dimensions - Width (without stand) - 489.3 mm
Weight & dimensions - Width (with stand) - 489.3 mm
