Brand - ATEN
BrandPartCode - CS22H-AT
Category - KVM Switches
Code - CS22H-AT
Design - Housing material - Plastic
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack mounting - No
Display - Built-in display - No
EAN - 4710469340468
GTIN - 0672792012273
GTIN - 672792012273
GTIN - 4710469340468
Link - https://www.aten.com/global/en/products/kvm/cable-kvm-switches/cs22h/
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 9.3 kg
Logistics data - Master (outer) case height - 330 mm
Logistics data - Master (outer) case length - 389 mm
Logistics data - Master (outer) case net weight - 6.8 kg
Logistics data - Master (outer) case width - 328 mm
Logistics data - Products per master (outer) case - 20 pc(s)

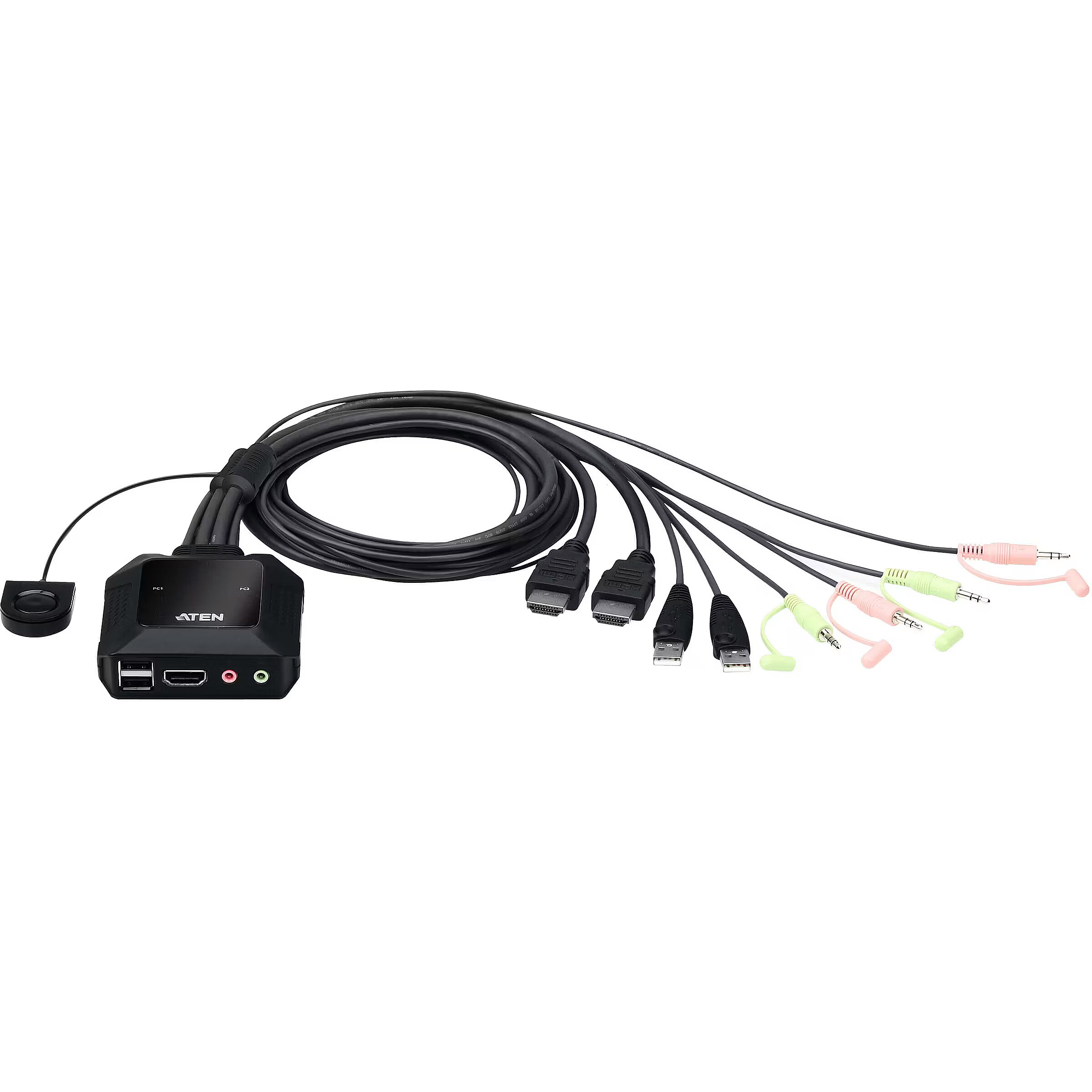

LongDesc - 1x CS22H 2-Port USB 4K HDMI Cable KVM Switch1x User Instructions
LongProductName - 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
LongSummaryDescription - ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 3.47 W. Width: 83.4 mm, Depth: 84.2 mm, Height: 30.4 mm
Name - Aten | 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector | CS22H-AT
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Operating relative humidity (H-H) - 0 - 80% RH, Non-Condensing %
Operational conditions > Operating temperature (T-T) - 0 to 50 °C
Other features > Dimensions (WxDxH) - 8.42 x 8.34 x 3.04 cm
Other features > Resolution - 4096 x 2160 @ 60Hz
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 155 mm
Package features > Gross height (mm) - 224 mm
Package features > Gross width (mm) - 58 mm
Package features > Inner carton packing Qty - 1.00 pc(s)
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 858 pc(s)
Package features > Paper/Pasteboard - 85 g
Package features > Plastic (No PET) - 15 g
Package features > Tare weight (kg) - 0.1 kg
Package features > Volume (m3) - 0.00201376 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 155 mm
Packaging data - Package height - 223 mm
Packaging data - Package weight - 420 g
Packaging data - Package width - 55 mm
Performance - HD type - 4K Ultra HD
Performance - Maximum resolution - 4096 x 2160 pixels
Performance - Video bandwidth - 60 Hz
Ports & interfaces - Audio connections - Yes
Ports & interfaces - Console ports - 3.5mm headphone, 3.5mm mic, HDMI, USB A
Ports & interfaces - Console USB ports quantity - 2
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - Headphone outputs - 3
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 2
Ports & interfaces - Number of microphone inputs - 3
Ports & interfaces - Video port type - HDMI
Power - Input voltage - 5 V
Power - Power consumption (typical) - 3.47 W
Power - Power source - DC
Producer product family - 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
Producer product name - CS22H-AT
ProductName - 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
ShortSummaryDescription - ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector, 4096 x 2160 pixels, 4K Ultra HD, 3.47 W, Black
Technical details > Gross weight - 0.433 kg
Technical details > Net weight - 0.333 kg

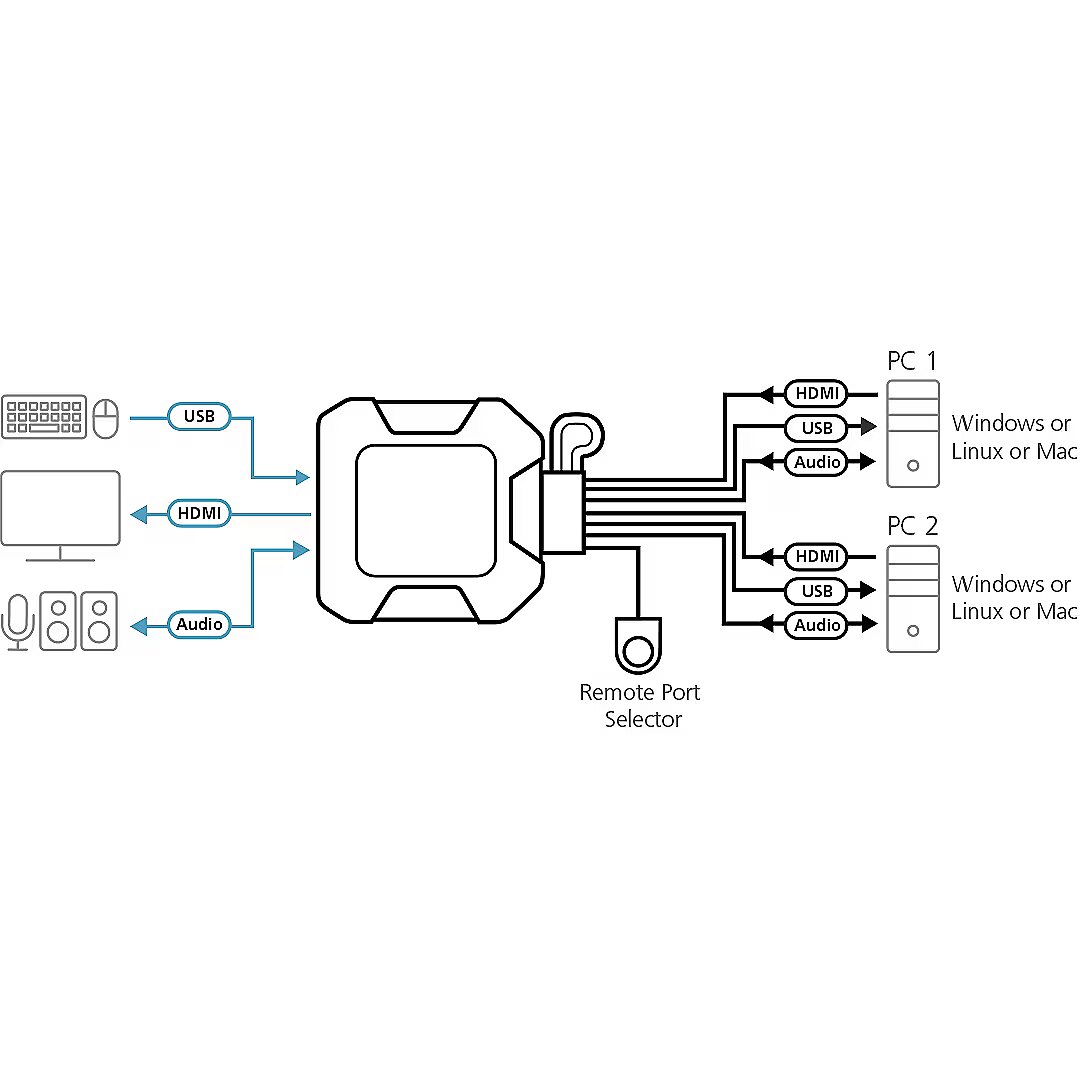

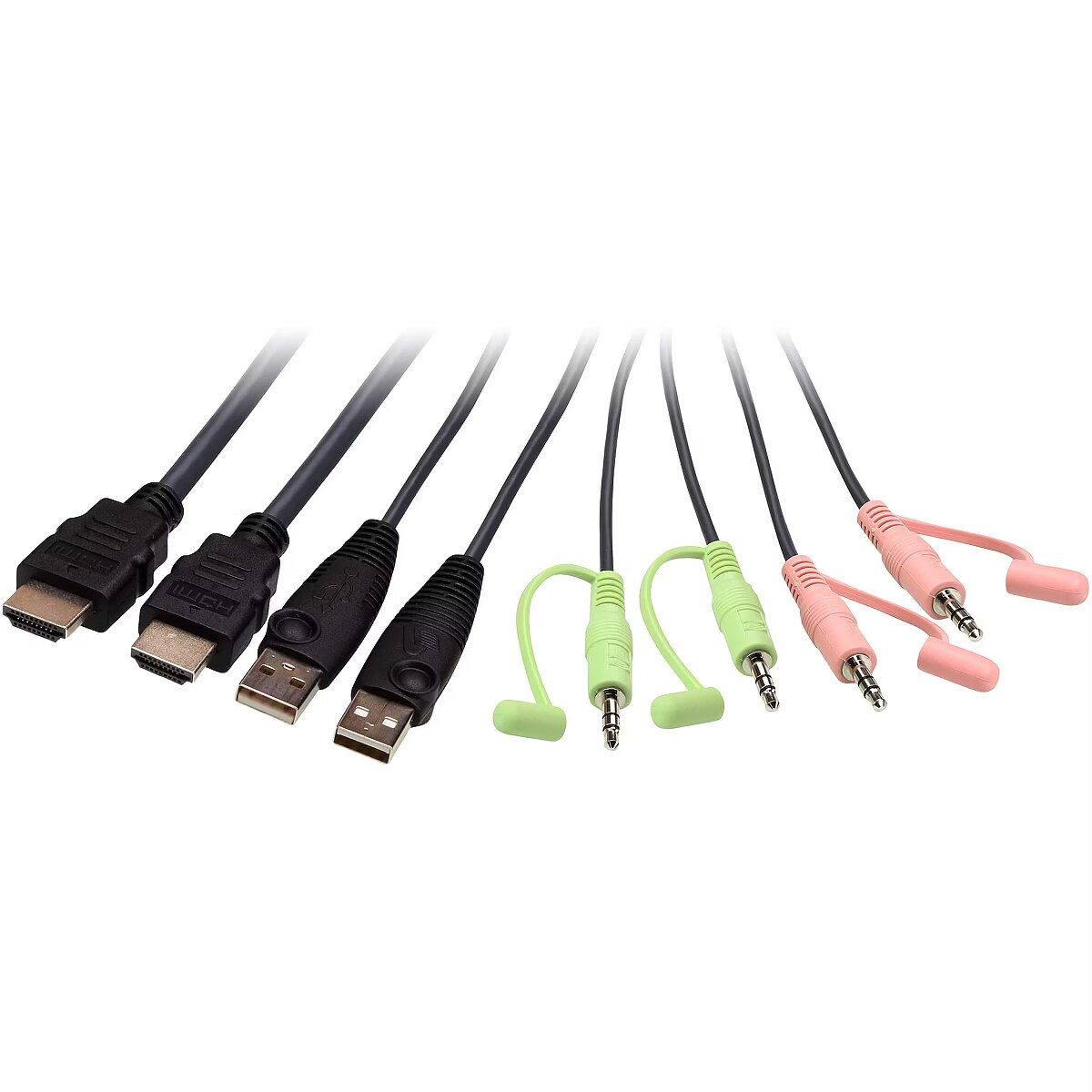

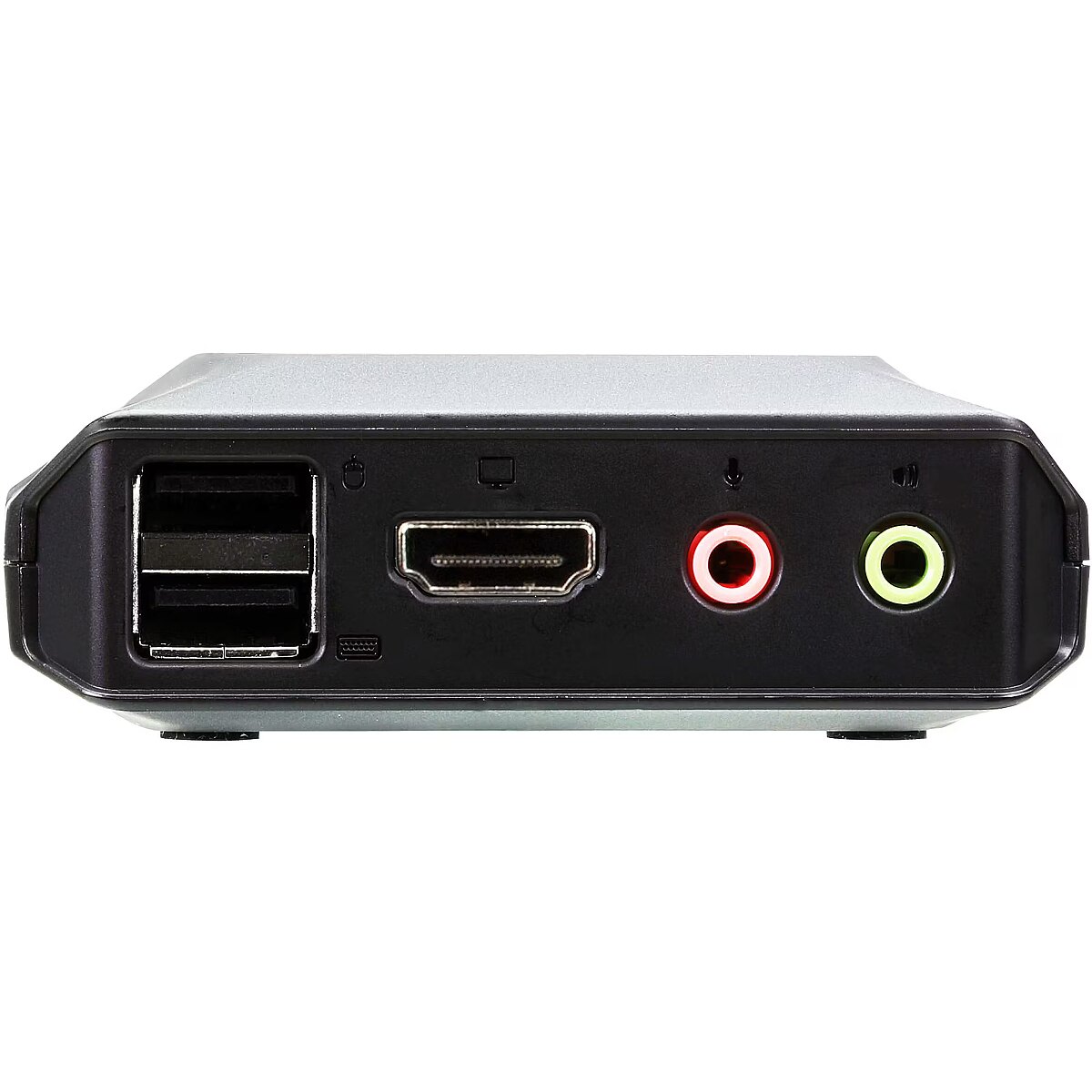

Technical details > Other features - Console Ports: 1 x HDMI Female 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink); KVM Ports: 2 x HDMI Male 2 x USB Type A Male 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink); Power: 1 x USB Micro Type B Female
Technical details > Producer - Aten
Title - ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector
URL - https://www.aten.com/eu/en/products/kvm/cable-kvm-switches/cs22h/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 84.2 mm
Weight & dimensions - Height - 30.4 mm
Weight & dimensions - Weight - 340 g
Weight & dimensions - Width - 83.4 mm
