Accessories included - 1x przełącznik KVM USB HDMI CS692 ze zdalnym przełącznikiem portów 1x instrukcja obsługi 2x naklejki do skrótów klawiszowych
Brand - ATEN
BrandPartCode - CS692-AT
Category - KVM Switches
Category_1 - Network and Servers
Category_2 - Network - KVM Switches
Code - CS692-AT
Color - Black
Color - Gray
Description - Przełącznik KVM USB HDMI CS692 umożliwia podłączenie dwóch komputerów lub urządzeń ze złączem HDMI do jednej konsoli z klawiaturą i myszą USB oraz wyświetlaczem HDMI. Przełącznik CS692 stanowi istotne rozwinięcie wcześniejszych modeli KVM serii Petite zapewnia pełną obsługą HDMi, umożliwia udostępnianie urządzeń peryferyjnych USB (po podłączeniu koncentratora USB do potu myszy USB), a mechanizm uaktualnień oprogramowania sprzętowego pozwala korzystać z zalet najnowszych poprawek i funkcji. Urządzenie CS692 łączy funkcje HDMI, udostępniania urządzeń peryferyjnych USB 2.0 i obsługi klawiatur przeznaczonych do gier jest wygodne i doskonale sprawdza się w nowoczesnych zastosowaniach multimedialnych.
Design - Hot keys - Yes
Design - Housing material - Plastic
Design - LED indicators - Yes
Design - Product colour - Black
Design - Push button - Yes
Design - Rack mounting - No
Design > Material - Plastic
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 165 mm
Dimensions - 8.24 x 6.65 x 2.52 cm
dimension weight - 540 g
dimension width - 200 mm
Display - Built-in display - No
EAN - 4710423776814
ean - 4710423776814
EAN_code - 4710423776814
Features > Cable length - 1.8 m
Features > Connector 1 - Console Ports: 1 x HDMI Female (Black) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
GTIN - 0115971584258
GTIN - 115971584258
GTIN - 0132018255810
GTIN - 132018255810
GTIN - 0151903026311
GTIN - 151903026311
GTIN - 0163121389369
GTIN - 163121389369
GTIN - 0172304247778
GTIN - 172304247778
GTIN - 0672792002182
GTIN - 672792002182
GTIN - 0724627232742
GTIN - 724627232742
GTIN - 0758399155893
GTIN - 758399155893
GTIN - 0763615832380
GTIN - 763615832380
GTIN - 0801038395430
GTIN - 801038395430
GTIN - 0803982812995
GTIN - 803982812995
GTIN - 0809185331370
GTIN - 809185331370
GTIN - 0809385180402
GTIN - 809385180402
GTIN - 0953450227612
GTIN - 953450227612
GTIN - 1320010260362
GTIN - 4582380350754
GTIN - 4710423776814
GTIN - 5054242187178
GTIN - 5054484326137
GTIN - 5054533326132
GTIN - 6727920021826
guarantee - 24
guarantee_type - external
Logistics data - Harmonized System (HS) code - 85176200
Logistics data - Master (outer) case gross weight - 6.13 kg
Logistics data - Master (outer) case height - 182 mm
Logistics data - Master (outer) case length - 405 mm
Logistics data - Master (outer) case net weight - 4.09 kg
Logistics data - Master (outer) case width - 395 mm
Logistics data - Products per master (outer) case - 10 pc(s)

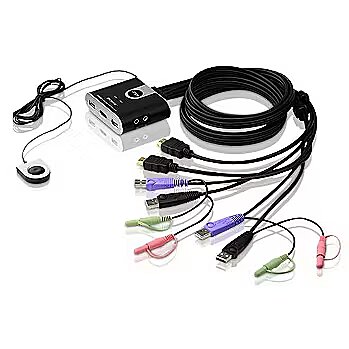

LongDesc - The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions.1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector1x User Instructions2x Hotkey Stickers
LongProductName - 2-Port USB HDMI KVM Switch with Audio
LongSummaryDescription - ATEN 2-Port USB HDMI KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 82.4 mm, Depth: 66.5 mm, Height: 25.2 mm
Manufacturer - Aten
Manufacturer_code - CS692-AT
name - 2-Port USB/HDMI Audio KVM Switch w Remote port
Name - Aten 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector | Aten
Name - ATEN 2-Port USB HDMI KVM Switch w/Audio
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Operational conditions > Temperature range (T-T) - 0 - 50°C °C
Other features - Porty konsoli 2 x gniazdo USB typ A (srebrne) 1 x gniazdo HDMI typ A (czarne) 1 x gniazdo typu mini jack stereo (zielone) 1 x gniazdo typu mini jack stereo (różowe) Porty KVM 2 x wtyk USB typ A (fioletowy) 2 x wtyk HDMI typ A (czarny) 2 x wtyk USB typ A (czarny) 2 x wtyk mini jack stereo (zielona) 2 x wtyk mini jack stereo (różowa)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 165 mm
Package features > Gross depth master carton - 410 mm
Package features > Gross height (mm) - 200 mm
Package features > Gross height master carton - 190 mm
Package features > Gross weight - 0.542 kg
Package features > Gross width (mm) - 70 mm
Package features > Gross width master carton - 400 mm
Package features > Net weight master carton - 5.42 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 550 pc(s)
Package features > Paper/Pasteboard - 109 g
Package features > Plastic (No PET) - 19 g
Package features > Tare weight (kg) - 0.13 kg
Package features > Tare weight master carton - 0.53 kg
Package features > Volume (m3) - 0.00231 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Manual - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 163 mm
Packaging data - Package height - 235 mm
Packaging data - Package weight - 550 g
Packaging data - Package width - 70 mm
Packaging data > Package type - KVM Ports: 2 x HDMI Male (Black) 2 x USB Type A Male (Purple) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Male (Green) 2 x 3.5mm Audio Jack Male (Pink)
Performance - HD type - WUXGA
Performance - Maximum resolution - 1920 x 1200 pixels
Performance - Scan interval - 3,5,10,20 s
Performance - Video bandwidth - 60 Hz
Ports & interfaces - Audio connections - Yes
Ports & interfaces - Console ports - 3.5mm headphone, 3.5mm mic, HDMI, USB A
Ports & interfaces - Console USB ports quantity - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone outputs - 3
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 2
Ports & interfaces - Number of microphone inputs - 3
Ports & interfaces - USB 2.0 Type-A hub ports quantity - 4
Ports & interfaces - USB connector type - USB Type-A
Ports & interfaces - Video port type - HDMI
Power - Input voltage - 5 V
Power - Power consumption (typical) - 0.72 W
Power - Power source - DC
producer - ATEN
ProductName - 2-Port USB HDMI KVM Switch with Audio
ShortSummaryDescription - ATEN 2-Port USB HDMI KVM Switch with Audio, 1920 x 1200 pixels, WUXGA, 0.72 W, Black
Special functions -
Technical details > Net weight - 0.414 kg
Technical details > Other features - Superior video quality - up to 1920 x 1200 and 1080p. Computer selection via a remote port selector, hotkeys, and USB mouse. Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus. Built-in all-in-one cables (2 x 1.2 m) and bus-powered design.
Technical details > Producer - Aten

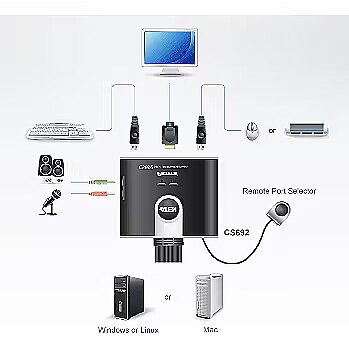

Technical_details - Featuress - One HD video console controls two HD-enabled PCs or devices
- HDMI compatible; HDCP compatible
- Computer selection via remote port selector, hotkeys, and USB mouse
- Audio-enabled - full bass response provides a rich experience for 2.1 channel surround sound systems
- Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus*
- Multiplatform support - Windows, Mac, Linux
- Compact design, built-in all-in-one cables (2 x 1.2 m)
- Superior video quality - up to 1920 x 1200; 1080p
- Compatible with widescreen LCD monitors
- Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Power on detection - if one computers is powered off, the CS692 will automatically switch to the other computer
- Supports gaming and multimedia keyboards
- Supports multifunction and wireless keyboards and mice
- Console mouse port emulation/bypass Features supports most mouse drivers and multifunction mice
- Mac keyboard support and emulation**
- USB 2.0 mouse port can be used for USB hub and USB peripheral sharing***
- Non-Powered
- Firmware upgradable * HD audio through the HD monitor's built-in speakers cannot be switched independently.
** PC keyboard combinations emulate Mac keyboards. Mac keyboards work only with their own computers.
*** May require an additional power adapter. To use the USB 2.0 mouse port as a USB hub, you must first disable mouse emulation mode. Package Contents - 1x CS692 2-Port USB HD Audio/Video KVM Switch with Remote Port Selector
- 1x User Instructions
- 2x Hotkey Stickers Design Number of Hosts 2 Supported Maximum Resolution 1920 x 1080 Resolution (pixels) Device Switchover on the Device per Keyboard per Mouse Cabel Sets Quantity 2 Length 1.2 m LED Port 2 Terminal-Device Connections USB 2 Line-Out 1 Microphone 1 HDMI 1 Connections per Computer USB 1 Line-Out 1 Microphone 1 HDMI 1 Scan Intervals 3, 5, 10, 20 Sekunden Features OSD Product dimensions 67 x 27 x 82 mm Weight 410 grams
Title - ATEN 2-Port USB HDMI KVM Switch with Audio
URL - https://www.aten.com/eu/en/products/kvm/cable-kvm-switches/cs692/
vendpn - CS692
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight - 0,56
Weight - 0.48 kg
Weight & dimensions - Depth - 66.5 mm
Weight & dimensions - Height - 25.2 mm
Weight & dimensions - Weight - 409 g
Weight & dimensions - Width - 82.4 mm
