Accessories included -
Brand - TP-Link
BrandPartCode - TL-FC311B-20
Category - Network Media Converters
Category - Root/Electronics/Networks and communication/Network accessories/Accessories and switch modules
Code - FC311B-20
Color - Black
Description - Przetwornik 1GE WDM TP-Link FC311B-20 Zastosowanie produktu

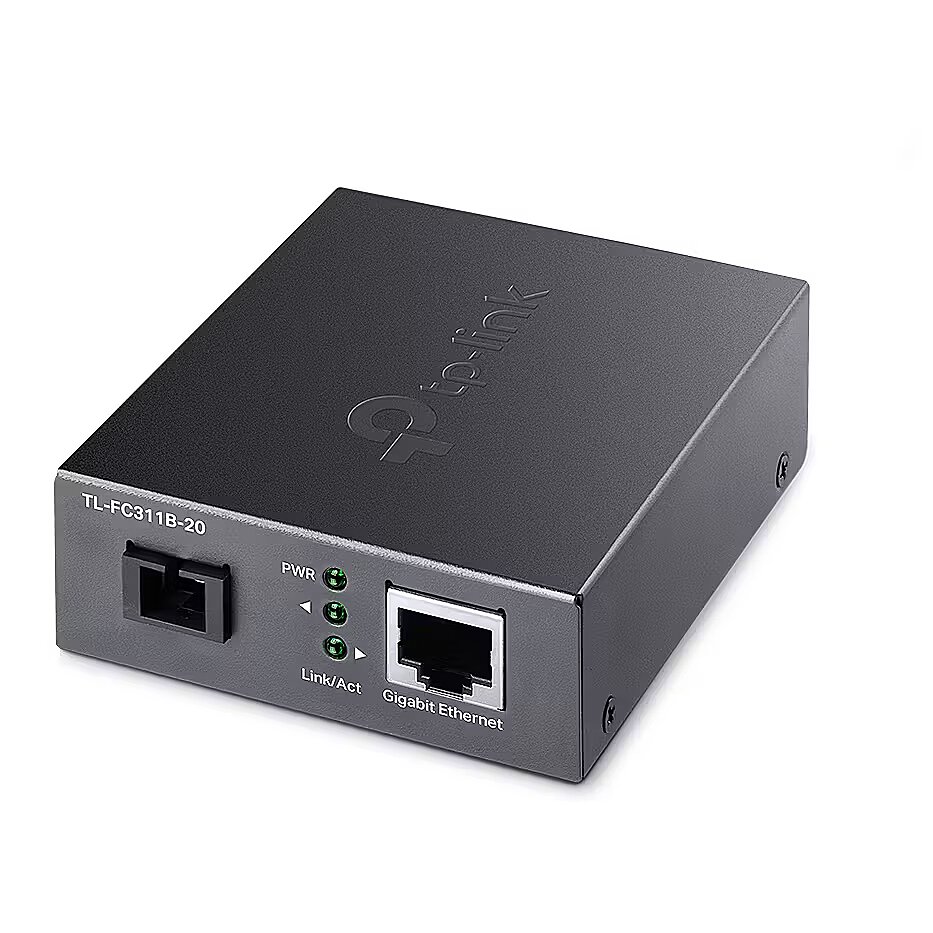

TL-FC311B-20 to gigabitowy media konwerter, który zapewnia dostęp do gigabitowego portu RJ-45 oraz gigabitowego portu światłowodowego ze złączem SC, przetwarzający sygnały elektryczne na sygnały optyczne i odwrotnie. Urządzenie może być zatem stosowane do użytku komercyjnego, np. w celu zapewnienia długodystansowej transmisji danych na potrzeby monitorowania bezpieczeństwa parku czy w sieciach bezprzewodowych. Działanie urządzenia
Dzięki wykorzystaniu technologii WDM TL-FC311B-20 zarówno wysyła jak i odbiera dane na jednym włóknie światłowodowym. Pozwala to zaoszczędzić połowę kosztów zwykle przeznaczanych na okablowanie. Urządzenie wysyła sygnały, których fala ma długość 1310 nm, a odbiera na fali o długości 1550 nm. W związku z tym długość fali dla urządzenia, do którego podłączony jest konwerter, powinna wynosić odpowiednio 1550 nm w przypadku wysyłania sygnałów, natomiast 1310 nm w przypadku odbierania. Jednym z produktów TP-Link, które są zgodne z konwerterem TL-FC311B-20 jest urządzenie TL-FC311A-20. Inne funkcje
Konwerter to urządzenie wolnostojące, ale może być także montowanie w szafie rack TP-Link, aby udostępniać funkcję automatycznego krosowania MDI/MDI-X na porcie TX, na którym szybkości połączeń są automatyczne negocjowane w trybie dupleksu.
Design - Internal - No

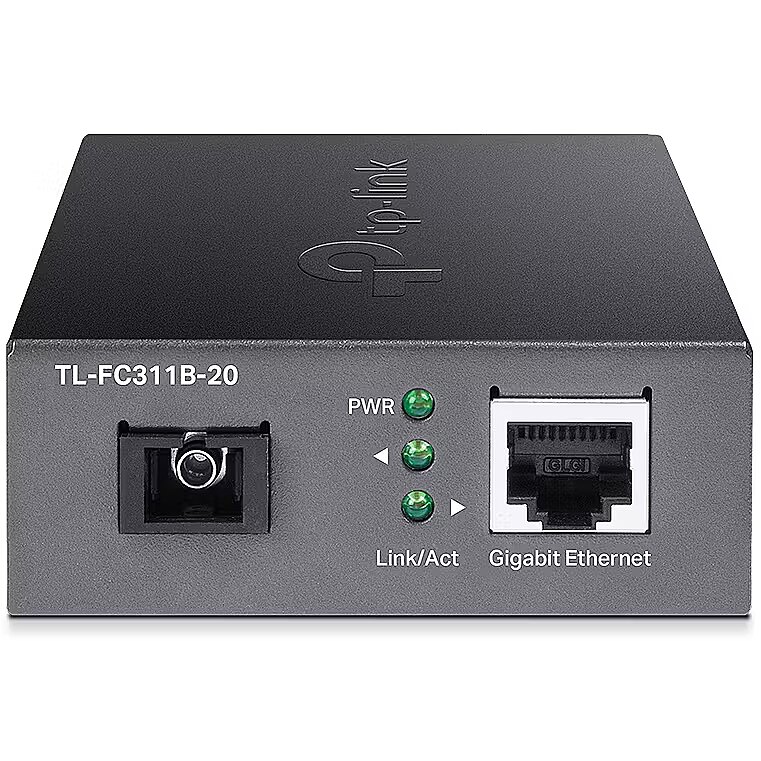

Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - Power
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 464
dimension depth - 65 mm
dimension height - 205 mm
Dimensions - 94,5 × 73,0 × 27,0 mm
dimension weight - 375 g
dimension width - 170 mm
EAN - 6935364072926
ean - 6935364072926
Eans - 6935364072926
Features - Internal - No
Features - LED indicators - Activity, Link, Power
Features - Product colour - Black
GTIN - 6935364010591
GTIN - 6935364072926
guarantee - 60
guarantee_type - normal
Inputs - 1 x Ethernet
Link - https://www.tp-link.com/us/business-networking/accessory/tl-fc311b-20/
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - What This Product DoesTL-FC311B-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.How This Product WorksTL-FC311B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-20 should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter TL-FC311A-20 is one of the products that can cooperate with TL-FC311B-20.Other FeaturesBesides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
LongProductName - 1x 10/100/1000 Mbps RJ45, 1x Gigabit SC, 1310 nm / 1550 nm RX, 94.5x73.0x27.0 mm
LongSummaryDescription - TP-Link Gigabit WDM Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 2000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.6 A
name - FC311B-20 Media Converter 1GE WDM
Name - TP-Link TL-FC311B-20
Name - TP-LINK | Gigabit Single-Mode WDM Media Converter | TL-FC311B-20 | Gigabit SC Fiber Port | 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Network - Data transfer rate - 1000 Mbit/s
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.3
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3i
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Network - Networking standards - IEEE 802.3z
Networking > Auto MDI/MDI-X - Yes
Networking > Converter input interface - Gigabit SC Fiber Port
Networking > Converter output interface - 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX)
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Długość fal: 1310 nm TX, 1550 nm RX Standardy i protokoły: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z Światłowód jednomodowy 9/125 um Zasięg transmisji światłowodowej: do 20 km
Outputs - 1 x SC Simplex
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 200 mm
Package features > Gross height (mm) - 65.00 mm
Package features > Gross width (mm) - 165.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 806 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.25 kg
Package features > Volume (m3) - 0.002145 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 204 mm
Packaging data - Package height - 65 mm
Packaging data - Package weight - 560 g
Packaging data - Package width - 165 mm
Performance - Fiber cable diameters supported (core/cladding) - 9/125 µm
Performance - Fiber mode structure - Single-mode
Performance - Maximum transfer distance - 2000 m
Performance - Wavelength-division multiplexing (WDM) - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Fiber optic connector - SC
Ports & interfaces - Fiber ports quantity - 1

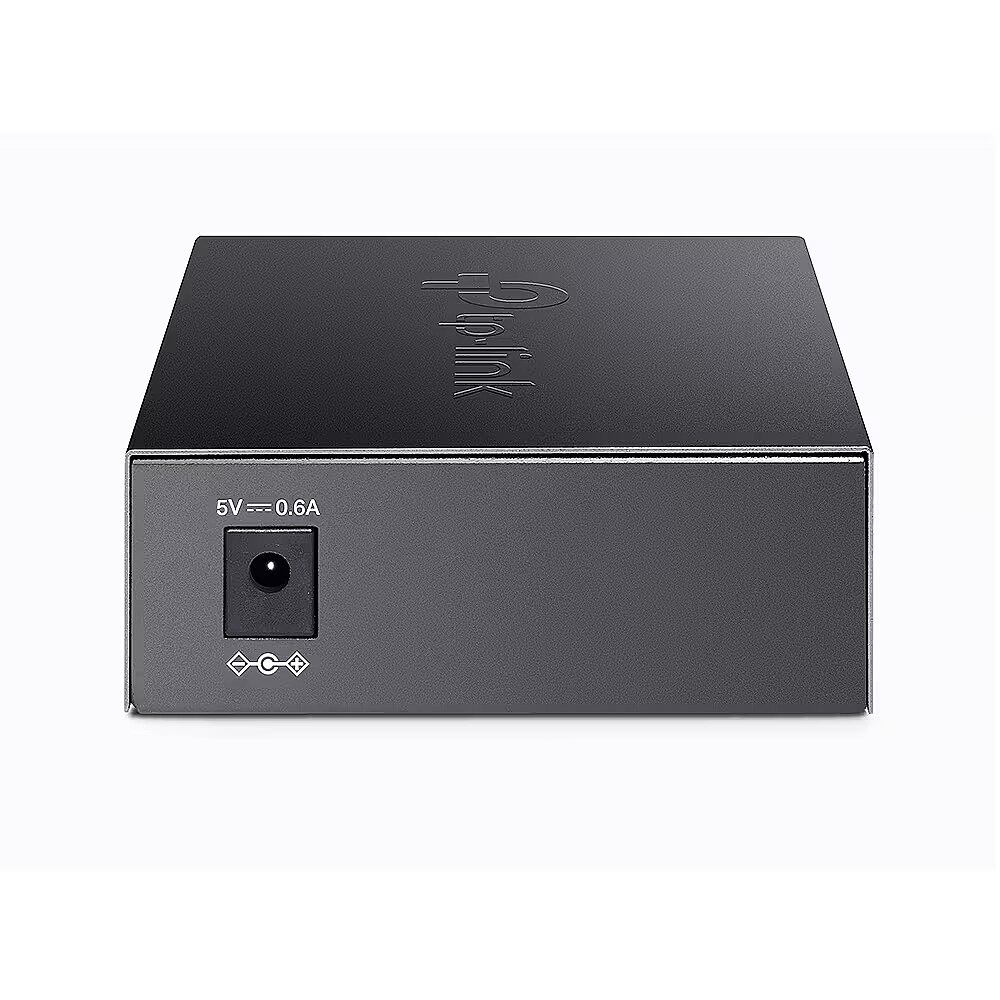

Power - Output current - 0.6 A
Power - Output voltage - 5 V
producer - TP-LINK
Producer - TP-Link
producerCode - TL-FC311B-20
ProducerCode - TL-FC311B-20
Producer product family - Gigabit Single-Mode WDM Media Converter
Producer product name - TL-FC311B-20
ProductName - Gigabit WDM Media Converter
productName - TP-Link Gigabit WDM Media Converter
productSize - Normal
ShortDescription -
ShortSummaryDescription - TP-Link Gigabit WDM Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, 1000 Mbit/s, 2000 m
sizeX - 210
sizeY - 170
sizeZ - 65
Special functions -
Technical details > Gross weight - 0.364 kg
Technical details > Net weight - 0.114 kg
Technical details > Other features - Auto-negotiation of Half-Duplex/Full-Duplex transfer mode, Extends fiber distance up to 20km
Technical details > Producer - TP-LINK
Title - TP-Link Gigabit WDM Media Converter
URL - https://www.tp-link.com/uk/service-provider/switch-accessory/tl-fc311b-20/
Usage - Fiber
Usage - LAN
vendpn - FC311B-20
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo - 2 year
warrantyLength - 60
warrantyType - G
weight - 355
Weight & dimensions - Depth - 73 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 94.5 mm
