TP-LINK NET MEDIA CONVERTER 20KM/MC211CS-20

Accessories included - MC211CS-20 Power Supply Installation Instructions
Auto MDI/MDI-X Network - Yes
Brand - TP-Link
BrandPartCode - MC211CS-20
Category - Network Media Converters
Category Code - MCO
Color - Black
Connectivity technology Ports & interfaces - Wired
Data Act - Link
Depth Weight & dimensions - 73 mm

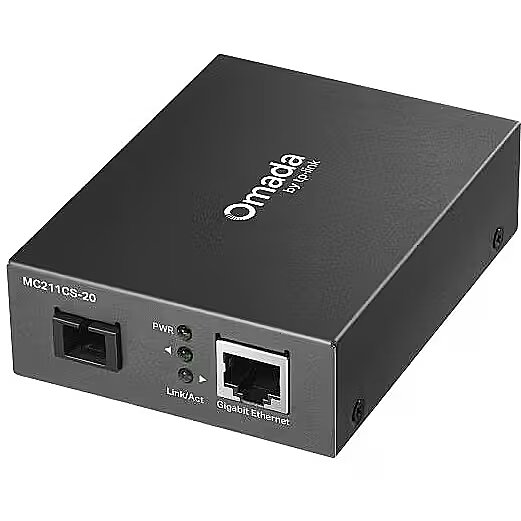

Description - MC211CS-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIXAuto-negotiation of Half-Duplex/Full-Duplex transfer modeAdopts WDM technology, transmitting and receiving data on one single fiberExtends fiber distance up to 20 km
Description - Omada Gigabit WDM Media Converter 1 RJ45 10/100/1000 Mbps port with auto-negotiation and Auto MDI/MDI-X support Auto-negotiation in half-duplex and full-duplex modes Supports WDM technology, enabling data transmission and reception over a single fiber Extends fiber optical transmission distances up to 20 km The MC211CS-20 is a gigabit media converter that provides access to a gigabit RJ-45 port and a gigabit fiber optical port with an SC connector, converting electrical signals to optical signals and vice versa. This makes it suitable for commercial use, such as long-distance data transmission for park security monitoring or wireless networks.
Designation - CE+WEEE
dimension depth - 80 mm
dimension height - 220 mm
Dimensions - 94,5 x 73 x 27 mm
dimension weight - 300 g
dimension width - 150 mm
Duplex system Network - Full, Half
ean - 1210002601085
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Features - Internal - No
Features - LED indicators - Activity, Link, Power
Features - Product colour - Black
Fiber mode structure Performance - Single-mode
Fiber optic connector Ports & interfaces - SC/UPC
Fiber ports quantity Ports & interfaces - 1
GTIN - 1210002601085
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 27 mm
Input current Power - 0.6 A
Input voltage Power - 9 V
Internal Features - No
LED indicators Features - Activity, Link, Power
LongDesc - MC211CS-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
LongProductName - Omada Gigabit WDM Media Converter, 1× Gigabit SC/UPC Fiber Port, 1× 10/100/1000 Mbps RJ45 Port
LongSummaryDescription - TP-Link Omada MC211CS-20. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Duplex system: Full, Half. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC/UPC, Connectivity technology: Wired. Input voltage: 9 V, Input current: 0.6 A
Manual Packaging content - Yes
Maximum data transfer rate Network - 1000 Mbit/s
Maximum transfer distance Performance - 20000 m
Model - MC211CS-20
Name - NET MEDIA CONVERTER 20KM/MC211CS-20 TP-LINK
name - TP-Link MC211CS-20
Network - Auto MDI/MDI-X - Yes
Network - Duplex system - Full, Half
Network - Maximum data transfer rate - 1000 Mbit/s
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Networking standards Network - IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - -5 - 50 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -5 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Power: External power supply: 9V/0.6A Wavelength: 1550nm TX, 1310nm RX Operating temperature: -5°C to 50°C Storage temperature: -40°C to 70°C Humidity: 10% to 90% RH, non-condensing Storage humidity: 5% to 90% RH, non-condensing
Packaging content - Manual - Yes
Performance - Fiber mode structure - Single-mode
Performance - Maximum transfer distance - 20000 m
Performance - Wavelength - 1310 nm
Performance - Wavelength-division multiplexing (WDM) - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Fiber optic connector - SC/UPC
Ports & interfaces - Fiber ports quantity - 1
Power - Input current - 0.6 A
Power - Input voltage - 9 V
producer - TP-LINK
Product colour Features - Black
ProductName - MC211CS-20
Product Net Weight ELKO Logistics Data - 0.2 kg
Shipping Box Depth ELKO Internal Logistics Data - 20.5 cm
Shipping Box Height ELKO Internal Logistics Data - 16.5 cm
Shipping Box Weight ELKO Internal Logistics Data - 0.3720000088 kg
Shipping Box Width ELKO Internal Logistics Data - 6.5 cm
ShortSummaryDescription - TP-Link Omada MC211CS-20, 1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Full, Half, 20000 m, 1310 nm, Single-mode
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - TP-Link Omada MC211CS-20. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Duplex system: Full, Half. Maximum transfer distance: 20000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC/UPC, Connectivity technology: Wired. Input voltage: 9 V, Input current: 0.6 A
Supported protocols and standards - IEEE 802.3 IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3x IEEE 802.3z
Title - TP-Link Omada MC211CS-20 network media converter 1000 Mbit/s 1310 nm Single-mode Black
Unit Box Height - 0.165
Unit Box Length - 0.205
Unit Box Width - 0.065
Unit Calculated Volume ELKO Internal Logistics Data - 0.002199 cubm
Unit Calculated Weight ELKO Logistics Data - 0.372 kg
Units per Pallet ELKO Logistics Data - 0
Units per Shipping Box ELKO Logistics Data - 1
URL - https://www.omadanetworks.com/nordic/business-networking/omada-accessory-media-converter/mc211cs-20/
Usage - LAN
Vendor Homepage - https://www.omadanetworks.com/nordic/business-networking/omada-accessory-media-converter/mc211cs-20/
vendpn - MC211CS-20
Warranty - 60 months
WarrantyInfo -
Wavelength-division multiplexing (WDM) Performance - Yes
Wavelength Performance - 1310 nm
Weight & dimensions - Depth - 73 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 94.5 mm
Width Weight & dimensions - 94.5 mm
