MikroTik Router L009UiGS-RM No Wi-Fi, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 8, 1x USB 3.0 type A

10/100/1000M LAN Ports - 8
Accessories included - Power adapter 24 V 1.5 A Fastening set Rackmount kit K-79
brand - MikroTik
category - MikroTik > Ethernet rūteri > RouterBoard
Category 1 - Netzwerk
Category 2 - Router
Category Code - ROU
Certificates - CE EAC ROHS
Code - L009UiGS-RM
Color - Black

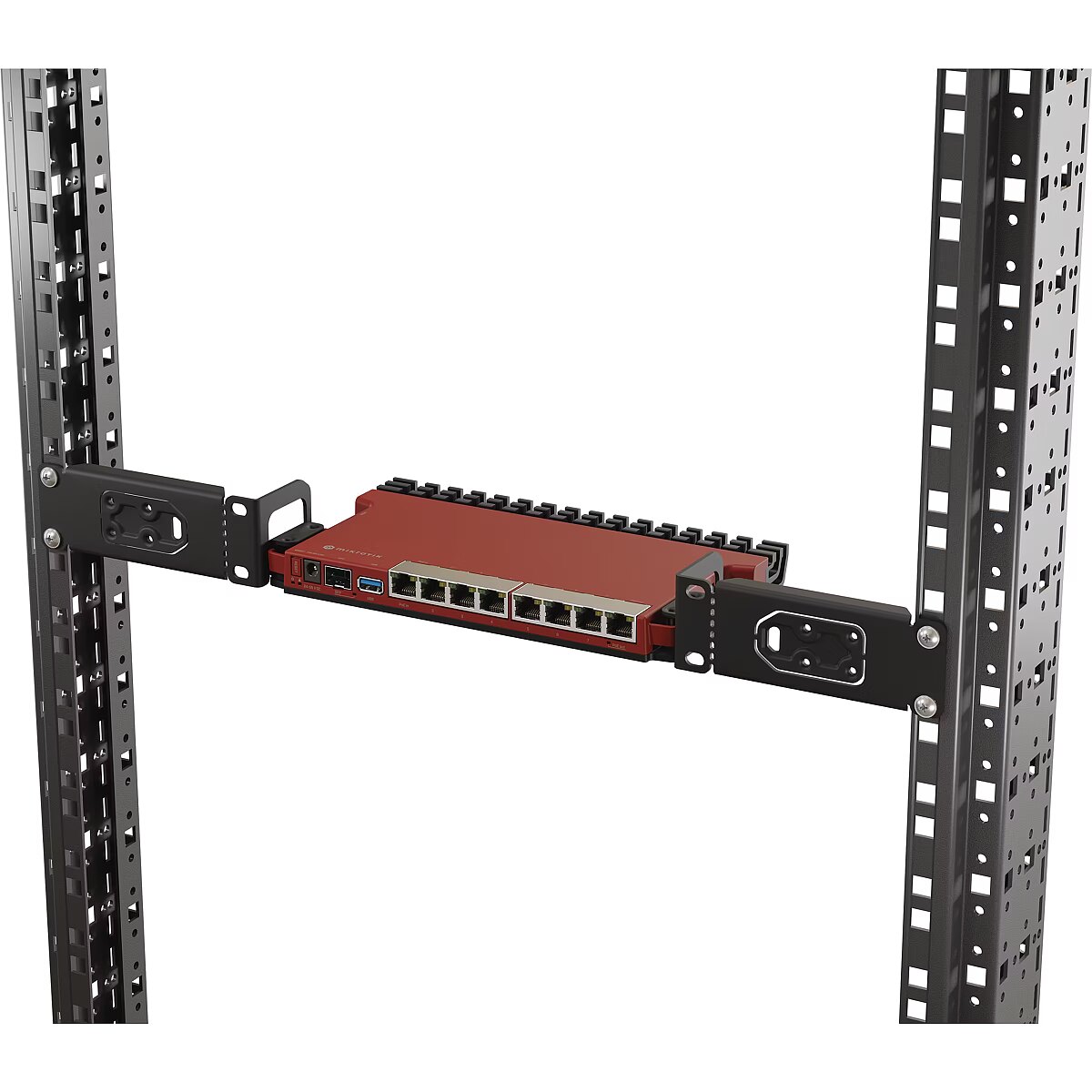

Description - MIKROTIK L009UiGS-RM L009 is more than just a router. This product line is up to 4 times faster than RB2011, it has a modern ARM CPU with container support, an innovative enclosure that allows mounting up to four routers in a single 1U space, more RAM, PoE, and 2.5G SFP support. This version comes with 1U rackmount accessories. The legendary RB2011 product line has provided affordable, flexible, and robust connectivity for over a decade. In fact, it was our very first router with SFP. Finally, it’s time for an upgrade. But don’t worry: we’ve kept and improved all the key elements and features of the beloved RB2011. Even the red color scheme and the appealing price! There are three main reasons to choose the L009: better performance, more features, and some interesting quality-of-life improvements. Let’s start with the raw power and performance improvements. L009 features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. ARM CPU architecture provides significant advantages over older MIPS-based devices. Like using all the latest Linux Kernel features. Or implementing your own container projects. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects. You could run a Pi-hole adblock on this router, for example. Or you could use the USB to add an LTE modem of your choice. Imagination is the real limit here. L009 is up to 4 times faster than RB2011 in most cases and setups, from simple fast path routing to complex bridge filters. And L009 IPsec hardware encryption ensures lower CPU usage without measurable performance degradation compared to the regular driver. You can expect around 60-90 Mbps throughput using a 1400 byte packet size. All the ports are now Gigabit Ethernet ports. There’s PoE-in on the first port. You can use it instead of the DC jack to power the unit. And there’s PoE-Out* on the last port – for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity. We have tested a variety of MikroTik SFP modules and cables that support higher speeds – the 2.5G capability makes a sysadmin’s life so much easier– there’s a console port for quick direct-access configuration! At the heart of it all we have a speedy Marvell Peridot Switchchip which offers an impressive 2.5 Gigabit full duplex connection to the CPU to all the ports except Ether1. The first port has its own Gigabit full duplex line to the CPU. That means – countless configurations with no bottlenecks! The new enclosure is a spectacular innovation on its own. It’s the same form-factor you might have seen with our highly sought-after RB5009 devices. It has several extremely useful properties. First of all, the case acts as a massive heat-sink, protecting your setups from overheating. But here’s the fun part: it comes with everything you need to fit up to four of these routers in a single 1U rackmount space. Here at MikroTik, we’re the world champions of server room tetris. So here’s our latest lifehack for the most efficient server rooms: grab an RB5009 with PoE-out ports. And mount it together with seven L009 routers in just two 1U rackmount spaces. You’ll become a living legend among system administrators, setting a new example of efficient space management and simple, reliable powering. This RM version of L009 is almost the same as the IN version – except for the 2.4 GHz wireless. It comes with all the necessary mounting accessories and allows you to cut costs even further. RB2011 will always remain a networking legend, but it’s time to take it up a notch. And the L009 product line is the perfect upgrade that will help you.
Description - The legendary RB2011 product line has been providing affordable, flexible and robust connectivity for over a decade. In fact, it was our first router with SFP. It's finally time to update. But don't worry: we've retained and improved all the key elements and features of the beloved RB2011. Even red colors and an attractive price! There are three main reasons to choose the L009: better performance, more features, and some interesting quality of life improvements. Let's start with improving power and efficiency. L009 has an efficient dual-core ARM processor. It offers significant improvements in routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. The ARM processor architecture provides significant advantages over older MIPS-based devices. All ports are now Gigabit Ethernet ports. The first port has a PoE input. You can use it instead of a DC socket to power your device. The last port has PoE-Out to power other devices. Another helpful addition is SFP that supports both Gigabit and 2.5 Gigabit connectivity. RB2011 will forever be an online legend, but it's time to take it to the next level. The L009 product line is the perfect upgrade that will help you save time, money and space in your server room like never before!
Design - LED indicators - Yes
Design - Product colour - Red
Designation - CE+WEEE
dimensionalWeight - 524
dimension depth - 55 mm
dimension height - 320 mm
Dimensions - 220 x 125 x 22 mm
dimension weight - 1000 g
dimension width - 130 mm
EAN - 4752224008589
ean - 4752224008589
Environment requirements -
Features - Built-in processor - Yes
Features - Flash memory - 128 MB
Features - Internal memory - 512 MB
Features - Processor frequency - 800 MHz
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Full Description Line - Network Device Type Router|8x10/100/1000M|1xSPF|1xUSB 3.0|Memory (RAM) 512MB|Included Accessories 24 V 1.5 A power adapter; Fastening set; Rackmount kit K-79|Power consumption 40 Watts|Operating temperature range -40°C — 70°C
guarantee - 12
guarantee_type - normal
height - 0.07 m
I/O ports - 1 x 10/100/1000 Mbit/s
I/O ports - 1 x SFP
I/O ports - 1 x USB 3.0 Type A
I/O ports - 7 x 10/100/1000 Mbit/s PoE
Included Accessories - 24 V 1.5 A power adapter; Fastening set; Rackmount kit K-79
length - 0.33 m
Link - https://mikrotik.com/product/l009uigs_rm
Management, monitoring, configuration -
Manufacturer - MikroTik
Memory (RAM) - 512MB
Model - L009
Model - L009UIGS-RM
mpn - L009UiGS-RM
MPN - L009UIGS-RM
Name - Mikrotik L009UiGS-RM
name - Router 2.5Gigabit Ethernet L009UiGS-RM
Name - Router | L009UiGS-RM | No Wi-Fi | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 8 | Mesh Support No | MU-MiMO No | No mobile broadband | 1x USB 3.0 type A
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network architecture - GigabitEthernet
Network Device Type - Router
Networking > PoE in - 802.3af/at
Operating temperature range - -40°C — 70°C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Other features > Ethernet LAN (RJ-45) ports - 8
Other features > USB ports quantity - 1x USB 3.0 type A
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 310.00 mm
Package features > Gross height (mm) - 48.00 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 447 pc(s)
Package features > Paper/Pasteboard - 315.00 g
Package features > Plastic (No PET) - 35.00 g
Package features > Tare weight (kg) - 0.35 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/6/8/2/0/0/4/b449e973fed1e3c5a19b5f297853a2df/original.pdf
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 8
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - SFP module slots quantity - 1
Ports & interfaces - USB ports quantity - 1
Power - Power over Ethernet (PoE) - Yes
Power - Power source type - DC
Power consumption - 40 Watts
Power supply - Number of DC inputs: 2 (DC socket, PoE-IN) Maximum power consumption: 40 W
producer - MikroTik
producerCode - L009UiGS-RM
Producer product family - Router
Producer product name - L009UiGS-RM
productName - Mikrotik L009UiGS-RM wired router 2.5 Gigabit Ethernet, Gigabit Ethernet Red
productSize - Normal
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 33 cm
Shipping Box Height Shipping/Package Box Dimensions - 13 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.891 kg
Shipping Box Width Shipping/Package Box Dimensions - 5.5 cm
sizeX - 134
sizeY - 326
sizeZ - 60
Software -
Special functions -
SPF LAN Ports - 1
Standards - 802.3af
System Requirements -
Technical details > Gross weight - 0.80 kg
Technical details > Net weight - 0.45 kg
Technical details > Producer - MikroTik
title - MikroTik L009UiGS-RM
Type - xDSL
Unit Box Height - 0.13
Unit Box Length - 0.33
Unit Box Width - 0.055
Unit Brutto Volume - 0.00236 cubm
Unit Gross Weight - 0.891 kg
Unit Net Weight - 0.7 kg
USB 3.0 Ports - 1
Vendor Homepage - mikrotik.com/product/l009uigs_rm
vendpn - L009UiGS-RM
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 12
warrantyType - G
Weight - 0.9
weight - 1 kg
weight - 900
width - 0.13 m
Wireless LAN features > Wi-Fi band - No Wi-Fi
Wireless LAN features > Wi-Fi standards - 802.11ax
