10Base-T / 100Base-TX / 1000Base-T Ports - 2
Accessories included -
Antenna - Built-in
Antenna - Antenna type - Internal
Antenna gain - 6 dBi
brand - MikroTik
category - MikroTik > Wi-Fi mājai un ofisam > cAP
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WAP
Certificates - CE FCC IC EAC ROHS
Code - cAPGi-5HaxD2HaxD
Color - White
Colour - White
Data transmission speed - 1800 Mbps
Description - The best-selling ceiling access point is back – stronger than ever! A new generation of wireless greatness for your office, hotel, mall, or any other setups in crowded areas. Modern quad-core CPU, 1GB of RAM, 2x Gigabit Ethernet ports, PoE, Gen 6 802.11ax wireless, PSU – included!
Description - When it comes to wireless network in the office, you cant afford to cut corners and risk inhibiting your teams performance. You need excellent coverage throughout the premises. You need a device that can handle a large number of clients. You need a reliable, flexible, cost-effective solution: the cAP ax! Both open office and cubicle layouts usually encounter a variety of network issues: signal gets absorbed, reflected, it becomes unstable. Mirrors, tinted glass, TVs, metal file cabinets all sorts of things can get in the way. Our solution is simple, effective, and elegant: let your access point rise above all the obstacles! In other words, a ceiling access point is a great way to prevent signal loss in large, crowded areas with many obstacles. There is another benefit to this form-factor: cAP ax remains hidden in plain sight, attracting less unwanted attention than a smoke sensor. Your clients, guests, or colleagues wont even notice it. But they will definitely notice the blazing-fast wireless connection! With the Generation6 802.11ax wireless standard, were looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum, if we compare it to the previous generations! But whats more important than speed is the stability. Our latest AX devices can withstand and navigate even the toughest wireless interference scenarios, offering the most stable and uninterrupted signal to date! cAP ax features a modern quad-core CPU running at 1.8 GHz, NAND storage, and a gigabyte of RAM. Enough to harvest the full potential of the most powerful networking software on the market RouterOS v7! Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels cAP ax can do it all! Compared to the previous generation, cAP ax offers multiple enhanced authentication types: OWE, WPA3-PSK, WPA3- EAP, and 802.11r roaming. cAP ax is also a great way to make your office network installation and maintenance so much easier, as it features PoE-in and PoE-out. Thats right you can use cAP ax to power other devices, such as network switches, CCTV cameras, or even another cAP ax! And, speaking of easy office networks... Just a few clicks in our latest wifiwave2 CAPsMAN central management system - and youre done setting up hundreds of cAP ax devices! You can use all sorts of MikroTik devices to run CAPsMAN effortlessly, for example - your main gateway.
Design - Certification - CE, FCC, IC, EAC, ROHS
Design - International Protection (IP) code - IP20
Design - Placement - Ceiling
Design - Product colour - White
dimensionalWeight - 1209
dimension depth - 70 mm
dimension height - 380 mm
Dimensions - 228 x 48 mm
dimension weight - 1000 g
dimension width - 280 mm
EAN - 4752224008473
ean - 4752224008473
Environment requirements - Operating temperature: -40°C to 70°C
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Cabling technology - 10/100/1000Base-T(X)
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000 Mbit/s
Features - Maximum data transfer rate - 1774 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 574 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 1200 Mbit/s
Full Description Line - cAPGi-5HaxD2HaxD|Type Wireless Access Point|Data transmission speed 1800 Mbps|IEEE 802.11b|IEEE 802.11g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|Included Accessories 48V 0.95A Power adaptercAP ax ceiling bracketcAP ax ceiling mountK-41 fastening setGigabit PoE injector|Colour White
guarantee - 12
guarantee_type - normal
height - 0.08 m

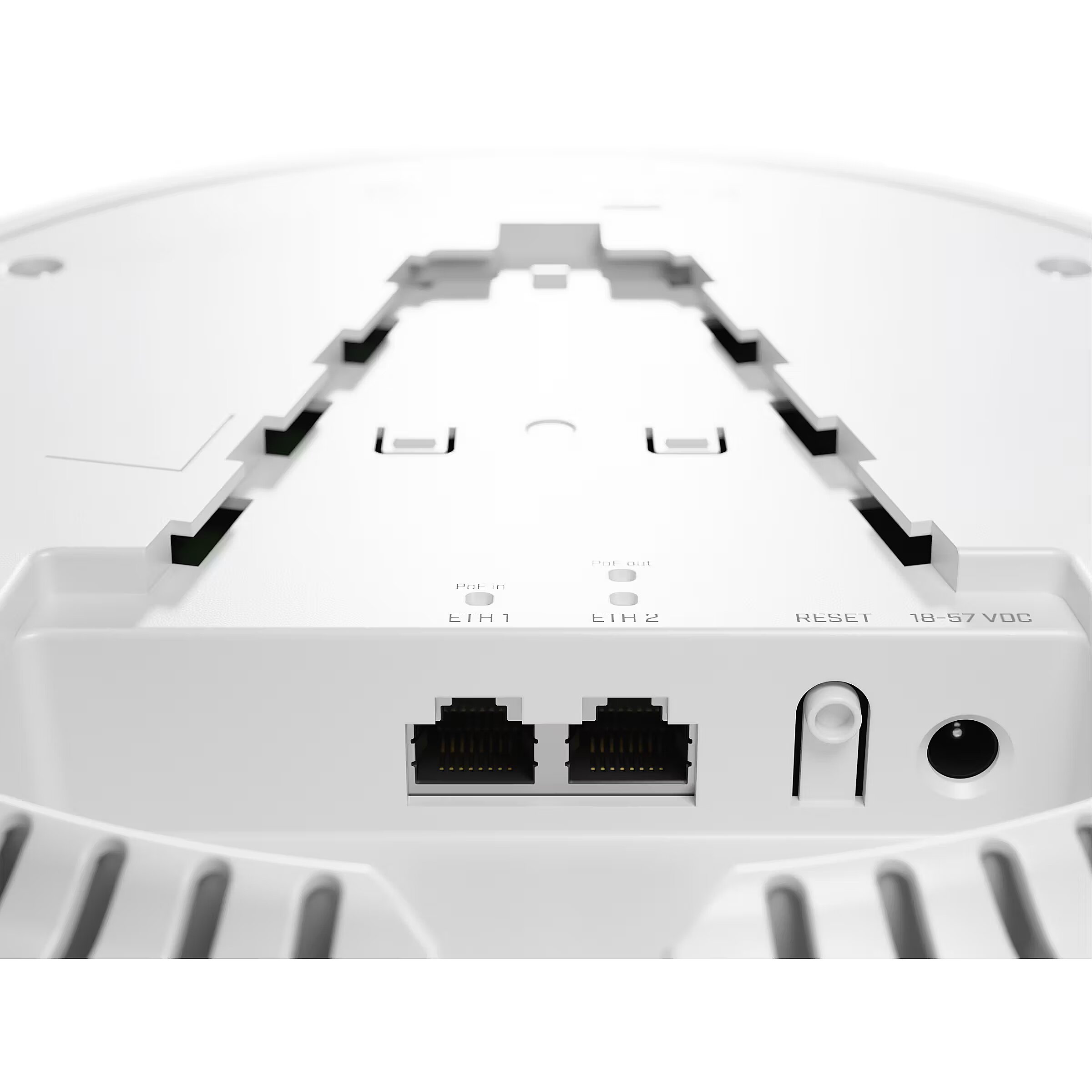

I/O ports - 2 x 10/100/1000 Mbit/s PoE
IEEE 802.11ac Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11b Network standard - Yes
IEEE 802.11g Network standard - Yes
IEEE 802.11n Network standard - Yes
Included Accessories - 48V 0.95A Power adapter
cAP ax ceiling bracket
cAP ax ceiling mount
K-41 fastening set
Gigabit PoE injector
length - 0.38 m
Management, monitoring, configuration -
Manufacturer - MikroTik
Model - cAP ax
Model name - cAPGi-5HaxD2HaxD
mpn - cAPGi-5HaxD2HaxD
MPN - cAPGi-5HaxD2HaxD
name - Access Point cAP ax cAPGi-5HaxD2HaxD
Name - MikroTik cAPGi-5HaxD2HaxD
Name - MikroTik | cAP ax | Wi-Fi 6 Dualband Access Point | 802.11ax | 2.4GHz/5GHz | 1200+574 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 2 | MU-MiMO No | PoE in/out
Network architecture - FastEthernet
Network Device Type - Wireless Access Point
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating temperature (T-T) - -40 - 70 °C
Other features - Processor: Quad core IPQ-6010 1.8 GHz RAM: 1 GB Storage: 128 MB NAND
Packaging content - AC adapter included - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging content - PoE adapter included - Yes
Performance - Built-in processor - Yes
Performance - Internal memory - 128 MB
Performance - Operating system installed - RouterOS
Performance - Processor model - IPQ-6010
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - DC voltage range - 18 - 57 V
Power - Output current - 0.4 A
Power - Power consumption (max) - 28.2 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Passive PoE
Power supply - Number of DC inputs: 2 (DC socket, PoE-IN) Input voltage: 18-57V
producer - MikroTik
producerCode - CAPGI-5HAXD2HAXD
productName - Mikrotik cAP ax 1774 Mbit/s White Power over Ethernet (PoE)
productSize - Normal
Security - OWE, WPA3-PSK, WPA3- EAP, 802.11r roaming
Security - Security algorithms - WPA3-EAP
Security - Security algorithms - WPA3-PSK
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.164 kg
Shipping Box Width Shipping/Package Box Dimensions - 28 cm
sizeX - 360
sizeY - 60
sizeZ - 280
Software -
Special functions -
Standards - 802.3af
Standards - 802.3at
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - 802.11r
System Requirements - RouterOS v7 Licencja Level 4
title - MikroTik cAP ax
Unit Box Height - 0.06
Unit Box Length - 0.38
Unit Box Width - 0.28
Unit Brutto Volume - 0.006384 cubm
Unit Gross Weight - 1.16 kg
Unit Net Weight - 0.2 kg
Vendor Homepage - https://mikrotik.com/product/cap_ax#fndtn-specifications
vendpn - cAPGi-5HaxD2HaxD
Warranty - 12 months
warrantyLength - 12
warrantyType - G
weight - 1.4 kg
Weight - 1.14
weight - 1160
Weight & dimensions - Depth - 228 mm
Weight & dimensions - Height - 48 mm
Weight & dimensions - Width - 228 mm
width - 0.28 m
