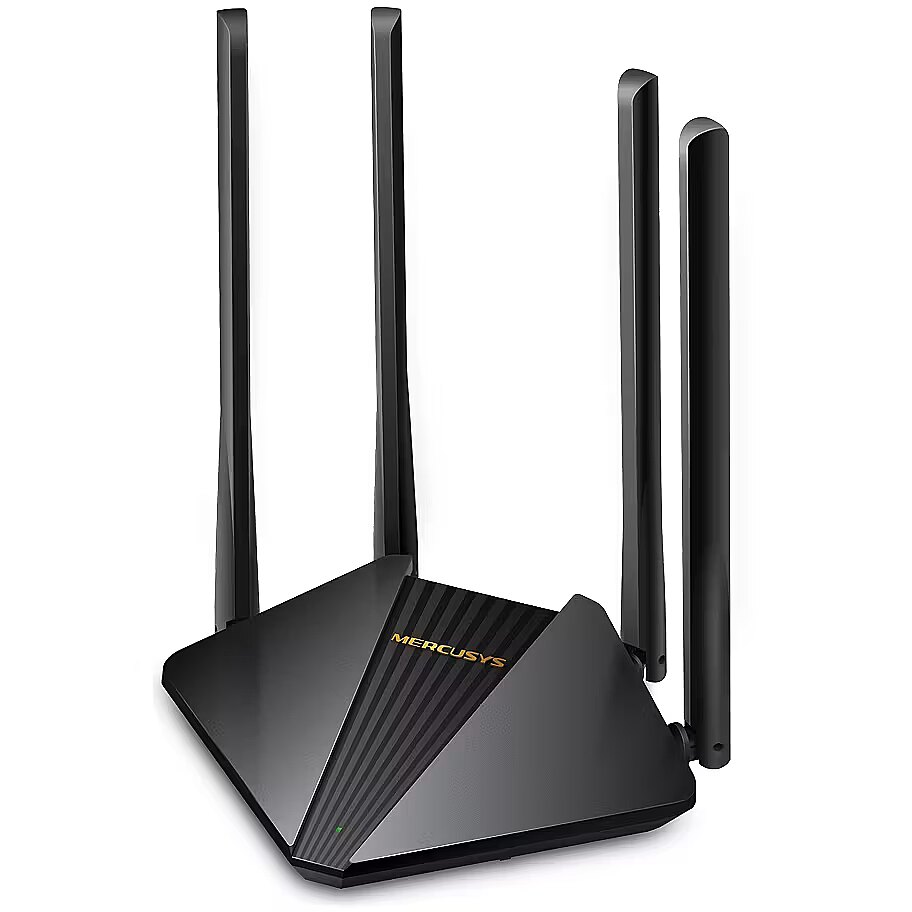

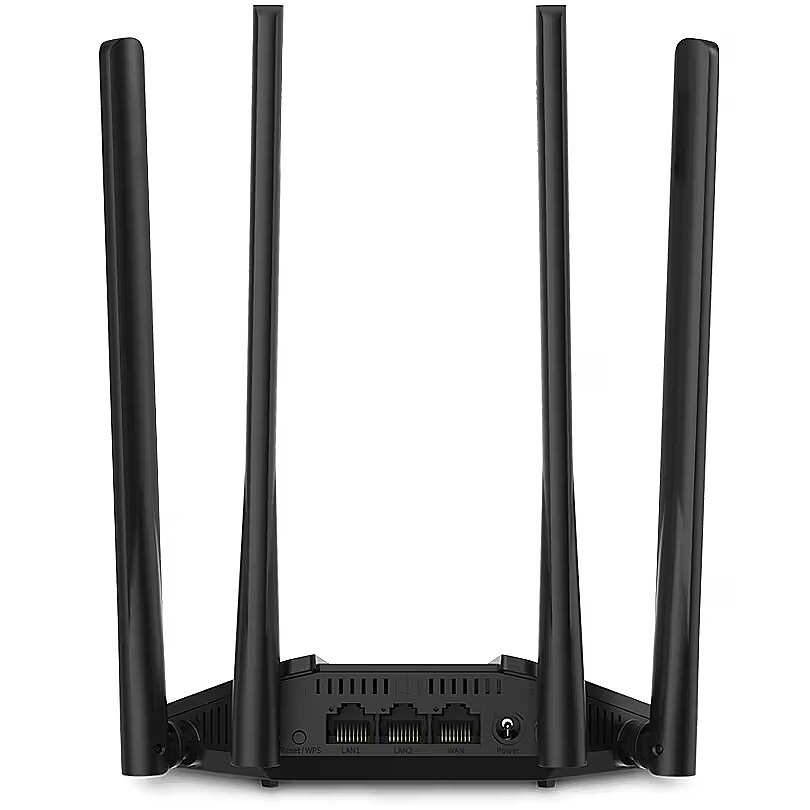

Mercusys AC1200 Wireless Dual Band Gigabit Router MR30G 802.11ac, 867+300 Mbit/s, Ethernet LAN (RJ-45) ports 2× Gigabit LAN Ports, Antenna type 4× 5 dBi Fixed Omni-Directional Antennas, Black

Name: Mercusys AC1200 Wireless Dual Band Gigabit Router MR30G 802.11ac, 867+300 Mbit/s, Ethernet LAN (RJ-45) ports 2× Gigabit LAN Ports, Antenna type 4× 5 dBi Fixed Omni-Directional Antennas, Black
Brand: Mercusys
SKU: 750607
Price: 38.39 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 750607 Product code: MR30G

Can be ordered 99 units Availability: 14 days after order approval

Warranty: 2 years

Compare

Delivery options More about shipping

Delivery to Omniva parcel machine free of charge: 16.05.2024
Piegāde uz DPD Pickup Paku Skapi free of charge: 16.05.2024
Delivery to Latvian post office, parcel locker or Circle K free of charge: 16.05.2024
Delivery to address in Riga 3.99 €: 16.05.2024
Delivery to address in Latvia 6.99 €: 16.05.2024
Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: 14.05.2024 after 15:00

Main product parameters All parameters

Speed index: 1200
Type of device: Router
Wi-Fi standard: Wi-Fi 5 (802.11ac)

Basic information

Speed index : 1200

Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)

Functionality

3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : 2

Wireless card

Without
WiFi Adapter USB (+14.88 €)
Gembird Adapter Mini USB WiFi 300 Mbps
Alternatives
WiFi Adapter PCI-E 1x (+19.57 €)
TP-LINK TL-WN781ND, PCI-E x1 WiFi Adapter
Alternatives

More detailed specification

Additional information in manufacturers website Mercusys AC1200 Wireless Dual Band Gigabit Router MR30G 802.11ac, 867+300 Mbit/s, Ethernet LAN (RJ-45) ports 2× Gigabit LAN Ports, Antenna type 4× 5 dBi Fixed Omni-Directional Antennas, Black

1 WAN Fixed ports - Yes
10/100/1000M LAN Ports - 2
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 4
Antenna - Antenna type - External
Antenna > Antennas quantity - 4
Antenna > Antenna type - 4× 5 dBi Fixed Omni-Directional Antennas
Antenna Gain - 5 dB
Antenna Type - Omni-Directional
Available bandwidth - 1167 Mbps
Category - Root/Smarthome/Networks and communication/Routers
Category Code - WRO
Code - MR30G
Data transmission speed - 867 Mbps
Description - MR30G AC1200 Wireless Dual Band Gigabit Router - AC1200 Gigabit WiFi – Enjoy home entertainment without any lag, reaching speeds up to 1.2 Gbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band) - Broader Coverage – 4× high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner - Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance - Higher Network Efficiency – MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device - Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness - IPTV Supported – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming - IPv6 Supported – Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites
Design - LED indicators - Status
Design - Product colour - Black
Design - Product type - Tabletop router
Design > Colour of product - Black
dimensionalWeight - 1076
Dimensions - 159.7 × 125.9 × 37.1 mm
EAN - 6957939000615
Eans - 6957939000615
Features > Mesh Support - No
Features > MU-MiMO - Yes
Full Description Line - Wireless Router|Available bandwidth 1167 Mbps|Data transmission speed 867 Mbps|1 WAN|2x10/100/1000M|Antenna Type Omni-Directional|Antenna Gain 5 dB|Number of antennas 4|Wireless Frequency Range 2.4 GHz, 5 GHz|Wireless Transmit Power 20 dBm|Included Accessories • Power Adapter• RJ45 Ethernet Cable|Dimensions 159.7 × 125.9 × 37.1 mm
Included Accessories - • Power Adapter
• RJ45 Ethernet Cable
Link - https://www.mercusys.com/en/product/details/mr30g
Management features - MIMO - Yes
Management features - MU-MIMO technology - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - WPS push button - Yes
Name - Mercusys AC1200 Wireless Dual Band Gigabit Router MR30G 802.11ac 867+300 Mbit/s Ethernet LAN (RJ-45) ports 2× Gigabit LAN Ports Mesh Support No MU-MiMO Yes Antenna type 4× 5 dBi Fixed Omni-Directional Antennas
Name - Mercusys MR30G
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Receiver sensitivity - 11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm
Network Device Type - Wireless Router
Number of antennas - 4
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Other features > Ethernet LAN (RJ-45) ports - 2× Gigabit LAN Ports
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 345 mm
Package features > Gross depth master carton - 500 mm
Package features > Gross height (mm) - 245 mm
Package features > Gross height master carton - 350 mm
Package features > Gross width (mm) - 62 mm
Package features > Gross width master carton - 370 mm
Package features > Net weight master carton - 5.47 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 260 pc(s)
Package features > Paper/Pasteboard - 82 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.182 kg
Package features > Tare weight master carton - 1.101 kg
Package features > TI weight (kg) - 0.15 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00524055 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging data - AC adapter included - Yes
Packaging data - Antenna included - Yes
Packaging data - Cables included - LAN (RJ-45)
Packaging data - Package type - Box
Packaging data - Quick installation guide - Yes
Performance > Wi-Fi data rate (max) - 867+300 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - USB port - No
Ports & interfaces > WAN connection - 1 × Gigabit WAN Port
Power - External power adapter - Yes
Power - Power source type - AC
Producer - Mercusys
producerCode - MR30G
ProducerCode - MR30G
Producer product family - AC1200 Wireless Dual Band Gigabit Router
Producer product name - MR30G
productName - Mercusys MR30G wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) Black
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - Supported network protocols - PPPoE/L2TP/PPTP
Security - Access Control List (ACL) - Yes
Security - Firewall - Yes
Security - Firewall security - SPI Firewall, IP/MAC Address Binding
Security - Guest access - Yes
Security - NAT functionality - Port Forwarding, Port Triggering, UPnP, DMZ
Security - Network address translation (NAT) - Yes
Security - Parental control - Yes
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2-PSK
Shipping Box Depth Shipping/Package Box Dimensions - 34.6 cm
Shipping Box Height Shipping/Package Box Dimensions - 24.2 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.568 kg
Shipping Box Width Shipping/Package Box Dimensions - 6.7 cm
ShortDescription -
sizeX - 345
sizeY - 65
sizeZ - 240
Technical details > Gross weight - 0.547 kg
Technical details > Net weight - 0.365 kg
Technical details > Warranty - 24 month(s)
Unit Box Height - 0.242
Unit Box Length - 0.346
Unit Box Width - 0.067
Unit Brutto Volume - 0.00561 cubm
Unit Gross Weight - 0.568 kg
Unit Net Weight - 0.4 kg
Vendor Homepage - www.mercusys.com/baltic/product/details/mr30g
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
Warranty - 24
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 545
Weight & dimensions - Depth - 125.9 mm
Weight & dimensions - Height - 37.1 mm
Weight & dimensions - Width - 159.7 mm
Wireless Frequency Range - 2.4 GHz, 5 GHz
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - WLAN data transfer rate (first band) - 300 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 1167 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 867 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ac
Wireless LAN features > Wi-Fi standards - 802.11ac/n/a 5 GHz, 802.11b/g/n 2.4 GHz
Wireless Transmit Power - 20 dBm
