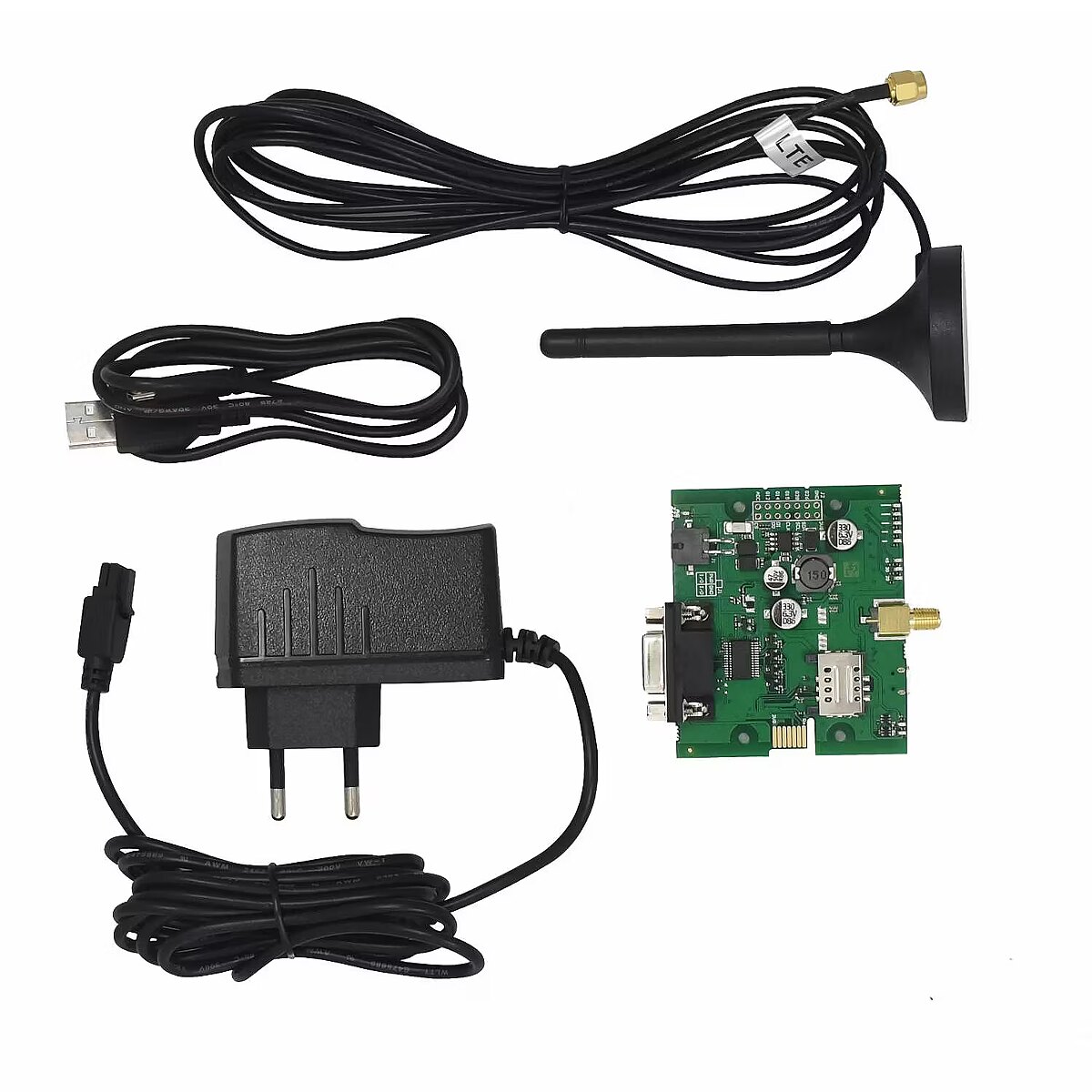

Accessories included - TRB142 EU power supply LTE antenna (magnet mounting, SMA male, 3m cable) Micro-USB cable (0.8 m) Assembly key Quick start guide
Aero2 support - No
Antenna - Detachable external
Antenna > Antennas quantity - 1
Antenna > Antenna type - 1 x SMA for LTE
Antenna connector type Features - SMA
Antenna gain - 2 dBi
Antennas quantity - 1
Built-in processor Performance - Yes
Cable types supported Network - Cat1
Card reader - None
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Category Code - GWC
Cechy podstawowe: Pamięć Flash - 512 MB
Cechy podstawowe: Pamięć RAM - 128 MB
Cechy podstawowe: Zarządzanie - CLI
Cechy podstawowe: Zarządzanie - przez dołączone oprogramowanie
Cechy podstawowe: Zarządzanie - WWW
Code - TRB142003000
Color - Aluminium
Connections - Micro USB
Connections - Serial (RS-232)
Dane techniczne: Funkcje urządzenia - modem GSM
Dane techniczne: Gwarancja - 2 lata w serwisie zewnętrznym
Dane techniczne: Producent - Teltonika
Dane techniczne: Tryb pracy - bridge
Dane techniczne: Zastosowanie - biznesowy
Data transmission - GPRS
Data transmission - LTE
Data transmission - UMTS
DC input voltage Power - 9 - 30 V
Depth Weight & dimensions - 70 mm

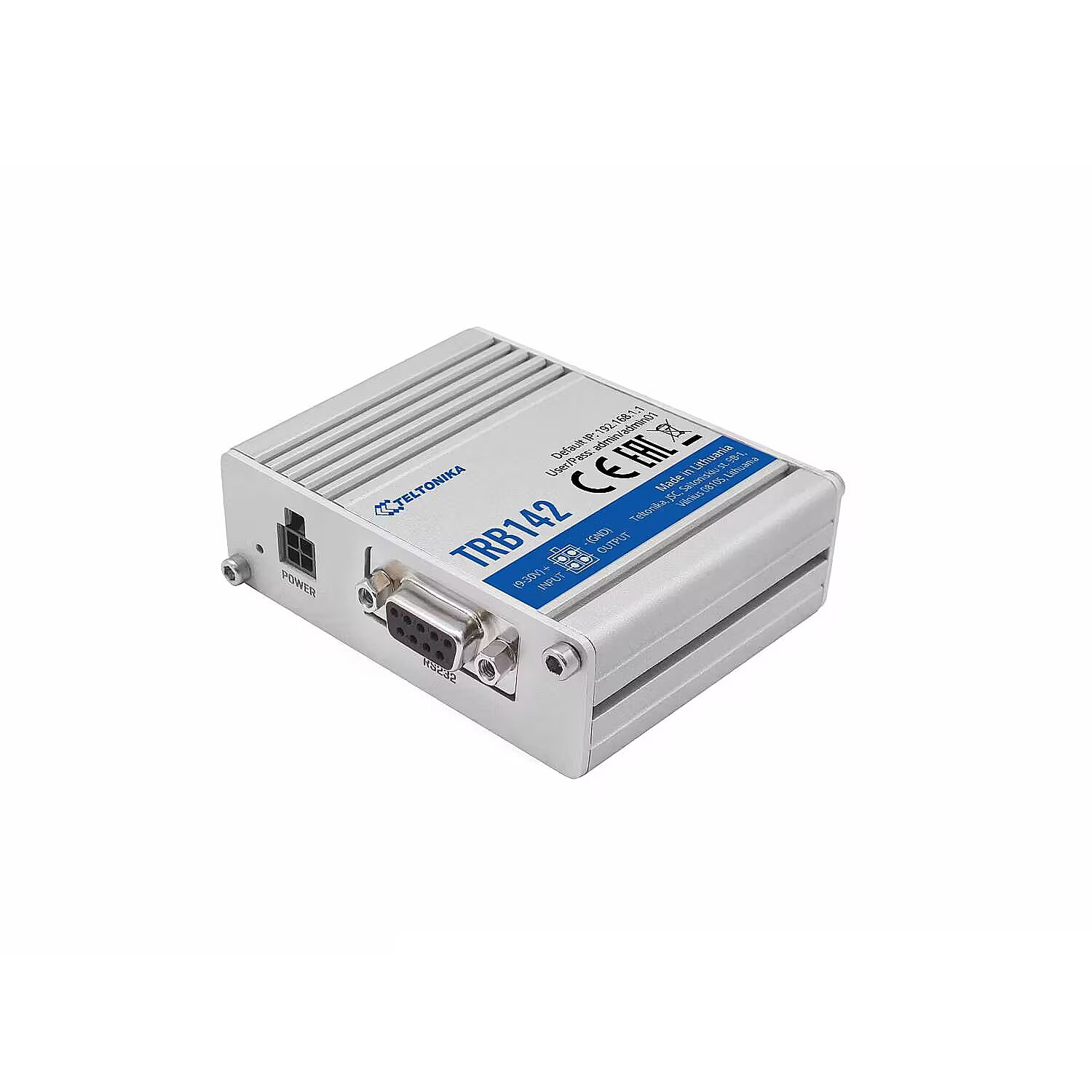

Description - LTE TRB142 gateway TRB142 is a very small, lightweight, energy-efficient industrial gateway equipped with a widely used RS232 interface for remote control of devices and an LTE Cat 1 module for reliable communication and OpenWRT-based software. It can be easily adapted to various needs. Like other products in the TRB series, it offers a wide range of software features such as SMS management, VPN, IPsec, firewall and FOTA support. This gateway is durable, has multiple power source choices, and works perfectly with the Teltonika Networks Remote Control System (RMS).
Description - TELTONIKA IOT GATEWAY TRB142 RS232
Description - TRB142 TRB family devices are designed to be small, lightweight and energy efficient - allowing you to do IoT projects with ease. TRB142 comes with widely used RS232 port for remote device management. It contains a high performance ARM Cortex-A7 1.2GHz processor and 128 megabytes of RAM. It is equipped with mission-critical LTE capabilities and a Linux environment offering high degree of customization.
Design > Housing material - Aluminum
Design > LED indicators - 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
Designation - CE+WEEE
Digital output ports quantity Ports & interfaces - 2
dimension depth - 70 mm
dimension height - 175 mm
Dimensions - 75 x 25 x 65 mm
Dimensions W x D x H, mm - 74.5 x 64.4 x 25
dimension weight - 392 g
dimension width - 150 mm
Dynamic DNS (DDNS) Network - Yes
EAN - 4779027312385
ean - 4779027312385
Eans - 4779027312385
Environment requirements - Operating temperature range: -40° C to 75° C Humidity during operation: 10-90% non-condensing
Features > Mesh Support - No
Features > Mobile Broadband - 2G/3G/4G
Features > MU-MiMO - No
Firewall security Security - Yes
Green certifications - RoHS compliant
Green certifications - WEEE
Gross weight - 0.391 kg
GSM network - 900 MHz
GSM network - 1900 MHz
guarantee - 24
guarantee_type - normal
Height - 70.000000
Height Weight & dimensions - 18 mm
I/O ports - 1 x Console port (RS-232)
I/O ports - 1 x micro USB
I/O ports - 1 x SIM card slot
Internal memory - 128 MB
Internal memory type - DDR2
IP classification - IP30
LED indicators - 3 x connection type status LEDs, 5 x connection strength LEDs, 1 x Power LED
LED indicators Design - Power
Length - 150.000000
Link - https://wiki.teltonika-networks.com/view/TRB142
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 900 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2500 MHz
Management, monitoring, configuration - LTE TRB142 gateway TRB142 is a very small, lightweight, energy-efficient industrial gateway equipped with a widely used RS232 interface for remote control of devices and an LTE Cat 1 module for reliable communication and OpenWRT-based software. It can be easily adapted to various needs. Like other products in the TRB series, it offers a wide range of software features such as SMS management, VPN, IPsec, firewall and FOTA support. This gateway is durable, has multiple power source choices, and works perfectly with the Teltonika Networks Remote Control System (RMS).
Manufacturer - Teltonika
ManufacturerPartNumber - TRB142003000
Memory > Internal memory - 128 MB (50 MB available for userspace) GB
Model - TRB142
MPN - TRB142003000
name - Gateway LTE TRB142 (Cat 1), 3G, 2G, USB
Name - Teltonika TRB142
Name - Teltonika TRB142 Industrial LTE RS232 Gateway
Name - Teltonika TRB142003000 Gateway, 2G/3G/4G LTE (Cat 1), Equipped with RS232 for serial communication | LTE Gateway | TRB142 | No Wi-Fi | Ethernet LAN (RJ-45) ports 0 | Mesh Support No | MU-MiMO No | 2G/3G/4G | Antenna type 1 x SMA for LTE | 1 x Virtual network interface via micro USB
Number of antennas - One connector
Number of processors installed Performance - 1
Operating system provided - RutOS (OpenWrt based Linux OS)
Operating temperature (T-T) Operational conditions - -40 - 75 °C
Operating temperature range (T-T), °C - - 40 - 75
Other features - Network support: 4G/LTE (Cat 1), 3G, 2G CPU: Qualcomm, ARM Cortex A7, 1.2 GHz Memory: 512 MB Flash (70 MB free), 128 MB RAM (50 MB free) Status LED: 3 x network type, 5 x signal strength, 1 x power supply Housing: Aluminum with the option of mounting on a DIN rail Degree of protection: IP30 Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
Other features > Dimensions (WxDxH) - 74.5x64.4x25 mm
Other features > Ethernet LAN (RJ-45) ports - 0
Other features > Input voltage - 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max V
Other features > Supported protocols - HTTP(S), MQTT, Azure MQTT, Kinesis
Other features > USB ports quantity - 1 x Virtual network interface via micro USB
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 175 mm
Package features > Gross height (mm) - 71 mm
Package features > Gross width (mm) - 149 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 467 pc(s)
Package features > Paper/Pasteboard - 142 g
Package features > Tare weight (kg) - 0.142 kg
Package features > Volume (m3) - 0.001851325 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
PDF - https://www.blobs.lt/products/1/5/0/7/4/2/46673775af9676686acdaa96267dc71e/original.pdf
PDF - https://www.blobs.lt/products/1/5/0/7/4/2/ac99db84ceab66c854be8d3abede1542/original.pdf
PDF - https://www.blobs.lt/products/1/5/0/7/4/2/d02eea9cf0c7dde3b057d2fe2afbefa2/original.pdf
PDF - https://www.blobs.lt/products/1/5/0/7/4/2/d2f78ce3f1b59ca527b5a09500702eee/original.pdf
PDF - https://www.blobs.lt/products/1/5/0/7/4/2/ec7e349342af0289f7a2a0e9fd0c5c62/original.pdf
PeriodofWarranty - 2 Y
Power supply - 4 pin connector, 9-30 VDC
Pozostałe cechy: Akcesoria - zasilacz, 1x antena LTE (uchwyt magnetyczny, męski SMA, kabel 3m), kabel micro-USB (0,8m), 1x klucz sześciokątny, skrócona instrukcja obsługi
Pozostałe cechy: Dodatkowe informacje - obudowa aluminiowa, stopień ochrony IP30, system operacyjny RutOS oparty na OpenLinux, współpraca z systemem zdalnego zarządzania Teltonika RMS, port microUSB do konfiguracji, interfejs RS232 - gniazdo DB9, możliwy montaż na szynie DIN, zakres napięcia we
Pozostałe cechy: Obsługa VPN - tak
Pozostałe cechy: Waga - 135 g
Pozostałe cechy: Wymiary - 60 x 70 x 18 mm
Pozostałe cechy: Zasilanie - zasilacz AC
Praca bezprzewodowa: Szybkość dla LTE (pobieranie/wysyłanie) - 10 Mbps
Praca bezprzewodowa: Transmisja danych - LTE
Praca bezprzewodowa: Wbudowany modem - 4G/LTE
Praca przewodowa: Złącza - port konsoli DB9
Processor > Processor model - ARM Cortex-A7 1.2 GHz CPU
Processor frequency Performance - 1200 MHz
Producent: Nazwa producenta / importera - Teltonika
Teltonika Networks
K. Baršausko st. 66
LT-51436 Kaunas
producer - TELTONIKA
Producer - Teltonika
ProducerCode - TRB142
Producer product family - LTE Gateway
Producer product name - TRB142
Product colour Design - Grey
Product model code - TRB142003000
Product Net Weight - 0.132 kg
Protocols > Supported network protocols - TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, SSH, DHCP, SNMP, MQTT
Reset button Management features - Yes
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Security > Firewall security - Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
Serial interface type Ports & interfaces - RS-232
ShortDescription - Teltonika TRB142 Bramka 4G LTE Cat1, 1x SIM, 1x gniazdo RS232-DB9, M2M, IoT, VPN
SIM card - Mini
SIM card type - mini-SIM
Software - RutOS
Special functions -
Standards and Protocols - TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT
Summary - Teltonika TRB142. Product colour: Grey, LED indicators: Power. Antenna connector type: SMA. Processor frequency: 1200 MHz. Cable types supported: Cat1. Serial interface type: RS-232
System Requirements -
Technical details > Net weight - 0.249 kg
Technical details > Other features - RS232 port
Technical details > Producer - Teltonika
Technical details > Software type - RutOS (OpenWrt based Linux OS)
Total storage capacity - 512 MB
Type - GSM 3G/4G
UMTS network - 900 MHz
UMTS network - 2100 MHz
Unit Box Height - 0.07
Unit Box Length - 0.175
Unit Box Width - 0.15
Unit Calculated Volume - 0.001837 cubm
Unit Calculated Weight - 0.41 kg
Units per Pallet - 0
Units per Shipping Box - 1
USB 2.0 ports quantity Ports & interfaces - 1
Vendor Homepage - https://teltonika.lt/ru/product/trb142/#description
vendpn - TRB1420 03000
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
Weight - 0.4
Weight - 0.410000
Weight - 135 g
Weight, g - 135
Weight Weight & dimensions - 157.5 g
Width - 175.000000
Width Weight & dimensions - 60 mm
Wireless LAN features > Wi-Fi band - No Wi-Fi
