Accessories included - TRB145 EU power supply LTE antenna (magnetic mounting, SMA male, 3 m cable) Micro-USB cable (0.8 m) Assembly key RS485 connector Quick start guide
Aero2 support - No
Antenna - Detachable external
Antenna > Antennas quantity - 1
Antenna > Antenna type - 1 x SMA for LTE
Antenna gain - 2 dBi
Card reader - None
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Cechy podstawowe: Pamięć Flash - 512 MB
Cechy podstawowe: Pamięć RAM - 128 MB
Cechy podstawowe: Zarządzanie - CLI
Cechy podstawowe: Zarządzanie - przez dołączone oprogramowanie
Cechy podstawowe: Zarządzanie - WWW
Certificates -
Code - TRB145003000
Color - Aluminium
Dane techniczne: Funkcje urządzenia - modem GSM
Dane techniczne: Gwarancja - 2 lata w serwisie zewnętrznym
Dane techniczne: Producent - Teltonika
Dane techniczne: Tryb pracy - bridge
Dane techniczne: Zastosowanie - biznesowy
Data transmission - GPRS
Data transmission - LTE
Data transmission - UMTS

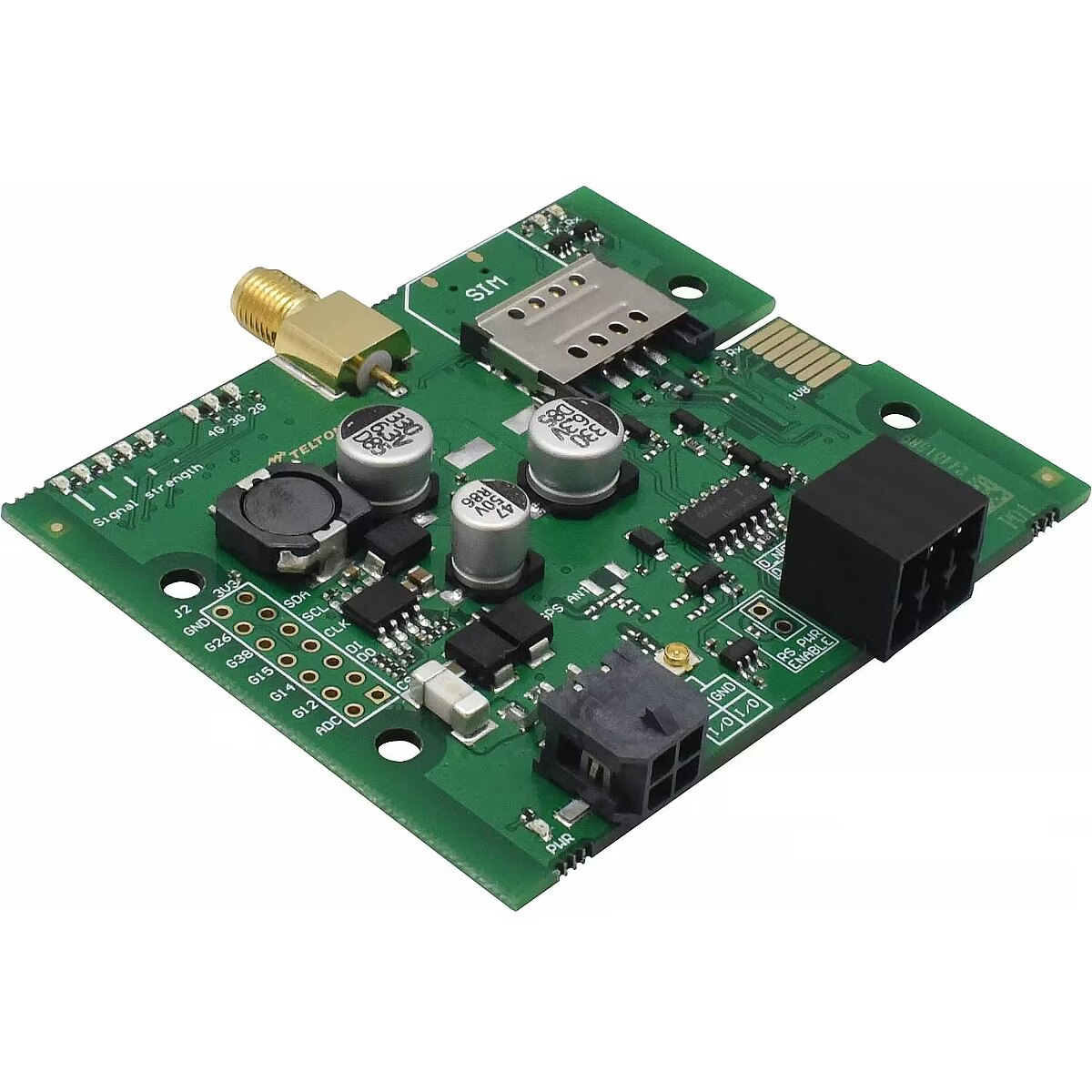

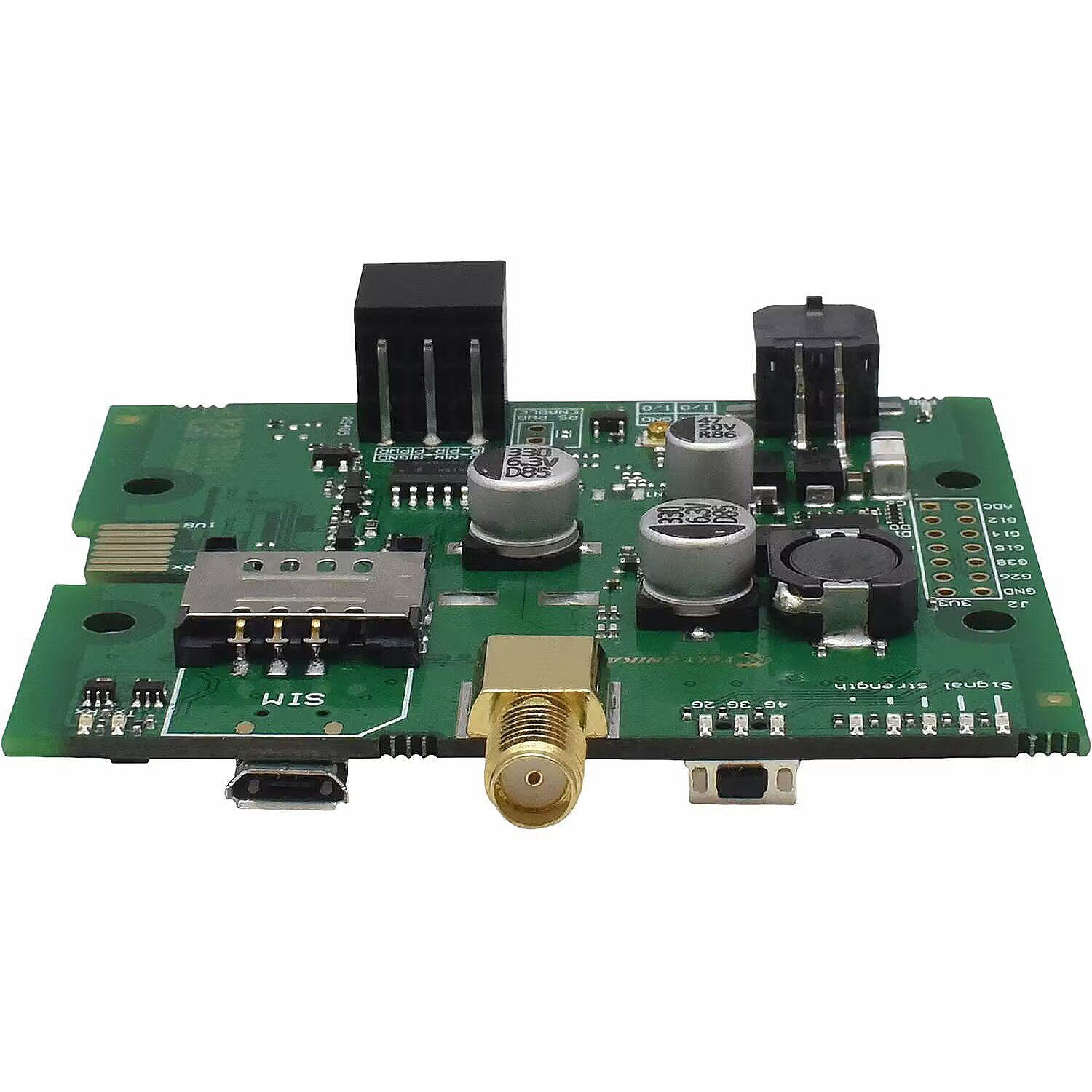

Description - TRB145 gateway The TRB145 is a very small, lightweight, industrial LTE Cat 1 network interface with RS485 interface. Thanks to its compact structure and easy installation, this device is perfect for solutions where one device needs to be remotely controlled via the RS485 interface. Like other TRB products, TRB145 is intended for industrial use. It has many security features: SMS management, firewall, Open VPN, IPsec, Teltonika Networks remote management system (RMS) and FOTA support.
Design > Housing material - Aluminum
Design > LED indicators - 3 x connection type status LEDs, 5 x connection strength LEDs, 1x Power LED
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 150 mm
Dimensions - 75 x 25 x 65 mm
dimension weight - 389 g
dimension width - 175 mm
EAN - 4779027312415
ean - 4779027312415
Eans - 4779027312415
Environment requirements - Operating temperature: -40° C to 75° C Operating humidity: 10-90% non-condensing
Features > Mesh Support - No
Features > Mobile Broadband - 2G/3G/4G
Features > MU-MiMO - No
GSM network - 900 MHz
GSM network - 1900 MHz
guarantee - 24
guarantee_type - normal
I/O ports - 1 x micro USB
I/O ports - 1 x RS-485
I/O ports - 1 x SIM card slot
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 900 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2500 MHz
Management, monitoring, configuration - Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT Serial: Console, Over IP, Modem, NTRIP, Modbus
Manufacturer - Teltonika
Memory > Internal memory - 128 MB (50 MB available for userspace) GB
Model - TRB145
MPN - TRB145003000
name - Gateway LTE TRB145 (Cat 1), 3G, 2G, USB, RS485
Name - LTE Gateway: No WiFi, 4G, SIM, R485 port, Micro USB | LTE Gateway | TRB145 | No Wi-Fi | Ethernet LAN (RJ-45) ports 0 | Mesh Support No | MU-MiMO No | 2G/3G/4G | Antenna type 1 x SMA for LTE | 1 x Virtual network interface via micro USB
Name - Teltonika TRB145
Name - Teltonika TRB145Industrial LTE RS485 Gateway
Number of antennas - One connector
Operational conditions > Operating relative humidity (H-H) - 10 % to 90 % non-condensing %
Operational conditions > Operating temperature (T-T) - -40 °C to 75 °C °C
Other features - Network support: 4G/LTE (Cat 1), 3G, 2G CPU: Qualcomm, ARM Cortex A7, 1.2 GHz Memory: 512 MB Flash (70 MB free), 128 MB RAM (50 MB free) Status LED: 3x network type, 5x signal strength, 1x power Housing: Aluminum with the option of mounting on a DIN rail Degree of protection: IP30 Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet
Other features > Dimensions (WxDxH) - 74,5x64,4x25 mm
Other features > Ethernet LAN (RJ-45) ports - 0
Other features > Supported protocols - HTTP(S), MQTT, Azure MQTT, Kinesis
Other features > USB ports quantity - 1 x Virtual network interface via micro USB
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 170 mm
Package features > Gross height (mm) - 150 mm
Package features > Gross weight - 0.388 kg
Package features > Gross width (mm) - 70.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 968 pc(s)
Package features > Paper/Pasteboard - 111 g
Package features > Tare weight (kg) - 0.111 kg
Package features > Volume (m3) - 0.001785 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Power > Voltage - 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10us max V
Power supply - 4 pin connector, 9-30 VDC
Pozostałe cechy: Akcesoria - zasilacz, 1x antena LTE (uchwyt magnetyczny, męski SMA, kabel 3m), kabel micro-USB (0,8m), 1x klucz sześciokątny, skrócona instrukcja obsługi
Pozostałe cechy: Dodatkowe informacje - obudowa aluminiowa, stopień ochrony IP30, system operacyjny RutOS oparty na OpenLinux, współpraca z systemem zdalnego zarządzania Teltonika RMS, port microUSB do konfiguracji, interfejs RS485, możliwy montaż na szynie DIN, zakres napięcia wejściowego 9-30
Pozostałe cechy: Obsługa VPN - tak
Pozostałe cechy: Waga - 130 g
Pozostałe cechy: Wymiary - 60 x 70 x 18 mm
Pozostałe cechy: Zasilanie - zasilacz AC
Praca bezprzewodowa: Szybkość dla LTE (pobieranie/wysyłanie) - 10 Mbps
Praca bezprzewodowa: Transmisja danych - LTE
Praca bezprzewodowa: Wbudowany modem - 4G/LTE
Processor > Processor model - ARM Cortex-A7 1.2 GHz CPU
Producent: Nazwa producenta / importera - TeltonikaTeltonika NetworksK. Baršausko st. 66LT-51436 KaunasLitwaEmail: info@teltonika.lt
producer - TELTONIKA
Producer - Teltonika
ProducerCode - TRB145
Producer product family - LTE Gateway
Producer product name - TRB145
Protocols > Supported network protocols - TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, SSH, DHCP, SNMP, MQTT
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Security > Firewall security - Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
ShortDescription - Teltonika TRB145 Bramka 4G LTE Cat1, 1x SIM, 1x gniazdo RS485, VPN
SIM card - Mini
Software - RutOS
Special functions -
System Requirements -
Technical details > Net weight - 0.277 kg
Technical details > Other features - RS485 port
Technical details > Producer - Teltonika
Technical details > Software type - RutOS (OpenWrt based Linux OS)
Type - GSM 3G/4G
UMTS network - 900 MHz
UMTS network - 2100 MHz
vendpn - TRB1450 03000
Warranty - 24
Warranty - 24 month(s)
Weight - 0.4
Weight - 130 g
Wireless LAN features > Wi-Fi band - No Wi-Fi
