Brand - FRITZ!
BrandPartCode - 20003182
Category - Wireless Routers
Design - Indication light - Yes
Design - International Protection (IP) code - IP54

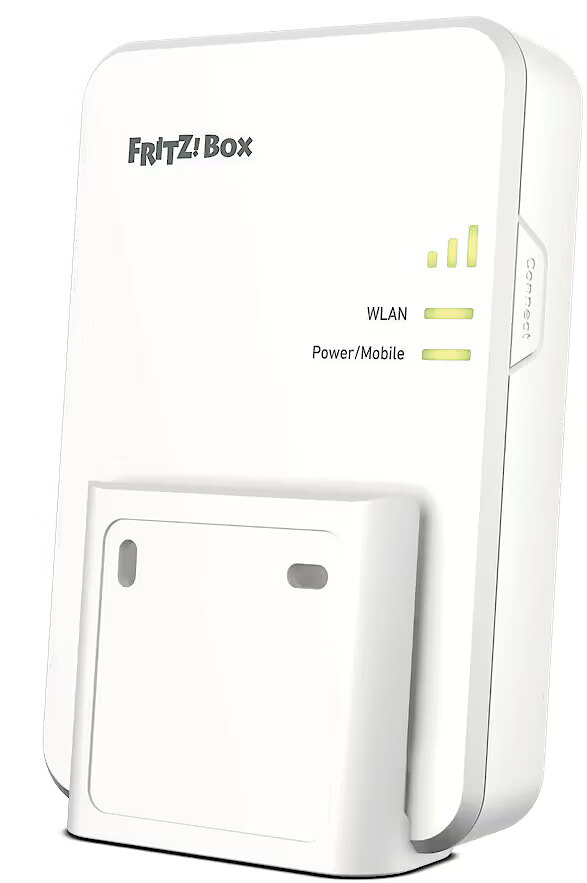

Design - Wall mountable - Yes
EAN - 4023125031823
Features - Firmware upgradeable - Yes
Gross Weight Kg - 0,96
GTIN - 4023125031823
Logistics data - Country of origin - Germany
LongDesc - The FRITZ!Box for high-speed internet via 5G mobile networkFRITZ!Box 6860 5G v2 brings ultra fast 5G mobile internet with up to 1.3 Gbit/s to the wireless home network. As a fixed wireless access solution, it supports 5G (NSA, SA), 4G (Category 19) and 3G. With powerful Mesh and Wi-Fi 6, it distributes data wirelessly throughout the house at up to 3 Gbit/s. The highest security standards (WPA3/WPA2) ensure increased protection.Thanks to the compact design combined with both power and data over Ethernet, the versatile FRITZ!Box 6860 5G can be used both indoors and outdoors. Its IP54 rating guarantees that it is weather-resistant. A DECT base station for telephony and smart home applications rounds out the versatile range of services. Telephony is carried out via the mobile number of the SIM card using VoLTE/VoNR or alternatively via VoIP/SIP incl. encryption.The FRITZ!OS, our router operating system, makes it easy to integrate and control these devices.FRITZ!OSFRITZ!OS is the genius of the FRITZ! family. With this smart operating system, the FRITZ! team opens up a broad spectrum of possibilities in your customers' home networks. Your FRITZ!Box uses the most advanced technologies while providing for the right balance between exciting features and simple operation.Software updatesFRITZ!OS, our router operating system, is updated regularly to implement new features and to guarantee long product life cycles. And all updates are offered to our customers free of charge.Device managementThe FRITZ!Box supports not only OMCI management but also offers comprehensive support for TR-069 and USP (TR-369), right out of the box. The use of open standards puts a broad palette of ISP-relevant management parameters at your disposal, no matter which technology you use.Eco designFRITZ! products are characterized by low power consumption and configurable energy-saving modes. Production in Europe means short transport routes, secure labor conditions, and the use of environmentally sustainable materials. Many years of software updates with expanded functions, bug fixes, and security updates ensure long life cycles.Product qualityDeveloped and produced in Germany and Europe, our FRITZ!Box fulfills its market promise to its end customers, by ensuring proven reliability with success in the field. Before being launched on the market, the products run through extensive lab phases which offer customers the opportunity to evaluate new features in advance.An all-in-one deviceA FRITZ!Box is a joint router, installed directly at the internet connection. This saves power, while ensuring convenient operation and simplifying device management. Internet, Wi-Fi, streaming, telephony, smart home, and much more – combined in a single device.
LongProductName - 5G/4G/3G mobile router, Wi-Fi 6 up to 2400 Mbit/s, Mesh support, integrated DECT base station, IP54 indoor/outdoor rated, PoE+ powered
LongSummaryDescription - Box 6860 5G v2. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 3000 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 5G, 3G standards: UMTS, HSPA+, 4G standard: LTE-A. Number of data streams: 2x2. Security algorithms: WPA2, WPA3, Firewall security: SPI firewall, DoS protection
Management features - MIMO - Yes
Management features - Number of data streams - 2x2
Management features - Wake-on-LAN ready - Yes
Management features - Web-based management - Yes
Manufacturer Code - 20003182
Manufacturer Name - AVM
Mobile network - 3G bands supported - 2100,850,900 MHz
Mobile network - 3G standards - UMTS, HSPA+
Mobile network - 4G bands supported - 2000,3800,2400 MHz
Mobile network - 4G standard - LTE-A
Mobile network - 5G standard - Sub6 SA, Sub6 NSA
Mobile network - Mobile network generation - 5G
Mobile network - SIM card type - NanoSIM
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Networking standards - IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.3at, IEEE 802.1Q
Network - Port forwarding - Yes
Network - VPN Passthrough - Yes
Network - VPN support - IPSec and WireGuard, VPN passthrough
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - Power consumption (typical) - 6.8 W

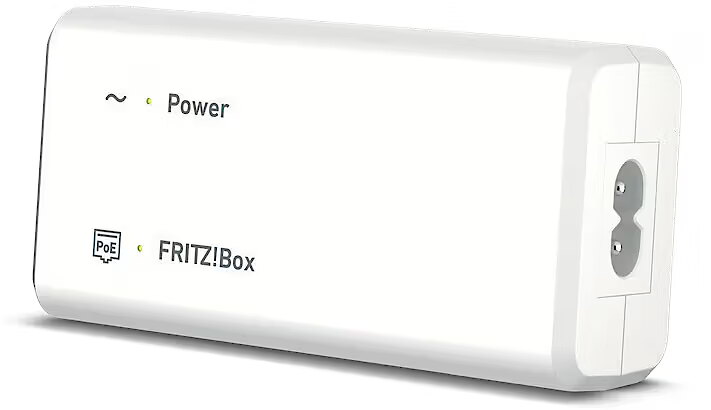

Power - Power over Ethernet (PoE) - Yes
Power - Power source type - PoE
ProductName - FRITZ!Box 6860 5G v2
Protocols - DHCP client - Yes
Security - DoS attack prevention - Yes
Security - Filtering - Yes
Security - Firewall - Yes
Security - Firewall security - SPI firewall, DoS protection
Security - Guest access - Yes
Security - Parental control - Yes
Security - Schedule access - Yes
Security - Security algorithms - WPA2, WPA3
Security - Stateful Packet Inspection (SPI) - Yes
Security - URL filtering - Yes
Short description - FRITZ!Box 6860 5G v2
ShortSummaryDescription - Box 6860 5G v2, Wi-Fi 6 (802.11ax), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, 5G
Title - Box FRITZ! 6860 5G v2 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz)
URL - https://business.fritz.com/fileadmin/user_upload/Content/Global/Datenbl%C3%A4tter/FRITZ_Box_6860_5G_Data_Sheet_EN.pdf
WAN connection - SIM card slot - Yes
WarrantyInfo -
Weight & dimensions - Depth - 31 mm
Weight & dimensions - Height - 111 mm
Weight & dimensions - Width - 163 mm
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 600 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 3000 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 2400 Mbit/s
