AC adapter included Packaging content - Yes
AC adapter output voltage Power - 12 V
Antenna direction type Design - Omni-directional
Antennas quantity Design - 4
Antenna type Design - Internal
Brand - Dahua Technology
BrandPartCode - DH-MAX18
Category - Mesh Wi-Fi Systems
Category Code - WMS
Certificates - Certification - CE RED
Certification Certificates - CE RED
DC-in jack Ports & interfaces - Yes
Depth Weight & dimensions - 94 mm
Description - Built with high-performance wireless transceiver chips, Dahua Mesh Wireless Router adopts advanced Mesh technology to provide broadband access and smooth wireless network services without dead
angles for medium and large-scale scenarios. This product is suitable for scenarios that are more than 100 square meters, such as apartments, villas and offices.Offers wireless access and high bandwidth1 gigabit WAN port and 2 gigabit LAN portsEasily switches between LAN and WANSupports accessing 1000 Mbps optical fiber broadbandSupports being managed through the WiLynk app
Design - Antenna direction type - Omni-directional
Design - Antennas quantity - 4
Design - Antenna type - Internal
Design - LED indicators - Status
Design - Number of devices supported - 64
Design - Product colour - Black
Design - Product type - Mesh router
Design - Reset button - Yes
Design - Transmit power - 4.45 dBmW
DHCP server Features - Yes
Ethernet cable Packaging content - Yes

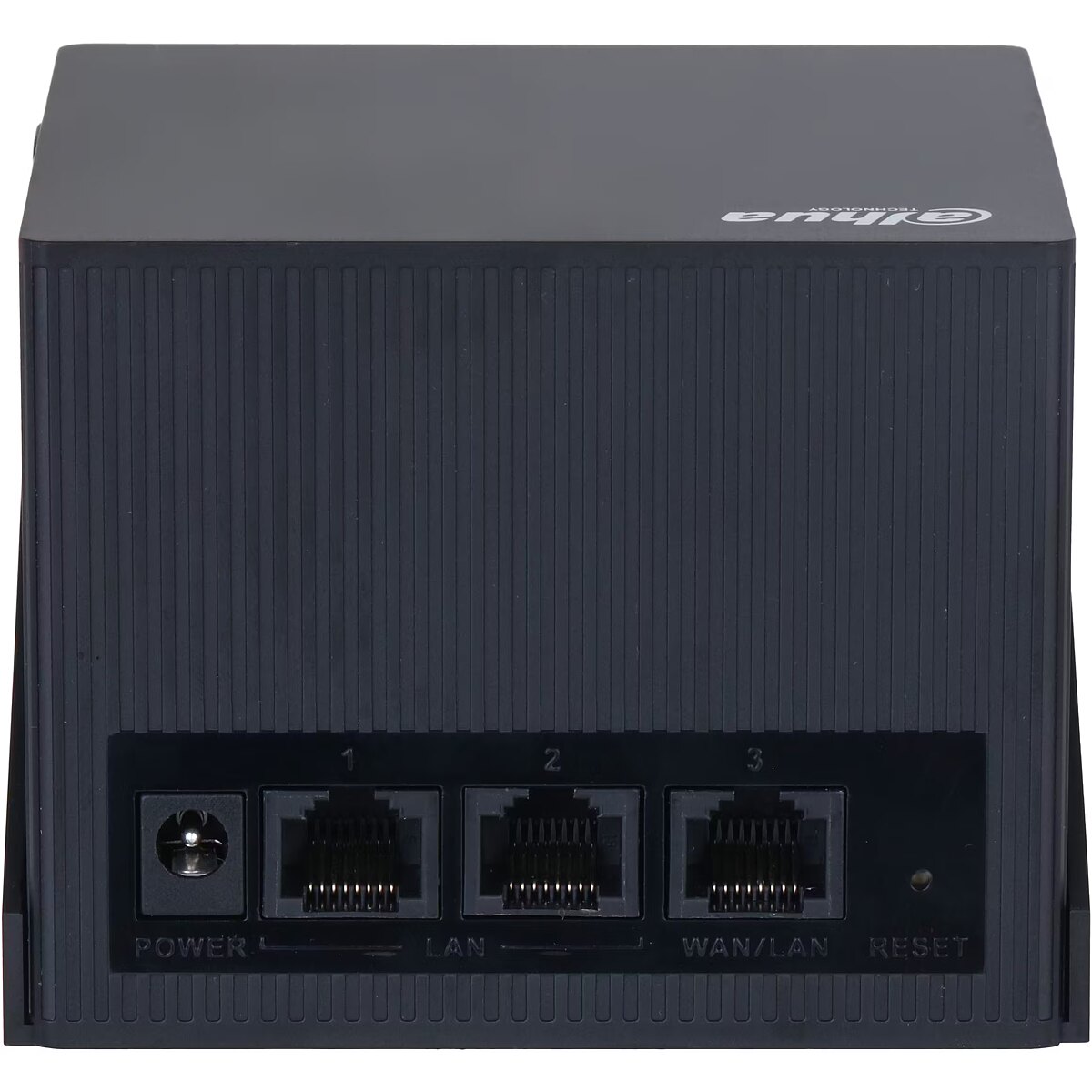

Ethernet LAN (RJ-45) ports Ports & interfaces - 3
Ethernet WAN Ports & interfaces - Yes
Features - DHCP server - Yes
Features - Internal memory - 256 MB
Features - NAT functionality - Port-based NAT configuration
GTIN - 6923172548887
Height Weight & dimensions - 72 mm
Internal memory Features - 256 MB
LED indicators Design - Status
LongDesc - Built with high-performance wireless transceiver chips, Dahua Mesh Wireless Router adopts advanced Mesh technology to provide broadband access and smooth wireless network services without deadangles for medium and large-scale scenarios. This product is suitable for scenarios that are more than 100 square meters, such as apartments, villas and offices.
LongProductName - 1.8 Gbps, IEEE 802.11b/g/n/ac/ax, 2.4-5 Ghz, 3x RJ-45, 256 MB, 12 VDC, 0.23 kg
LongSummaryDescription - Dahua Technology MAX18 Mesh Wireless Router. Product colour: Black, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1800 Mbit/s. Internal memory: 256 MB, NAT functionality: Port-based NAT configuration. Supported network protocols (IPv6): UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; DHCP. Power consumption (typical): 12 W, AC adapter output voltage: 12 V
Model name - MAX18
NAT functionality Features - Port-based NAT configuration
Number of devices supported Design - 64
Number of products included Packaging content - 1 pc(s)
Operating relative humidity (H-H) Operational conditions - 5 - 95%
Operating temperature (T-T) Operational conditions - -10 - 55 °C
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package depth Packaging data - 126.5 mm
Package height Packaging data - 155.5 mm
Package weight Packaging data - 480 g
Package width Packaging data - 121.5 mm
Packaging content - AC adapter included - Yes
Packaging content - Ethernet cable - Yes
Packaging content - Number of products included - 1 pc(s)
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 126.5 mm
Packaging data - Package height - 155.5 mm
Packaging data - Package weight - 480 g
Packaging data - Package width - 121.5 mm
Point-to-point protocol over Ethernet (PPPoE) Wireless LAN features - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces - Ethernet WAN - Yes
Power - AC adapter output voltage - 12 V
Power - Power consumption (typical) - 12 W
Power consumption (typical) Power - 12 W
Product colour Design - Black
ProductName - MAX18 Mesh Wireless Router
Product type Design - Mesh router
Protocols - Supported network protocols (IPv6) - UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; DHCP
Quick installation guide Packaging content - Yes
Reset button Design - Yes
Security algorithms Wireless LAN features - SSH, WPA2-PSK, WPA3-PSK
ShortSummaryDescription - Dahua Technology MAX18 Mesh Wireless Router, Black, Internal, Mesh router, Status, Omni-directional, 4.45 dBmW
Static IP Wireless LAN features - Yes
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Summary - Dahua Technology MAX18 Mesh Wireless Router. Product colour: Black, Antenna type: Internal, Product type: Mesh router. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), WLAN data transfer rate (max): 1800 Mbit/s. Internal memory: 256 MB, NAT functionality: Port-based NAT configuration. Supported network protocols (IPv6): UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; DHCP. Power consumption (typical): 12 W, AC adapter output voltage: 12 V
Supported network protocols (IPv6) Protocols - UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; DHCP
Title - Dahua Technology MAX18 Mesh Wireless Router
Top Wi-Fi standard Wireless LAN features - Wi-Fi 6 (802.11ax)
Transmit power Design - 4.45 dBmW
Unit Box Height - 0.155
Unit Box Length - 0.12
Unit Box Width - 0.125
Unit Calculated Volume - 0.002325 cubm
Unit Calculated Weight - 0.52 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/Wireless-Router/MAX18
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/Wireless-Router/MAX18
VPN support Wireless LAN features - L2TP; L2TP/IPsec VPN
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 94 mm
Weight & dimensions - Height - 72 mm
Weight & dimensions - Weight - 230 g
Weight & dimensions - Width - 94 mm
Weight Weight & dimensions - 230 g
Wi-Fi band Wireless LAN features - Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards Wireless LAN features - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Width Weight & dimensions - 94 mm
Wireless LAN features - Point-to-point protocol over Ethernet (PPPoE) - Yes
Wireless LAN features - Security algorithms - SSH, WPA2-PSK, WPA3-PSK
Wireless LAN features - Static IP - Yes
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - VPN support - L2TP; L2TP/IPsec VPN
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 1800 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 1201 Mbit/s
WLAN data transfer rate (first band) Wireless LAN features - 574 Mbit/s
WLAN data transfer rate (max) Wireless LAN features - 1800 Mbit/s
WLAN data transfer rate (second band) Wireless LAN features - 1201 Mbit/s
