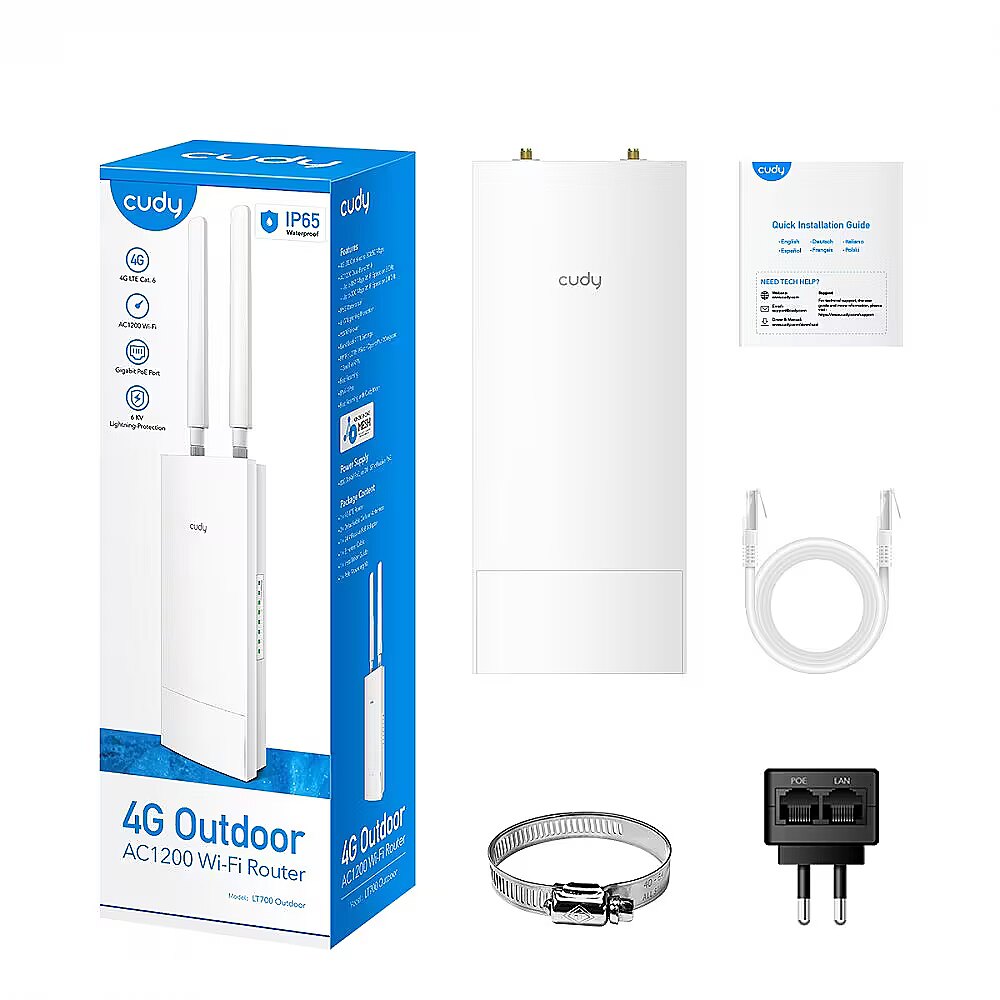

Accessories included - 2 x detachable 4G antenna Passive PoE adapter Accessories for pole installation Ethernet cable Quick Installation Guide
Aero2 support - No
Antenna - Built-in
Antenna - Detachable external
Antenna - Antenna design - Internal & external
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 4
Antenna - Detachable antenna(s) - Yes
Antenna gain - 5 dBi
Card reader - None
Certificates -
Color - White
Data transmission - EDGE
Data transmission - LTE
Data transmission - UMTS

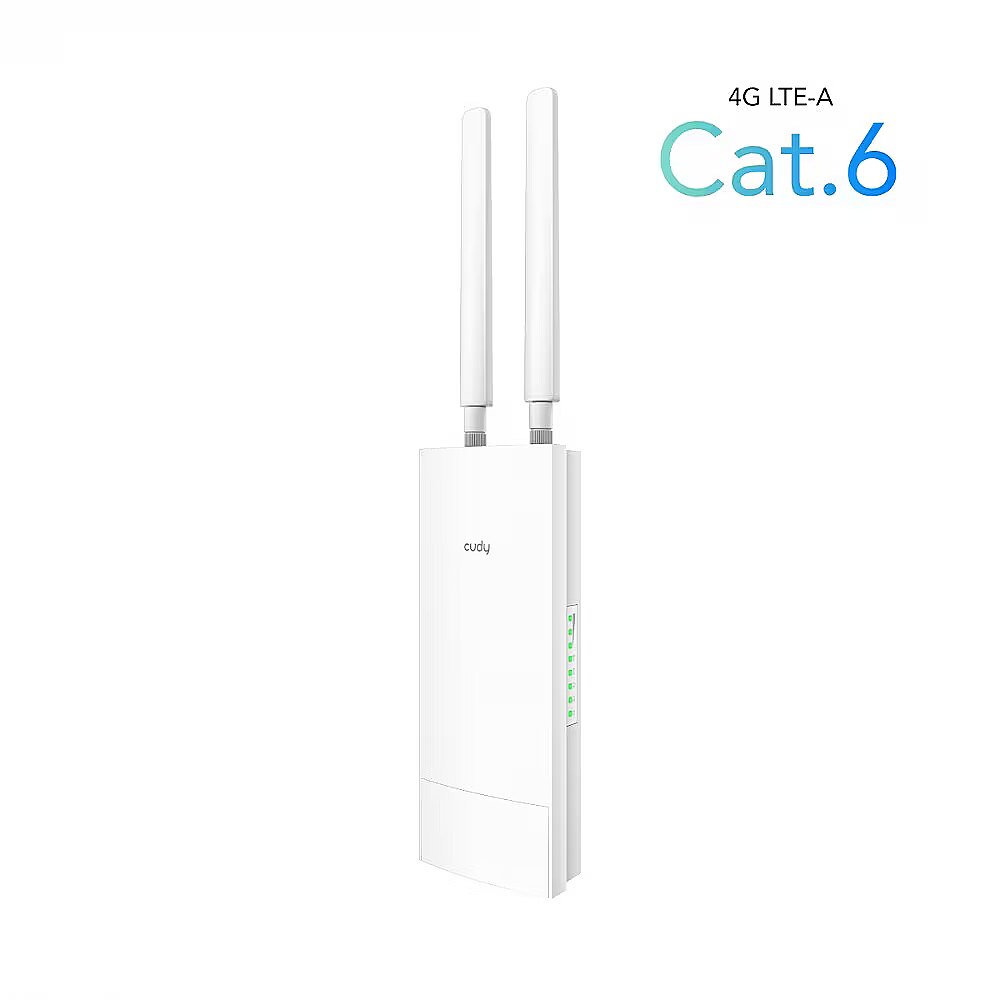

Description - Router LT700 Outdoor LTE FDD/TDD Cat 6 AC1200 Wi-Fi 1 x Gigabit WAN/LAN Nano SIM Card Slot 802.3at/af PoE or Passive PoE 2x Internal WiFi Antennas + 2 x Detachable 4G Antennas VPN & DDNS IP65 WaterProof Turn Everywhere 4G into Speedy AC1200 Wi-Fi
With 4G Cat.6 standards, LT700 Outdoor communicates with a 4G tower with speeds of up to 300 Mbps download and 50 Mbps upload. With MU-MIMO and dual-band features, the AC1200 Wi-Fi shares the fast 4G with over 30 devices while minimizing the latency.
Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four dierent scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.
Insert a SIM, Enjoy Wi-Fi
Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.
Pull Network to 100 m Away
Plug your Ethernet cable into the PoE adapter/switch to get up to 100 m of wired network reach. The extra cable is not included in the box.
Install an AP for Indoor Wi-Fi
Connect an AP to the PoE adapter to equip your cafe, home, or oce with a better Wi-Fi signal. AP needs to bepurchased separately.
Install Extension Antennas
The default 4G antennas are as sensitive as a standard phone's antennas. You can still replace them with customized ones via the SMA connectors.
Design - International Protection (IP) code - IP65
Design - LED indicators - System, WLAN
Design - Product colour - White
Design - Product type - Desktop/pole router
Design - Wall mountable - Yes
Designation - CE+WEEE
dimensionalWeight - 571
dimension depth - 325 mm
dimension height - 107 mm
Dimensions - Router body: 240 x 100 x 53.7 mm 4G antennas: 197.5 x 21.6 x 15.5mm
dimension weight - 880 g
dimension width - 85 mm
ean - 6971690793142
Environment requirements - Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser
Features - Flash memory - 16 MB
Features - Internal memory - 128 MB
GSM network - 900 MHz
GSM network - 1900 MHz
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100 Mbit/s LAN / WAN (Combo)
I/O ports - 1 x SIM card slot
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
LTE network - 2600 MHz
Management, monitoring, configuration - WAN Type: 4G/Dynamic IP/Static IP/PPPoE DHCP: server, DHCP client list, address reservation Dynamic DNS: Compatible with 15 other DDNS providers NAT: port forwarding, port triggering, UPnP, DMZ VPN server and client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier CWMP protocol: TR069 / TR098 / TR111 / TR181 Compatible with ACS server: GenieACS, OpenACS Management: Access Control, Local Management, Remote Management, Wake on LAN TTL: Extend/Spoof/Custom DNS: Cloudare/Google/Custom Internet protocols: IPv4 / IPv6 IPv6: Relay; Dynamic (SLAAC/DHCPv6); Static (permanent IP address); Go through; MAP-E (dual stack); DS-Lite (Dual Stack) SMS: send/receive Blocking the 4G band
Management features - MIMO - Yes
Management features - MU-MIMO technology - Yes
Management features - Reset button - Yes
Management features - Wake-on-LAN ready - Yes
Management features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Mobile network - 2G standards - Edge
Mobile network - 2G standards - GSM
Mobile network - 3G standards - WCDMA
Mobile network - 4G standard - LTE-TDD & LTE-FDD
Mobile network - Dual SIM support - No
Mobile network - Mobile network generation - 4G
Mobile network - Short Message Service (SMS) - Yes
Mobile network - SIM card type - NanoSIM
Model - LT700 Outdoor
name - Router LT700 Outdoor 4G LTE SIM AC1200
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Maximum Tx power (2.4 GHz) - 20 dBmW
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Port forwarding - Yes
Network - Port triggering - Yes
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Other features - Wi-Fi Data Rate: 2.4 GHz (802.11n/g/b, MIMO 300Mbps) 5GHz (802.11ac/n/a, MIMO 867Mbps) Cellular Data Rate: FDD: Max 300Mbps(DL)/ 50Mbps(UL) TDD: Max 220Mbps(DL)/ 30Mbps(UL) DC-HSDPA: Max 42Mbps HSDPA: Max. 21Mbps (DL) / Max. 5.76Mbps (UL) WCDMA: 384Kbps (DL/UL)
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Mounting kit - Yes
Packaging content - PoE injector included - Yes
Packaging content - Quick installation guide - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - USB port - No
Power - Power source type - PoE
Power supply - Passive PoE adapter
producer - Cudy
producerCode - LT700 Outdoor_EU
productName - Cudy LT700 wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) 4G White
productSize - Normal
Protocols - DHCP client - Yes
Protocols - DHCP server - Yes
Protocols - Supported network protocols - IPv4 / IPv6
Protocols - Universal Plug and Play (UPnP) - Yes
Security - WEP WPA/WPA2 WPA-PSK/WPA2-PSK
Security - DMZ support - Yes
Security - Security algorithms - WEP
Security - Security algorithms - WPA
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-PSK
SIM card - Nano
sizeX - 320
sizeY - 85
sizeZ - 105
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows NT
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements -
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 7
System requirements - Windows operating systems supported - Windows 7 Enterprise
System requirements - Windows operating systems supported - Windows 7 Enterprise x64
System requirements - Windows operating systems supported - Windows 7 Home Basic
System requirements - Windows operating systems supported - Windows 7 Home Basic x64
System requirements - Windows operating systems supported - Windows 7 Home Premium
System requirements - Windows operating systems supported - Windows 7 Home Premium x64
System requirements - Windows operating systems supported - Windows 7 Professional
System requirements - Windows operating systems supported - Windows 7 Professional x64
System requirements - Windows operating systems supported - Windows 7 Starter
System requirements - Windows operating systems supported - Windows 7 Starter x64
System requirements - Windows operating systems supported - Windows 7 Ultimate
System requirements - Windows operating systems supported - Windows 7 Ultimate x64
System requirements - Windows operating systems supported - Windows 7 x64
System requirements - Windows operating systems supported - Windows 8
System requirements - Windows operating systems supported - Windows 8 Enterprise
System requirements - Windows operating systems supported - Windows 8 Enterprise x64
System requirements - Windows operating systems supported - Windows 8 Pro
System requirements - Windows operating systems supported - Windows 8 Pro x64
System requirements - Windows operating systems supported - Windows 8 x64
System requirements - Windows operating systems supported - Windows 8.1
System requirements - Windows operating systems supported - Windows 8.1 Enterprise
System requirements - Windows operating systems supported - Windows 8.1 Enterprise x64
System requirements - Windows operating systems supported - Windows 8.1 Pro
System requirements - Windows operating systems supported - Windows 8.1 Pro x64
System requirements - Windows operating systems supported - Windows 8.1 x64
System requirements - Windows operating systems supported - Windows 10
System requirements - Windows operating systems supported - Windows 10 Education
System requirements - Windows operating systems supported - Windows 10 Education x64
System requirements - Windows operating systems supported - Windows 10 Enterprise
System requirements - Windows operating systems supported - Windows 10 Enterprise x64
System requirements - Windows operating systems supported - Windows 10 Home
System requirements - Windows operating systems supported - Windows 10 Home x64
System requirements - Windows operating systems supported - Windows 10 IOT Core
System requirements - Windows operating systems supported - Windows 10 IoT Enterprise
System requirements - Windows operating systems supported - Windows 10 Pro
System requirements - Windows operating systems supported - Windows 10 Pro x64
System requirements - Windows operating systems supported - Windows 10 x64
System requirements - Windows operating systems supported - Windows 11
System requirements - Windows operating systems supported - Windows 11 Enterprise
System requirements - Windows operating systems supported - Windows 98SE
System requirements - Windows operating systems supported - Windows 2000
System requirements - Windows operating systems supported - Windows Vista
System requirements - Windows operating systems supported - Windows Vista Business
System requirements - Windows operating systems supported - Windows Vista Business x64
System requirements - Windows operating systems supported - Windows Vista Enterprise
System requirements - Windows operating systems supported - Windows Vista Enterprise x64
System requirements - Windows operating systems supported - Windows Vista Home Basic
System requirements - Windows operating systems supported - Windows Vista Home Basic x64
System requirements - Windows operating systems supported - Windows Vista Home Premium
System requirements - Windows operating systems supported - Windows Vista Home Premium x64
System requirements - Windows operating systems supported - Windows Vista Ultimate
System requirements - Windows operating systems supported - Windows Vista Ultimate x64
System requirements - Windows operating systems supported - Windows XP
System requirements - Windows operating systems supported - Windows XP Home
System requirements - Windows operating systems supported - Windows XP Home x64
System requirements - Windows operating systems supported - Windows XP Professional
System requirements - Windows operating systems supported - Windows XP Professional x64
Type - GSM 3G/4G
UMTS network - 850 MHz
UMTS network - 900 MHz
UMTS network - 2100 MHz
vendpn - LT700 Outdoor_EU
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - Yes
WAN connection - WAN connection type - RJ-45
warrantyLength - 24
warrantyType - G
weight - 871
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - WLAN data transfer rate (first band) - 300 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 867 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 867 Mbit/s
