Accessories included -
Aero2 support - No
Antenna - Built-in
Antenna gain - 4.5 dBi
Category 1 - Netzwerk
Category 2 - Router
Certificates - CE, UKCA, EAC, UCRF, RCM
Code - OTD140000000
Color - White
Data transmission - LTE

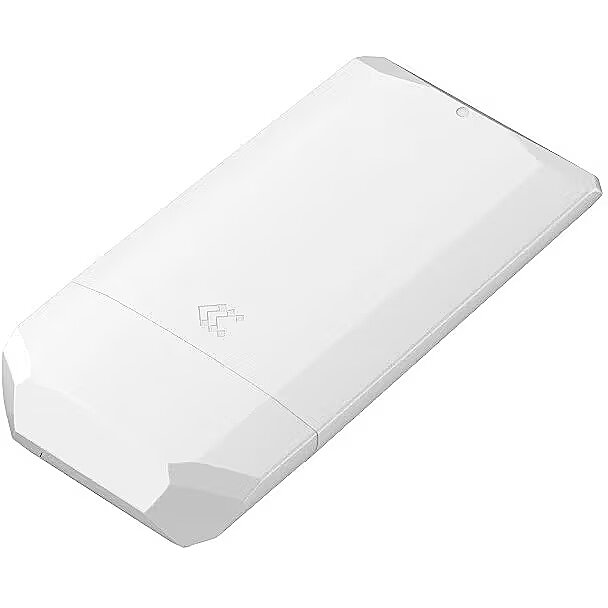

Description - Teltonika Networks' first-ever outdoor router, the OTD140, is designed to provide seamless and uninterrupted connectivity to your outdoor network solutions - no matter the weather. The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and able to withstand outdoor conditions. Additionally, this outdoor router comes with LTE Cat 4 connectivity, RMS compatibility for remote management, and dual Ethernet PoE I/O.
Description - TELTONIKA OUTDOOR IP55 IOT ROUTER OTD140 4G (CAT4) 2X10/100 RJ45 DUAL SIM
Designation - CE+WEEE
dimension depth - 115 mm
dimension height - 55 mm
Dimensions - 110 x 49.30 x 235 mm
Dimensions W x D x H, mm - 110 x 235 x 49.3
dimension weight - 400 g
dimension width - 250 mm
Dual SIM support - Yes
EAN - 4779027312927
ean - 4779027312927
Environment requirements - Operating temperature: -40 to 75 degrees Celsius Operating humidity: 10% to 90%, non-condensing Degree of protection: IP55
Ethernet LAN (RJ-45) ports quantity - 2
Ethernet LAN data transfer rates, Mbit/s - 10/100
Features > Mesh Support - No
Features > Mobile Broadband - 3G/4G
Features > MU-MiMO - No
guarantee - 24
guarantee_type - normal
Height - 115.000000
I/O ports - 2 x 10/100 Mbit/s PoE
Internal memory - 128 MB
IP classification - IP55
LED indicators - 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs
Length - 52.000000
Management, monitoring, configuration - WEB UI: HTTP/HTTPS, status, configuration, firewall software (FW) update, command line interface (CLI), troubleshooting, event log, system log FOTA: Firmware update from server, automatic notification SSH: SSH (v1, v2) SMS: SMS status, SMS configuration, sending/reading SMS via HTTP POST/GET TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem RMS: Teltonika Remote Management System (RMS) MODBUS: MODBUS TCP status/control JSON-RPC: Management API over HTTP/HTTPS
Manufacturer - Teltonika
ManufacturerPartNumber - OTD140000000
Mobile broadband - Yes
Model - OTD140
MPN - OTD140000000
name - Router Outdoor ODT140 4G (Cat 4), 3G, 2G IP55 Dual SIM PoE
Name - Teltonika 4G Outdoor Router | OTD140 | 10/100 Mbit/s | Ethernet LAN (RJ-45) ports 2 | Mesh Support No | MU-MiMO No | 3G/4G
Name - Teltonika OTD140 Outdoor Router
Number of antennas - 2
Operating system provided - RutOS (OpenWrt based Linux OS)
Operating temperature range (T-T), °C - -40 - 75
Other features - Housing material: Plastic (PC+ASA) Processor: Mediatek, 580 MHz, MIPS 24KEc RAM: 128MB FLASH memory: 16 MB
Other features > Ethernet LAN (RJ-45) ports - 2
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 245.00 mm
Package features > Gross height (mm) - 59.30 mm
Package features > Gross width (mm) - 120.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 496 pc(s)
Package features > Paper/Pasteboard - 120.00 g
Package features > Plastic (No PET) - 25.00 g
Package features > Tare weight (kg) - 0.15 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100 Mbit/s
PeriodofWarranty - 2 Y
Power supply - Input voltage range for PoE: 42,557.0 VDC, reverse polarity protection, overvoltage/surge protection.
producer - TELTONIKA
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, RADIUS, IP and login attempt blocking Protection against DDoS attacks (protection against SYN flood attack, preventing SSH attacks, preventing HTTP/HTTPS attacks), preventing port scanning (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks).
SIM card - Standard
SIM card type - mini-SIM
Software -
Special functions -
Standards - 802.3af
Standards - 802.3at
System Requirements -
Technical details > Gross weight - 1.00 kg
Technical details > Net weight - 0.86 kg
Technical details > Producer - Teltonika
Technical details > Producer product family - 4G Outdoor Router
Technical details > Producer product name - OTD140
Total storage capacity - 16 MB
Type - GSM 3G/4G
vendpn - OTD140000000
Warranty - 24
Warranty - 24 month(s)
Weight - 0.42
Weight - 0.420000
Weight - 315 g
Weight, g - 855
Width - 252.000000
