ID: 1227068
Product code: DUAL-RTX5060-O8G
In stock 22 units
Warranty: 3 years

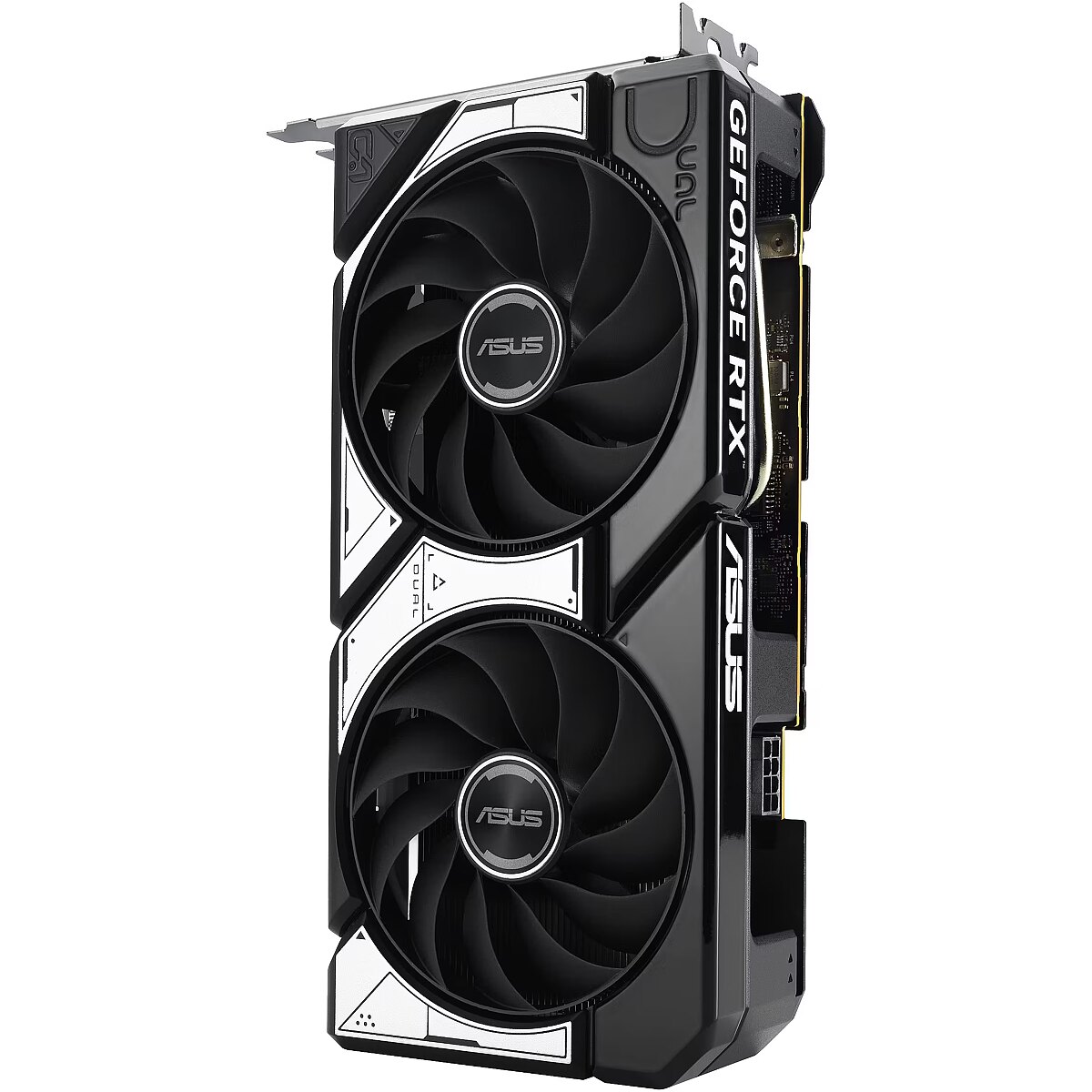

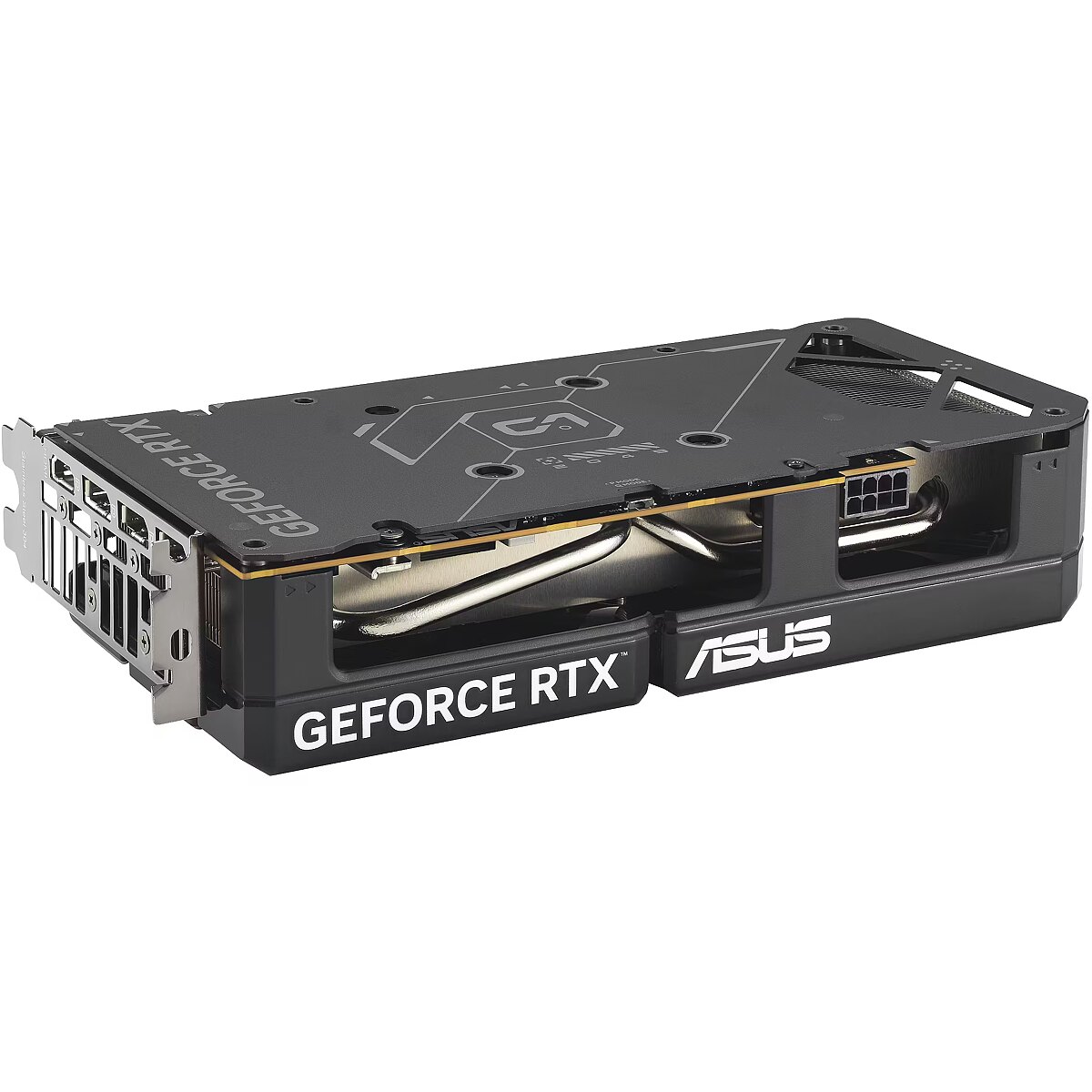

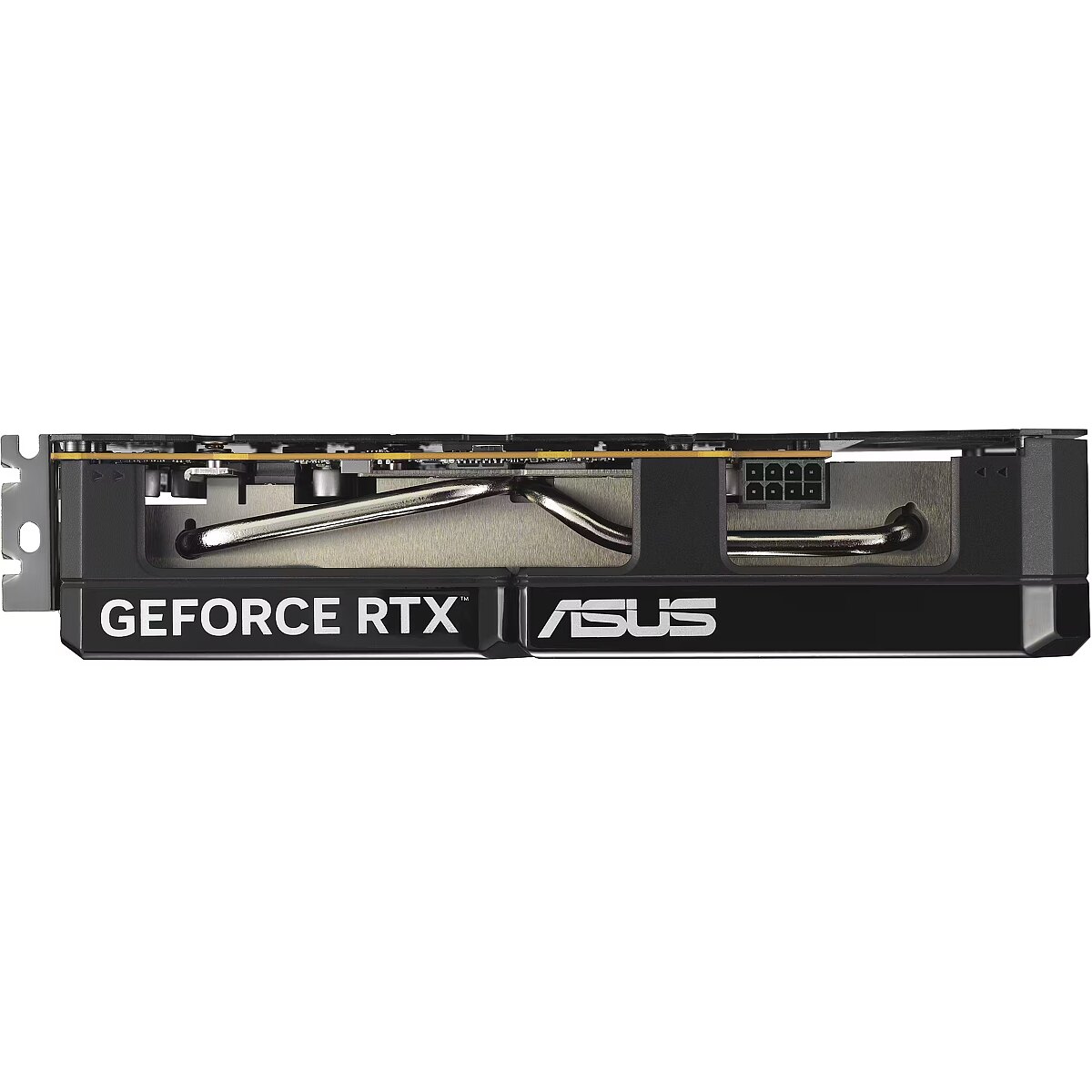

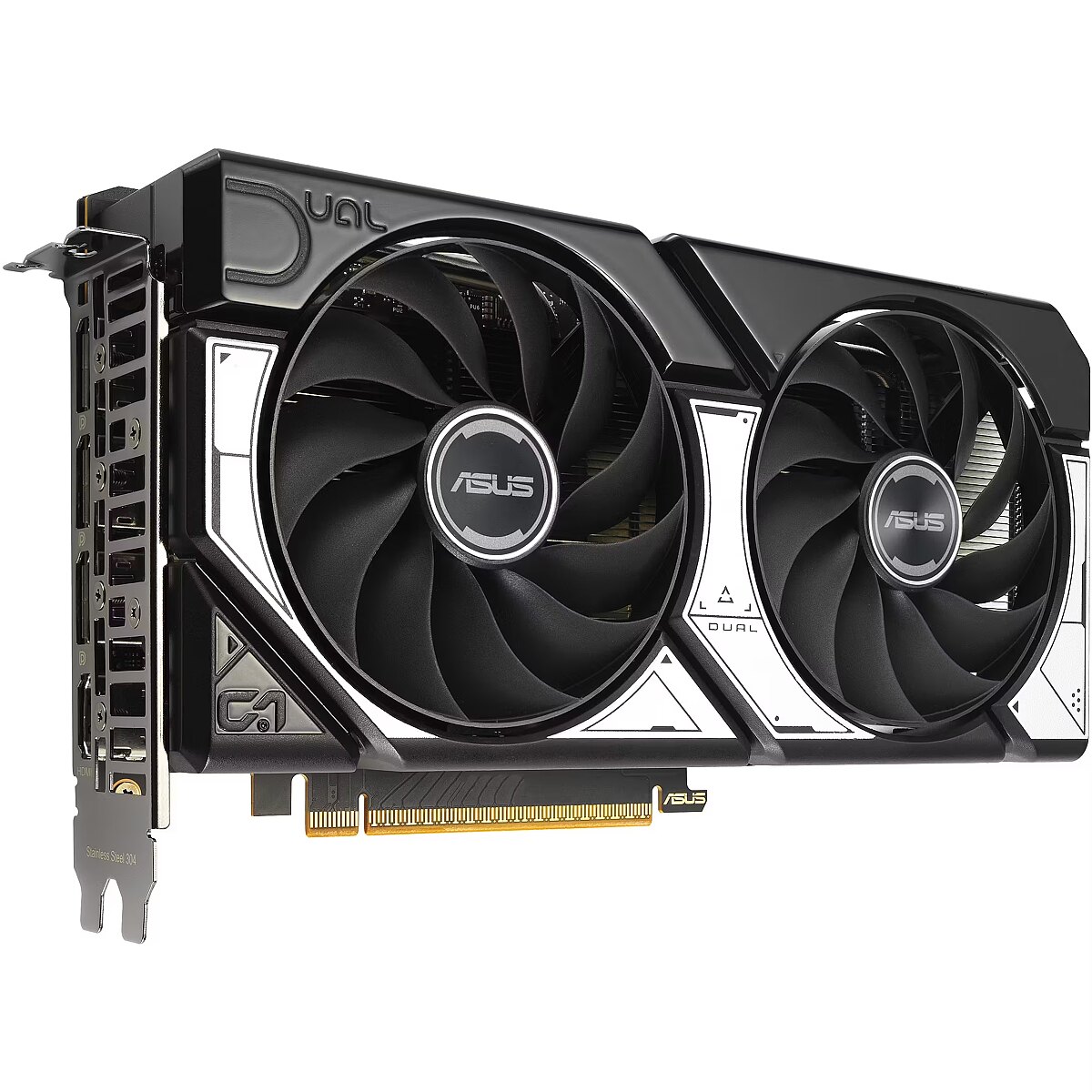

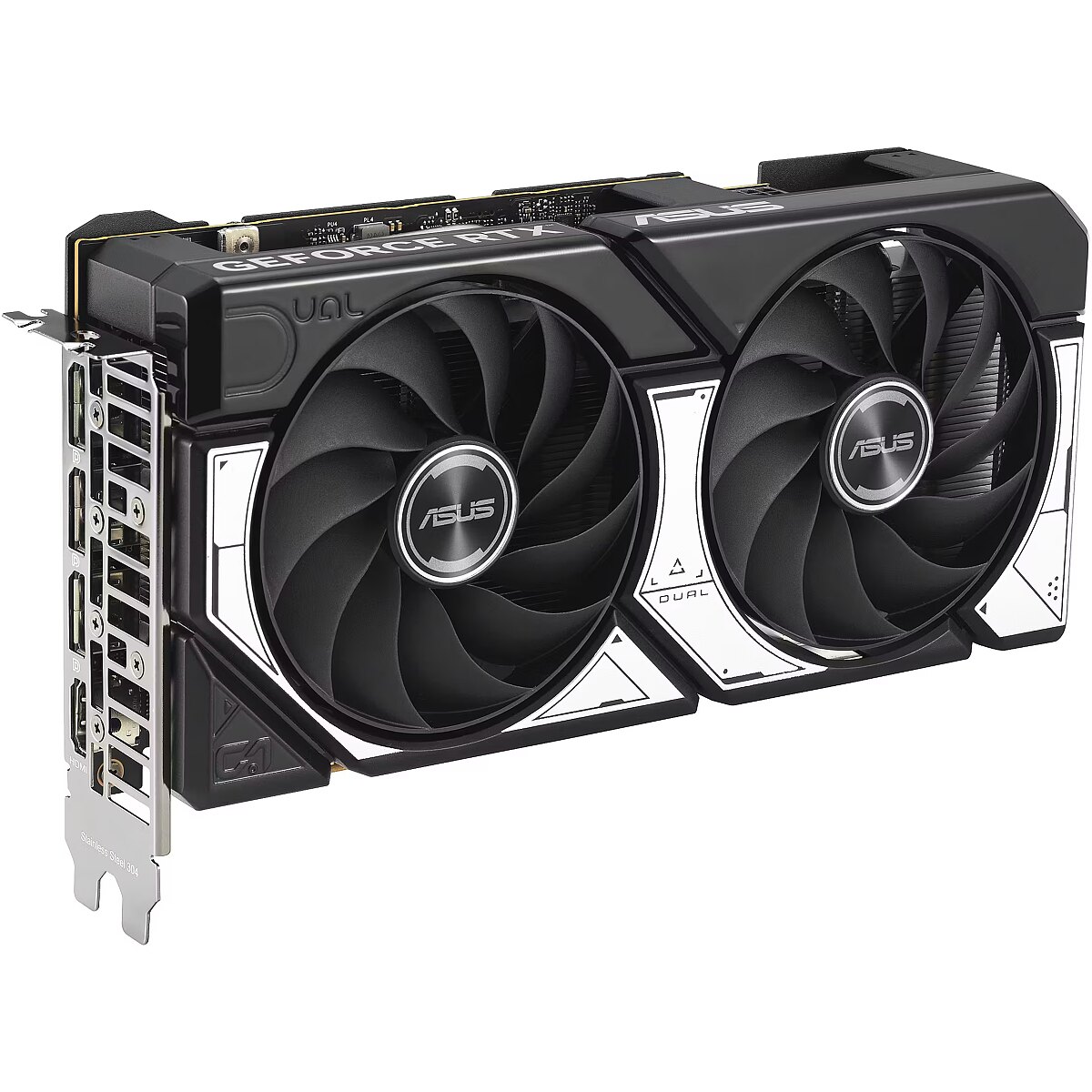

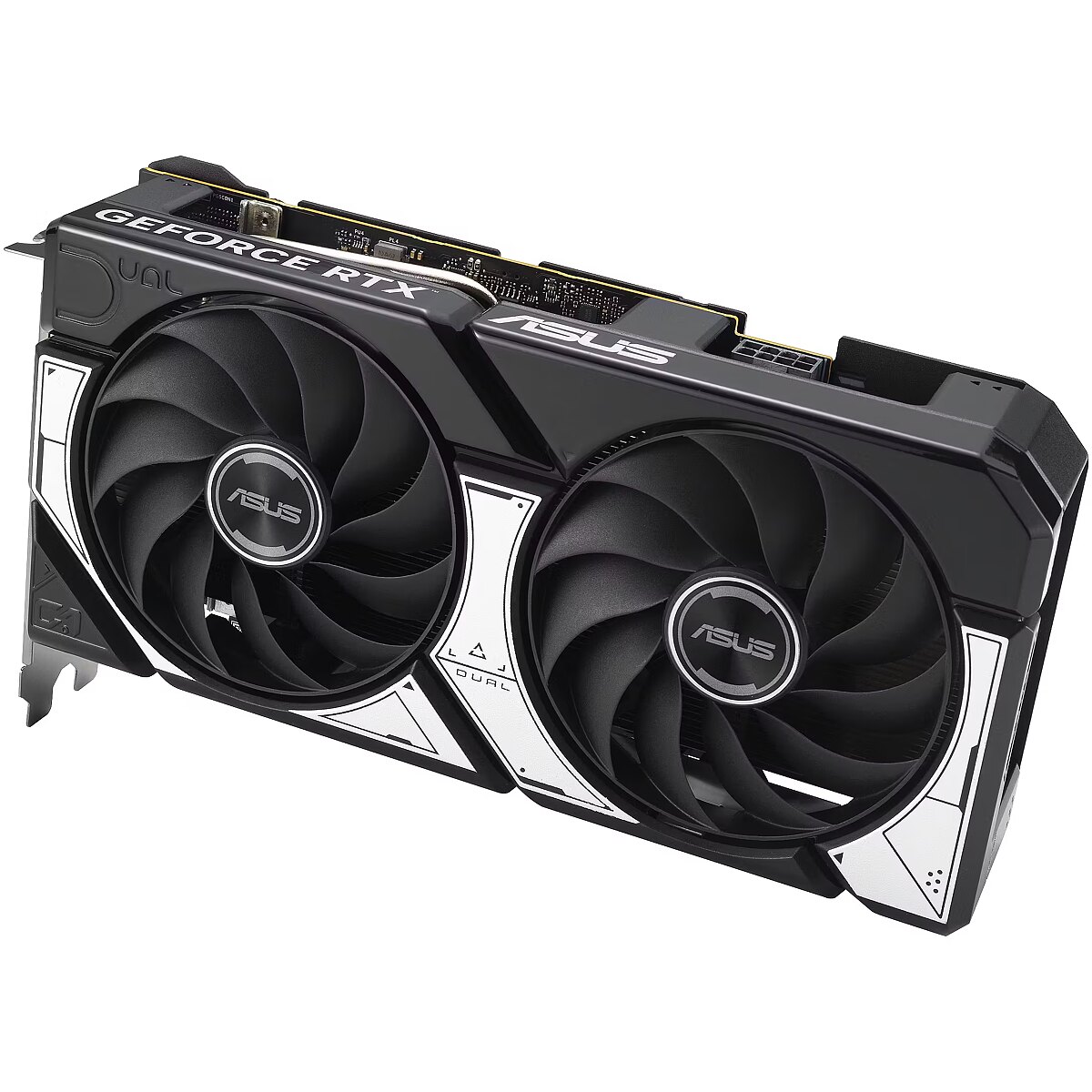

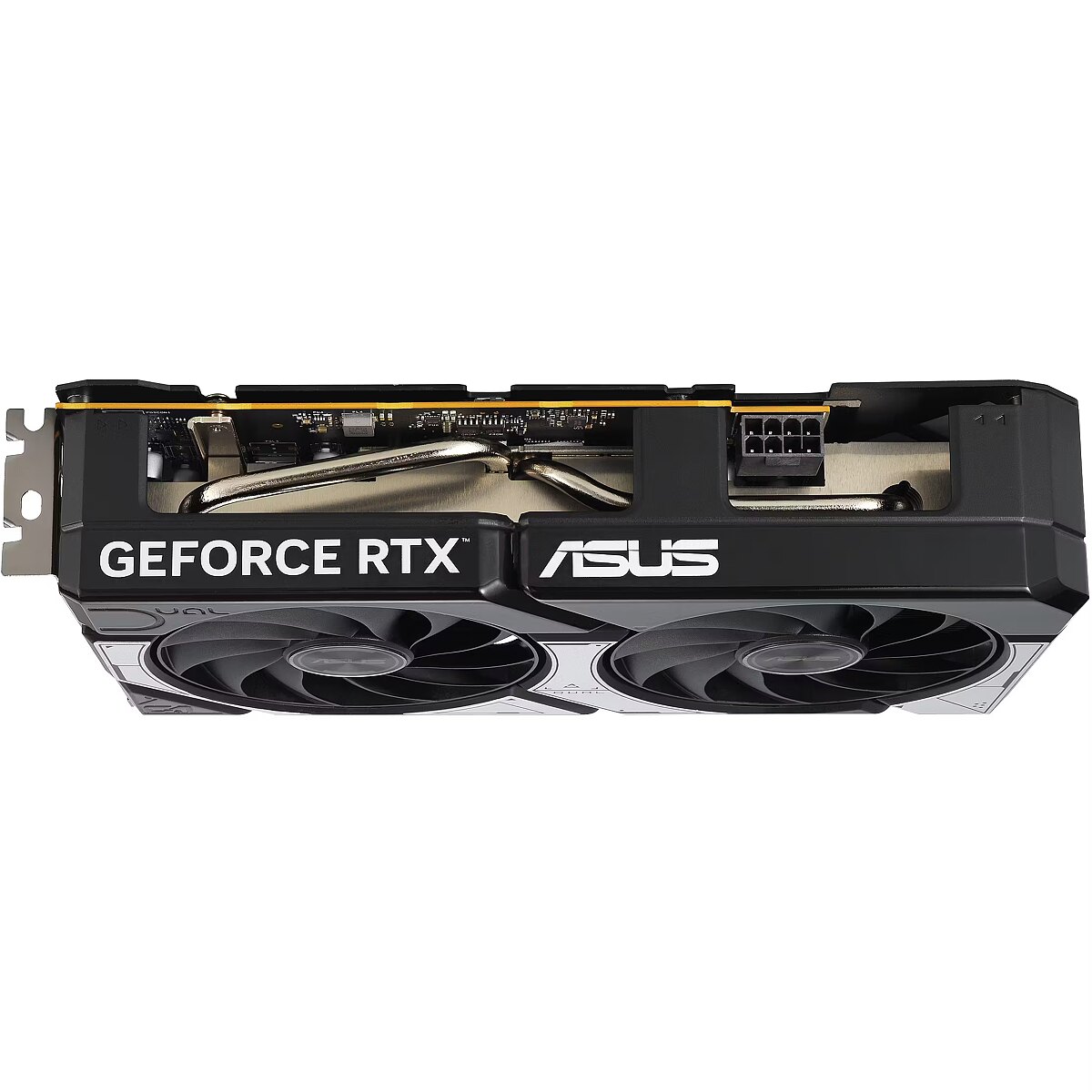

Asus GeForce RTX 5060, 8GB GDDR7, Dual OC (DLSS 4)
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
Main product parameters All parameters
- GPU model: GeForce RTX 5060
- GPU core frequency: 2565 MHz
- Power sockets: 1x 8-pin
- RAM: 8 GB
- Memory type: GDDR7
- Cooling: Standard Cooler
Description
We offer to buy the graphics card Asus GeForce RTX 5060 with 8 GB GDDR7 RAM.
Basic information
GPU tips
GeForce
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series
: Asus Dual
GPU model
GeForce RTX 5060
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers Dateks.lv has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
GPU core frequency
2565 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans
: 2
Length (mm)
: 228
Stream processors / CUDA Cores
: 3840
PCI-E version
: 5.0 x8
Power consumption (TDP)
: 145 W
Minimum power supply output
: 550 W
Power sockets
: 1x 8-pin
Random-access memory (RAM)
RAM
8 GB
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
Memory type
GDDR7
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type
: 28000 MHz
Bus width
128 bit
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
Functionality
Cooling
Standard Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting
: Nav
NVIDIA SLI (NVLink) support
: Not
VR (Virtual Reality) Ready
: Is
Low Profile support
: No

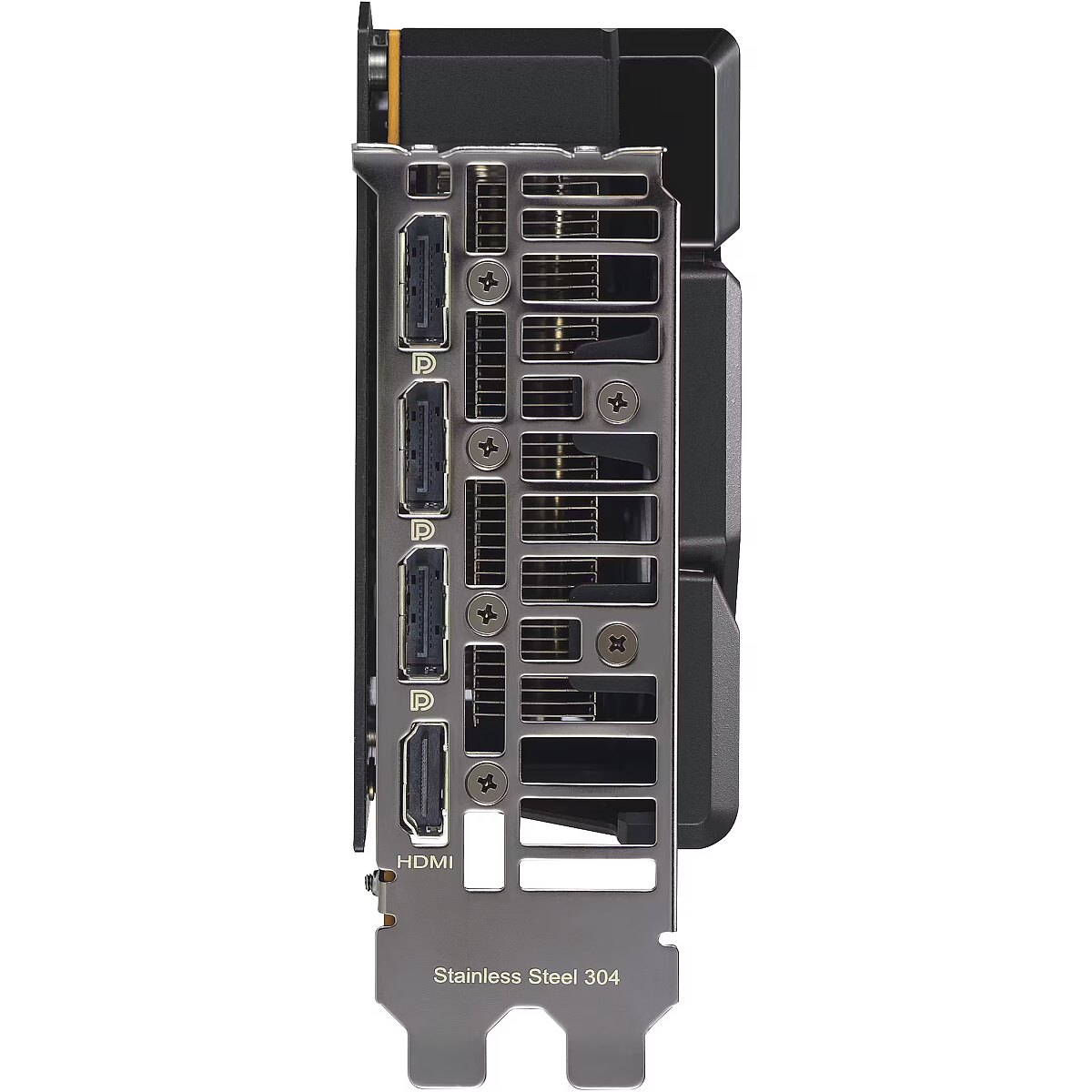

Ports and equipment
HDMI port
1
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort
3
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
DVI-D port
: 0
DVI-I port
: 0
D-SUB
0
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
Maximum number of screens
: 4
More detailed specification
Accessories included -
AI Performance - 623
Brand - ASUS
BrandPartCode - 90YV0N12-M0NA00
Category - Datortehnika :: Datoru komponentes :: Videokartes (VGA)
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
category_en - Computers & Components > Computer components > nVidia grafīskas kartes
category_lv - Datortehnika > Datoru komponentes > nVidia grafīskas kartes
category_ru - Datortehnika > Datoru komponentes > nVidia grafīskas kartes
Chipset - GeForce RTX 5060
Chipset manufacturer - NVIDIA
Code - 90YV0N12-M0NA00
Code - DUAL-RTX5060-O8G
Cooling - Active
Cooling technology Design - ASUS Axial-tech
Cooling type Design - Active
Core Boost frequency - 2535 MHz
Core frequency - 2565 MHz
CUDA Core - 3840
CUDA cores Processor - 3840
CUDA Processor - Yes
Dane techniczne: Długość - 22.8 cm
Dane techniczne: Grupa produktowa - Karty graficzne Asus
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Kolor obudowy - srebrny
Dane techniczne: Liczba rdzeni CUDA - 3840
Dane techniczne: Liczba wentylatorów - 2 szt.
Dane techniczne: Liczba zajmowanych slotów - 2.5
Dane techniczne: Maks. taktowanie rdzenia - 2565 MHz
Dane techniczne: Model chipsetu - GeForce RTX 5060
Dane techniczne: Obsługiwane standardy - DirectX 12
Dane techniczne: Obsługiwane standardy - OpenGL 4.6
Dane techniczne: Obsługiwane standardy - Vulkan
Dane techniczne: Producent - Asus
Dane techniczne: Producent chipsetu - NVIDIA
Dane techniczne: Przepustowość pamięci - 448 GB/s
Dane techniczne: Rodzaje wyjść/wejść - 1 x wyjście HDMI
Dane techniczne: Rodzaje wyjść/wejść - 3 x Display Port
Dane techniczne: Seria karty graficznej - RTX z serii 50
Dane techniczne: Szerokość - 12.3 cm
Dane techniczne: Szyna danych pamięci - 128 bit
Dane techniczne: Taktowanie pamięci - 28000 MHz
Dane techniczne: Technologia VR - tak
Dane techniczne: Typ chłodzenia - wentylator
Dane techniczne: Typ zastosowanej pamięci - GDDR7
Dane techniczne: Typ złącza - PCI-Express x16
Dane techniczne: Wielkość pamięci - 8 GB
Dane techniczne: Wsparcie dla CUDA - tak
Dane techniczne: Wsparcie dla HDCP - tak
Dane techniczne: Wysokość - 5 cm
Dane techniczne: Zaawansowane technologie - NVIDIA Ansel
Dane techniczne: Zaawansowane technologie - NVIDIA DLSS 4
Dane techniczne: Zaawansowane technologie - NVIDIA Enkoder
Dane techniczne: Zaawansowane technologie - NVIDIA Reflex
Dane techniczne: Zaawansowane technologie - NVIDIA Studio
Dane techniczne: Zaawansowane technologie - Ray Tracing
Dane techniczne: Zaawansowane technologie - RTX AI
Dane techniczne: Zalecana moc - 550 W
Dane techniczne: Złącze zasilania - 8 PIN
Data transfer rate Memory - 28 Gbit/s
Depth Weight & dimensions - 50 mm
Desc - Mikroshēmu tips: GeForce RTX 5060, Takts frekvence: 2565 MHz, Atmiņas apjoms: 8 GB, Atmiņas veids: GDDR7, Biti: 128 Bit, Takts frekvence atmiņai: 28000 MHz, Interfeisa tips: PCI-Express 5.0, DVI: Nav, VGA (D-Sub): Nav, HDMI: 1, Display Port: 3, Garantija: 2 gadi
Description -
Description - DUAL GEFORCE RTX™ 5060
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build. Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build. Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size. Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure. 0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low. Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs. Vented Backplate

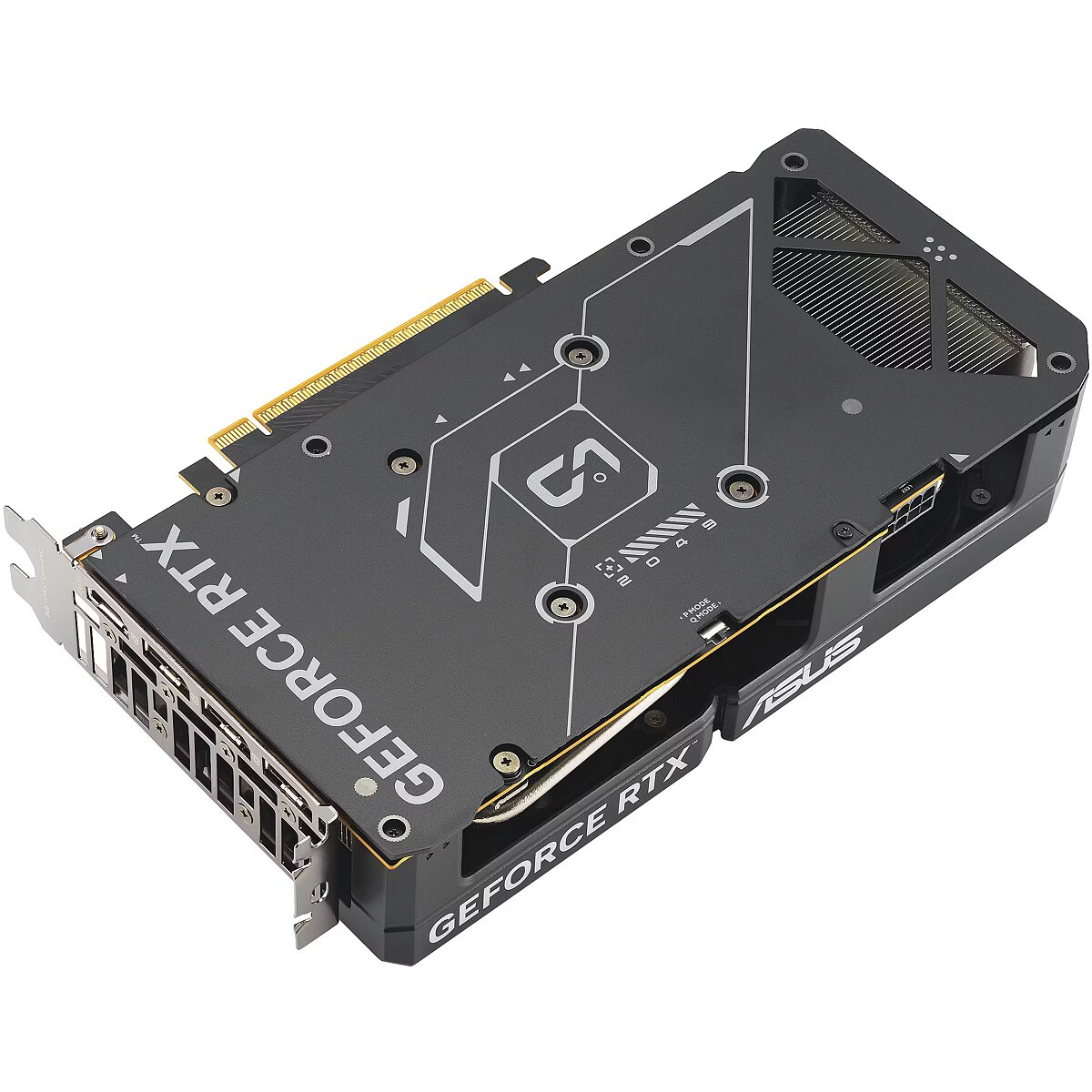

A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
description_en - The NVIDIA GeForce RTX 5060 graphics card is designed to deliver high performance for modern gaming, creative workloads, and AI-accelerated applications. Equipped with 8 GB of next-generation GDDR7 memory, it ensures fast data transfer and smooth gameplay at high settings. Built on NVIDIA’s advanced RTX architecture, the card supports real-time ray tracing and AI-powered graphics technologies such as DLSS, providing enhanced realism and efficiency. It is suitable for compact and mid-tower systems and offers reliable performance for Full HD and 4K content.
Technical Specifications: Model: NVIDIA GeForce RTX 5060 Graphics processor: NVIDIA RTX series Memory: 8 GB Memory type: GDDR7 Ray tracing support: Yes AI technologies: NVIDIA DLSS Interface: PCI Express Maximum resolution: Up to 4K Cooling: Active cooling DirectX support: Yes Intended use: Gaming, multimedia, creative applications
description_lv - NVIDIA GeForce RTX 5060 videokarte ir paredzēta augstai veiktspējai mūsdienu spēlēs, radošajos darbos un AI paātrinātās lietotnēs. Aprīkota ar 8 GB nākamās paaudzes GDDR7 atmiņu, tā nodrošina ātru datu apstrādi un vienmērīgu darbību augstos grafikas iestatījumos. Pateicoties RTX arhitektūrai, videokarte atbalsta reāllaika staru izsekošanu un mākslīgā intelekta tehnoloģijas, piemēram, DLSS.
Tehniskās īpašības: Modelis: NVIDIA GeForce RTX 5060 Grafiskais procesors: NVIDIA RTX Atmiņas apjoms: 8 GB Atmiņas tips: GDDR7 Staru izsekošanas atbalsts: jā AI tehnoloģijas: NVIDIA DLSS Interfeiss: PCI Express Maksimālā izšķirtspēja: līdz 4K Dzesēšana: aktīva DirectX atbalsts: jā Pielietojums: spēles, multimediji, radošais darbs
description_ru - Видеокарта NVIDIA GeForce RTX 5060 предназначена для высокой производительности в современных играх, творческих задачах и приложениях с поддержкой искусственного интеллекта. Оснащённая 8 ГБ видеопамяти GDDR7 нового поколения, она обеспечивает высокую скорость передачи данных и плавную работу на высоких настройках графики. Благодаря современной архитектуре RTX видеокарта поддерживает трассировку лучей в реальном времени и технологии ИИ, такие как DLSS, улучшая качество изображения и производительность.
Технические характеристики: Модель: NVIDIA GeForce RTX 5060 Графический процессор: NVIDIA RTX Объём памяти: 8 ГБ Тип памяти: GDDR7 Поддержка трассировки лучей: да ИИ-технологии: NVIDIA DLSS Интерфейс: PCI Express Максимальное разрешение: до 4K Охлаждение: активное Поддержка DirectX: да Назначение: игры, мультимедиа, творчество
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Half-Length (FH/HL)
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
Design - Product colour - Black, Grey
Design - Product colour - Grey
Design - SFF ready - Yes
Designation - CE+WEEE
dimensionalWeight - 1165
dimension depth - 70 mm
dimension height - 220 mm
Dimensions - 50 x 123 x 228 mm
dimension weight - 1105 g
dimension width - 370 mm
Discrete graphics card memory Memory - 8 GB
DisplayPorts quantity Ports & interfaces - 3
DisplayPort version Ports & interfaces - 2.1b
EAN - 4711636057899
ean - 4711636057899
Eans - 4711636057899
EAN_code - 4711636057899
Form factor Design - Full-Height/Half-Length (FH/HL)
Graphics card connector - PCI-E 16x ver. 5.0
Graphics card memory type Memory - GDDR7
Graphics processor family Processor - NVIDIA
Graphics processor Processor - GeForce RTX 5060
Gross Weight Kg - 1,9
gross_weight - 1.5 kg
GTIN - 0199291057906
GTIN - 199291057906
GTIN - 4711636057899
guarantee - 36
guarantee_type - normal
HDCP Performance - Yes
HDCP version Performance - 2.3
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.1b
Height Weight & dimensions - 123 mm
Interface type Ports & interfaces - PCI Express 5.0
LargeDescHTML -
Length Weight & dimensions - 228 mm
Link - https://www.asus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/
LongDesc - DUAL GEFORCE RTX™ 5060Dual Fans, Perfect FitASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.Build Small. Play Big.You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.Cooling2.5-slot DesignA carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.Axial-tech UpgradesTwo tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.0dB TechnologyTo eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.Dual Ball Fan BearingsFan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.Vented BackplateA vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
LongProductName - Dual GeForce RTX 5060 8GB GDDR7 OC Edition
LongSummaryDescription - ASUS Dual -RTX5060-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Manual Packaging content - Yes
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90YV0N12-M0NA00
Manufacturer Name - Asustek
Manufacturer_code - 90YV0N12-M0NA00
Maximum displays per videocard Processor - 4
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 28 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR7
Memory - Memory bus - 128 bit
Memory > Discrete graphics adapter memory - 8 GB
Memory > Graphics adapter memory type - GDDR7
Memory bus - 128-bit
Memory bus Memory - 128 bit
Memory frequency - 28 Gbps
Memory type - DDR7
Minimum system power supply Power - 550 W
Model -
Model - DUAL-RTX5060-O8G
Model - GeForce RTX 5060
MPN - 90YV0N12-M0NA00
Name - Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition | NVIDIA | 8 GB | GeForce RTX 5060 | GDDR7 | HDMI ports quantity 1 | PCI Express 5.0
Name - ASUS GeForce RTX 5060 DUAL OC 8GB, graphics card DLSS 4, 3x DisplayPort, 1x HDMI 2.1
Name - ASUS GeForce RTX 5060 DUAL OC 8GB DLSS 4
name - Graphics card Dual GeForce RTX 5060 8GB GDDR7 OC 128BIT HDMI/3DP
Name - RTX 5060 8GB ASUS DUAL OC GDDR7
Name - Videokarte Asus GeForce RTX 5060, 8GB GDDR7 Dual OC (DLSS 4)
NPU performance up to Performance - 614 TOPs
Number of fans - 2
Number of fans Design - 2 fan(s)
Number of slots Design - 2.5
NVIDIA G-SYNC Performance - Yes
OpenGL version Performance - 4.6
Other features -
Other information -
Overclocked (OC) edition Performance - Yes
Package depth Packaging data - 220 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 421.00 mm
Package features > Gross height (mm) - 88.00 mm
Package features > Gross width (mm) - 227.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 103 pc(s)
Package features > Paper/Pasteboard - 608.00 g
Package features > Plastic (No PET) - 152.00 g
Package features > Tare weight (kg) - 0.76 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 68 mm
Package type Packaging data - Box
Package weight Packaging data - 1107 g
Package width Packaging data - 368 mm
Packaging content - Manual - Yes
Packaging data - Package depth - 220 mm
Packaging data - Package height - 68 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.11 kg
Packaging data - Package width - 368 mm
Parallel processing technology support Processor - Not supported
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NPU performance up to - 614 TOPs
Performance - NPU performance up to - 623 TOPs
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Performance - Virtual Reality (VR) ready - Yes
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1b
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI Express 5.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 3840
Processor - Graphics processor - GeForce RTX 5060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2535 MHz
Processor - Processor frequency (OC mode) - 2565 MHz
Processor > Graphics processor - GeForce RTX 5060
Processor > Graphics processor family - NVIDIA
Processor boost clock speed Processor - 2535 MHz
Processor frequency (OC mode) Processor - 2565 MHz
Producent: Nazwa producenta / importera - Asus
ASUS COMPUTER GmBH
HARKORT STR. 21-23
40880 RATINGEN
producer - Asus
Producer - ASUS
Producer - Asus
producerCode - 90YV0N12-M0NA00
ProducerCode - DUAL-RTX5060-O8G
Product colour Design - Black/Grey
productName - ASUS Dual GeForce RTX 5060 8 GB OC graphics card
ProductName - DUAL-RTX5060-O8G
Product Net Weight - 0.5 kg
productSize - Normal
SFF ready Design - Yes
Short description - ASUS VGA 8GB RTX5060 DUAL-O8G 3xDP/1xHDMI DUAL-RTX5060-O8G
ShortDescription - Chipset NVIDIA RTX 5060 | 8GB GDDR7
ShortSummaryDescription - ASUS Dual -RTX5060-O8G, GeForce RTX 5060, 8 GB, GDDR7, 128 bit, 7680 x 4320 pixels, PCI Express 5.0
sizeX - 370
sizeY - 225
sizeZ - 70
Summary - ASUS Dual -RTX5060-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Supplementary power connectors Power - 1x 8-pin
Supported standards - OpenGL 4.6
Technical details > Gross weight - 1.89 kg
Technical details > Net weight - 1.13 kg
Technical details > Producer - Asus
Technical details > Producer product name - Dual GeForce RTX 5060 8GB GDDR7 OC Edition
Title - ASUS Dual -RTX5060-O8G NVIDIA GeForce RTX 5060 8 GB GDDR7
title_en - Asus Nvidia GeForce RTX 5060 Graphics card 8GB GDDR7
title_lv - Asus Nvidia GeForce RTX 5060 Videokarte 8GB GDDR7
title_ru - Asus Nvidia GeForce RTX 5060 Видеокарта 8GB GDDR7
TV tuner integrated Performance - No
Unit Box Height - 0.22
Unit Box Length - 0.37
Unit Box Width - 0.07
Unit Calculated Volume - 0.006947 cubm
Unit Calculated Weight - 1.24 kg
Units per Shipping Box - 8
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/
Vendor Homepage - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/
vendpn - DUAL-RTX5060-O8G
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
Virtual Reality (VR) ready Performance - Yes
VRAM memory size - 8 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,10
Weight - 1.1
weight - 1.2 kg
weight - 1080
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 123 mm
Weight & dimensions - Length - 228 mm
Weight & dimensions - Weight - 647 g
Weight Weight & dimensions - 647 g
AI Performance - 623
Brand - ASUS
BrandPartCode - 90YV0N12-M0NA00
Category - Datortehnika :: Datoru komponentes :: Videokartes (VGA)
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Category_1 - Graphics Cards
Category_2 - Graphics Cards PCIe - Nvidia
category_en - Computers & Components > Computer components > nVidia grafīskas kartes
category_lv - Datortehnika > Datoru komponentes > nVidia grafīskas kartes
category_ru - Datortehnika > Datoru komponentes > nVidia grafīskas kartes
Chipset - GeForce RTX 5060
Chipset manufacturer - NVIDIA
Code - 90YV0N12-M0NA00
Code - DUAL-RTX5060-O8G
Cooling - Active
Cooling technology Design - ASUS Axial-tech
Cooling type Design - Active
Core Boost frequency - 2535 MHz
Core frequency - 2565 MHz
CUDA Core - 3840
CUDA cores Processor - 3840
CUDA Processor - Yes
Dane techniczne: Długość - 22.8 cm
Dane techniczne: Grupa produktowa - Karty graficzne Asus
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Kolor obudowy - srebrny
Dane techniczne: Liczba rdzeni CUDA - 3840
Dane techniczne: Liczba wentylatorów - 2 szt.
Dane techniczne: Liczba zajmowanych slotów - 2.5
Dane techniczne: Maks. taktowanie rdzenia - 2565 MHz
Dane techniczne: Model chipsetu - GeForce RTX 5060
Dane techniczne: Obsługiwane standardy - DirectX 12
Dane techniczne: Obsługiwane standardy - OpenGL 4.6
Dane techniczne: Obsługiwane standardy - Vulkan
Dane techniczne: Producent - Asus
Dane techniczne: Producent chipsetu - NVIDIA
Dane techniczne: Przepustowość pamięci - 448 GB/s
Dane techniczne: Rodzaje wyjść/wejść - 1 x wyjście HDMI
Dane techniczne: Rodzaje wyjść/wejść - 3 x Display Port
Dane techniczne: Seria karty graficznej - RTX z serii 50
Dane techniczne: Szerokość - 12.3 cm
Dane techniczne: Szyna danych pamięci - 128 bit
Dane techniczne: Taktowanie pamięci - 28000 MHz
Dane techniczne: Technologia VR - tak
Dane techniczne: Typ chłodzenia - wentylator
Dane techniczne: Typ zastosowanej pamięci - GDDR7
Dane techniczne: Typ złącza - PCI-Express x16
Dane techniczne: Wielkość pamięci - 8 GB
Dane techniczne: Wsparcie dla CUDA - tak
Dane techniczne: Wsparcie dla HDCP - tak
Dane techniczne: Wysokość - 5 cm
Dane techniczne: Zaawansowane technologie - NVIDIA Ansel
Dane techniczne: Zaawansowane technologie - NVIDIA DLSS 4
Dane techniczne: Zaawansowane technologie - NVIDIA Enkoder
Dane techniczne: Zaawansowane technologie - NVIDIA Reflex
Dane techniczne: Zaawansowane technologie - NVIDIA Studio
Dane techniczne: Zaawansowane technologie - Ray Tracing
Dane techniczne: Zaawansowane technologie - RTX AI
Dane techniczne: Zalecana moc - 550 W
Dane techniczne: Złącze zasilania - 8 PIN
Data transfer rate Memory - 28 Gbit/s
Depth Weight & dimensions - 50 mm
Desc - Mikroshēmu tips: GeForce RTX 5060, Takts frekvence: 2565 MHz, Atmiņas apjoms: 8 GB, Atmiņas veids: GDDR7, Biti: 128 Bit, Takts frekvence atmiņai: 28000 MHz, Interfeisa tips: PCI-Express 5.0, DVI: Nav, VGA (D-Sub): Nav, HDMI: 1, Display Port: 3, Garantija: 2 gadi
Description -
Description - DUAL GEFORCE RTX™ 5060
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build. Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build. Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size. Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure. 0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low. Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs. Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
description_en - The NVIDIA GeForce RTX 5060 graphics card is designed to deliver high performance for modern gaming, creative workloads, and AI-accelerated applications. Equipped with 8 GB of next-generation GDDR7 memory, it ensures fast data transfer and smooth gameplay at high settings. Built on NVIDIA’s advanced RTX architecture, the card supports real-time ray tracing and AI-powered graphics technologies such as DLSS, providing enhanced realism and efficiency. It is suitable for compact and mid-tower systems and offers reliable performance for Full HD and 4K content.
Technical Specifications: Model: NVIDIA GeForce RTX 5060 Graphics processor: NVIDIA RTX series Memory: 8 GB Memory type: GDDR7 Ray tracing support: Yes AI technologies: NVIDIA DLSS Interface: PCI Express Maximum resolution: Up to 4K Cooling: Active cooling DirectX support: Yes Intended use: Gaming, multimedia, creative applications
description_lv - NVIDIA GeForce RTX 5060 videokarte ir paredzēta augstai veiktspējai mūsdienu spēlēs, radošajos darbos un AI paātrinātās lietotnēs. Aprīkota ar 8 GB nākamās paaudzes GDDR7 atmiņu, tā nodrošina ātru datu apstrādi un vienmērīgu darbību augstos grafikas iestatījumos. Pateicoties RTX arhitektūrai, videokarte atbalsta reāllaika staru izsekošanu un mākslīgā intelekta tehnoloģijas, piemēram, DLSS.
Tehniskās īpašības: Modelis: NVIDIA GeForce RTX 5060 Grafiskais procesors: NVIDIA RTX Atmiņas apjoms: 8 GB Atmiņas tips: GDDR7 Staru izsekošanas atbalsts: jā AI tehnoloģijas: NVIDIA DLSS Interfeiss: PCI Express Maksimālā izšķirtspēja: līdz 4K Dzesēšana: aktīva DirectX atbalsts: jā Pielietojums: spēles, multimediji, radošais darbs
description_ru - Видеокарта NVIDIA GeForce RTX 5060 предназначена для высокой производительности в современных играх, творческих задачах и приложениях с поддержкой искусственного интеллекта. Оснащённая 8 ГБ видеопамяти GDDR7 нового поколения, она обеспечивает высокую скорость передачи данных и плавную работу на высоких настройках графики. Благодаря современной архитектуре RTX видеокарта поддерживает трассировку лучей в реальном времени и технологии ИИ, такие как DLSS, улучшая качество изображения и производительность.
Технические характеристики: Модель: NVIDIA GeForce RTX 5060 Графический процессор: NVIDIA RTX Объём памяти: 8 ГБ Тип памяти: GDDR7 Поддержка трассировки лучей: да ИИ-технологии: NVIDIA DLSS Интерфейс: PCI Express Максимальное разрешение: до 4K Охлаждение: активное Поддержка DirectX: да Назначение: игры, мультимедиа, творчество
Design - Cooling technology - ASUS Axial-tech
Design - Cooling type - Active
Design - Form factor - Full-Height/Half-Length (FH/HL)
Design - Number of fans - 2 fan(s)
Design - Number of slots - 2.5
Design - Product colour - Black
Design - Product colour - Black, Grey
Design - Product colour - Grey
Design - SFF ready - Yes
Designation - CE+WEEE
dimensionalWeight - 1165
dimension depth - 70 mm
dimension height - 220 mm
Dimensions - 50 x 123 x 228 mm
dimension weight - 1105 g
dimension width - 370 mm
Discrete graphics card memory Memory - 8 GB
DisplayPorts quantity Ports & interfaces - 3
DisplayPort version Ports & interfaces - 2.1b
EAN - 4711636057899
ean - 4711636057899
Eans - 4711636057899
EAN_code - 4711636057899
Form factor Design - Full-Height/Half-Length (FH/HL)
Graphics card connector - PCI-E 16x ver. 5.0
Graphics card memory type Memory - GDDR7
Graphics processor family Processor - NVIDIA
Graphics processor Processor - GeForce RTX 5060
Gross Weight Kg - 1,9
gross_weight - 1.5 kg
GTIN - 0199291057906
GTIN - 199291057906
GTIN - 4711636057899
guarantee - 36
guarantee_type - normal
HDCP Performance - Yes
HDCP version Performance - 2.3
HDMI ports quantity Ports & interfaces - 1
HDMI version Ports & interfaces - 2.1b
Height Weight & dimensions - 123 mm
Interface type Ports & interfaces - PCI Express 5.0
LargeDescHTML -
Length Weight & dimensions - 228 mm
Link - https://www.asus.com/us/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/
LongDesc - DUAL GEFORCE RTX™ 5060Dual Fans, Perfect FitASUS Dual GeForce RTX™ 5060 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.Build Small. Play Big.You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.Cooling2.5-slot DesignA carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.Axial-tech UpgradesTwo tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.0dB TechnologyTo eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.Dual Ball Fan BearingsFan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.Vented BackplateA vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
LongProductName - Dual GeForce RTX 5060 8GB GDDR7 OC Edition
LongSummaryDescription - ASUS Dual -RTX5060-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Manual Packaging content - Yes
Manufacturer - Asus
Manufacturer - ASUS
Manufacturer Code - 90YV0N12-M0NA00
Manufacturer Name - Asustek
Manufacturer_code - 90YV0N12-M0NA00
Maximum displays per videocard Processor - 4
Maximum resolution Processor - 7680 x 4320 pixels
Memory - Data transfer rate - 28 Gbit/s
Memory - Discrete graphics card memory - 8 GB
Memory - Graphics card memory type - GDDR7
Memory - Memory bus - 128 bit
Memory > Discrete graphics adapter memory - 8 GB
Memory > Graphics adapter memory type - GDDR7
Memory bus - 128-bit
Memory bus Memory - 128 bit
Memory frequency - 28 Gbps
Memory type - DDR7
Minimum system power supply Power - 550 W
Model -
Model - DUAL-RTX5060-O8G
Model - GeForce RTX 5060
MPN - 90YV0N12-M0NA00
Name - Asus Dual GeForce RTX 5060 8GB GDDR7 OC Edition | NVIDIA | 8 GB | GeForce RTX 5060 | GDDR7 | HDMI ports quantity 1 | PCI Express 5.0
Name - ASUS GeForce RTX 5060 DUAL OC 8GB, graphics card DLSS 4, 3x DisplayPort, 1x HDMI 2.1
Name - ASUS GeForce RTX 5060 DUAL OC 8GB DLSS 4
name - Graphics card Dual GeForce RTX 5060 8GB GDDR7 OC 128BIT HDMI/3DP
Name - RTX 5060 8GB ASUS DUAL OC GDDR7
Name - Videokarte Asus GeForce RTX 5060, 8GB GDDR7 Dual OC (DLSS 4)
NPU performance up to Performance - 614 TOPs
Number of fans - 2
Number of fans Design - 2 fan(s)
Number of slots Design - 2.5
NVIDIA G-SYNC Performance - Yes
OpenGL version Performance - 4.6
Other features -
Other information -
Overclocked (OC) edition Performance - Yes
Package depth Packaging data - 220 mm
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 421.00 mm
Package features > Gross height (mm) - 88.00 mm
Package features > Gross width (mm) - 227.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 103 pc(s)
Package features > Paper/Pasteboard - 608.00 g
Package features > Plastic (No PET) - 152.00 g
Package features > Tare weight (kg) - 0.76 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package height Packaging data - 68 mm
Package type Packaging data - Box
Package weight Packaging data - 1107 g
Package width Packaging data - 368 mm
Packaging content - Manual - Yes
Packaging data - Package depth - 220 mm
Packaging data - Package height - 68 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.11 kg
Packaging data - Package width - 368 mm
Parallel processing technology support Processor - Not supported
Performance - HDCP - Yes
Performance - HDCP version - 2.3
Performance - NPU performance up to - 614 TOPs
Performance - NPU performance up to - 623 TOPs
Performance - NVIDIA G-SYNC - Yes
Performance - OpenGL version - 4.6
Performance - Overclocked (OC) edition - Yes
Performance - TV tuner integrated - No
Performance - Virtual Reality (VR) ready - Yes
Ports & interfaces - DisplayPorts quantity - 3
Ports & interfaces - DisplayPort version - 2.1b
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.1b
Ports & interfaces - Interface type - PCI Express 5.0
Ports & interfaces > DisplayPorts quantity - 3
Ports & interfaces > HDMI ports quantity - 1
Ports & interfaces > Interface type - PCI Express 5.0
Power - Minimum system power supply - 550 W
Power - Supplementary power connectors - 1x 8-pin
Processor - CUDA - Yes
Processor - CUDA cores - 3840
Processor - Graphics processor - GeForce RTX 5060
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Parallel processing technology support - Not supported
Processor - Processor boost clock speed - 2535 MHz
Processor - Processor frequency (OC mode) - 2565 MHz
Processor > Graphics processor - GeForce RTX 5060
Processor > Graphics processor family - NVIDIA
Processor boost clock speed Processor - 2535 MHz
Processor frequency (OC mode) Processor - 2565 MHz
Producent: Nazwa producenta / importera - Asus
ASUS COMPUTER GmBH
HARKORT STR. 21-23
40880 RATINGEN
producer - Asus
Producer - ASUS
Producer - Asus
producerCode - 90YV0N12-M0NA00
ProducerCode - DUAL-RTX5060-O8G
Product colour Design - Black/Grey
productName - ASUS Dual GeForce RTX 5060 8 GB OC graphics card
ProductName - DUAL-RTX5060-O8G
Product Net Weight - 0.5 kg
productSize - Normal
SFF ready Design - Yes
Short description - ASUS VGA 8GB RTX5060 DUAL-O8G 3xDP/1xHDMI DUAL-RTX5060-O8G
ShortDescription - Chipset NVIDIA RTX 5060 | 8GB GDDR7
ShortSummaryDescription - ASUS Dual -RTX5060-O8G, GeForce RTX 5060, 8 GB, GDDR7, 128 bit, 7680 x 4320 pixels, PCI Express 5.0
sizeX - 370
sizeY - 225
sizeZ - 70
Summary - ASUS Dual -RTX5060-O8G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 5060. Discrete graphics card memory: 8 GB, Graphics card memory type: GDDR7, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. OpenGL version: 4.6. Interface type: PCI Express 5.0. Cooling type: Active, Number of fans: 2 fan(s)
Supplementary power connectors Power - 1x 8-pin
Supported standards - OpenGL 4.6
Technical details > Gross weight - 1.89 kg
Technical details > Net weight - 1.13 kg
Technical details > Producer - Asus
Technical details > Producer product name - Dual GeForce RTX 5060 8GB GDDR7 OC Edition
Title - ASUS Dual -RTX5060-O8G NVIDIA GeForce RTX 5060 8 GB GDDR7
title_en - Asus Nvidia GeForce RTX 5060 Graphics card 8GB GDDR7
title_lv - Asus Nvidia GeForce RTX 5060 Videokarte 8GB GDDR7
title_ru - Asus Nvidia GeForce RTX 5060 Видеокарта 8GB GDDR7
TV tuner integrated Performance - No
Unit Box Height - 0.22
Unit Box Length - 0.37
Unit Box Width - 0.07
Unit Calculated Volume - 0.006947 cubm
Unit Calculated Weight - 1.24 kg
Units per Shipping Box - 8
URL - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/
Vendor Homepage - https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rtx5060-o8g/
vendpn - DUAL-RTX5060-O8G
Version - Box
Video ports - 1 x HDMI
Video ports - 3 x DisplayPort
Virtual Reality (VR) ready Performance - Yes
VRAM memory size - 8 GB
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1,10
Weight - 1.1
weight - 1.2 kg
weight - 1080
Weight & dimensions - Depth - 50 mm
Weight & dimensions - Height - 123 mm
Weight & dimensions - Length - 228 mm
Weight & dimensions - Weight - 647 g
Weight Weight & dimensions - 647 g
