ID: 1005495
Product code: GV-N406TWF2OC-16GD
In stock >50 units
Warranty: 2 years

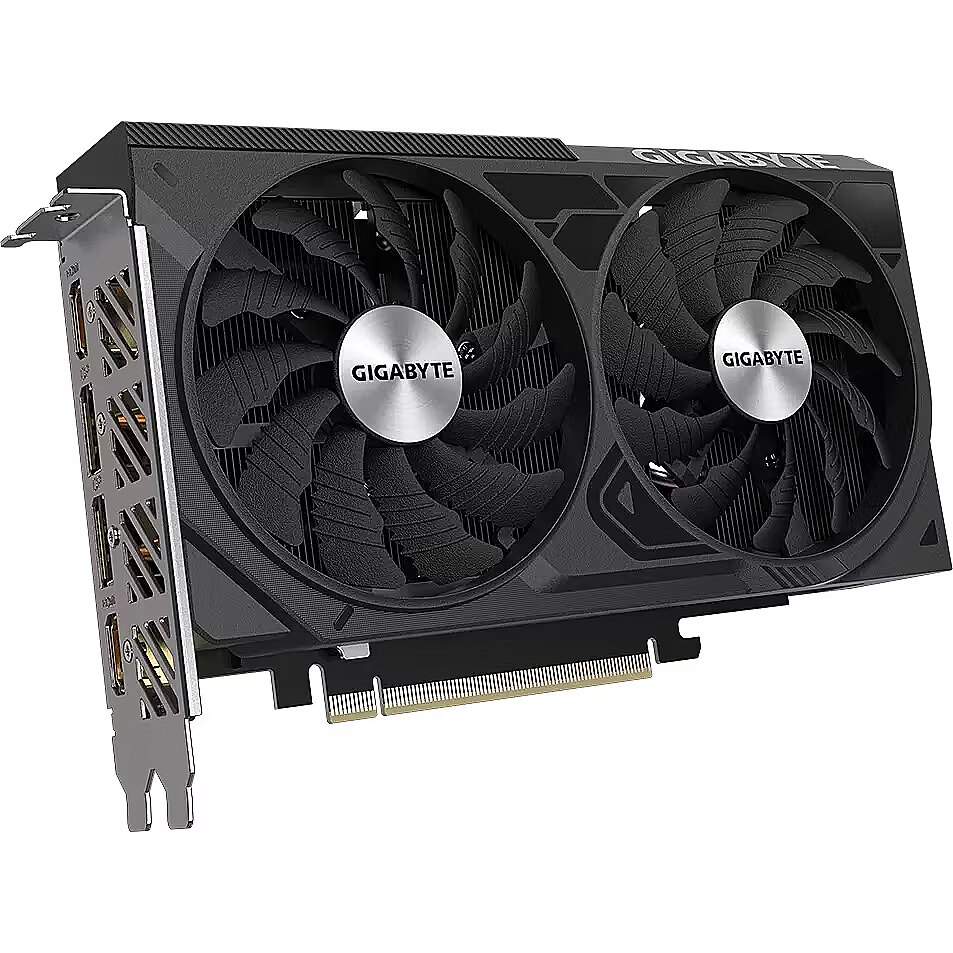

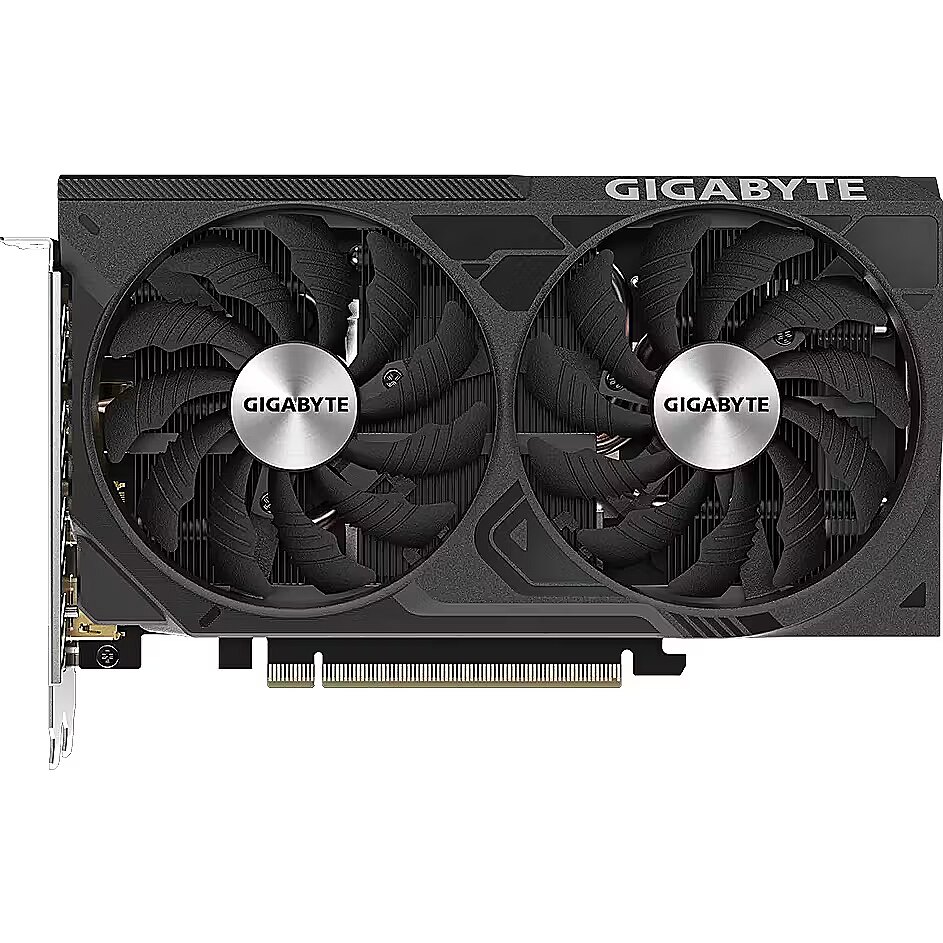

Gigabyte GeForce RTX 4060 Ti, 16GB GDDR6, WindForce OC (DLSS 3)
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options More about shipping
- Delivery to Omniva parcel machine free of charge: 07.05.2024
- Piegāde uz DPD Pickup Paku Skapi free of charge: 07.05.2024
- Delivery to Latvian post office, parcel locker or Circle K free of charge: 07.05.2024
- Delivery to address in Riga 3.99 €: 07.05.2024
- Delivery to address in Latvia 6.99 €: 07.05.2024
- Delivery to Dateks.lv parcel drop-off point at 9 Zemitāna Street: on Thursday, 02.05.2024 after 15:00
Main product parameters All parameters
- GPU model: GeForce RTX 4060 Ti (16GB)
- GPU core frequency: 2565 MHz

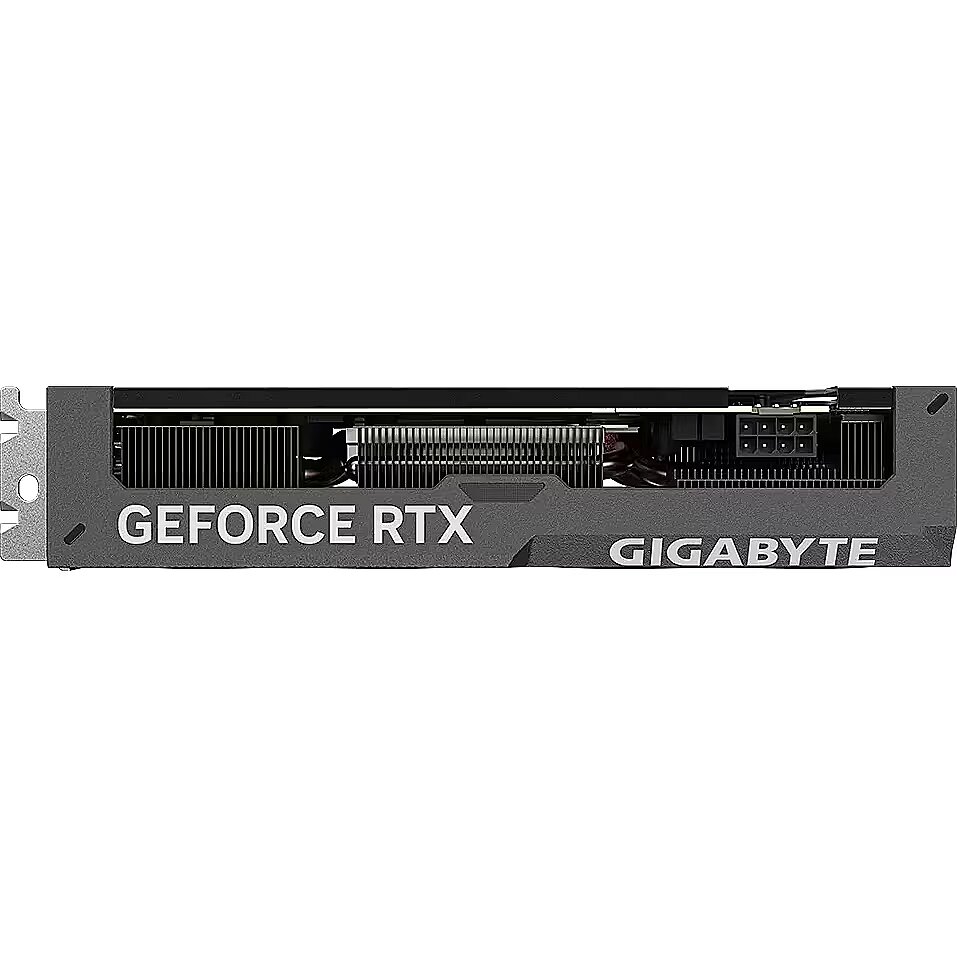

- Power sockets: 1x 8-pin
- RAM: 16 GB
- Memory type: GDDR6
- Cooling: Standard Cooler
Description
We offer to buy the graphics card Gigabyte GeForce RTX 4060 Ti (16GB) with 16 GB GDDR6 RAM.
Virtual reality
The GeForce emblem indicates that this graphics card is powerful enough to be compatible with the latest VR (Virtual Reality) devices such as Oculus Rift, HTC Vive (SteamVR), etc.
Basic information
GPU tips
GeForce
GPU or the video card processor. This parameter determines whether the video card model is AMD Radeon or FirePro, NVIDIA GeForce or Quadro.
GPU series
: Gigabyte Windforce
GPU model
GeForce RTX 4060 Ti (16GB)
This is the main performance indicator of the graphics card because it indicates the model of this card. The performance of cards of the same model is very similar and usually very different from the cards of another model.
The main difference is the manufacturer. NVidia produces GeForce series cards and AMD produces Radeon series cards. There are considerable differences between both series, GeForce cards have more successful (more stable) drivers, which improve the compatibility of these cards with games and operating systems reducing the image defect (artefact) and the cases of "hanging" to the minimum. Radeon cards usually are cheaper and consume less energy (they are technologically superior), however there might be problems with drivers and the support of games.
The choice between Radeon or GeForce series is the question of preference, similar to the choice between AMD or Intel CPU, and not always there is 100% rational justification behind it, therefore we recommend to base your selection criteria just on the games that you want to play in the near future and to find a video review in YouTube (the graphic card model + the game title) that will demonstrate exactly how the particular card handles the relevant game. The result will be obvious and usually quite close to what you get when you buy the particular or similar model card.
For making the choice easier for our customers Dateks.lv has marked the graphic cards (models) that are the best choice for playing all the newest games at a reasonable quality level with a green tick "recommended".
GPU core frequency
2565 MHz
GPU speed or the graphic drive speed (MHz) indicates the clock frequency at which the most important component of the video card, i.e. the video processor, operates. The higher the drive speed, the more powerful the video card. The performance of the video card is also determined by the memory volume, type, bits and the drive model, therefore you should verify the capacity compliance of the other components upon buying a video card with a powerful drive.
Number of fans
: 2
Length (mm)
: 201
Stream processors / CUDA Cores
: 4352
PCI-E version
: 4.0 x16
Power consumption (TDP)
: 165 W
Minimum power supply output
: 500 W
Power sockets
: 1x 8-pin
Random-access memory (RAM)
RAM
16 GB
The RAM capacity of the video card. This is an important parameter if you want to play games of high resolution or work with a high resolution monitor. A higher memory capacity means better performance and the support to higher resolution.
Currently 1GB is the optimum capacity of the video memory.
Memory type
GDDR6
The type of the RAM of the video card determines the operation speed of the video card. The currently available video cards have DDRII, GDDRIII or GDDR4 memory. GDDR4 memory is the fastest memory type.
Memory type
: 18000 MHz
Bus width
128 bit
The number of bits of the video card RAM determine what amount of information the video card memory can handle within a single clock cycle. A higher number of bits indicates higher performance of the video card.
Functionality
Cooling
Standard Cooler
Two types of cooling are available, i.e. a radiator and a ventilator. The radiator based cooling is implemented without any moving parts (ventilator), therefore the video card does not emit any noise. The ventilator based cooling is more efficient, however, the video card emits certain noise during the computer operation.
Lighting
: Nav
NVIDIA SLI (NVLink) support
: Not
VR (Virtual Reality) Ready
: Is
Low Profile support
: No

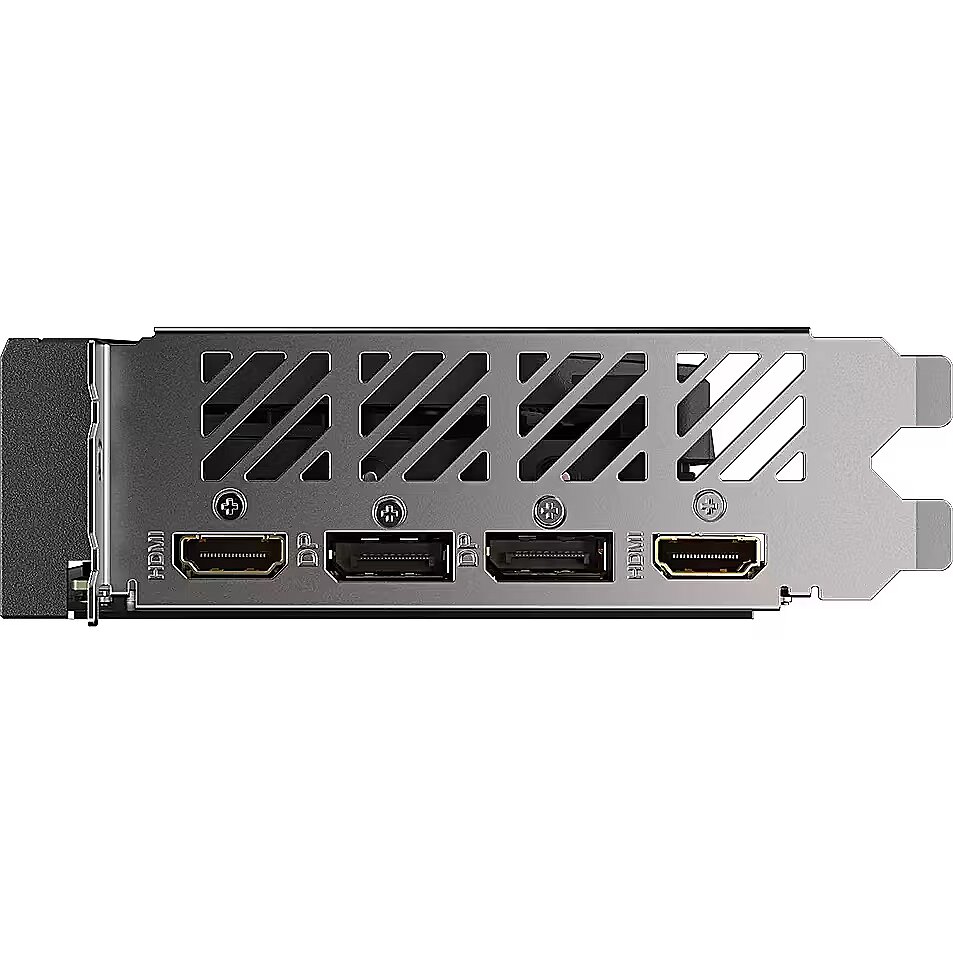

Ports and equipment
HDMI port
2
HDMI is the digital image and sound transmission standard that allows to connect a TV set, monitor or projector supporting HDMI to the computer via the HDMI cable.
DisplayPort
2
DisplayPort digital connection for the transmission of the image and sound via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.
DVI-D port
: 0
DVI-I port
: 0
D-SUB
0
D-SUB is the classic (analogous) connection plug of monitors, projectors and other external video devices. This standard is gradually disappearing from the market leaving the space for much higher quality HDMI or DisplayPort (digitālajiem) plugs.
Maximum number of screens
: 4
PC Game Pass and 3-month GeForce NOW Priority in partnership with NVIDIA
More detailed specification
Brand - Gigabyte
BrandPartCode - GV-N406TWF2OC-16GD
Card's length - 200 to 240 mm
Category - Graphics Cards
Category - Root/Electronics/PC parts/Graphic cards
Category 1 - Grafikkarten
Category 2 - NVidia PCI-Express Grafikkarten
Category Code - VGP
Chipset - NVIDIA GeForce RTX 4060 Ti
CUDA Cores - 4352
Description - - Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing - 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering - 3rd Generation RT Cores: Up to 2X ray tracing performance - Powered by GeForce RTX™ 4060 Ti (16GB) - Integrated with 16GB GDDR6 128bit memory interface - WINDFORCE cooling system - Protection metal back plate
Design - Cooling technology - GIGABYTE WINDFORCE 2X
Design - Cooling type - Active
Design - Form factor - Half-Height/Half-Length (HH/HL)
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
dimensionalWeight - 700
Dimensions - L=201 W=120 H=41 mm
DisplayPort Input/Output connectors - 2
EAN - 4719331314712
Eans - 4719331314712
Full Description Line - NVIDIA GeForce RTX 4060 Ti|Graphics memory size 16 GB|GDDR6|128 bit|PCIE 4.0 16x|GPU clock 2565 MHz|7680x4320|2xHDMI|2xDisplayPort|Included Accessories Quick guide
GPU clock - 2565 MHz
Graphic card features - Overclock Edition
Graphics connector - PCIE 4.0 16x
Graphics memory size - 16 GB
Graphics memory type - GDDR6
Gross Weight Kg - 1,69
GTIN - 4719331314712
HDMI Input/Output connectors - 2
Included Accessories - Quick guide
LongDesc - WINDFORCE COOLING SYSTEMThe WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.ALTERNATE SPINNINGReduce the turbulence of adjacent fans and increase airflow pressure..3D ACTIVE FANThe 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.UNIQUE BLADE FANThe airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.GRAPHENE NANO LUBRICANTGraphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.SCREEN COOLINGExtended heatsink allows air to pass through, providing better heat dissipation.HEAT PIPES DIRECT TOUCHThe shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate contact to ensure proper cooling.PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.Power Through The GameGIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.GIGABYTE CONTROL CENTERGIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
LongProductName - GeForce RTX 4060 Ti Windforce OC, 2535MHz, 16GB GDDR6, 128bit, PCI Express 4.0, 2 x HDMI, CUDA, DirectX 12 Ultimate, OpenGL 4.6
LongSummaryDescription - Gigabyte GeForce RTX 4060 Ti Windforce OC 16G. Graphics processor family: NVIDIA, Graphics processor: GeForce RTX 4060 Ti, Processor frequency: 2535 MHz. Discrete graphics card memory: 16 GB, Graphics card memory type: GDDR6, Memory bus: 128 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express 4.0. Cooling type: Active, Number of fans: 2 fan(s)
Manufacturer - Gigabyte
Manufacturer Code - GV-N406TWF2OC-16GD 1.0
Manufacturer Name - Gigabyte
Max resolution - 7680x4320
Memory - Data transfer rate - 18 Gbit/s
Memory - Discrete graphics card memory - 16 GB
Memory - Graphics card memory type - GDDR6
Memory - Memory bus - 128 bit
Memory bus - 128 bit
Model - GV-N406TWF2OC-16GD
MPN - GV-N406TWF2OC-16GD
Name - Gigabyte GeForce RTX 4060 Ti WINDFORCE 2 16GB DLSS 3
Name - RTX 4060 Ti 16GB Gigabyte Windforce OC GDDR6
Packaging data - Package type - Box
Performance - AMD FreeSync - No
Performance - DirectX version - 12 Ultimate
Performance - Dual Link DVI - No
Performance - NVIDIA G-SYNC - No
Performance - OpenGL version - 4.6
Performance - TV tuner integrated - No
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.1a
Ports & interfaces - Interface type - PCI Express 4.0
Power - Minimum system power supply - 500 W
Power - Supplementary power connectors - 1x 8-pin
Power connectors - 8 pin
Processor - CUDA - Yes
Processor - CUDA cores - 4352
Processor - Graphics processor - GeForce RTX 4060 Ti
Processor - Graphics processor family - NVIDIA
Processor - Maximum displays per videocard - 4
Processor - Maximum resolution - 7680 x 4320 pixels
Processor - Processor boost clock speed (Gaming mode) - 2565 MHz
Processor - Processor frequency - 2535 MHz
Producer - Gigabyte
producerCode - GV-N406TWF2OC-16GD
ProducerCode - GV-N406TWF2OC-16GD
ProductName - GeForce RTX 4060 Ti Windforce OC 16G
productName - Gigabyte GeForce RTX 4060 Ti WINDFORCE
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 54.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 44 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 17.95 kg
Shipping Box Width Shipping/Package Box Dimensions - 33 cm
ShortDescription - Chipset NVIDIA RTX 4060 Ti | 16GB |
Short description - GIGA VGA 16GB RTX4060TI WINDFORCE2.0 OC 16GD 2xDP/2xHDMI GeForce RTX 4060 Ti WINDFORCE 2 OC 16Gd
ShortSummaryDescription - Gigabyte GeForce RTX 4060 Ti Windforce OC 16G, GeForce RTX 4060 Ti, 16 GB, GDDR6, 128 bit, 7680 x 4320 pixels, PCI Express 4.0
sizeX - 299
sizeY - 55
sizeZ - 213
Title - Gigabyte GeForce RTX 4060 Ti Windforce OC 16G NVIDIA 16 GB GDDR6
Unit Box Height - 0.21
Unit Box Length - 0.3
Unit Box Width - 0.05
Unit Brutto Volume - 0.003957 cubm
Unit Gross Weight - 0.897 kg
Unit Net Weight - 0.7 kg
URL - https://www.gigabyte.com/Graphics-Card/GV-N406TWF2OC-16GD/gallery#gallery
Vendor Homepage - www.gigabyte.com/Graphics-Card/GV-N406TWF2OC-16GD#kf
Warranty - 36 months
WarrantyInfo -
warrantyLength - 24
warrantyType - G
Weight - 0.82
weight - 818
Weight & dimensions - Depth - 201 mm
Weight & dimensions - Height - 41 mm
Weight & dimensions - Width - 120 mm
