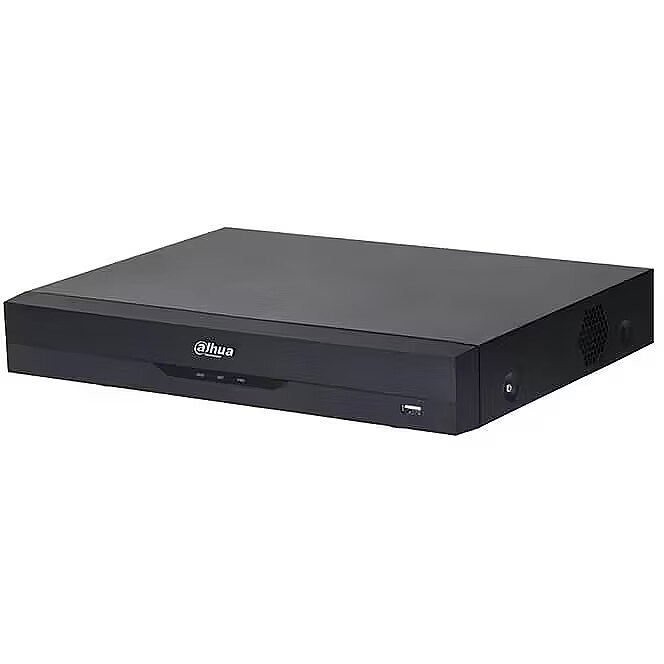

Dahua DVR 16CH HDCVI PENTABRID/XVR5216A-4KL-I3

Analog signal format system Performance - NTSC, PAL
Audio formats supported Performance - G.711 A-law, G.711 μ-law, PCM
Bit rate Performance - 64 Kbit/s
Brand - Dahua Technology
BrandPartCode - DH-XVR5216A-4KL-I3
Bullet Points -

• H.265+/H.265 dual-stream video compression
• Supports Full-channel AI-Coding
• Supports HDCVI/AHD/TVI/CVBS/IP video inputs
• Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth
• Up to 8 channels video stream (analog channel) Perimeter Protection
• Up to 16 channels video stream (analog channel) SMD Plus
• Up to 2 channels video stream (analog channel) human face recognition
• IoT & POS functionalities

Category - Digital Video Recorders (DVR)
Certification Performance - CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
Channels quantity Performance - 16 channels
DC voltage Power - 12 V
Depth Weight & dimensions - 289.4 mm
Description - 16 Channels Penta-brid 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder
Ethernet interface type Network - Fast Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports Network - 1
Ethernet LAN Network - Yes
GTIN - 6923172539755
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions - 53 mm
LongDesc - 16 Channels Penta-brid 4K-N/5MP 1U 2HDDs WizSense Digital Video Recorder
Long Description - Dahua Technology DH-XVR5216A-4KL-I3. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. Power supply type: DC, DC voltage: 12 V. Width: 375 mm, Depth: 289.4 mm, Height: 53 mm. Package width: 433 mm, Package depth: 141 mm, Package height: 366 mm
LongProductName - H.265+/H.265, 16 Channels, 1U, 12 VDC, 5 A, 1.8 kg, black
LongSummaryDescription - Dahua Technology DH-XVR5216A-4KL-I3. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Supported network protocols: HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. Power supply type: DC, DC voltage: 12 V. Width: 375 mm, Depth: 289.4 mm, Height: 53 mm. Package width: 433 mm, Package depth: 141 mm, Package height: 366 mm
Maximum video resolution Performance - 3840 x 2160 pixels
Network - Ethernet interface type - Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Supported network protocols - HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating system installed Performance - Embedded LINUX
Operating temperature (T-T) Operational conditions - -10 - 55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Package depth Packaging data - 141 mm
Package height Packaging data - 366 mm
Package weight Packaging data - 2.98 kg
Package width Packaging data - 433 mm
Packaging data - Package depth - 141 mm
Packaging data - Package height - 366 mm
Packaging data - Package weight - 2.98 kg
Packaging data - Package width - 433 mm
Performance - Analog signal format system - NTSC, PAL
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, PCM
Performance - Bit rate - 64 Kbit/s
Performance - Certification - CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
Performance - Channels quantity - 16 channels
Performance - Maximum video resolution - 3840 x 2160 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Product colour - Black
Performance - Rack capacity - 1U
Performance - Video capturing speed - 30 fps
Performance - Video capturing speed (NTSC) - 30 fps
Performance - Video capturing speed (PAL) - 25 fps
Performance - Video compression formats - H.264, H.264+, H.265, H.265+
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - RS-485 ports - 1
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) output ports - 1
Ports & interfaces - Video RCA outputs - 1
Power - DC voltage - 12 V
Power - Power supply type - DC
Power supply type Power - DC
Product colour Performance - Black
ProductName - DH-XVR5216A-4KL-I3
Rack capacity Performance - 1U
RS-485 ports Ports & interfaces - 1
ShortSummaryDescription - Dahua Technology DH-XVR5216A-4KL-I3, Black, 3840 x 2160 pixels, H.264, H.264+, H.265, H.265+, G.711 A-law, G.711 μ-law, PCM, 30 fps, 25 fps
Supported network protocols Network - HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Title - Dahua Technology DH-XVR5216A-4KL-I3 digital video recorder (DVR) Black
Unit Calculated Volume - 0.02229 cubm
Unit Calculated Weight - 3 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/4K-N/5MP-series/XVR5216A-4KL-I3
USB 2.0 ports quantity Ports & interfaces - 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Ports & interfaces - 1
Vendor Homepage - https://www.dahuasecurity.com/products/All-Products/HDCVI-Recorders/WizSense-Series/I3-Series/4K-N/5MP-series/XVR5216A-4KL-I3
VGA (D-Sub) output ports Ports & interfaces - 1
Video capturing speed (NTSC) Performance - 30 fps
Video capturing speed (PAL) Performance - 25 fps
Video capturing speed Performance - 30 fps
Video compression formats Performance - H.264, H.264+, H.265, H.265+
Video RCA outputs Ports & interfaces - 1
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 289.4 mm
Weight & dimensions - Height - 53 mm
Weight & dimensions - Weight - 1.8 kg
Weight & dimensions - Width - 375 mm
Weight Weight & dimensions - 1.8 kg
Width Weight & dimensions - 375 mm
