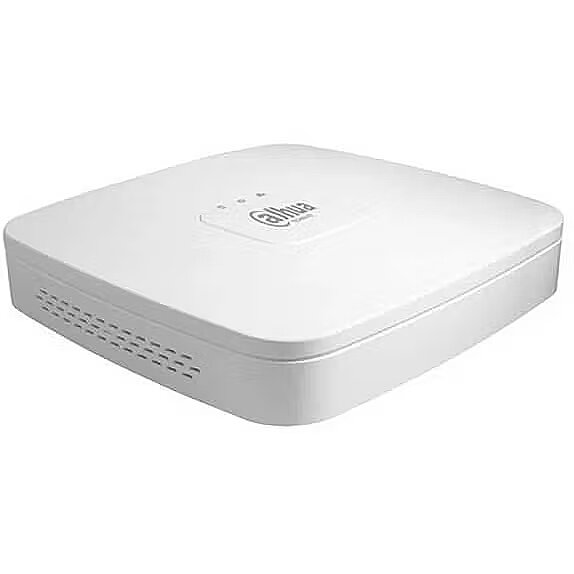

Dahua NET VIDEO RECORDER 4CH/NVR4104-4KS2/L

15pin D-sub Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - DHI-NVR4104-4KS2/L
Category - Network Video Recorders (NVR)
Category Code - NVR
Colour - White
CPU - Embedded
Description - - 4 IP channel max, up to 8MP resolution - Max: 80Mbps recording bandwidth, Smart H.265/H.265/Smart H.264/H.264/MJPE - VGA/HDMI up to 4K output, decoding 8 × 1080p @ 30 fps - 1 SATA III ports, up to 10 TB for a single HDD - No front panel control, no alarm I/O, 2 USB, Two-way Talk: 1/1 I/O - Desktop mounted chassis - AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD - Free IP monitoring software available, ONVIF(profile T/S/G); CGI; SDK - Other brands IP cameras supported: ONVIF; RTSP
dimensionalWeight - 1778
Dimensions - 204.6 mm × 206.4 mm × 48.1 mm
Features - Certification - CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Full Description Line - Channels 4|Rack 1U|CPU Embedded|SATA 3.0|1x15pin D-sub|1xHDMI|2xRCA|2xUSB 2.0|Power supply requirements 12 V DC, 2 A|Power consumption 10 Watts|Dim. 204.6 mm × 206.4 mm × 48.1 mm|Temp. range –10 °C to +50 °C|Colour White
GTIN - 6939554981432
HDMI Input/Output connectors - 1
LongDesc -
LongProductName - 4ch, 1U, 1 x HDD, VGA/HDMI, 4K max, Embedded Linux, RCA in/out, 2 x USB 2.0, RJ-45, 810 g
LongSummaryDescription - Dahua Technology Lite DHI-NVR4104-4KS2/L. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 4 channels. Maximum storage capacity: 10 TB, HDD interface: SATA III. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP;.... Rack capacity: 1U, Product colour: Black, Certification: CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B. AC input voltage: 12 V
Number of Channels - 4
Operating temperature range - –10 °C to +50 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 30 - 85%
Operational conditions - Storage temperature (T-T) - 0 - 40 °C
Performance - Audio formats supported - AAC
Performance - Audio formats supported - AAC, G.711 A-law, G.726, PCM
Performance - Audio formats supported - G.711 A-law
Performance - Audio formats supported - G.726
Performance - Audio formats supported - PCM
Performance - Backup function - Yes
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Multi-screen - Yes
Performance - Number of simultaneously playbacked channels - 4 channels
Performance - Playback modes - Backup selection, Digital zoom, Frame by Frame, Full screen, Pause, Play, Reverse, Slow play, Stop
Performance - Video formats supported - H.264
Performance - Video formats supported - H.264, H.265, M-JPEG
Performance - Video formats supported - H.265
Performance - Video formats supported - M-JPEG
Performance - Video input channels - 4 channels
Performance - Video motion detection - Yes
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 100
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - AC input voltage - 12 V
Power consumption - 10 Watts
Power supply requirements - 12 V DC, 2 A
Processor - Built-in processor - Yes
producerCode - NVR4104-4KS2/L
productName - Dahua Technology Lite DHI-NVR4104-4KS2/L network video recorder 1U Black
ProductName - DHI-NVR4104-4KS2/L
productSize - Normal
Rack 1U Mounting Type - Yes
RCA Input/Output connectors - 2
SATA 3.0 Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 37 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.072 kg
Shipping Box Width Shipping/Package Box Dimensions - 9.5 cm
ShortSummaryDescription - Dahua Technology Lite DHI-NVR4104-4KS2/L, 4 channels, 3840 x 2160 pixels, 4 channels, AAC, G.711 A-law, G.726, PCM, H.264, H.265, M-JPEG, Backup selection, Digital zoom, Frame by Frame, Full screen, Pause, Play, Reverse, Slow play, Stop
sizeX - 360
sizeY - 260
sizeZ - 95
Storage - HDD interface - SATA III
Storage - Maximum storage capacity - 10 TB
Storage - Number of HDDs supported - 1
System requirements - Browser supported - Chrome; IE9+; Firefox
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - Android, iOS
System requirements - Mobile operating systems supported - iOS
Title - Dahua Technology Lite DHI-NVR4104-4KS2/L network video recorder 1U Black
Unit Box Height - 0.26
Unit Box Length - 0.37
Unit Box Width - 0.095
Unit Brutto Volume - 0.009139 cubm
Unit Gross Weight - 1.07 kg
Unit Net Weight - 0.45 kg
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4/L-Series/1HDD/NVR4104HS-4KS2/L
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4/L-Series/1HDD/NVR4104-4KS2/L
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
weight - 1085
Weight & dimensions - Depth - 232.5 mm
Weight & dimensions - Height - 50.3 mm
Weight & dimensions - Package depth - 333 mm
Weight & dimensions - Package height - 315 mm
Weight & dimensions - Package weight - 1.41 kg
Weight & dimensions - Package width - 89 mm
Weight & dimensions - Weight - 810 g
Weight & dimensions - Width - 260 mm
Wireless LAN features - Wi-Fi - No
