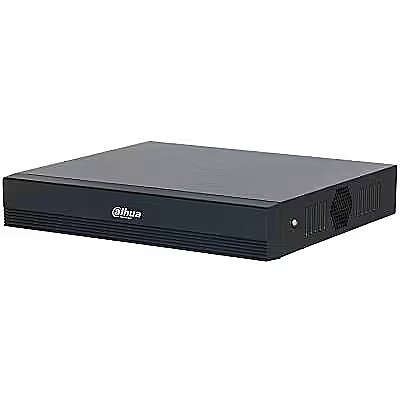

Dahua DVR 16CH HDCVI PENTABRID/XVR1B16-I/T

Analog signal format system Performance - NTSC, PAL
Audio formats supported Performance - G.711, PCM, G.711u
Audio input Ports & interfaces - 1
Audio output Ports & interfaces - 1
Audio system Performance - 2-way
Bit rate Performance - 4096 Kbit/s
BNC input ports Ports & interfaces - 16
Brand - Dahua Technology
BrandPartCode - XVR1B16-I/T
Built-in processor Processor - Yes
Bullet Points -

• 16-ch Analog Video Input, Max. 1080N/720p@15fps Encoding Capability
• Max. 18-ch IP Video Input (Up to 6MP)
• 16-ch Two-way Talk
• AI Functions: 16-ch SMD, 16-ch AI Coding
• 1 Bay. Up to 16TB for Each HDD Storage Capacity

Category - Digital Video Recorders (DVR)
DC voltage Power - 12 V
Depth Weight & dimensions - 231.4 mm
Description - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions. The Cooper-I/T Series offers simple and highly cost-effective HDCVI solutions. It provides 24/7 reliable monitoring with high-quality image performance, saving you on labor costs. It also includes a two-way talk function that is supported by all the channels and operates over coaxial cable, along with SMD Plus, offering you excellent value.
Dual stream support Performance - Yes
Ethernet interface type Network - Fast Ethernet
Ethernet LAN (RJ-45) ports Network - 1
Ethernet LAN Network - Yes
Graphical user interface (GUI) Performance - Yes
Hard drive - HDD interface - SATA, SATA II, SATA III
Hard drive - Maximum HDD capacity - 6 TB
Hard drive - Number of HDDs supported - 1
HDD interface Hard drive - SATA, SATA II, SATA III
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions - 47.6 mm
Internal Performance - No
LongDesc - Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.The Cooper-I/T Series offers simple and highly cost-effective HDCVI solutions. It provides 24/7 reliable monitoring with high-quality image performance, saving you on labor costs. It also includes a two-way talk function that is supported by all the channels and operates over coaxial cable, along with SMD Plus, offering you excellent value.
Long Description - Dahua Technology XVR1B16-I/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;..., Number of users: 128 user(s). HDD interface: SATA, SATA II, SATA III, Maximum HDD capacity: 6 TB. DC voltage: 12 V, Power consumption (typical): 10 W
LongProductName - 16CH Penta-brid 1080N/720P Cooper 1U 1HDD WizSense Digital Video Recorder
LongSummaryDescription - Dahua Technology XVR1B16-I/T. Product colour: Black, Maximum video resolution: 1920 x 1080 pixels, Video compression formats: H.264, H.264+, H.265, H.265+. Video input channels: 16 channels. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS;..., Number of users: 128 user(s). HDD interface: SATA, SATA II, SATA III, Maximum HDD capacity: 6 TB. DC voltage: 12 V, Power consumption (typical): 10 W
Maximum HDD capacity Hard drive - 6 TB
Maximum video resolution Performance - 1920 x 1080 pixels
Model - XVR1B16-I/T
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Number of users - 128 user(s)
Network - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Number of HDDs supported Hard drive - 1
Number of users Network - 128 user(s)
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating system installed Performance - Embedded LINUX
Operating temperature (T-T) Operational conditions - -10 - 45 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -10 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 90%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Performance - Analog signal format system - NTSC, PAL
Performance - Audio formats supported - G.711, PCM, G.711u
Performance - Audio system - 2-way
Performance - Bit rate - 4096 Kbit/s
Performance - Dual stream support - Yes
Performance - Graphical user interface (GUI) - Yes
Performance - Internal - No
Performance - Maximum video resolution - 1920 x 1080 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Playback resolutions supported - 1920 x 1080, 1280 x 1024, 1280 x 720
Performance - Product colour - Black
Performance - PTZ control - Yes
Performance - Rack capacity - 1U
Performance - Video capturing speed - 30 fps
Performance - Video compression formats - H.264, H.264+, H.265, H.265+
Performance - Video motion detection - Yes
Performance - Video streaming - Yes
Playback resolutions supported Performance - 1920 x 1080, 1280 x 1024, 1280 x 720
Ports & interfaces - Audio input - 1
Ports & interfaces - Audio output - 1
Ports & interfaces - BNC input ports - 16
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Ports & interfaces - Video input channels - 16 channels
Power - DC voltage - 12 V
Power - Power consumption (typical) - 10 W
Power consumption (typical) Power - 10 W
Processor - Built-in processor - Yes
Product colour Performance - Black
ProductName - XVR1B16-I/T
PTZ control Performance - Yes
Rack capacity Performance - 1U
ShortSummaryDescription - Dahua Technology XVR1B16-I/T, Black, 1920 x 1080 pixels, H.264, H.264+, H.265, H.265+, G.711, PCM, G.711u, 30 fps, 1920 x 1080, 1280 x 1024, 1280 x 720
Storage relative humidity (H-H) Operational conditions - 0 - 90%
Storage temperature (T-T) Operational conditions - -20 - 70 °C
Supported network protocols Network - HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Title - Dahua Technology XVR1B16-I/T digital video recorder (DVR) Black
Unit Calculated Volume - 0.008554 cubm
Unit Calculated Weight - 1.49 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/hdcvi-products/hdcvi-recorders/cooper-i-series/xvr1b16-i/t
USB 2.0 ports quantity Ports & interfaces - 2
Vendor Homepage - https://www.dahuasecurity.com/products/hdcvi-products/hdcvi-recorders/cooper-i-series/xvr1b16-i/t
VGA (D-Sub) output ports Ports & interfaces - 1
Video capturing speed Performance - 30 fps
Video compression formats Performance - H.264, H.264+, H.265, H.265+
Video input channels Ports & interfaces - 16 channels
Video motion detection Performance - Yes
Video streaming Performance - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 231.4 mm
Weight & dimensions - Height - 47.6 mm
Weight & dimensions - Weight - 890 g
Weight & dimensions - Width - 260 mm
Weight Weight & dimensions - 890 g
Width Weight & dimensions - 260 mm
