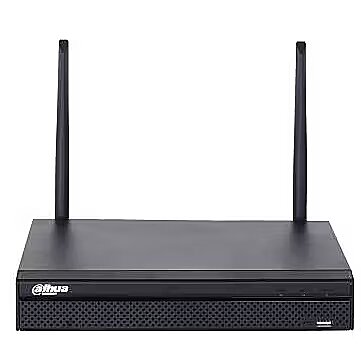

Dahua NET VIDEO RECORDER 4CH WIFI/NVR1104HS-W-S2-CE

Audio codecs Performance - PCM; G711A; G711U; G726
Audio RCA inputs Ports & interfaces - 1
Audio RCA outputs Ports & interfaces - 1
Backup function Performance - Yes
Brand - Dahua Technology
BrandPartCode - DHI-NVR1104HS-W-S2-CE
Browser supported System requirements - Chrome; IE 9 or later; Firefox
Built-in processor Processor - Yes
Category - Network Video Recorders (NVR)
Category Code - NVR
Certification Features - CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-
3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE-
RED: EN301489-1; EN 301489-17; EN300328; EN300328;
EN62311; FCC ID: 47 CFR PART 15 SUBPART C
DC-in jack Ports & interfaces - Yes
Depth Weight & dimensions - 247.3 mm
Description - With its embedded Wi-Fi module, Dahua's Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras. It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which allows it to cover a wider area. This NVR also supports the access of IP cameras, making installation more convenient.Without the limitation of network cables, the wireless recorder combined with the Dahua
wireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries. New User Interface
Highly user friendly, the new web interface and GUI have a minimalist
flat design, that makes navigating the system much easier. The
functional modules have also been arranged to be clearer and easier to
understand. Automatic Wireless Pairing
In just 120 seconds, the wireless NVR automatically pairs with the
wireless IPC after the system starts up, allowing you to work faster and
more efficiently. Wireless Cascading
The wireless NVR automatically cascades IPCs for long-distance
surveillance.New 4.0 user interfaceOne-click wireless pairing to IPCsAutomatic pairing to IPC in 120 s after boot-up under undisturbed conditionsAutomatic cascading of IPCs for long-distance surveillance4–ch@1080P (25FPS), self-adaptive decoding capabilitySupports mainstream cameras of ONVIF protocolSmart H.265/Smart H.264VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080PRemote configuration and management of IPCs, such as setting parameters, acquiring information and upgrading IPCs of the same model in batchesDHCP (Dynamic Host Configuration Protocol), HTTP (HypertextTransferProtocol), NTP (Network Time Protocol) and DDNS (Dynamic DomainName System)
dimensionalWeight - 2595
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Ports & interfaces - 10,100 Mbit/s
Features - Certification - CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-
3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE-
RED: EN301489-1; EN 301489-17; EN300328; EN300328;
EN62311; FCC ID: 47 CFR PART 15 SUBPART C
Features - LED indicators - HDD
Features - LED indicators - HDD, Network, Power
Features - LED indicators - Network
Features - LED indicators - Power
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
GTIN - 6923172542984
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 16 TB
Hard drive - Number of HDDs installed - 1
HDD interface Hard drive - SATA
HDMI output Ports & interfaces - Yes
HDMI ports quantity Ports & interfaces - 1
Height Weight & dimensions - 44.7 mm
Input bandwidth Performance - 40 Mbit/s
LED indicators Features - HDD, Network, Power
LongDesc - With its embedded Wi-Fi module, Dahua's Lite Series Wireless Recorder supports the AP function, and automatically detects and connects with Dahua wireless cameras. It has two antennas that together produce strong wireless signals, and has IEEE 802.11 b/g/n (2.4G Hz) Wi-Fi which allows it to cover a wider area. This NVR also supports the access of IP cameras, making installation more convenient.Without the limitation of network cables, the wireless recorder combined with the Dahuawireless camera provides a great solution for SMB surveillance systems, making this NVR ideal for a wide range of applications including home safety, cafes, supermarkets, retail, education and more industries.New User InterfaceHighly user friendly, the new web interface and GUI have a minimalistflat design, that makes navigating the system much easier. Thefunctional modules have also been arranged to be clearer and easier tounderstand.Automatic Wireless PairingIn just 120 seconds, the wireless NVR automatically pairs with thewireless IPC after the system starts up, allowing you to work faster andmore efficiently.Wireless CascadingThe wireless NVR automatically cascades IPCs for long-distancesurveillance.
LongProductName - 4 Channel Compact 1U 1HDD Network Video Recorder
LongSummaryDescription - Dahua Technology NVR1104HS-W-S2-CE. Video input channels: 4 channels, Video recording modes: 720p, 1080p, Operating system installed: Embedded LINUX. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P. Rack capacity: 1U, LED indicators: HDD, Network, Power, Product colour: Black. Output current: 1.5 A, Output voltage: 12 V
Maximum frame rate Performance - 25 fps
Maximum storage capacity Hard drive - 16 TB
Mobile operating systems supported System requirements - Android, iOS
Model - NVR1104HS-W-S2-CE
Model name - NVR1104HS-W-S2-CE
Number of HDDs installed Hard drive - 1
Operating relative humidity (H-H) Operational conditions - 10 - 93%
Operating system installed Performance - Embedded LINUX
Operating temperature (T-T) Operational conditions - -10 - 45 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 45 °C
Output bandwidth Performance - 20 Mbit/s
Output current Power - 1.5 A
Output voltage Power - 12 V
Package depth Weight & dimensions - 117 mm
Package height Weight & dimensions - 308 mm
Package weight Weight & dimensions - 1.56 kg
Package width Weight & dimensions - 372 mm
Performance - Audio codecs - PCM; G711A; G711U; G726
Performance - Backup function - Yes
Performance - Input bandwidth - 40 Mbit/s
Performance - Maximum frame rate - 25 fps
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 20 Mbit/s
Performance - Recording modes - Manual
Performance - Video codecs - Smart H.265; H.265; Smart H.264; H.264; MJPEG
Performance - Video input channels - 4 channels
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p
Performance - Video recording modes - 720p, 1080p
Performance - Video recording modes - 1080p
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - Ethernet LAN data rates - 100
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Processor - Built-in processor - Yes
producerCode - NVR1104HS-W-S2-CE
Product colour Features - Black
productName - Dahua Technology NVR1104HS-W-S2-CE 1U Black
ProductName - NVR1104HS-W-S2-CE
productSize - Normal
Rack capacity Features - 1U
Rack mounting Features - Yes
Recording modes Performance - Manual
ShortSummaryDescription - Dahua Technology NVR1104HS-W-S2-CE, 4 channels, 720p, 1080p, Embedded LINUX, Smart H.265; H.265; Smart H.264; H.264; MJPEG, PCM; G711A; G711U; G726, 25 fps
sizeX - 370
sizeY - 305
sizeZ - 115
Summary - Dahua Technology NVR1104HS-W-S2-CE. Video input channels: 4 channels, Video recording modes: 720p, 1080p, Operating system installed: Embedded LINUX. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P. Rack capacity: 1U, LED indicators: HDD, Network, Power, Product colour: Black. Output current: 1.5 A, Output voltage: 12 V
Supported network protocols Ports & interfaces - HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P
System requirements - Browser supported - Chrome; IE 9 or later; Firefox
System requirements - Mobile operating systems supported - Android
System requirements - Mobile operating systems supported - Android, iOS
System requirements - Mobile operating systems supported - iOS
Title - Dahua Technology NVR1104HS-W-S2-CE 1U Black
Unit Box Height - 0.115
Unit Box Length - 0.37
Unit Box Width - 0.305
Unit Calculated Volume - 0.01298 cubm
Unit Calculated Weight - 1.6 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/
USB 2.0 ports quantity Ports & interfaces - 2
Vendor Homepage - https://www.dahuasecurity.com/products/
VGA (D-Sub) output ports Ports & interfaces - 1
Video codecs Performance - Smart H.265; H.265; Smart H.264; H.264; MJPEG
Video input channels Performance - 4 channels
Video motion detection Performance - Yes
Video recording modes Performance - 720p, 1080p
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - F
weight - 1540
Weight & dimensions - Depth - 247.3 mm
Weight & dimensions - Height - 44.7 mm
Weight & dimensions - Package depth - 117 mm
Weight & dimensions - Package height - 308 mm
Weight & dimensions - Package weight - 1.56 kg
Weight & dimensions - Package width - 372 mm
Weight & dimensions - Weight - 824 g
Weight & dimensions - Width - 260.3 mm
Weight Weight & dimensions - 824 g
Width Weight & dimensions - 260.3 mm
