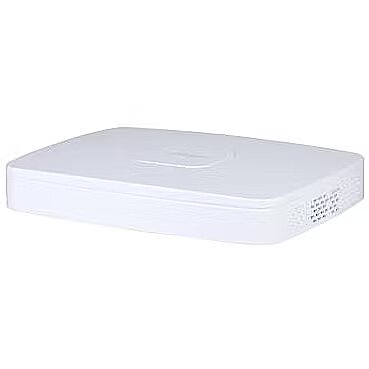

Dahua NET VIDEO RECORDER 8CH 8POE/NVR2108-8P-4KS3

15pin D-sub Input/Output connectors - 1
AV-In Input/Output connectors - 1
AV-out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - NVR2108-8P-4KS3
Category - Network Video Recorders (NVR)
Category Code - NVR
CnCode - 85219000
Colour - White
CPU - Industrial-grade
Description - NVR2108-8P-4KS3 8CH Smart 1U 8PoE 1HDD Lite Network Video Recorder> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. > Max. decoding capability: 6 × 1080p@30 fps. > Max. 144/144/72 Mbps incoming/recording/outgoing bandwidth. > Supports IP cameras with a resolution up to 12 MP. > AI by Recorder supports 4-channel SMD Plus. > AI by Camera supports perimeter protection and SMD Plus. > Supports one-click arming and disarming.
Desktop/pedestal Mounting Type - Yes
Dimensions - 270.0 × 206.3 × 45.9 mm
Features - Certification - CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN
61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020,
EN 55035:2017+A11:2020, EN 55024:2010+A1:2015,
EN 50130-4:2011+A1:2014
Features - On/off switch - Yes
Features - Product colour - White
Features - Rack capacity - 1U
Features - Rack mounting - Yes
GTIN - 6923172573551
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 20 TB
HDMI Input/Output connectors - 1
LongDesc - The NVR2000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. This NVR is both costeffective and easy-to-install, making it ideal for a wide range of applications such as villas, shops and other small and medium-sized scenes.SMD PlusWith intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and ilter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.Perimeter Protection by CameraAutomatically ilters out false alarms caused by animals, rustling leaves, bright lights, etc. Enables system to act secondary recognition for the targets. Improves alarm accuracy.
LongProductName - 4 channels, RCA x 2, SATA x 1, USB x 2, HDMI x 1, VGA x 1, RJ-45 x 1, PoE x 8, 270 x 206.3 x 45.9 mm, 680 g
LongSummaryDescription - Dahua Technology Lite NVR2108-8P-4KS3. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports.... Rack capacity: 1U, Product colour: White, Certification: CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN.... Power consumption (max): 25.5 W, Power consumption (typical): 10 W, Output current: 1.22 A
Model - NVR2108-8P-4KS3
Number of Channels - 8
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, G.726, PCM
Performance - Image formats supported - MJPEG
Performance - Input bandwidth - 80 Mbit/s
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 60 Mbit/s
Performance - Supported resolutions - HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
Performance - Video formats supported - H.264, H.264+, H.265, H.265+
Performance - Video input channels - 4 channels
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p, 960p, 1080p
PoE ports - 8
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - eSATA ports quantity - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Networking standards - IEEE 802.3af, IEEE 802.3at
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 8
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; IP Filter; DDNS; IP Search (Supports IP camera, DVR, NVS, etc.); P2P; Auto Registration
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.22 A
Power - Output voltage - 53 V
Power - Power consumption (max) - 25.5 W
Power - Power consumption (typical) - 10 W
Power - Total Power over Ethernet (PoE) budget - 72 W
Power consumption - 10 Watts
Power supply requirements - 53 V DC, 1.81 A
Processor - Built-in processor - Yes
ProductName - NVR2108-8P-4KS3
Product Net Weight - 0.68 kg
Rack Mounting Type - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
ShortSummaryDescription - Dahua Technology Lite NVR2108-8P-4KS3, 4 channels, 3840 x 2160 pixels, 720p, 960p, 1080p, HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720, G.711 A-law, G.711 μ-law, G.726, PCM, H.264, H.264+, H.265, H.265+
System requirements - Browser supported - Chrome; IE; Safari; Edge; Firefox
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology Lite NVR2108-8P-4KS3 network video recorder 1U White
Unit Box Height - 0.26
Unit Box Length - 0.425
Unit Box Width - 0.09
Unit Calculated Volume - 0.009945 cubm
Unit Calculated Weight - 1.7 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2108-8P-4KS3
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR2-4KS3-Series/1HDD/NVR2108-8P-4KS3
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 206.3 mm
Weight & dimensions - Height - 45.9 mm
Weight & dimensions - Package depth - 96 mm
Weight & dimensions - Package height - 262 mm
Weight & dimensions - Package weight - 1.76 kg
Weight & dimensions - Package width - 427 mm
Weight & dimensions - Weight - 680 g
Weight & dimensions - Width - 270 mm
Wireless LAN features - Wi-Fi - No
