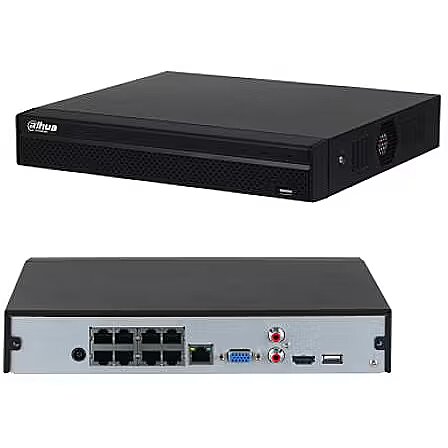

Dahua NET VIDEO RECORDER 8CH 8POE/NVR4108HS-8P-4KS3

15pin D-sub Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - DHI-NVR4108HS-8P-4KS3
Category - Network Video Recorders (NVR)
Category Code - NVR
CPU - Industrial-grade
Description - 8CH Compact 1U 8PoE 1HDD Lite Network Video Recorder > Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats. > Max. decoding capability: 8 × 1080p@30 fps. > Max. 160/160/80 Mbps incoming/recording/outgoing bandwidth. > Supports IP cameras with a resolution up to 12 MP. > AI by Recorder supports 4-channel SMD Plus. > AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map. > Supports EPTZ, and one-click arming and disarming.
Desktop/pedestal Mounting Type - Yes
Dimensions - 260.0 × 232.5 × 47.6 mm
Display - Built-in display - No
Display - Display diagonal - 2.54 cm (1")
Features - Certification - CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
GTIN - 3548385315700
Hard drive - HDD interface - SATA
Hard drive - Maximum storage capacity - 20 TB
Hard drive - Number of HDDs supported - 1
HDMI Input/Output connectors - 1
LongDesc - The NVR4000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. When an IPC is connected to the NVR, a variety of AI functions become available such as face detection, perimeter protection, and people counting. This NVR is both cost-effective and easy-to-install, making it ideal for a wide range of applications such as for cities, transportation, education and finance
LongProductName - 1U, 8x 1080p@30 FPS, Max 160/160/80 Mbps, 1x 10/100/1000 Mbps Ethernet RJ-45, USB, HDMI, VGA, RCA, iOS / Android, 260 × 232.5 × 47.6 mm, 920g, Black
LongSummaryDescription - Dahua Technology DHI-NVR4108HS-8P-4KS3. Maximum resolution: 3840 x 2160 pixels, Number of simultaneously playbacked channels: 8 channels, Video recording modes: 720p, 1080p, 2160p. Maximum storage capacity: 20 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100,1000 Mbit/s, Audio output: 1-channel RCA, Networking standards: IEEE 802.3af, IEEE 802.3at. Rack capacity: 1U, Product colour: Black, Certification: CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;.... Display diagonal: 2.54 cm (1")
Model - DHI-NVR4108HS-8P-4KS3
Number of Channels - 8
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Performance - Audio codecs - G.711a; G.711u; PCM; G726
Performance - Audio formats supported - G.711 A-law, G.711 μ-law, G.726, PCM
Performance - Face detection - Yes
Performance - Input bandwidth - 160 Mbit/s
Performance - Maximum frame rate - 30 fps
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Multi-screen - Yes
Performance - Number of simultaneously playbacked channels - 8 channels
Performance - Operating system installed - Embedded LINUX
Performance - Output bandwidth - 80 Mbit/s
Performance - People counting - Yes
Performance - Snapshot - Yes
Performance - Supported resolutions - 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Performance - Video codecs - Smart H.265+; H.265; Smart H.264+; H.264
Performance - Video formats supported - H.264, H.265, H.265+, MJPG
Performance - Video loss detection - Yes
Performance - Video motion detection - Yes
Performance - Video recording modes - 720p, 1080p, 2160p
PoE ports - 8
Ports & interfaces - Audio output - 1-channel RCA
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Networking standards - IEEE 802.3af, IEEE 802.3at
Ports & interfaces - Power over Ethernet (PoE) - Yes
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 8
Ports & interfaces - Supported network protocols - HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.81 A
Power - Output voltage - 53 V
Power - Power over Ethernet (PoE) power per port - 25.5 W
Power - Total Power over Ethernet (PoE) budget - 72 W
Power supply requirements - 53 VDC, 1.81 A
Processor - Built-in processor - Yes
ProductName - DHI-NVR4108HS-8P-4KS3
Product Net Weight - 0.92 kg
Rack Mounting Type - Yes
RJ45 Input/Output connectors - 1
SATA Interface - Yes
ShortSummaryDescription - Dahua Technology DHI-NVR4108HS-8P-4KS3, 3840 x 2160 pixels, 8 channels, 720p, 1080p, 2160p, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, G.711 A-law, G.711 μ-law, G.726, PCM, H.264, H.265, H.265+, MJPG
System requirements - Browser supported - Chrome; IE; Safari; Edge; Firefox
System requirements - Mobile operating systems supported - Android, iOS
Title - Dahua Technology DHI-NVR4108HS-8P-4KS3 network video recorder 1U Black
Unit Box Height - 0.305
Unit Box Length - 0.37
Unit Box Width - 0.115
Unit Calculated Volume - 0.01298 cubm
Unit Calculated Weight - 2.1 kg
Units per Shipping Box - 1
URL - https://www.dahuasecurity.com/fr/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4108HS-8P-4KS3
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4108HS-8P-4KS3
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Depth - 232.5 mm
Weight & dimensions - Height - 47.6 mm
Weight & dimensions - Package depth - 119 mm
Weight & dimensions - Package height - 311 mm
Weight & dimensions - Package weight - 2.05 kg
Weight & dimensions - Package width - 374 mm
Weight & dimensions - Weight - 920 g
Weight & dimensions - Width - 260 mm
