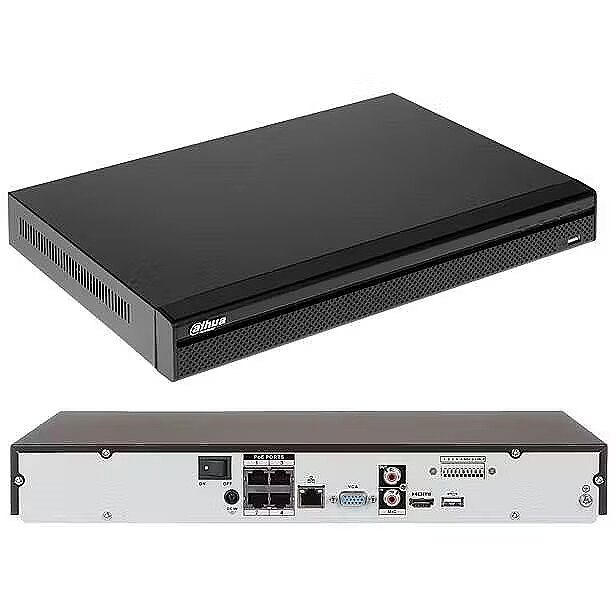

Dahua NET VIDEO RECORDER 4CH 4POE/NVR4204-P-4KS2/L

Alarm In Input/Output connectors - 4
Alarm Out Input/Output connectors - 2
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Brand - Dahua Technology
BrandPartCode - NVR4204-P-4KS2/L
Category - Network Video Recorders (NVR)
Category Code - NVR
Colour - Black
Description - - 4 IP channel max, up to 8MP resolution - Max: 160Mbps recording bandwidth, Smart H.265/H.265/Smart H.264/H.264/MJPE - VGA/HDMI up to 4K output, decoding 4 × 1080p @ 30 fps - 2 SATA III ports, up to 10 TB for a single HDD - No front panel control, 4/2 alarm I/O, 2 USB, Two-way Talk: 1/1 I/O - 4 PoE ports: Total output power of PoE is 36W, the maximum output power of a single port is 25.5W - Desktop mounted chassis - AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD - Free IP monitoring software available, ONVIF(profile T/S/G); CGI; SDK - Other brands IP cameras supported
Dimensions - 375 mm × 282.4 mm × 53 mm
Features - Certification - CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
Features - Product colour - Black
Features - Rack capacity - 1U
Features - Rack mounting - Yes
Full Description Line - Channels 4|1xAudio-In|1xAudio-Out|2xUSB 2.0|1xRJ45|4xAlarm In|2xAlarm Out|Power supply requirements DC48 V/53 V, 1.5 A/1.36 A|Power consumption 10 Watts|Dim. 375 mm × 282.4 mm × 53 mm|Temp. range –10 °C to +55 °C|Colour Black
LongDesc -
LongProductName - 4 Channel, 1U, 2xHDDs, 1080p@30 fps, 375 × 282.4 × 53 mm, 1.58 kg
LongSummaryDescription - Dahua Technology NVR4204-P-4KS2/L. Video input channels: 4 channels, Maximum resolution: 1920 x 1080 pixels, Audio formats supported: AAC, G.711 A-law, G.711 μ-law, G.726, PCM. Maximum storage capacity: 2 TB, HDD interface: SATA III. Ethernet LAN data rates: 10,100,1000 Mbit/s. Rack capacity: 1U, Product colour: Black, Certification: CE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4 FCC: Part 15 Subpart B. Power consumption (typical): 10 W, Output current: 1.5 A, Output voltage: 53 V
Model - NVR4204-P-4KS2/L
Number of Channels - 4
Operating temperature range - –10 °C to +55 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 93%
Operational conditions - Operating temperature (T-T) - -10 - 55 °C
Operational conditions - Storage relative humidity (H-H) - 30 - 85%
Operational conditions - Storage temperature (T-T) - 0 - 40 °C
Performance - Alarm input channels - 4
Performance - Alarm output channels - 2
Performance - Audio formats supported - AAC, G.711 A-law, G.711 μ-law, G.726, PCM
Performance - Maximum resolution - 1920 x 1080 pixels
Performance - Operating system installed - Embedded LINUX
Performance - Video input channels - 4 channels
PoE ports - 4
Ports & interfaces - Audio RCA inputs - 1
Ports & interfaces - Audio RCA outputs - 1
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100,1000 Mbit/s
Ports & interfaces - HDMI output - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - VGA (D-Sub) output ports - 1
Power - Output current - 1.5 A
Power - Output voltage - 53 V
Power - Power consumption (typical) - 10 W
Power consumption - 10 Watts
Power supply requirements - DC48 V/53 V, 1.5 A/1.36 A
ProductName - NVR4204-P-4KS2/L
RJ45 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 43.3 cm
Shipping Box Height Shipping/Package Box Dimensions - 36.3 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.98 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
ShortSummaryDescription - Dahua Technology NVR4204-P-4KS2/L, 4 channels, 1920 x 1080 pixels, AAC, G.711 A-law, G.711 μ-law, G.726, PCM, Embedded LINUX, 2 TB, SATA III
Storage - HDD interface - SATA III
Storage - Maximum storage capacity - 2 TB
Title - Dahua Technology NVR4204-P-4KS2/L network video recorder 1U Black
Unit Box Height - 0.363
Unit Box Length - 0.433
Unit Box Width - 0.14
Unit Brutto Volume - 0.02201 cubm
Unit Gross Weight - 2.98 kg
Unit Net Weight - 1.58 kg
URL - https://www.dahuasecurity.com/th/products/All-Products/Network-Recorders/Lite-Series/NVR4/L-Series/NVR4204-P-4KS2/L
USB 2.0 Input/Output connectors - 2
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4/L-Series/2HDD/NVR4204-P-4KS2/L
Warranty - 36 months
WarrantyInfo - -
Weight & dimensions - Depth - 282.4 mm
Weight & dimensions - Height - 53 mm
Weight & dimensions - Package depth - 366 mm
Weight & dimensions - Package height - 141 mm
Weight & dimensions - Package weight - 2.93 kg
Weight & dimensions - Package width - 433 mm
Weight & dimensions - Weight - 1.58 kg
Weight & dimensions - Width - 375 mm
Wireless LAN features - Wi-Fi - No
