ID: 1291861
Product code: PC-HDBW5559R-ASE-IL-0280B
In stock 10 units
Warranty: 3 years

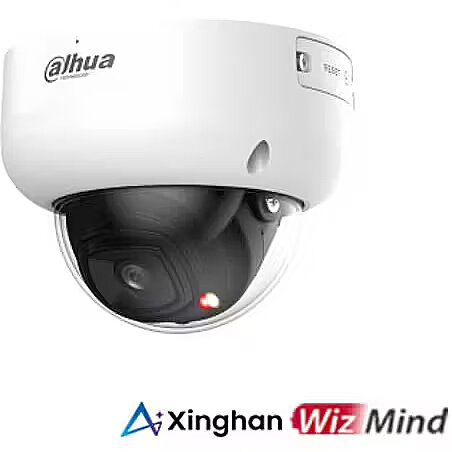

Dahua NET CAMERA 5MP IR DOME/PC-HDBW5559R-ASE-IL0280B
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Receiving goods at the Dateks office0.00 € -
DPD Pickup Parcel CabinetWithin 1-2 working days0.00 € -
Parcel terminalWithin 1-2 working days0.00 € -
Post OfficeWithin 1-2 working days0.00 €
-
Omniva parcel machineWithin 1-2 working days0.00 € -
SmartPosti parcel terminalWithin 1-2 working days0.00 € -
Delivery throughout Latvia.Within 1-2 working days4.99 €
All parameters
Network connections
: Ir
Use
: Indoor/Outdoor
More detailed specification
Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Dome
Category Code - FNC
Colour - White
Description - >5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. >Outputs max. 5 MP (2960 × 1668) @25/30 fps. >Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m. >ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. >Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. >Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions. >With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc. >Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic >12 VDC/PoE power supply; ePoE >IP67 and IK10 protection. > Field of View: 108.4°
Dimensions - 94 × Φ122mm
Effective pixels - 2960 (H) × 1668 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0005 Lux
Model - IPC-HDBW5559R-ASE-IL-0280B
Network Camera Type - Fixed Dome/HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Power consumption - 15.6 Watts
Power options - Other/PoE
Power supply requirements - 12 VDC (±30%); PoE+ (802.3at); ePoE
Product Net Weight - 0.713 kg
Resolution - 5 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7"
Supports card capacities up to - 1TB
Unit Calculated Volume - 0.007447 cubm
Unit Calculated Weight - 0.986 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/5MP/IPC-HDBW5559R-ASE-IL
Warranty - 36 months
Alarm Out Input/Output connectors - 1
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Camera design - Dome
Category Code - FNC
Colour - White
Description - >5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. >Outputs max. 5 MP (2960 × 1668) @25/30 fps. >Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m. >ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. >Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. >Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions. >With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc. >Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card; built-in Mic >12 VDC/PoE power supply; ePoE >IP67 and IK10 protection. > Field of View: 108.4°
Dimensions - 94 × Φ122mm
Effective pixels - 2960 (H) × 1668 (V)
Electronic Shutter Speed - Auto/Manual 1/3 s–1/100,000 s
Environment - Outdoor
Focal Length - 2.8mm
IR Illumination - Yes
Lens Mount - M12
Microphone - Built-in
Min. Illumination - 0.0005 Lux
Model - IPC-HDBW5559R-ASE-IL-0280B
Network Camera Type - Fixed Dome/HDTV/Megapixel/Outdoor
Operating temperature range - –40 °C to +60 °C
Power consumption - 15.6 Watts
Power options - Other/PoE
Power supply requirements - 12 VDC (±30%); PoE+ (802.3at); ePoE
Product Net Weight - 0.713 kg
Resolution - 5 Mega Pixel
RJ45 Input/Output connectors - 1
Sensor size - 1/2.7"
Supports card capacities up to - 1TB
Unit Calculated Volume - 0.007447 cubm
Unit Calculated Weight - 0.986 kg
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/products/All-Products/Network-Cameras/WizMind-5-Series/Smart-Dual-Light/5MP/IPC-HDBW5559R-ASE-IL
Warranty - 36 months
