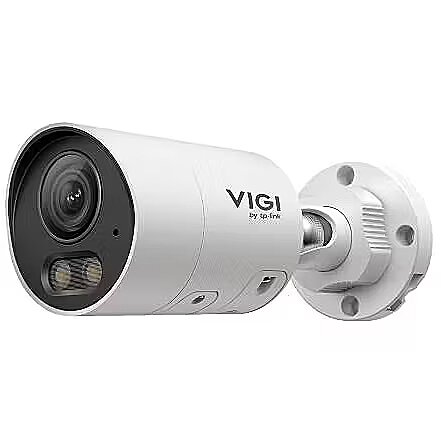

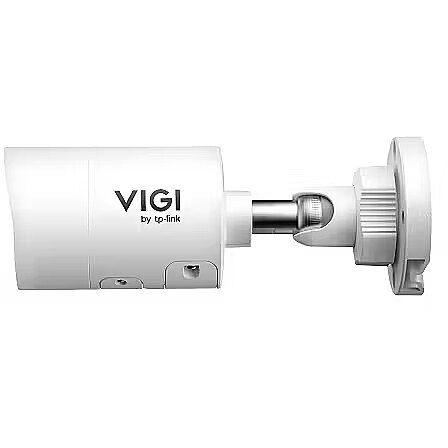

TP-LINK NET CAMERA BULLET H.265+ 4MP/INSIGHT S345S(4MM)

Alarm In Input/Output connectors - 1
Alarm Out Input/Output connectors - 1
Audio - Audio system - 2-way
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Signal-to-Noise Ratio (SNR) - 52 dB
Brand - TP-Link
BrandPartCode - INSIGHT S345S(4MM)
Camera - Angle of rotation - 360°
Camera - Camera shutter speed - 1/3 - 1/10000 s
Camera - Lens viewing angle, diagonal - 115°
Camera - Lens viewing angle, horizontal - 95°
Camera - Lens viewing angle, vertical - 51°
Camera - Minimum illumination - 0.0005 lx
Camera - Pan range - 0 - 360°
Camera - Tilt angle range - 0 - 75°
Camera design - Bullet
Category - Security Cameras
Category Code - FNC
Colour - White
Description - VIGI 4MP Outdoor ColourPro 2.0 Bullet Network Camera AI-ISP Powered Ultra Low-Light Colour Night Vision 4MP Super-High Definition People & Vehicle Analytics Human & Vehicle Classification Smart Detection Two-Way Audio Smart Video Enhancement Technology Flexible Alarm In/Out Devices Integration IP67 Weatherproof H.265+ Compression Technology
Design - Form factor - Bullet
Design - Housing material - Metal
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/Wall/Pole
Design - Product colour - White
Dimensions - Φ66 × 191 mm
Electronic Shutter Speed - 1/3 to 1/10000 s
Environment - Outdoor
Focal Length - 4mm
GTIN - 1210002608299
GTIN - 8885020625608
Image sensor - Optical sensor size - 25.4 / 1.79 mm (1 / 1.79")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Included Accessories - • Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
IR Illumination - Yes
Lens Mount - M16
Lens system - Detect distance - 76 m
Lens system - Fixed focal length - 4 mm
Lens system - Identify distance - 7 m
Lens system - Maximum aperture number - 1
Lens system - Number of lenses - 1
Lens system - Observe distance - 29 m
Lens system - Recognize distance - 14 m
LongDesc - See True Colors and Details in the DarkUnveiling every detail in the dark, experiencing clarity and color as vivid as daylight — no extra fill lights needed.Worry-Free Night Surveillance: Beyond IR & Full-ColorEliminates general night vision issues like dark corners, glare, and color loss — enjoy worry-free nighttime monitoring.See Vividly — Even No Extra Fill Lights NeededEnables full-color imaging in low-light conditions without fill-in lighting, reducing both energy consumption and insect-triggered false alarms for a more eco-friendly solution.People or Vehicle Triggered Intelligent IR-White Lights Reveal More in Total DarknessIn complete darkness with zero illumination, VIGI’s intelligent infrared-white lights will automatically activate white lights upon detecting people or vehicles, delivering vivid color imaging while deterring intruders.VIGI AI Detection TechnologyPeople & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, like hair length, upper body color, vehicle type, making post-event search faster and easier.Human & Vehicle Classification: Distinguish humans and vehicles from other objects, such as moving animals, falling leaves, changing lights, and receive more accurate event notifications.Smart Video Enhancement TechnologyTrue WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.Efficient H.265+ Compression TechnologyH.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
LongProductName - VIGI 4MP Outdoor ColorPro 2.0 Bullet Network Camera
LongSummaryDescription - TP-Link InSight S345S. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0005 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 95°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.79 mm (1 / 1.79"). Detect distance: 76 m, Observe distance: 29 m, Recognize distance: 14 m
Management features - Cloud-managed - Yes
Management features - Web browser - Yes
Microphone - Built-in
Min. Illumination - 0.0005 Lux
Model - InSight S345S
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
Network - Wi-Fi - No
Network Camera Type - Outdoor
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Night vision - Number of illumination LEDs - 2
Operating temperature range - -30–60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Packaging content - Manual - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of cameras - 1
Performance - Alarm input/output - Yes
Performance - Connectivity technology - Wired
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power source type - DC, PoE
Power options - 12V/PoE
Power supply requirements - • 12V DC ± 5%, Max. 15.6 W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, Class 4, Max. 17.9 W
ProductName - InSight S345S
Product Net Weight - 0.6 kg
Resolution - 4 Mega Pixel
RJ45 Input/Output connectors - 1
Security - Active tampering alarm - Yes
Security - Alarm input channels - 1
Security - Alarm output channels - 1
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Abandoned object, Abnormal sound detection, Human detection, Intrusion, Line crossing detection, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Security - IP address filtering - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
Sensor size - 1/1.79” Progressive Scan CMOS
ShortSummaryDescription - TP-Link InSight S345S, IP security camera, Outdoor, Wired, 120 dB, Ceiling/Wall/Pole, White
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Sustainability - Compliance certificates - BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, VCCI
Title - TP-Link InSight S345S Bullet IP security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole
Unit Calculated Volume - 0.00676 cubm
Unit Calculated Weight - 1.61 kg
URL - https://www.tp-link.com/pt/business-networking/vigi-network-camera/insight-s345s/
Vendor Homepage - www.vigi.com/au/business-networking/vigi-network-camera/insight-s345s/
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - Main Stream: 256 Kbps - 6 Mbps; Sub-Stream: 64 Kbps - 1024 Kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 2688 x 1520 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Region of Interest (ROI) encoding - Yes
Video - Smart IR - Yes
Video - Supported graphics resolutions - 320 x 240, 352 x 288, 640 x 360, 640 x 480 (VGA), 704 x 576, 848 x 480, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video streaming - Yes
Warranty - 36 months
WarrantyInfo -
Weight & dimensions - Diameter - 6.6 cm
Weight & dimensions - Length - 191 mm
Weight & dimensions - Weight - 600 g
