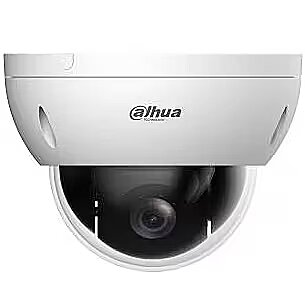

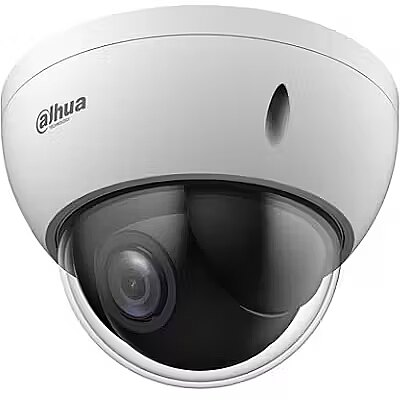

Dahua NET CAMERA 2MP PTZ DOME/SD22204DB-GC

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1269590 Product code: SD22204DB-GC
In stock 3 units
Warranty: 3 years
305.33 €
Ready for dispatch
on Monday, 22.12.2025
starting from 0 €
Delivery options
  • Receiving goods at the Dateks office
    0.00 €
  • DPD Pickup Parcel Cabinet
    Within 1-2 working days
    0.00 €
  • Parcel terminal
    Within 1-2 working days
    0.00 €
  • Post Office
    Within 1-2 working days
    0.00 €
  • Omniva parcel machine
    Within 1-2 working days
    0.00 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    0.00 €
  • Delivery throughout Latvia.
    Within 1-2 working days
    4.99 €
More detailed specification
Audio - Signal-to-Noise Ratio (SNR) - 50 dB
Back Light Compensation (BLC) Network Cameras | Video - Y
Bit rate control Network Cameras | Video - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Bit rate Network Cameras | Video - 448K - 8192Kbps, 5120K - 10240Kbps
Bluetooth Network Cameras | Network - N
BNC output ports Network Cameras | Ports & interfaces - 1
Brand - Dahua Technology
BrandPartCode - DH-SD22204DB-GC
Built-in HDD Network Cameras | Storage - N
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/1 - 1/30000 s
Camera - Camera shutter type - Electronic
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 117.7°
Camera - Lens viewing angle, horizontal - 99.1°
Camera - Lens viewing angle, vertical - 53.4°
Camera - Minimum illumination - 0.0005 lx
Camera - Pan preset speed - 100 °/sec
Camera - Pan range - 0 - 355°
Camera - Pan speed - 100 °/sec
Camera - Tilt angle range - 0 - 90°
Camera - Tilt speed - 60 °/sec
Camera - White balance - ATW, Auto, Indoor, Manual, Outdoor
Camera pan control Network Cameras | Camera - Y
Camera shutter speed Network Cameras | Camera - 1/1 - 1/30000 s
Camera shutter type Network Cameras | Camera - Electronic
Camera tilt control Network Cameras | Camera - Y
Category - Security Cameras
Category Code - FNC
Certification Network Cameras | Performance - CE: EN55032/EN55024/EN50130-4 FCC: Parte 15
subparte B, ANSI C63.4-2014 UL:
UL60950-1+CAN/CSA C22.2, No.60950-1
Connectivity technology Network Cameras | Performance - Wired
Day/night mode Network Cameras | Performance - Y
DC-in jack Network Cameras | Ports & interfaces - Y
DC output current Network Cameras | Power - 1 A
DC output voltage Network Cameras | Power - 12
Design - Form factor - Dome
Design - IK code - IK10
Design - International Protection (IP) code - IP66
Design - Mounting type - Ceiling
Design - Product colour - White
Detect distance Network Cameras | Lens system - 151.7 m
Diameter Network Cameras | Weight & dimensions - 122 mm
Digital Wide Dynamic Range (DWDR) Network Cameras | Video - Y
Digital zoom Network Cameras | Lens system - 16 x
Ethernet LAN Network Cameras | Network - N
Focal length range Network Cameras | Lens system - 2.7 - 11 mm
Focus Network Cameras | Lens system - Motorized/Manual
Form factor Network Cameras | Design - Dome
Frame rate Network Cameras | Video - 30 fps
Gain control type Network Cameras | Video - Auto/Manual
Height Network Cameras | Weight & dimensions - 88.9 mm
Highlight Compensation (HLC) Network Cameras | Video - Y
Identify distance Network Cameras | Lens system - 15.2 m
IK code Network Cameras | Design - IK10
Image sensor - Number of effective pixels (H x V) - 1920 x 1080 pixels
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Internal memory Network Cameras | Storage - 256 MB
International Protection (IP) code Network Cameras | Design - IP66
LED type Network Cameras | Night vision - IR
Lens system - Detect distance - 151.7 m
Lens system - Digital zoom - 16x
Lens system - Focal length range - 2.7 - 11 mm
Lens system - Focus - Motorized/Manual
Lens system - Identify distance - 15.2 m
Lens system - Observe distance - 59.9 m
Lens system - Optical zoom - 4x
Lens system - Recognize distance - 30.3 m
Lens system - Zoom capability - Yes
Lens viewing angle, diagonal Network Cameras | Camera - 117.7 °
Lens viewing angle, horizontal Network Cameras | Camera - 99.1 °
Lens viewing angle, vertical Network Cameras | Camera - 53.4 °
LongSummaryDescription - Dahua Technology DH-SD22204DB-GC. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 99.1°, Lens viewing angle, vertical: 53.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Optical zoom: 4x, Digital zoom: 16x, Detect distance: 151.7 m
Maximum resolution Network Cameras | Video - 1920 x 1080 pixels
Minimum illumination Network Cameras | Camera - 0.0005 lx
Model - SD22204DB-GC
Mounting type Network Cameras | Design - Ceiling
Network - Bluetooth - No
Network - Ethernet LAN - No
Network - Wi-Fi - No
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision Network Cameras | Night vision - Y
Noise reduction Network Cameras | Video - Y
Noise reduction technology Network Cameras | Video - 2D noise reduction,3D noise reduction
Number of cameras Network Cameras | Packaging content - 1
Number of effective pixels (H x V) Network Cameras | Image sensor - 1920 x 1080 pixels
Observe distance Network Cameras | Lens system - 59.9 m
Operating relative humidity (H-H) Network Cameras | Operational conditions - 0 - 95 %
Operating temperature (T-T) Network Cameras | Operational conditions - -30 - 60 °C
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Optical sensor size Network Cameras | Image sensor - 1/2.8 "
Optical zoom Network Cameras | Lens system - 4 x
Package type Network Cameras | Packaging data - Box
Package weight Network Cameras | Packaging data - 650 g
Packaging content - Number of cameras - 1
Packaging data - Package type - Box
Packaging data - Package weight - 650 g
Pan preset speed Network Cameras | Camera - 100 °/sec
Pan range Network Cameras | Camera - 0 - 355 °
Pan speed Network Cameras | Camera - 100 °/sec
Performance - Certification - CE: EN55032/EN55024/EN50130-4 FCC: Parte 15
subparte B, ANSI C63.4-2014 UL:
UL60950-1+CAN/CSA C22.2, No.60950-1
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Placement supported - Indoor & outdoor
Performance - Preset points - Yes
Performance - PTZ control - Yes
Performance - PTZ modes - 8 Tour, Preset sequence
Performance - PTZ protocols - Pelco-P/D
Performance - Type - CCTV security camera
Performance - Wide Dynamic Range (WDR) - Yes
Placement supported Network Cameras | Performance - Indoor & outdoor
Ports & interfaces - BNC output ports - 1
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - RS-485 ports - 1
Power - DC output current - 1 A
Power - DC output voltage - 12
Power - Power consumption (max) - 9 W
Power - Power consumption (typical) - 7 W
Power - Power source type - DC
Power consumption (max) Network Cameras | Power - 9 W
Power consumption (typical) Network Cameras | Power - 7 W
Power source type Network Cameras | Power - DC
Preset points Network Cameras | Performance - Y
Product colour Network Cameras | Design - White
ProductName - DH-SD22204DB-GC
Progressive scan Network Cameras | Image sensor - Y
PTZ control Network Cameras | Performance - Y
PTZ modes Network Cameras | Performance - 8 Tour/Preset sequence
PTZ protocols Network Cameras | Performance - Pelco-P/D
Recognize distance Network Cameras | Lens system - 30.3 m
Region of Interest (ROI) encoding Network Cameras | Video - Y
ROM capacity Network Cameras | Storage - 128 MB
RS-485 ports Network Cameras | Ports & interfaces - 1
Security - Video motion detection - Yes
Sensor type Network Cameras | Image sensor - CMOS
ShortSummaryDescription - Dahua Technology DH-SD22204DB-GC, CCTV security camera, Indoor & outdoor, Wired, 8 Tour, Preset sequence, Pelco-P/D, CE: EN55032/EN55024/EN50130-4 FCC: Parte 15 subparte B, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA...
Signal-to-Noise Ratio (SNR) Network Cameras | Audio - 50 dB
Storage - Built-in HDD - No
Storage - Internal memory - 256 MB
Storage - ROM capacity - 128 MB
Storage relative humidity (H-H) Network Cameras | Operational conditions - 0 - 95 %
Storage temperature (T-T) Network Cameras | Operational conditions - -30 - 60 °C
Summary - Dahua Technology DH-SD22204DB-GC. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.0005 lx, Lens viewing angle, horizontal: 99.1°, Lens viewing angle, vertical: 53.4°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"), Number of effective pixels (H x V): 1920 x 1080 pixels. Optical zoom: 4x, Digital zoom: 16x, Detect distance: 151.7 m
Supported graphics resolutions Network Cameras | Video - 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/352 x 240/352 x 288/704 x 480/704 x 576
Supported video modes Network Cameras | Video - 1080p/720p
Tilt angle range Network Cameras | Camera - 0 - 90 °
Tilt speed Network Cameras | Camera - 60 °/sec
Title - Dahua Technology DH-SD22204DB-GC security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Total megapixels Network Cameras | Video - 2 MP
Type Network Cameras | Performance - CCTV security camera
Unit Box Height - 0.14
Unit Box Length - 0.16
Unit Box Width - 0.16
Unit Calculated Volume - 0.003584 cubm
Unit Calculated Weight - 0.7 kg
Units per Pallet - 0
Units per Shipping Box - 1
Vendor Homepage - www.dahuasecurity.com/ceen/products/All-Products/PTZ-Cameras/HDCVI-PTZ-Cameras/SD2/SD22204DB-GC
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 448K - 8192Kbps, 5120K - 10240Kbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Frame rate - 30 fps
Video - Gain control type - Auto/Manual
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 1920 x 1080 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 2D noise reduction, 3D noise reduction
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Video - Supported video modes - 720p, 1080p
Video - Total megapixels - 2 MP
Video - Video compression formats - H.264, H.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Video - Video streaming - Yes
Video compression formats Network Cameras | Video - H.264/H.264+/H.264B/H.264H/H.265/H.265+/M-JPEG
Video motion detection Network Cameras | Security - Y
Video streaming Network Cameras | Video - Y
Warranty - 36 months
Weight & dimensions - Diameter - 12.2 cm
Weight & dimensions - Height - 88.9 mm
Weight & dimensions - Weight - 600 g
Weight Network Cameras | Weight & dimensions - 600 g
White balance Network Cameras | Camera - ATW/Auto/Indoor/Manual/Outdoor
Wi-Fi Network Cameras | Network - N
Wide Dynamic Range (WDR) Network Cameras | Performance - Y
Zoom capability Network Cameras | Lens system - Y
