Audio - Audio codecs - G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Bit rate range - 32 - 320 Kbit/s
Audio - Built-in microphone - Yes
Audio - Sample rates - 8 - 48 kHz
Audio - Signal-to-Noise Ratio (SNR) - 52 dB
Camera - Angle of rotation - 355°
Camera - Camera shutter speed - 1/3 - 1/100000 s
Camera - Lens viewing angle, diagonal - 112°
Camera - Lens viewing angle, horizontal - 104°
Camera - Lens viewing angle, vertical - 57°
Camera - Minimum illumination - 0 lx
Camera - Number of Privacy masking areas - 8
Camera - Pan range - 0 - 355°
Camera - Tilt angle range - 0 - 75°
Design - Form factor - Dome
Design - Housing material - Aluminium
Design - IK code - IK10
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling/wall
Design - Product colour - Black
Design - Protection features - Dust resistant
Design - Protection features - Vandal proof
Design - Protection features - Water resistant
dimensionalWeight - 630
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.9 mm (1 / 2.9")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Detect distance - 63 m
Lens system - Fixed focal length - 2.8 mm
Lens system - Identify distance - 6 m
Lens system - Maximum aperture number - 1.6
Lens system - Number of lenses - 1
Lens system - Observe distance - 25 m
Lens system - Recognize distance - 12 m
Management features - Behavior analysis - Line crossing detection
Management features - Reset button - Yes
Management features - Web browser - Yes
Network - Bluetooth - No
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Networking standards - IEEE 802.3af
Network - Number of simultaneous live view channels - 6 channels
Network - Number of users - 32 user(s)
Network - User access level - Administrator, Operator, User
Network - Wi-Fi - No
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Night vision - Night vision distance - 30 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Packaging content - Number of cameras - 1
Packaging data - Package depth - 150 mm
Packaging data - Package height - 141 mm
Packaging data - Package weight - 830 g
Packaging data - Package width - 150 mm
Performance - Alarm input/output - Yes
Performance - Certification - CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Languages support - Multi
Performance - Number of languages - 33
Performance - Placement supported - Indoor & outdoor
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output current - 0.6 A
Power - DC output voltage - 12
Power - Power consumption (max) - 7.2 W
Power - Power consumption (Power over Ethernet (PoE)) - 8.5 W
Power - Power source type - DC, PoE
producerCode - DS-2CD2143G2-LIS2U(2.8mm)(BLACK

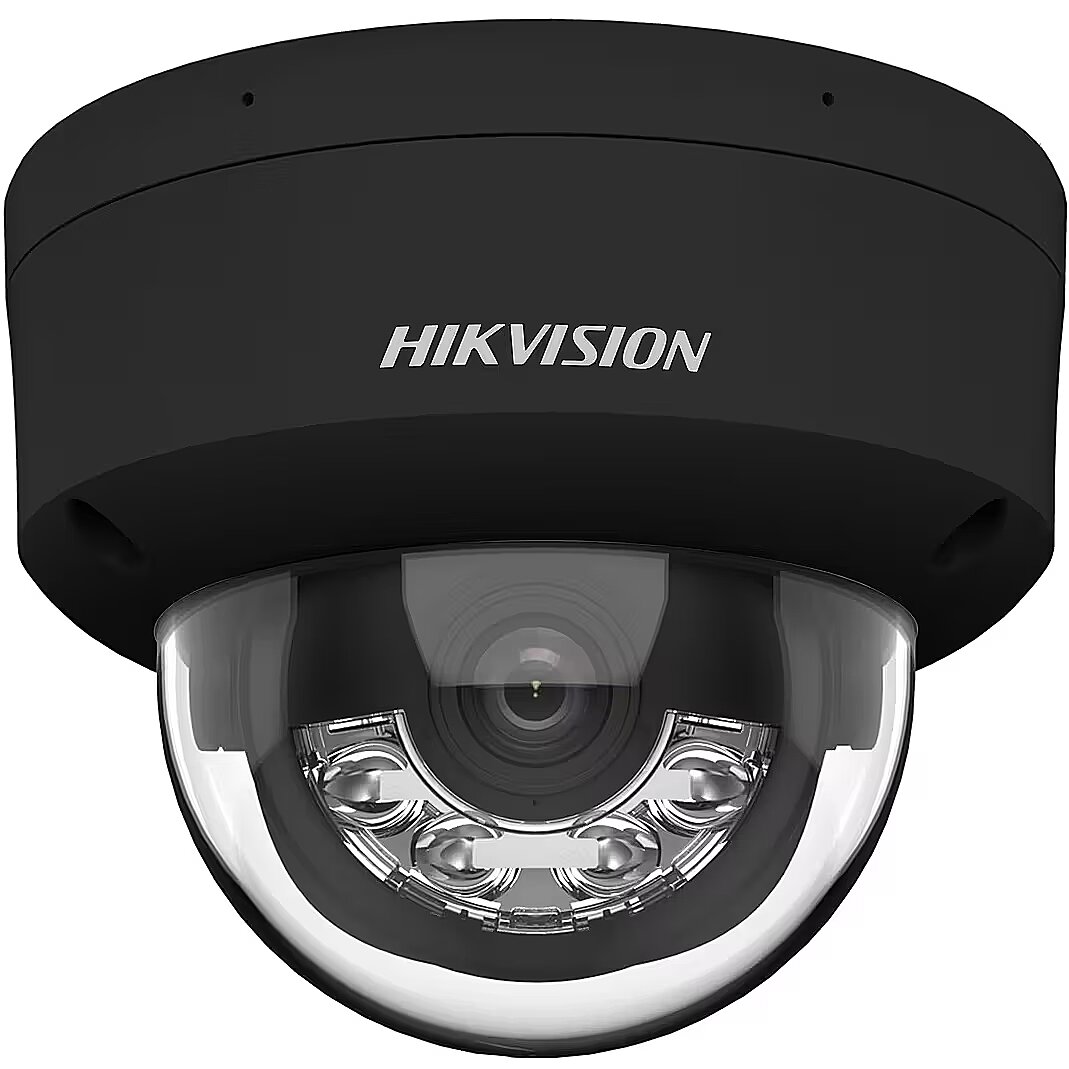

productName - Hikvision DS-2CD2143G2-LIS2U(2.8MM)(BLACK) security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
productSize - Normal
Security - Active tampering alarm - Yes
Security - Alarm input channels - 1
Security - Alarm output channels - 1
Security - Audit log - Yes
Security - Digest authentication - Yes
Security - Heartbeat - Yes
Security - HTTPS encryption - Yes
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Password reset via email - Yes
Security - Pixel counter - Yes
Security - Security algorithms - TLS
Security - Video motion detection - Yes
sizeX - 150
sizeY - 140
sizeZ - 150
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Compatible memory cards - MicroSDHC
Storage - Compatible memory cards - MicroSDXC
Storage - Maximum memory card size - 512 GB
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - 32 Kbps - 8 Mbps
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Frame rate - 30 fps
Video - Gain control type - Auto
Video - Highlight Compensation (HLC) - Yes
Video - Maximum resolution - 1920 x 1080 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 640 x 360
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video streaming - Yes
warrantyLength - 36
warrantyType - F
weight - 770
Weight & dimensions - Diameter - 12.2 cm
Weight & dimensions - Height - 97.6 mm
Weight & dimensions - Weight - 600 g
