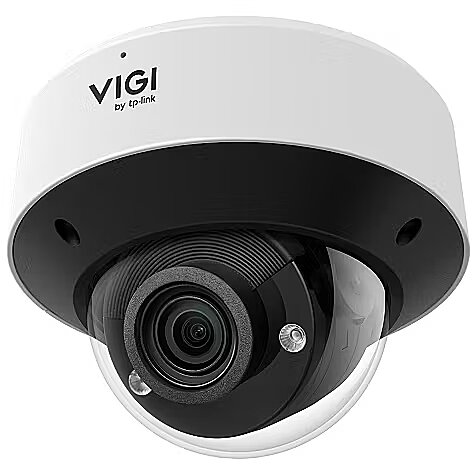

ARTIKEL1 - VIGI 4MP NETWORK CAMERA
ARTIKEL2 - IR MOTORIZED VARIFOCAL DOME
Audio - Audio formats supported - G.711 A-law
Audio - Audio input channels - 1.0 channels
Audio - Audio output channels - 1.0 channels
Audio - Audio system - 2-way
Audio - Bit rate range - 0 - 64 Kbit/s
Audio - Built-in microphone - Yes
Audio - Built-in speaker(s) - Yes
Audio - Number of microphones - 1
Audio - Sample rate - 8 kHz
Brand - TP-Link
BrandPartCode - INSIGHT S245ZI(UN)
Breite - 0
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/3 to 1/10000
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 34.1 - 122.8°
Camera - Lens viewing angle, horizontal - 29.6 - 102°
Camera - Lens viewing angle, vertical - 16.8 - 53.8°
Camera - Minimum illumination - 0 lx
Camera - Tilt angle range - 0 - 75°
Camera design - Dome
Category - Security Cameras
Category 1 - Netzwerk
Category 2 - Netzwerkkameras
Category Code - FNC
Description - InSight S245ZI VIGI 4MP IR Motorized Varifocal Dome Network Camera 5X Optical Zoom for Easy Installation and Monitoring 4MP Super-High Definition and IR Range Up to 197 ft (60 m)*1 Human & Vehicle Classification Smart Detection Smart Video Enhancement Technology Audio and Alarm Interface Available IP67 Weatherproof and IK10 Vandal Proof H.265+ Compression Technology
Design - Form factor - Dome
Design - Housing material - Metal
Design - IK code - IK10
Design - International Protection (IP) code - IP67
Design - Mounting type - Ceiling
Design - Product colour - White
Design - Protection features - Waterproof
Design - Weatherproof - Yes
dimensionalWeight - 1011
Dimensions - Φ129.9 × 102.5 mm
EAN - 8885020623598
EANCode - 8885020623598
Effective pixels - 2688x1520
Electronic Shutter Speed - 1/3 to 1/10000 s
Focal Length - 2.7-13.5 mm
Gewicht - 1.1
GRUPPE1 - Network
GRUPPE2 - Network Camera
GTIN - 8885020623598
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - INSIGHT S245ZI(UN)
Image sensor - Optical sensor size - 25.4 / 2.9 mm (1 / 2.9")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
IR Illumination - Yes
Laenge - 0
Lens system - Auto focus - Yes
Lens system - Detect distance - 200 m
Lens system - Focus - Motorized
Lens system - Identify distance - 21 m
Lens system - Maximum aperture number - 1.6
Lens system - Observe distance - 84 m
Lens system - Optical zoom - 5x
Lens system - Recognize distance - 40 m
LongDesc - Motorized VarifocalBy adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.Human & Vehicle ClassificationDistinguish humans and vehicles from other objects and receive more accurate event notifications.Smart Video Enhancement TechnologyTrue WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.Efficient H.265+ Compression TechnologyH.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
LongProductName - InSight S245ZI VIGI 4MP IR Motorized Varifocal Dome Network Camera
LongSummaryDescription - TP-Link VIGI InSight S245ZI. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 29.6 - 102°, Lens viewing angle, vertical: 16.8 - 53.8°, Lens viewing angle, diagonal: 34.1 - 122.8°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Optical zoom: 5x, Detect distance: 200 m, Observe distance: 84 m
Management features - Cloud-managed - Yes
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - Web browser - Yes
Manufacturer - TP-Link
Microphone - Built-in
Min. Illumination - 0.005 Lux
Model - InSight S245ZI
MPN - INSIGHT S245ZI
Name - TP-Link Omada InSight S245ZI(UN) VIGI 4MP IR Moto. Varif. Dome Kamera
Network - Bluetooth - No
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3af, IEEE 802.3at
Network - Networking standards - IEEE 802.3at
Network - Supported network protocols - TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Network - Wi-Fi - No
Network Camera Type - HDTV/Megapixel
Night vision - LED type - IR/White
Night vision - Night vision - Yes
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 60 °C
Optical Zoom - 5 x
Packaging content - Manual - Yes
Packaging content - Number of cameras - 1
Packaging data - Package type - Box
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Maximum operating distance - 200 m
Performance - Placement supported - Outdoor
Performance - Remote viewing - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output voltage - 12
Power - Power consumption (max) - 10.8 W
Power - Power consumption (Power over Ethernet (PoE)) - 12 W
Power - Power source type - DC, PoE
producerCode - INSIGHT S245ZI(UN)
ProductName - InSight S245ZI
productName - TP-LINK IP Camera InSight S245ZI
Product Net Weight - 0.775 kg
productSize - Normal
Resolution - 4 Mega Pixel
Security - Alert notification type - Push notification
Security - Built-in siren - Yes
Security - Detection distance - 200 m
Security - Digest authentication - Yes
Security - HTTPS encryption - Yes
Security - Human and vehicle targets classification - Yes
Security - Intelligent Video Surveillance (IVS) system features - Abnormal sound detection
Security - Intelligent Video Surveillance (IVS) system features - Abnormal sound detection, Crossing line, Human detection, Intrusion, Line crossing detection, Moving object, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Security - Intelligent Video Surveillance (IVS) system features - Crossing line
Security - Intelligent Video Surveillance (IVS) system features - Human detection
Security - Intelligent Video Surveillance (IVS) system features - Intrusion
Security - Intelligent Video Surveillance (IVS) system features - Line crossing detection
Security - Intelligent Video Surveillance (IVS) system features - Moving object
Security - Intelligent Video Surveillance (IVS) system features - Region entrance detection
Security - Intelligent Video Surveillance (IVS) system features - Region exiting detection
Security - Intelligent Video Surveillance (IVS) system features - Scene change
Security - Intelligent Video Surveillance (IVS) system features - Vehicle detection
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Motion sensor - Yes
Security - Password protection - Yes
Security - Video motion detection - Yes
Sensor size - 1/2.9” Progressive Scan CMOS
ShortSummaryDescription - TP-Link VIGI InSight S245ZI, IP security camera, Outdoor, Wired, 200 m, 120 dB, Ceiling
sizeX - 175
sizeY - 170
sizeZ - 170
Stck_Kart - 9998
Stck_Pal - 0
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Maximum memory card size - 512 GB
Storno - Y
Title - TP-Link VIGI InSight S245ZI Dome IP security camera Outdoor 2688 x 1520 pixels Ceiling
Unit Box Height - 0.175
Unit Box Length - 0.17
Unit Box Width - 0.17
Unit Calculated Volume - 0.005058 cubm
Unit Calculated Weight - 1.11 kg
Units per Pallet - 0
Units per Shipping Box - 1
URL - https://www.tp-link.com/en/business-networking/vigi-network-camera/insight-s245zi/
Vendor Homepage - www.tp-link.com/ch/business-networking/vigi-network-camera/insight-s245zi/
Video - Back Light Compensation (BLC) - Yes
Video - Bit rate - Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264
Video - Bit rate control - Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video - Digital Wide Dynamic Range (DWDR) - Yes
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness
Video - Image quality adjustment - Brightness, Contrast, Mirror, Saturation, Sharpness
Video - Image quality adjustment - Contrast
Video - Image quality adjustment - Mirror
Video - Image quality adjustment - Saturation
Video - Image quality adjustment - Sharpness
Video - Maximum resolution - 2688 x 1520 pixels
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2048 x 1280
Video - Supported graphics resolutions - 2304 x 1296
Video - Supported graphics resolutions - 2560 x 1440
Video - Supported graphics resolutions - 2688 x 1520
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.264, H.264+, H.265, H.265+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video recording - Yes
Warranty - 36 months
WarrantyInfo -
warrantyLength - 24
warrantyType - F
weight - 1100
Weight & dimensions - Depth - 129.9 mm
Weight & dimensions - Height - 102.5 mm
Weight & dimensions - Weight - 775 g
Weight & dimensions - Width - 129.9 mm
