Audio - Audio input channels - 1 channels
Audio - Audio output channels - 1 channels
Audio - Bit rate range - 16 - 192 Kbit/s
Audio - Built-in microphone - Yes
Audio - Sample rates - 8 - 64 kHz
Audio - Signal-to-Noise Ratio (SNR) - 52 dB
Audio - Voice codecs - AAC
Audio - Voice codecs - G.711alaw
Audio - Voice codecs - G.711ulaw
Audio - Voice codecs - G.722.1
Audio - Voice codecs - G.726
Audio - Voice codecs - MP2L2
Camera - Camera pan control - Yes
Camera - Camera shutter speed - 1/1 - 1/30000 s
Camera - Camera tilt control - Yes
Camera - Lens viewing angle, diagonal - 115.1 - 36.3°
Camera - Lens viewing angle, horizontal - 96.7 - 31.6°
Camera - Lens viewing angle, vertical - 51.1 - 17.7°
Camera - Pan preset speed - 100 °/sec
Camera - Pan range - 0 - 355°
Camera - Pan speed - 100 °/sec
Camera - Preset programs quantity - 300
Camera - Tilt angle range - 0 - 90°
Camera - Tilt preset speed - 100 °/sec
Camera - Tilt speed - 100 °/sec
Code - KIPSP2DE2A404IWDE3S6
Design - Form factor - Dome
Design - IK code - IK10
Design - International Protection (IP) code - IP65
Design - Mounting type - Ceiling
Design - Product colour - Black
Design - Product colour - White
Design - Protection features - Dust resistant
Design - Protection features - Water resistant
Design > Chassis type - Dome
Design > Protection features - IP66, IK10, TVS 4000V lightning protection, surge protection and voltage transient protection
dimensionalWeight - 870
EAN - 6931847136918
Image sensor - Number of sensors - 1
Image sensor - Optical sensor size - 25.4 / 2.8 mm (1 / 2.8")
Image sensor - Progressive scan - Yes
Image sensor - Sensor type - CMOS
Lens system - Auto focus - Yes
Lens system - Detect distance (tele) - 180 m
Lens system - Digital zoom - 16x
Lens system - Focal length range - 2.8 - 12 mm
Lens system - Focus - Manual
Lens system - Identify distance (tele) - 18 m
Lens system - Maximum aperture number - 1.5
Lens system - Number of lenses - 1
Lens system - Observe distance (tele) - 71.4 m
Lens system - Optical zoom - 4x
Lens system - Recognize distance (tele) - 36 m
Lens system - Zoom capability - Yes
Lens system > Lens type - 2.8 - 12 mm
Link - https://www.hikvision.com/en/products/IP-Products/PTZ-Cameras/Value-Series/ds-2de2a404iw-de3-s6-/
Management features - Reset button - Yes
Management features - Web-based management - Yes
Management features - Web browser - Yes
Memory > Memory slots - MicroSD/SDHC/SDXC card (256 GB)

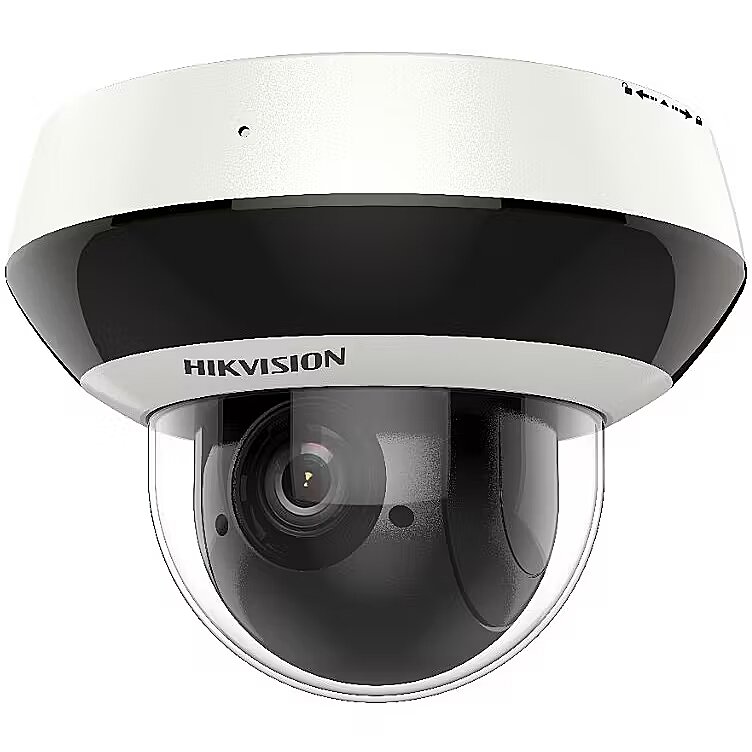

Name - Hikvision | IP Camera | PTZ DS-2DE2A404IW-DE3(S6)(C) | Dome | 4 MP | 2.8 - 12 mm | Power over Ethernet (PoE) | IP66, IK10, TVS 4000V lightning protection, surge protection and voltage transient protection | H.265+ | MicroSD/SDHC/SDXC card (256 GB)
Network - Bluetooth - No
Network - Client interoperability - iVMS-4200, HikCentral Pro, Hik-Connect
Network - Ethernet interface type - Fast Ethernet
Network - Ethernet LAN - Yes
Network - Live view - Yes
Network - Networking standards - IEEE 802.1x
Network - Networking standards - IEEE 802.3af
Network - Number of simultaneous live view channels - 6 channels
Network - Number of users - 32 user(s)
Network - Quality of Service (QoS) support - Yes
Network - User access level - Administrator, Operator, User
Network - Wi-Fi - No
Networking > Power over Ethernet (PoE) - Yes
Night vision - Infra-red wavelength - 850 nm
Night vision - LED type - IR
Night vision - Night vision - Yes
Night vision - Night vision distance - 20 m
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 131.00 mm
Package features > Gross height (mm) - 102.00 mm
Package features > Gross width (mm) - 102.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 634 pc(s)
Package features > Paper/Pasteboard - 170.00 g
Package features > Plastic (No PET) - 30.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Number of cameras - 1
Performance - Connectivity technology - Wired
Performance - Day/night mode - Yes
Performance - Dynamic range - 120 dB
Performance - Infrared (IR) cut-off filter - Yes
Performance - Placement supported - Indoor & outdoor
Performance - PTZ control - Yes
Performance - Type - IP security camera
Performance - Wide Dynamic Range (WDR) - Yes
Performance > Video compression formats - H.265+
Performance > Wide Dynamic Range (WDR) - 120 dB
Picture quality > Camera type - Outdoor
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC output current - 0.06 A
Power - DC output voltage - 12
Power - Power consumption (max) - 9.2 W
Power - Power source type - DC, PoE
producerCode - DS-2DE2A404IW-DE3
productName - Hikvision DS-2DE2A404IW-DE3(C0)(O-STD)(S6)(C) surveillance camera Dome IP security camera Indoor & outdoor 2560 x 1440 px Ceiling
productSize - Normal
Safety warning - Warnings - Avoid direct contact with water to prevent electrical damage.
Safety warning - Warnings - Ensure that the product is properly installed and protected against falling.
Safety warning - Warnings - The product contains electronic components; do not dispose of with the normal household waste.
Security - Active tampering alarm - Yes
Security - Alert notification type - E-mail
Security - Automatic Network Replenishment (ANR) - Yes
Security - Digital watermark - Yes
Security - HTTPS encryption - Yes
Security - Intelligent Video Surveillance (IVS) system features - Face detection
Security - IP address filtering - Yes
Security - Mirror - Yes
Security - Password protection - Yes
Security - Security algorithms - EAP-LEAP
Security - Security algorithms - EAP-MD5
Security - Security algorithms - EAP-TLS
Security - Video motion detection - Yes
sizeX - 160
sizeY - 170
sizeZ - 160
Storage - Built-in HDD - No
Storage - Card reader integrated - Yes
Storage - Compatible memory cards - MicroSD (TransFlash)
Storage - Compatible memory cards - MicroSDHC
Storage - Compatible memory cards - MicroSDXC
Storage - Maximum memory card size - 256 GB
Technical details > Gross weight - 0.73 kg
Technical details > Net weight - 0.53 kg
Technical details > Producer - Hikvision
Technical details > Producer product family - IP Camera
Technical details > Producer product name - PTZ DS-2DE2A404IW-DE3(S6)(C)
Video - Back Light Compensation (BLC) - Yes
Video - Frame rate - 30 fps
Video - Gain control type - Auto
Video - Highlight Compensation (HLC) - Yes
Video - Image quality adjustment - Brightness
Video - Image quality adjustment - Contrast
Video - Image quality adjustment - Saturation
Video - Image quality adjustment - Sharpness
Video - Maximum resolution - 2560 x 1440 pixels
Video - Noise reduction - Yes
Video - Noise reduction technology - 3D noise reduction
Video - Privacy masking - Yes
Video - Region of Interest (ROI) encoding - Yes
Video - Supported graphics resolutions - 352 x 240
Video - Supported graphics resolutions - 352 x 288
Video - Supported graphics resolutions - 640 x 480 (VGA)
Video - Supported graphics resolutions - 704 x 480
Video - Supported graphics resolutions - 704 x 576
Video - Supported graphics resolutions - 1280 x 720 (HD 720)
Video - Supported graphics resolutions - 1920 x 1080 (HD 1080)
Video - Supported graphics resolutions - 2560 x 1440
Video - Total megapixels - 4 MP
Video - Video compression formats - H.264
Video - Video compression formats - H.264+
Video - Video compression formats - H.265
Video - Video compression formats - H.265+
Video - Video streaming - Yes
Video > Maximum video resolution - 2560 × 1440 pixels
Video > Max IR distance - Up to 20 m
Video > Megapixel - 4 MP
Warranty - 36
Warranty - 36 month(s)
warrantyLength - 36
warrantyType - F
weight - 970
Weight & dimensions - Diameter - 13.1 cm
Weight & dimensions - Height - 101.7 mm
Weight & dimensions - Weight - 530 g
