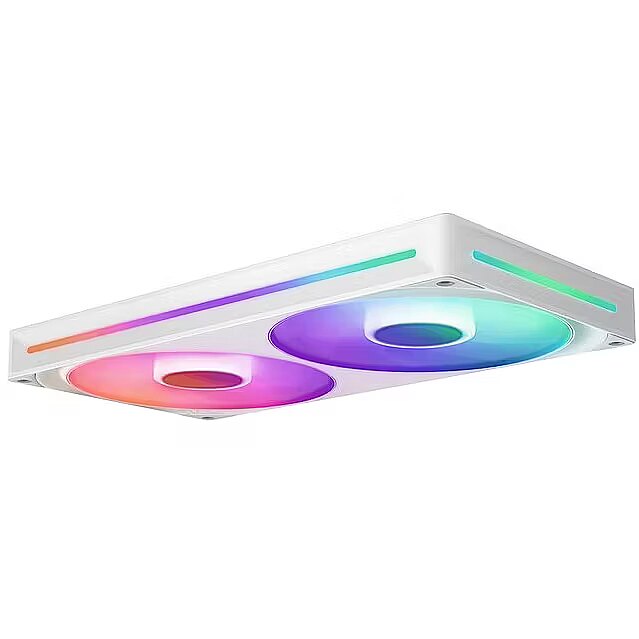

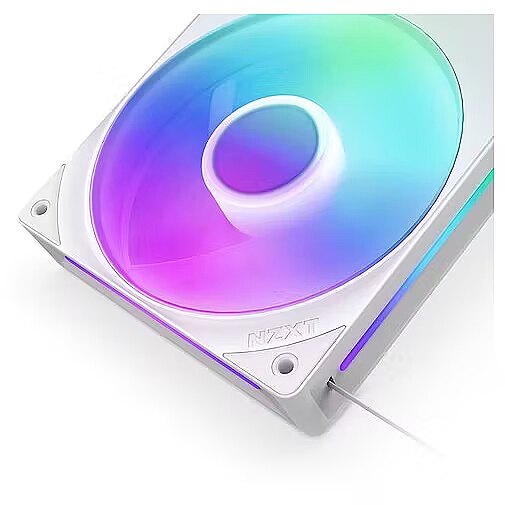

NZXT F280 RGB Core, White

Accessories included -
Air flow rates - 98.61 cfm
Category - Datortehnika :: Datoru komponentes :: Korpusa ventilatori
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
category_en - Computers & Components > Computer components > Cooling systems
category_lv - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas
category_ru - Datortehnika > Datoru komponentes > Dzesēšanas sistēmas
Code - RF-U28HF-W1
Connector type - 3-pin
Cooling technology - Air
Depth Weight & dimensions - 26 mm
Desc - Ligdza (socket): 4-pin + RGB, Diametrs: 280 mm, Ventilators ātrums (apgr.min.): 2000 apgr.min., Apgaismojums: RGB, Skaits komplektācijā: 1, Garantija: 2 gadi
Description - NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals. All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control. Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable. Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow. Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan. Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows. PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
*Requires PWM connection to motherboard or controller (sold separately) Silent Operation
Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads. NZXT CAM LogoNZXT CAM Logo
Do More with CAM
Control fan speeds, personalize lighting effects, and sync with other NZXT products*.Single-frame unit with integrated fans streamlines installation, setup, and lighting control—no need to connect individual fansSimply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cableFan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaustFluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespanEight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visualsPWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noiseAnti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speedControl lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately)
Description - NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals. Single-frame unit with integrated fans streamlines installation, setup, and lighting controlno need to connect individual fans. Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable. Fan blade design boosts static pressure to push air through tight spaces while ensuring optimal airflow. Suitable for both intake and exhaust. Fluid dynamic bearings ensure quiet, stable operation across an exceptional 60,000 hour lifespan. Eight individually-addressable RGB LEDs per fan hub are diffused through semi-translucent blades for brilliantly colorful visuals. PWM-controlled fans dynamically adjust spinning speeds based on PC temperatures for optimal efficiency and reduced noise. Anti-vibration rubber corners effectively eliminate noise caused by vibrations for hushed performance at any speed. Control lighting and fan speeds via CAM software when connected to an NZXT controller (sold separately).
description_en - The NZXT RF-U28HF-W1 (F280 RGB Core) is a premium 140 mm PWM case fan unit in white, designed to deliver high airflow and striking RGB lighting for PC builds. With dual 140 mm fans integrated in a single frame, fluid dynamic bearings, and a speed range of up to 2 000 RPM, it achieves an impressive airflow of up to ~98.61 CFM while maintaining reasonable noise levels. The unit supports RGB customization, easy installation and is suited for both intake and exhaust applications in gaming or high-performance systems.
Technical Specifications: Model: RF-U28HF-W1 (White) Fan size: 140 mm (integrated twin fans in 280 mm frame) Speed: 500 – 2 000 RPM per fan Maximum airflow: ~ 98.61 CFM per fan Static pressure: ~ 3.2 mm H₂O per fan Noise level: ~ 34.5 dBA per fan at full speed Bearing type: Fluid Dynamic Bearing (FDB) Frame colour: White RGB lighting: yes — ARGB with 8 LEDs per fan hub Connector: 4-pin PWM + 8-pin RGB header compatibility Lifespan: approx. 60 000 hours Usage & Benefits:This fan unit is ideal for builders who want strong airflow with aesthetic RGB flair. The integrated single-frame twin-fan arrangement simplifies installation and reduces cable clutter. The PWM support allows dynamic speed control based on system temperature. The white finish pairs well with modern white/black gaming rigs. With high airflow and static pressure, it's also suitable for setups that require pushing air through dense radiators or tightly spaced components.
description_lv - NZXT RF-U28HF-W1 (F280 RGB Core) ir augstas veiktspējas korpusa ventilators 140 mm izmērā baltā krāsā, ideāli piemērots entuziastu PC būvēm. Tas apvieno divus 140 mm ventilatorus vienā rāmī ar Fluid Dynamic Bearing gultņiem, kas nodrošina līdz 2 000 apgr./min., aptuveni 98,61 CFM gaisa plūsmu un apmēram 3,2 mm H₂O statisko spiedienu. Ierīce piedāvā ARGB apgaismojumu, vienkāršu uzstādīšanu un ir piemērota gan ieplūdes, gan izplūdes režīmam.
Tehniskie parametri: Modelis: RF-U28HF-W1 (balts) Ventilatora izmērs: 140 mm (divi ventilatori vienā rāmis 280 mm) Apgr./min.: 500 – 2 000 Gaisa plūsma: apm. 98,61 CFM Statiskā spiediens: apm. 3,2 mm H₂O Troksnis: apm. 34,5 dBA pie maksimālās ātruma Gultņu tips: Fluid Dynamic Bearing Krāsa: balta RGB apgaismojums: jā (8 LED katram ventilatoram) Savienojums: 4-pin PWM + 8-pin RGB Darbības laiks: ~ 60 000 stundas Priekšrocības un pielietojums:Lielisks risinājums tiem, kas veido stilīgu datoru ar augstām dzesēšanas prasībām. Būvēts vienkāršai montāžai, integrēti ventilatori samazina vadu skaitu. PWM vadība nodrošina pielāgojamību. Baltais korpusa dizains labi sader ar mūsdienu balto/melnā estētiku. Augstie gaisa plūsmas un spiediena parametri padara to piemērotu konstrukcijām ar radiatoriem vai stingrām ventilācijas rāmēm.
description_ru - NZXT RF-U28HF-W1 (F280 RGB Core) высокопроизводительный корпусной вентилятор 140 мм в белом цвете, созданный для энтузиастов сборки ПК. В комплект входит единое шасси с двумя интегрированными 140 мм вентиляторами на подшипниках Fluid Dynamic Bearing, обеспечивающих скорость до 2 000 об/мин, воздушный поток до ~98,61 CFM и давление около 3,2 мм H₂O. Устройство поддерживает ARGB-подсветку, удобное подключение и подходит как для забора, так и для вытяжки воздуха.
Технические характеристики: Модель: RF-U28HF-W1 (белый) Размер вентилятора: 140 мм (двойной в раме 280 мм) Скорость: 500 – 2 000 об/мин Макс. воздушный поток: ~98,61 CFM Статическое давление: ~3,2 мм H₂O Уровень шума: ~34,5 дБА при макс. скорости Тип подшипника: Fluid Dynamic Bearing (FDB) Цвет: белый Подсветка RGB: да (8 светодиодов на каждый вентилятор) Разъём: 4-pin PWM + 8-pin RGB Срок службы: approx. 60 000 часов Применение и преимущества:Отличный выбор для сборщиков, желающих сочетание высокого потока и стильной подсветки. Интегрированная рама упрощает монтаж и избавляет от лишних кабелей. Поддержка PWM даёт гибкость управления скоростью в зависимости от нагрузки. Белый цвет корпуса гармонирует с современными корпусами white/black. Благодаря высоким параметрам потока и давления подходит даже для установки перед радиатором или под плотной решёткой.
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 320 mm
Dimensions - 280 x 140 x 26 mm
dimension weight - 567 g
dimension width - 150 mm
EAN - 5056547204420
ean - 5056547204420
Eans - 5056547204420
EAN_code - 5056547204420
Fan - 14 cm
Fan connector Design - 8-pin
Fan noise level (max) Performance - 34.5 dB
Fan speed (max) - 2000 rpm
Fan speed (min) - 500 rpm
gross_weight - 0.2 kg
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 280 mm
Illumination - RGB
Illumination colour Design - Multi
Illumination LED Design - Yes
LargeDescHTML -
Manufacturer - NZXT
Manufacturer_code - RF-U28HF-W1
Material Design - Plastic, Rubber
Maximum airflow Performance - 98.61 cfm
Maximum air pressure Performance - 3.2 mmH2O
Model -
Model - RF-U28HF-W1
Model name - F280 RGB Core
name - Fan F280 RGB CORE PWM white
Name - Korpusa ventilātors NZXT F280 RGB Core White PWM
Name - NZXT F280 RGB CORE, case fan (white)
Name - NZXT F280 RGB Core bialy PWM
Noise - 34.5 dB
Number of fans - 2
Number of LEDs Design - 8
Other features -
Power supply Power - 2.25 W
producer - NZXT
Producer - NZXT
ProducerCode - RF-U28HF-W1
Product colour Design - White
Quantity per pack Performance - 1 pc(s)
Rotational speed (max) Performance - 2000 RPM
Rotational speed (min) Performance - 500 RPM
ShortDescription - wentylator | 280 PWM | RGB | biały
Stand / CPU block - None
Suitable location Performance - Computer case
Summary - NZXT RF-U28HF-W1. Type: Fan, Rotational speed (min): 500 RPM, Rotational speed (max): 2000 RPM, Maximum air pressure: 3.2 mmH2O. Width: 140 mm, Depth: 26 mm, Height: 280 mm. Product colour: White
title_en - Nzxt RF-U28HF-W1 Case fan White
title_lv - Nzxt RF-U28HF-W1 Korpusa ventilators White
title_ru - Nzxt RF-U28HF-W1 Вентилятор для корпуса White
Type of cooling - Active
Type Performance - Fan
Unit Box Height - 0.03
Unit Box Length - 0.325
Unit Box Width - 0.147
Unit Calculated Volume - 0.002016 cubm
Unit Calculated Weight - 0.622 kg
Units per Shipping Box - 20
Vendor Homepage - https://nzxt.com/product/f280-rgb-core
vendpn - RF-U28HF-W1
Warranty - 60 months
Weight - 0,56
weight - 0.15 kg
Weight - 0.563 kg
Width Weight & dimensions - 140 mm
