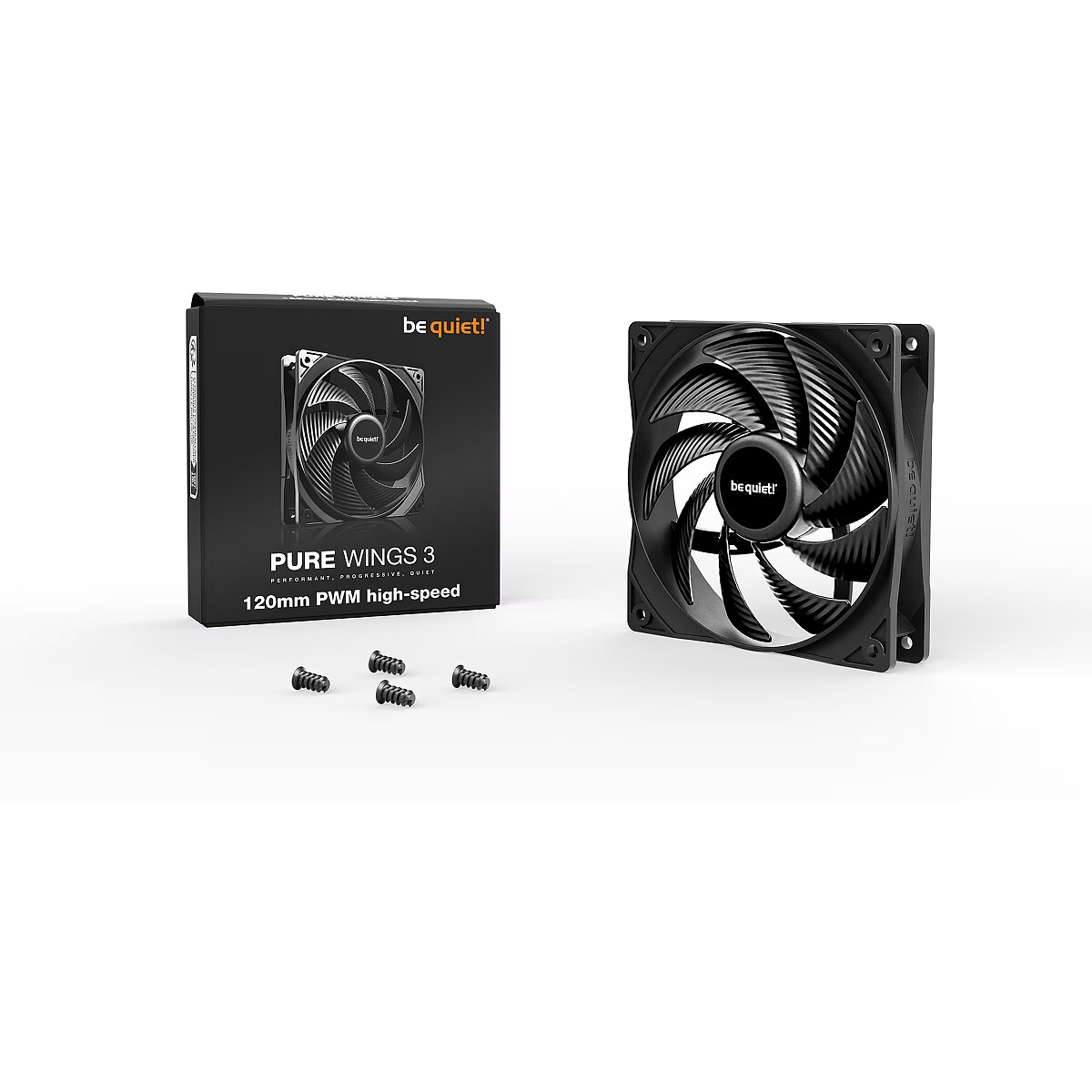

Be Quiet Pure Wings 3, 120mm, PWM, High-speed

Air flow - 59.6 cfm
Brand - be quiet!
BrandPartCode - BL106
category - Aircooling|Fans|PWM Fans
Category - Computer Cooling Systems
Category - Root/Electronics/PC parts/Cooling/Casing fans
Category 1 - Gehäuse
Category 2 - Gehäuselüfter
Category Code - COS
Category_1 - Computer Cases and Cooling
Category_2 - Fans
CnCode CnCode - 84145925
code - BL106
Colour - Black
Connector type - 4-pin
Cooling technology - Air
Description - PURE WINGS 3 120mm PWM high-speed Efficient, Progressive, Quiet Pure Wings 3 120mm PWM high-speed are the perfect addition to demanding PCs with exceptionally high performance and progressive features such as a closed-loop speed motor. The innovative closed-loop motor maintains speed regardless of resistance Optimized fan frame ensures exceptional performance on coolers Newly designed fan blades and changed angle provide exceptional air pressure Pure Wings 3 120mm PWM high-speed can operate at very low minimum speeds, which ensures very quiet operation The long-life rifle bearing guarantees a service life of 80,000 hours Product concept, design and quality control in Germany
Description - PURE WINGS 3 120mm PWM high-speed Performant, Progressive, Quiet Pure Wings 3 120mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. Innovative closed loop motor keeps the rpm no matter the air resistance Optimized fan frame for outstanding performance on radiators Newly designed fan blades and re-arranged angle for extraordinary air pressure Pure Wings 3 120mm PWM high-speed can be operated with very low minimum rpm for very quiet operation Long life rifle bearing gives an operating lifetime of 80,000 hours Product conception, design and quality control in Germany
Design - Fan connector - 4-pin
Design - Illumination LED - No
Design - Number of fans - 1 fan(s)
Design - Power management - 4-pin PWM plug
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 115
dimension depth - 30 mm
dimension height - 155 mm
Dimensions - 120 x 120 x 25 mm
dimension weight - 180 g
dimension width - 125 mm
ean - 4260052190784
EAN - 4260052190784
Eans - 4260052190784
EAN_code - 4260052190784
Fan - 12 cm
Fan size group - 120mm
Fan speed - 2100 rpm
Fan speed (max) - 2100 rpm
Full Description Line - Pure Wings 3 120mm PWM high-speed|Number of fans 1|Nominal voltage 12 V|Air flow 59.6 cfm|Noise level, max 30.9 dB|Colour Black|Dimensions 120 x 120 x 25 mm
GTIN - 4260052190784
guarantee - 36
guarantee_type - normal
Illumination - No
Logistics data - Products per shipping (inner) case - 60 pc(s)
Logistics data - Shipping (inner) case gross weight - 11.8 kg
Logistics data - Shipping (inner) case height - 33 cm
Logistics data - Shipping (inner) case length - 42.7 cm
Logistics data - Shipping (inner) case width - 35.5 cm
LongDesc - Performant, Progressive, QuietPure Wings 3 120mm PWM high-speed are the perfect addition to demanding PCs with extraordinarily high performance and progressive features such as a speed-regulating closed loop motor. This makes the fan a versatile companion for your gaming system. Its iconic design lets anyone immediately recognize it as be quiet! fan and adds a touch of elegance to any configuration.
LongProductName - Pure Wings 3 120mm PWM high-speed, 2100RPM, 59.6 cfm/ 101.2 m3/h
LongSummaryDescription - be quiet! Pure Wings 3 120mm PWM high-speed. Type: Fan, Fan diameter: 12 cm, Rotational speed (max): 2100 RPM, Airflow: 101.2 m³/h, Maximum air pressure: 2.41 mmH2O. Voltage: 5 - 13.2 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black
Mainboard connection - 4-pin
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BL106
Model - BL106
Model name - Pure Wings 3 120mm PWM high-speed
MPN - BL106
Name - 120mm be quiet! Pure Wings 3 PWM high-speed
name - be quiet! Lüfter Pure Wings 3 PWM Lüfter - 120mm, High Speed
Name - be quiet! PURE WINGS 3 120mm PWM high-speed
Name - be quiet! Pure Wings 3 120mm PWM high-speed, case fan (black)
name - Pure Wings 3 120 mm PWM high-speed
Noise - 30.9 dB
Noise level, max - 30.9 dB
Nominal voltage - 12 V
Number of fans - 1
Other features -
Packaging content - Number of screws - 4
Packaging content - Screws included - Yes
Performance - Airflow - 101.2 m³/h
Performance - Fan's mean time to failure (MTTF) - 80000 h
Performance - Fan bearing technology - Rifle bearing
Performance - Fan diameter - 12 cm
Performance - Maximum airflow - 59.6 cfm
Performance - Maximum air pressure - 2.41 mmH2O
Performance - Noise level (high speed) - 30,9 dB
Performance - Noise level (high speed) - 30.9 dB
Performance - Pulse-width modulation (PWM) support - Yes
Performance - Quantity per pack - 1 pc(s)
Performance - Rotational speed (max) - 2100 RPM
Performance - Suitable location - Computer case
Performance - Suitable location - Water- and air-cooling systems
Performance - Type - Fan
Power - Fan current - 0.13 A
Power - Fan power consumption - 3.6 W
Power - Rated voltage - 12 V
Power - Voltage - 5 - 13.2 V
producer - Be quiet!
Producer - be quiet!
producerCode - BL106
ProducerCode - BL106
productName - Fan Be Quiet! Pure Wings 3 120mm PWM high-speed
ProductName - Pure Wings 3 120mm PWM high-speed
Product Net Weight - 0.149 kg
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 41.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 33 cm
Shipping Box Weight Shipping/Package Box Dimensions - 11.85 kg
Shipping Box Width Shipping/Package Box Dimensions - 32 cm
ShortDescription -
ShortSummaryDescription - be quiet! Pure Wings 3 120mm PWM high-speed, Fan, 12 cm, 2100 RPM, 101.2 m³/h, Black
sizeX - 160
sizeY - 120
sizeZ - 30
Technical details - Compliance certificates - CE, RoHS, UKCA, WEEE
Technical details - Sustainability certificates - Triman
Technical details - Sustainability compliance - Yes
Title - be quiet! Pure Wings 3 120mm PWM high-speed Computer case Fan 12 cm Black 1 pc(s)
Type of cooling - Active
Unit Calculated Volume - 0.0007304 cubm
Unit Calculated Weight - 0.197 kg
Units per Shipping Box - 60
URL - https://www.bequiet.com/en/download/casefans/4603?utm_source=newsletter
Vendor Homepage - www.bequiet.com/en/casefans/4607
vendpn - BL106
Warranty - 36 months
WarrantyInfo - 3 Years
warrantyLength - 36
warrantyType - G
Weight - 0,18
Weight - 0.181
Weight - 149 g
weight - 180
Weight & dimensions - Cable length - 0.46 m
Weight & dimensions - Depth - 25 mm
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 25 mm
Weight & dimensions - Package depth - 155 mm
Weight & dimensions - Package height - 27 mm
Weight & dimensions - Package weight - 176 g
Weight & dimensions - Package width - 122 mm
Weight & dimensions - Weight - 149 g
Weight & dimensions - Width - 120 mm
