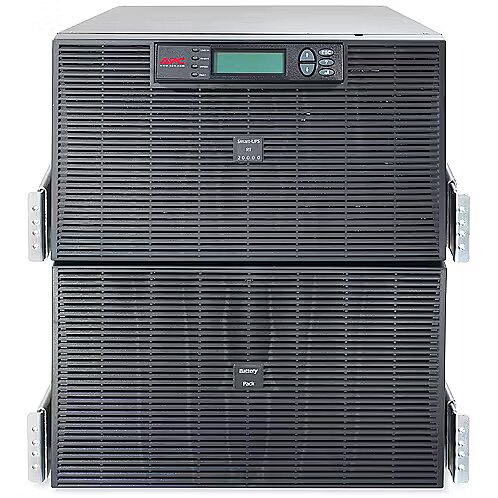

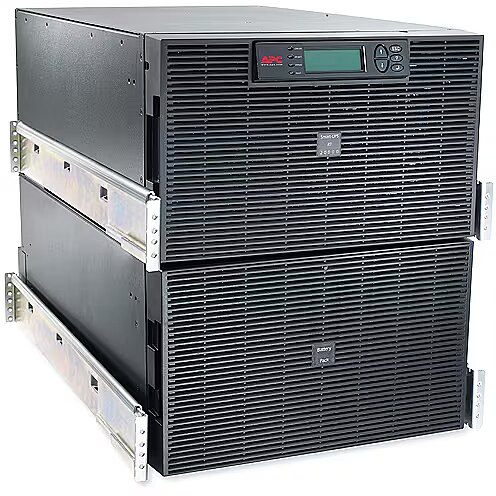

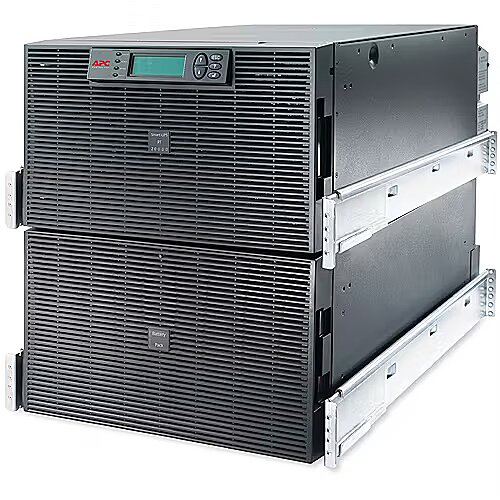

APC Smart-UPS SURT20KRMXLI 20000VA, 16000W, IEC, 12U

Name: APC Smart-UPS SURT20KRMXLI 20000VA, 16000W, IEC, 12U
Brand: APC
SKU: 362221
Price: 18453.07 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 362221 Product code: SURT20KRMXLI

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

Dateks.lv website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years

Compare

Main product parameters All parameters

Battery capacity (VA): 20000
Output power (W): 16000

Similar Products

Display characteristics
	This product APC Smart-UPS SURT20KRMXLI 20000VA, 16000W, IEC, 12U	APC Smart-UPS SRT2200XLI 2200VA, 1980W, IEC	APC SMART-UPS RT 2200VA MARINE IN	APC Smart-UPS SRT2200RMXLI-NC 2200VA, 1980W, IEC, 2U	APC Smart-UPS SRT1000RMXLI-NC 1000VA, 1000W, IEC, 2U
Show similar specs. Hide similar specs.	18,453.07 €	2,451.50 €	3,020.65 €	3,190.51 €	2,040.96 €
Display	Is	Is	Is	Is	Is
Basic information
Battery capacity (VA)	20000	2200	2200	2200	1000
Battery type	Lead acid	Lead acid	Lead acid	Lead acid	Lead acid
Charging time (hours)	2.5	3	2.5	3	3
Output power (W)	16000	1980	540	1980	1000
Ports and equipment
Number of nests (total)	8	10	10	10	6
Number of sockets (Battery Backup)	8	10	10	10	6
RJ-45	0	1	1	3	4
Socket type	IEC320	IEC320	IEC320	IEC320	IEC320
USB	0	1	1	3	3

Description

A UPS with a display provides direct access to the device's technical information. This reduces the need for external system solutions and facilitates monitoring during autonomous operation.

The use of a Lead-acid battery in a UPS device ensures stable operation over a wide load range and predictable discharge characteristics. This technology stands out for its high reliability, resistance to temperature fluctuations and well-researched service life, which facilitates technical maintenance and planning for battery replacement.

The use of a IEC320 type connection in a UPS device ensures a universal and secure electrical connection of the device. This type of connection format reduces the mechanical load on the contacts, simplifies cable organization, and supports stable system operation under typical workload conditions.

Warranty

APC provides a 2 year warranty for this model at all certified service centres.

Display characteristics

Display : Is

Basic information

Battery capacity (VA) 20000

The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.

Battery type : Lead acid

Charging time (hours) : 2.5

Output power (W) : 16000

Ports and equipment

Number of nests (total) : 8

Number of sockets (Battery Backup) : 8

RJ-45 : 0

Socket type : IEC320

USB : 0

More detailed specification

Additional information in manufacturers website APC Smart-UPS SURT20KRMXLI 20000VA, 16000W, IEC, 12U

ARTIKEL1 - APC SMART-UPS RT 20 KVA RM 230V
ARTIKEL2 - IN
Battery - Automatic battery test - Yes
Battery - Battery capacity - 3840 VAh
Battery - Battery life (max) - 5 year(s)
Battery - Battery recharge time - 2.5 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - Yes

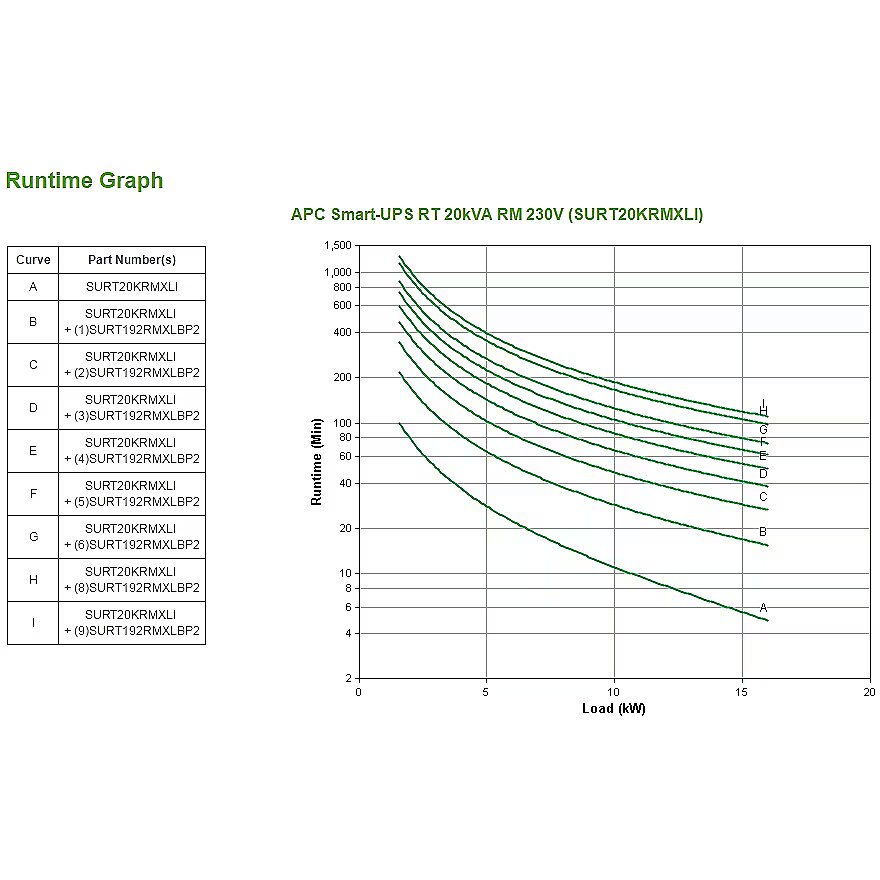

Battery - Typical backup time at full load - 4.9 min
Battery - Typical backup time at half load - 15.2 min
Brand - APC
BrandPartCode - SURT20KRMXLI
Breite - 0.97
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Certificates - Certification - BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Certificates - Compliance certificates - RoHS
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 12U
EAN - 0731304255710
EANCode - 0731304255710
Features - Audible alarm(s) - Yes
Features - Auto-restart - Yes
Features - Crest factor - 3:1
Features - Efficiency - 93.7%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 40 - 70 Hz
Features - Maximum current - 115 A
Features - Noise level - 59 dB
Features - Number of output phases - 1
Features - Output frequency regulation - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 16000 W
Features - Output power capacity - 20 kVA
Features - Surge protection - Yes
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Gewicht - 257
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 0731304255710
GTIN - 731304255710
HERSTELLER - APC
Hoehe - 0.6
HSTNUMMER - SURT20KRMXLI
Laenge - 1
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per pallet - 1 pc(s)
Logistics data - Total carbon footprint (kg of CO2e) - 37662.44
LongDesc - High density, double-conversion on-line power protection with scalable runtime.
LongProductName - Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
LongSummaryDescription - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 16000 W. AC outlet types: C19 coupler, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 3840 VAh, Typical backup time at full load: 4.9 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 12U. Compliance certificates: RoHS, Certification: BSMI, EN/IEC 62040-2, EN/IEC 62040-1-1, VDE, PEP, EOLI
Manufacturer - APC
MPN - SURT20KRMXLI
Name - APC Smart-UPS SURT20KRMXLI ( Rack-montierbar ) - Wechselstrom 220/230/240 V
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Web/SNMP Management Card
Packaging content - Cables included - RS-232
Packaging content - Manual - Yes
Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 1003 mm
Packaging data - Package height - 990 mm
Packaging data - Package weight - 314.1 kg
Packaging data - Package width - 610 mm
Packaging data - Software CD - Yes

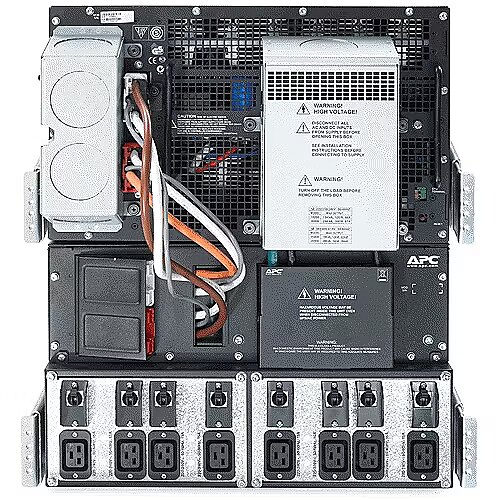

Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C19 coupler
Ports & interfaces - Cabling technology - 10/100Base-T
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - Terminal
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - SmartSlot - Yes
ProductName - Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
ShortSummaryDescription - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets, Double-conversion (Online), 20 kVA, 16000 W, Sine, 40 - 70 Hz, 220 V
Stck_Kart - 1
Stck_Pal - 1
Storno - N
Title - APC Smart-UPS RT 20kVA, 230/400V, LCD, rackmount, 12U, 2x IEC Jumpers & 8x IEC 60320 C19 outlets
URL - https://www.apc.com/
WarrantyInfo - 2 years repair or replace
Weight & dimensions - Depth - 773 mm
Weight & dimensions - Height - 533 mm
Weight & dimensions - Weight - 247.7 kg
Weight & dimensions - Width - 432 mm
