Accessories included - 2 IEC10A output wires (1.8 m), Rack mounting kit, 1 USB cable (1.8 m), 1 serial cable (1.8 m), Short instruction manual, Safety instructions.
Active power - 1800 W
Apparent power - 2000 VA
ARTIKEL1 - EATON 9SX 2000I RACK2U
ARTIKEL2 - .
Charging time - 45 min
Chassis type - Rack
Code - 9SX2000IR
Color - Black

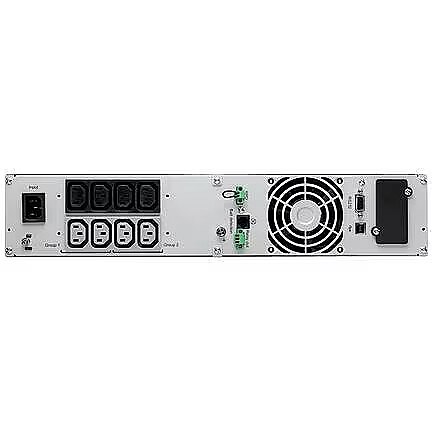

Description - Double conversion online UPS, 2U Rackmount, 2000 VA / 1800 W, multilingual LCD display, energy meter, 6 IEC 10 A sockets (2 manageable groups), optional management board slot, USB and serial ports, potential-free contacts, RPO connector , power management software compatible with the virtual environment, batteries replaceable during operation, long emergency response time with four optional EBM modules, all accessories for mounting in the rack Rack in the set.
Designation - CE+WEEE
dimension depth - 245 mm
dimension height - 778 mm
Dimensions - 86,5 x 438 x 608 mm
dimension weight - 32800 g
dimension width - 575 mm
EAN - 743172090973
ean - 743172090973
EANCode - 0743172090973
Environment requirements - Temperature during operation: 0-40°C Noise level: 45 dB
Filters / protection - Overdischarge
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
HERSTELLER - EATON
HSTNUMMER - 9SX2000IR
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input power ports - IEC-C14
Link - https://www.eaton.com/gb/en-gb/skuPage.9SX2000IR.html
Name - Eaton | UPS | 9SX2000IR | 2000 VA | 1800 W
name - UPS 9SX 1000i Rack2U LCD/USB/RS232
Number of phases input - 1 (230V)
Other features - 1 mini-terminal block for remote power off (configurable) 1 block of mini-terminals to the output relay 1 socket for the optional communication module
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 780.00 mm
Package features > Gross height (mm) - 240.00 mm
Package features > Gross width (mm) - 580.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Paper/Pasteboard - 5800.00 g
Package features > Plastic (No PET) - 500.00 g
Package features > Tare weight (kg) - 6.30 kg
Package features > TI weight (kg) - 0.50 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.11 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Performance > Capacity - 2000 VA
Performance > UPS topology - On line
producer - Eaton
Producer product family - UPS
Producer product name - 9SX2000IR
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 1
Storno - Y
Technical details > Capacity - 1800 W
Technical details > Functions - Auto shutdown function
Technical details > Gross weight - 32.80 kg
Technical details > Net weight - 26.50 kg
Technical details > Producer - Eaton
UPS Architecture - on-line double conversion
vendpn - 9SX2000IR
Video -
Voltage - 230 V
Warranty - 24
Warranty - 24 month(s)
Weight - 26.5 kg
