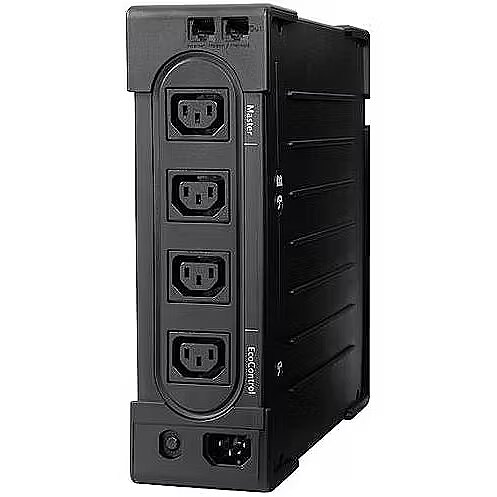

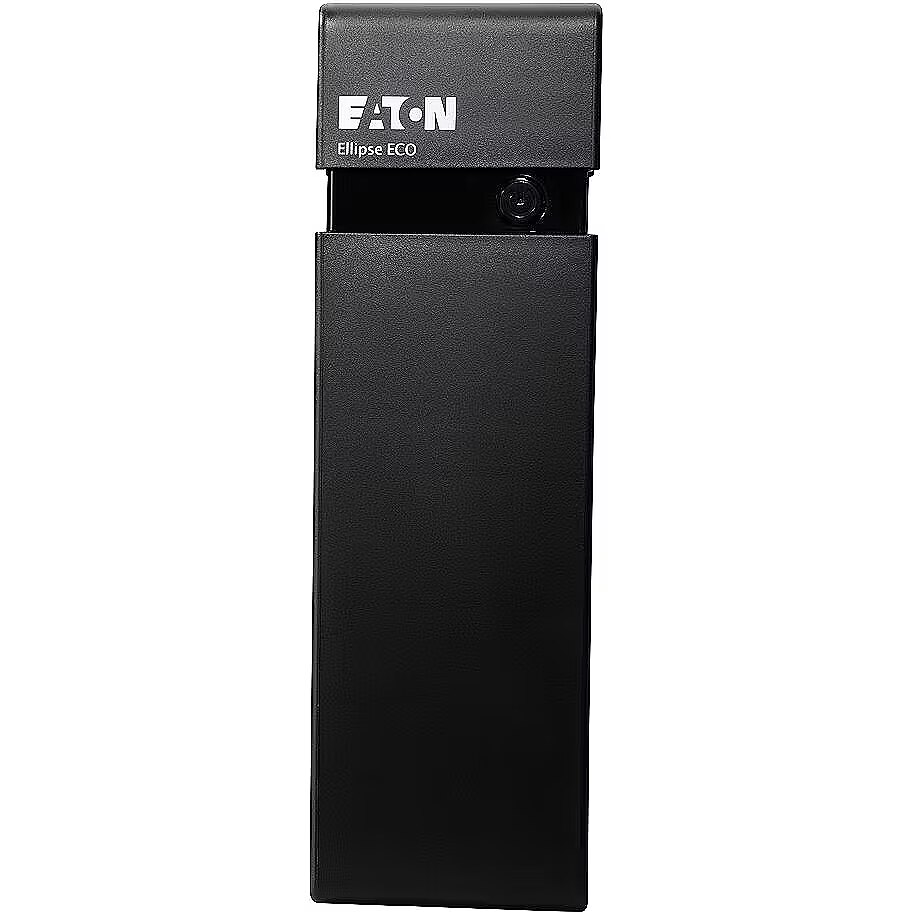

Eaton EL650IEC, 650VA, 400W

Alarm - -
ARTIKEL1 - EATON ELLIPSE ECO 650 IEC
ARTIKEL2 - IN
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at half load - 9 min
BatteryType - Replaceable sealed lead acid
Brand - Eaton
BrandPartCode - EL650IEC
Category - Uninterruptible Power Supplies (UPSs)
Category Code - UPW
Color - -
Colour - Black
ControlPanel - -
Depth - 235 mm
Description - Eaton Ellipse ECO 650 IEC
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC 62040-1, IEC 60950-1, IEC 62040-2, CB Report, CE mark, IEC 61643-1
dimensionalWeight - 2679
Dimensions - 263 x 81 x 235mm
EANCode - 3553340620638
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Battery replacement
Features - Emergency Power Off (EPO) - No
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 284 V
Features - Input operation voltage (min) - 161 V
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 400 W
Features - Output power capacity - 0.65 kVA
Features - Surge protection - Yes
Features - Surge protection features - Fax, Modem, Network, Telephone
Features - UPS topology - Standby (Offline)
FormFactor - Other
Full Description Line - 400 Watts|650 VA|Input ports Single, IEC320 C14|Output power connector type IEC 320 C13|Colour Black
GrossWeight - 4.150 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 3553340620638
Height - 263 mm
HERSTELLER - EATON
HSTNUMMER - EL650IEC
InputConnections - -
InputFrequency - 50-60 Hz autoselect
Input ports - Single, IEC320 C14
InputVoltage - 184 V - 264 V (adjustable to 161 V - 284 V)
InterfacePorts - -
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
LongDesc - With an efficient electrical design and the EcoControl function (USB models), which automatically disables peripherals when the master device is turned off, the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.
LongProductName - Ellipse ECO 650 IEC
LongSummaryDescription - Eaton Ellipse ECO 650 IEC. UPS topology: Standby (Offline), Output power capacity: 0.65 kVA, Output power: 400 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9 min. Form factor: Tower, Product colour: Black, Rack capacity: 2U. Width: 81 mm, Depth: 235 mm, Height: 263 mm
MANUFDATASHEET - http://www.google.ee/url?sa=t&rct=j&q=&esrc=s&frm=1&source=web&cd=1&cad=rja&ved=0CCgQFjAA&url=http%3A%2F%2Flit.powerware.com%2Fll_download.asp%3Ffile%3DEaton-Ellipse-ECO-datasheet-rev-B-low-pdf.pdf&ei=RuKAUpzhBsPNhAf2mYHIDg&usg=AFQjCNHHroTtcgPB-33mgzDEb-J4xFyDpg&bvm=bv.56146854,d.bGE
Other features - Input connection type - IEC
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 220-240 V
Other features - Overload protection - Yes
OutputConnections - 4
OutputFrequency - -
Output power capacity, VA - 650 VA
Output power capacity, W - 400 Watts
Output power connector type - IEC 320 C13
OutputVoltage - 230 V (adjustable to 220 V, 230 V, 240 V
PackageContents - -
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
PowerVAW - 650 VA
PowerW - 400 W
ProdDesc - 650VA/400W UPS, offline, IEC 3+1
producerCode - EL650IEC
productName - Eaton Ellipse ECO 650 IEC uninterruptible power supply (UPS) Standby (Offline) 0.65 kVA 400 W 4 AC outlet(s)
ProductName - Ellipse ECO 650 IEC
ProductPicture - http://www.tdbaltic.ee/images/ds4/EL800USBIEC-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - Normal
RechargeTime - -
RJ45 - -
Runtime - 9/6
Shipping Box Depth Shipping/Package Box Dimensions - 28 cm
Shipping Box Height Shipping/Package Box Dimensions - 32.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 4.08 kg
Shipping Box Width Shipping/Package Box Dimensions - 14 cm
ShortSummaryDescription - Eaton Ellipse ECO 650 IEC, Standby (Offline), 0.65 kVA, 400 W, 161 V, 284 V, 50/60 Hz
sizeX - 330
sizeY - 290
sizeZ - 140
SmartSlot - -
Stck_Kart - 9998
Stck_Pal - 4
Storno - Y
Title - Eaton Ellipse ECO 650 IEC uninterruptible power supply (UPS) Standby (Offline) 0.65 kVA 400 W 4 AC outlet(s)
Topology - Offline
Unit Box Height - 0.325
Unit Box Length - 0.28
Unit Box Width - 0.14
Unit Brutto Volume - 0.01274 cubm
Unit Gross Weight - 4.08 kg
Unit Net Weight - 3.6 kg
URL - https://powerquality.eaton.com/Products-services/Backup-Power-UPS/Ellipse-ECO.aspx?cx=101
USB - -
Vendor Homepage - powerquality.eaton.com/EL650IEC.aspx?CX=61&&GUID=2e34d35f-fc91-4f59-9e5d-262b8e4341bb&PKEY=AAEC4B35-6486-45CF-8308-119F0ED401E7
Warranty - 2 years
Warranty - 24 months
WarrantyInfo - 3 years
warrantyLength - 24
warrantyType - F
WaveformType - -
Weight - 3.600 Kg
weight - 4200
Weight & dimensions - Depth - 235 mm
Weight & dimensions - Height - 263 mm
Weight & dimensions - Weight - 3.6 kg
Weight & dimensions - Width - 81 mm
Width - 81 mm
