Accessories included - - The power cable UPS
- The power cord load (IEC-IEC) for 1000 VA; 2 x power cable load (IEC-IEC) for the 2000/3000 VA
- Cable RS-232
- Instructions for use
Active power - 2700 W
Apparent power - 3000 VA
Backup time (100% load) - 5 min
Battery - Automatic battery test - Yes
Battery - Battery capacity - 7 Ah
Battery - Battery recharge time - 3 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 72 V
Battery - Number of batteries supported - 6
Battery - Typical backup time at half load - 7 min
Brand - Legrand
BrandPartCode - 310159
Category - Uninterruptible Power Supplies (UPSs)
Certificates - Certification - CE, EN 62040-1, EN 62040-2
Chassis type - Tower
Color - Black

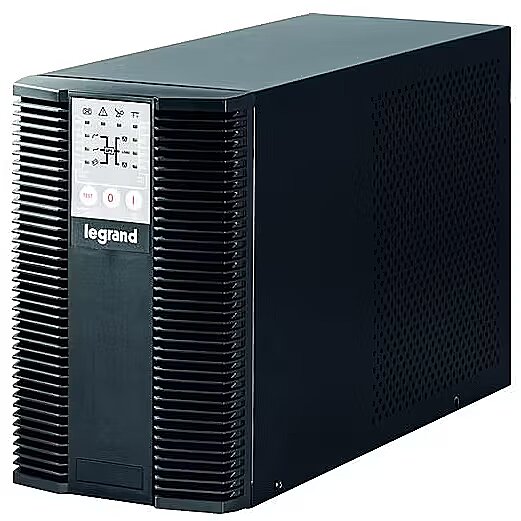

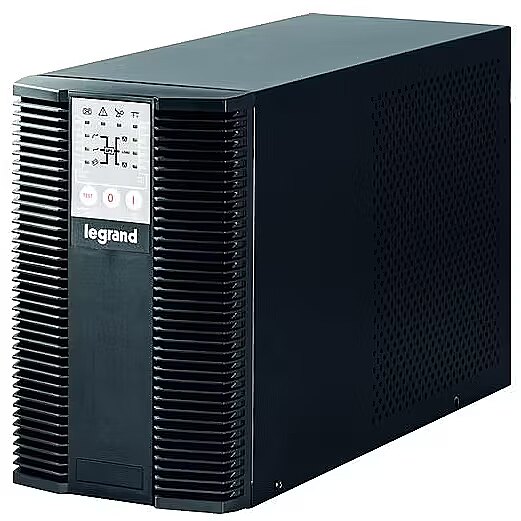

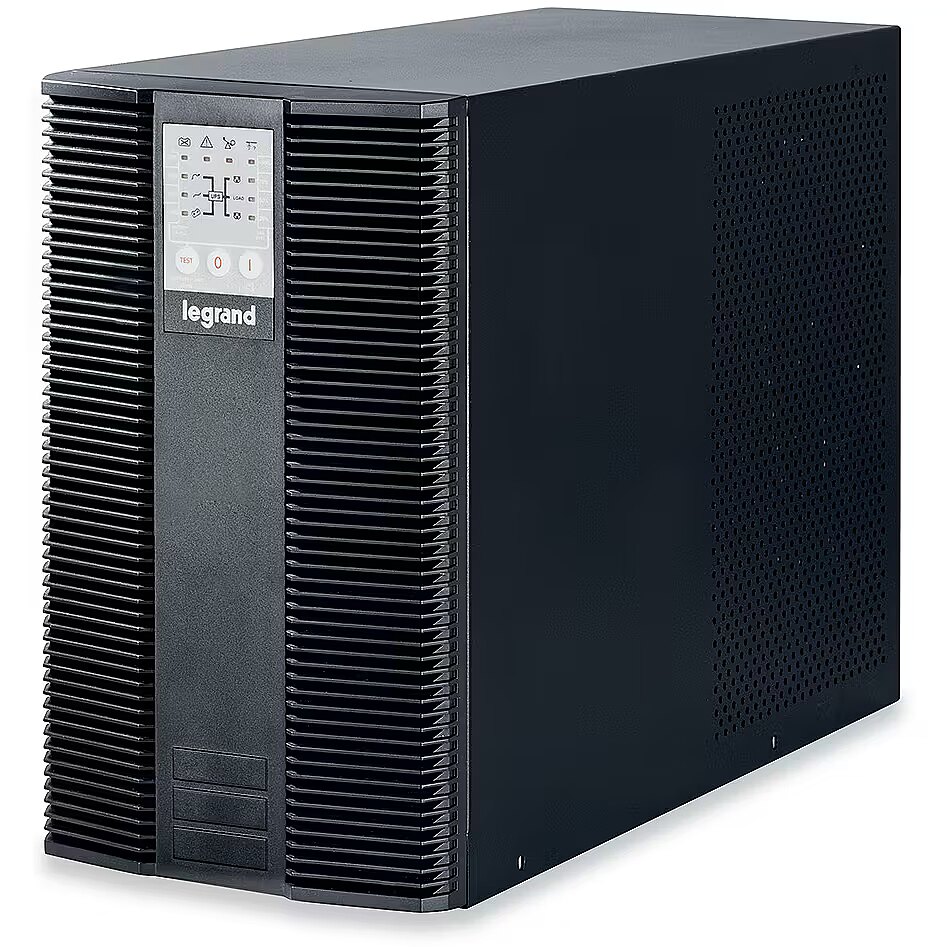

Description - UPS KEOR LP is a device which provides a high level of safety odbiorom 1 to 3 kVA.
Backup time of all models KEOR LP can be expanded through the use of battery cabinets with overall dimensions similar to UPS KEOR LP.
All versions KEOR LP have a card slot expansion (Web / SNMP / Modbus / others), which enhances the communication options of these devices.
UPS includes self-diagnostics and advanced battery charging cycle management systems and monitoring mechanisms.
It has a control panel with a mimic board LEDs and control buttons. This panel allows m. In .: silence alarms, self-diagnostic, inspection of electronic bypass, and preview: operating state, the switching status of 2 groups of outlets, and the charge or battery failure, overload, damage to the protective conductor, and others.
Design - International Protection (IP) code - IP21
Design - LED indicators - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimension depth - 305 mm
dimension height - 485 mm
Dimensions -
dimension weight - 26400 g
dimension width - 590 mm
ean - 3414970499325
Environment requirements -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - Efficiency - 90%
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 45/65 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 160 V
Features - Input power factor - 0.99
Features - Management protocols - SNMP
Features - Noise level - 50 dB
Features - Number of input phases - 1
Features - Output operation voltage (max) - 230 V
Features - Output operation voltage (min) - 230 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Output voltage regulation - 1%
Features - Output voltage Total Harmonic Distortion (THD) - 3%
Features - Power factor - 0.98
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Features - Web-based management - Yes
GTIN - 3414970499325
guarantee - 24
guarantee_type - normal
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Input power ports - IEC-C20
LongDesc - On‑Line double conversion UPS for low and medium power applicationsThe distributed power, from 1000 VA to 3000 VA, provides high level electrical protection for medium power devices.The UPS comprise a single card with incorporates power, control logic, control and diagnostics.All models have a backup time that can be extended by adding battery cabinets.All versions have a slot for connecting SNMP communication interfaces.- Conventional single-phase UPS systems, available in 3 versions depending on the power- Power from 1 to 3 kVA- VFI-SS-111 on-line double conversion- RS232 communication port- LAN / SNMP connectivity- Uptime can be extended with additional battery cabinets- Compact design and low footprint
LongProductName - 3kVA, 2700W, 6x IEC 10A, 2x FR Socket, RS232, 23kg
LongSummaryDescription - Legrand Keor LP 3kVA FR. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, Power plug: C20 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 72 V. Product colour: Black, International Protection (IP) code: IP21. Certification: CE, EN 62040-1, EN 62040-2
name - UPS KEOR LP 3000VA IEC FR
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features -
Output power ports - 2 x C/E type
Output power ports - 6 x IEC-C13
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Emergency Power Off (EPO) connector - Yes
Ports & interfaces - Number of type F outputs - 2
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
producer - Legrand
ProductName - Keor LP 3kVA FR
ShortSummaryDescription - Legrand Keor LP 3kVA FR, Double-conversion (Online), 3 kVA, 2700 W, Sine, 160 V, 300 V
Software -
Special functions -
Title - Legrand Keor LP 3kVA FR uninterruptible power supply (UPS) Double-conversion (Online) 2700 W 8 AC outlet(s)
UPS Architecture - on-line double conversion
URL - https://ups.legrand.com/product/keor-lp/
vendpn - 310159
WarrantyInfo -
Weight - 23 kg
Weight & dimensions - Depth - 151 mm
Weight & dimensions - Height - 444 mm
Weight & dimensions - Weight - 23 kg
Weight & dimensions - Width - 322 mm
