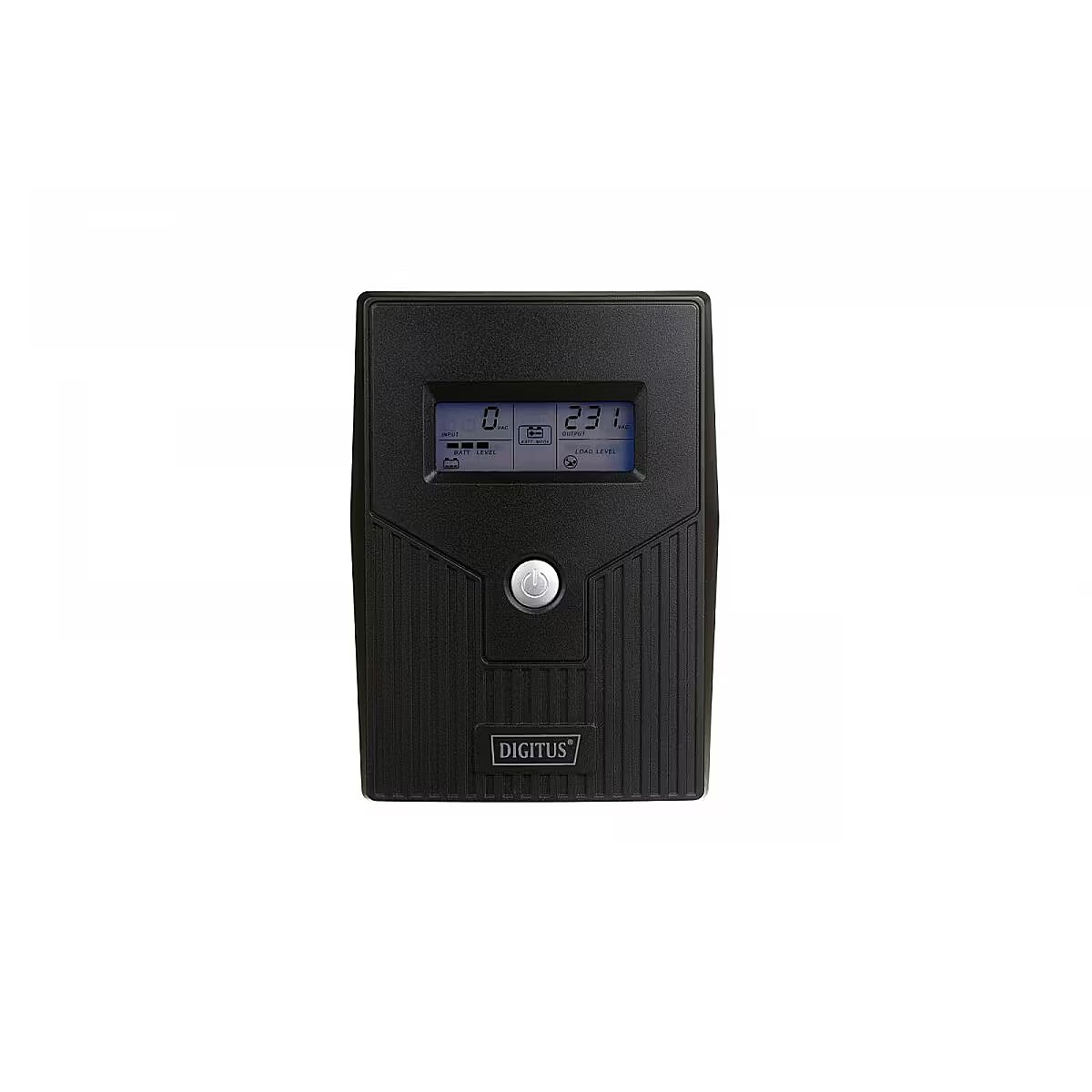

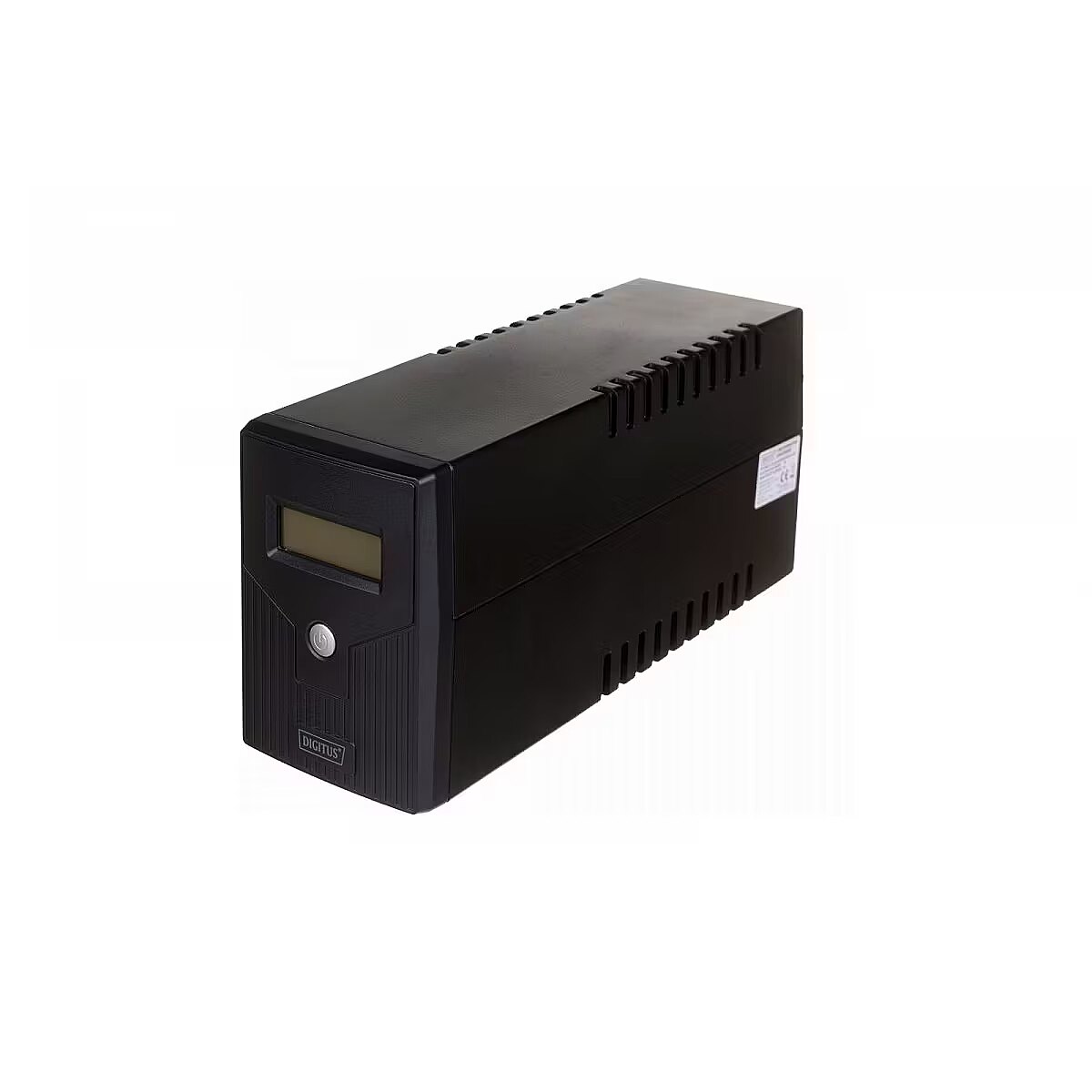

Digitus UPS Line-Ineractive DN-170063-LCD-B

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1200815 Product code: DN-170063-LCD-B
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
74.62 €
Ready for dispatch
01.04.2026
starting from 0 €
Delivery options
  • Receiving goods at the Dateks office
    0.00 €
  • DPD Pickup Parcel Cabinet
    Within 1-2 working days
    0.00 €
  • Parcel terminal
    Within 1-2 working days
    0.00 €
  • Post Office
    Within 1-2 working days
    0.00 €
  • Omniva parcel machine
    Within 1-2 working days
    0.00 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    0.00 €
  • Unisend parcel terminal
    Within 1-2 working days
    0.00 €
  • Delivery throughout Latvia.
    Within 1-2 working days
    4.99 €
Main product parameters All parameters
  • Battery capacity (VA): 600
  • Output power (W): 360
Description

This UPS Digitus UPS Line-Ineractive DN-170063-LCD-B with an output power of 360 W and a battery capacity of 600 VA is designed for home and office systems. It provides stable power supply to computers and monitors, reducing the risk of data loss during power interruptions.

Display in the UPS device provides a visual representation of the operating parameters. It facilitates the diagnosis of the device's condition and allows the user to promptly assess readiness for operation in the event of power supply disruptions.

The use of a Lead-acid battery in a UPS device ensures stable operation over a wide load range and predictable discharge characteristics. This technology stands out for its high reliability, resistance to temperature fluctuations and well-researched service life, which facilitates technical maintenance and planning for battery replacement.

A UPS with a Schuko connection type allows devices to be connected without additional adapters, ensuring safe grounding. The standard connector reduces mechanical load on the contacts, simplifies technical maintenance, and is compatible with a wide range of household and office equipment.

Warranty

Digitus provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.

All parameters
Model : DN-170063-LCD-B
Display characteristics
Display : Is
Basic information
Battery capacity (VA) 600
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type : Lead acid
Charging time (hours) : 8
Output power (W) : 360
Ports and equipment
Number of nests (total) : 2
Number of sockets (Battery Backup) : 2
RJ-45 : 0
Socket type : Schuko
USB : 0
More detailed specification
Accessories included -
Active power - 360 W
Apparent power - 600 VA
Battery capacity - 7 Ah
Charging time - 8 h
Chassis type - Desktop
Color - Black
Description - Gwarantuje niezawodną ochronę przed utratą danych oraz szkodami spowodowanymi przez zmiany napięcia w biurze oraz w domu. Zasilacze UPS Line-Interactive firmy DIGITUS posiadają kompaktowe rozmiary i są kontrolowane mikroprocesorem, co gwarantuje wysoką niezawodność. Są łatwe w obsłudze i zapewniają wysoką skuteczność i bezpieczeństwo dla systemów firmowych i biurowych pod względem utraty danych i uszkodzeń. Właściwości, takie jak zabezpieczenie przed przeciążeniem, wyładowaniem i przeładowaniem, funkcja zimnego startu oraz energooszczędność i akustyczny system alarmowy, to tylko niektóre zalety zasilaczy UPS Line-Interactive firmy DIGITUS. Stabilizacja napięcia - układ AVR Szybki czas przełączania w przypadku awarii zasilania Kompaktowa obudowa zapewniająca oszczędność miejsca w infrastrukturze IT Szybki czas ładowania
Designation - CE+WEEE
dimension depth - 150 mm
dimension height - 215 mm
Dimensions - Wysokość 142 x szerokość 101 x głębokość 298 mm
dimension weight - 3700 g
dimension width - 355 mm
ean - 4016032498636
Environment requirements - Wilgotność: 0-95% wilgotności względnej przy 0 °C do +40 °C (bez kondensacji) Poziom hałasu: poniżej 40 dB
Filters / protection - Overcharging
Filters / protection - Overdischarge
Filters / protection - Overload
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 6 ms
I/O connectors - None
Input power ports - Type F Schuko
name - UPS Line-Ineractive DN-170063-LCD-B
No. of batteries - 1
Number of phases input - 1 (230V)
Other features - Złącza: 2× gniazdo wtykowe z stykiem ochronnym Schuko CEE 7/3 Napięcie wejściowe: 230 V AC Zakres napięcia: 162-290 V AC Zakres częstotliwości: 50 Hz (automatyczne wykrywanie) Napięcie wyjściowe: 230 V AC 10% Regulacja prądu zmiennego (tryb bateryjny): 10% Zakres częstotliwości (tryb bateryjny): 50 Hz 1% Standardowy czas transferu: 2-6 ms Kształt fali (tryb bateryjny): Symulowana fala sinusoidalna Bateria: 12 V/7 Ah x 1 Standardowy czas ładowania: 6-8 godziny dla uzyskania 90% naładowania Dźwięki alarmowe: tryb bateryjny (rozbrzmiewa co 10 sekund), niski poziom baterii (rozbrzmiewa co sekundę), przeciążenie (rozbrzmiewa co 0,5 sekundy), usterka (rozbrzmiewa bez przerwy) Stabilizacja napięcia (AVR przekształtnik obniżający/podwyższający) Automatyczne ponowne uruchomienie po przywróceniu napięcia Wyświetlacz LCD
Output power ports - 2 x C/F type (Schuko)
producer - Digitus
Software -
Special functions -
The shape of the output voltage - Modified sine wave
UPS Architecture - line-interactive
vendpn - DN-170063-LCD-B
Voltage - 230 V
Weight - 4.35 kg
