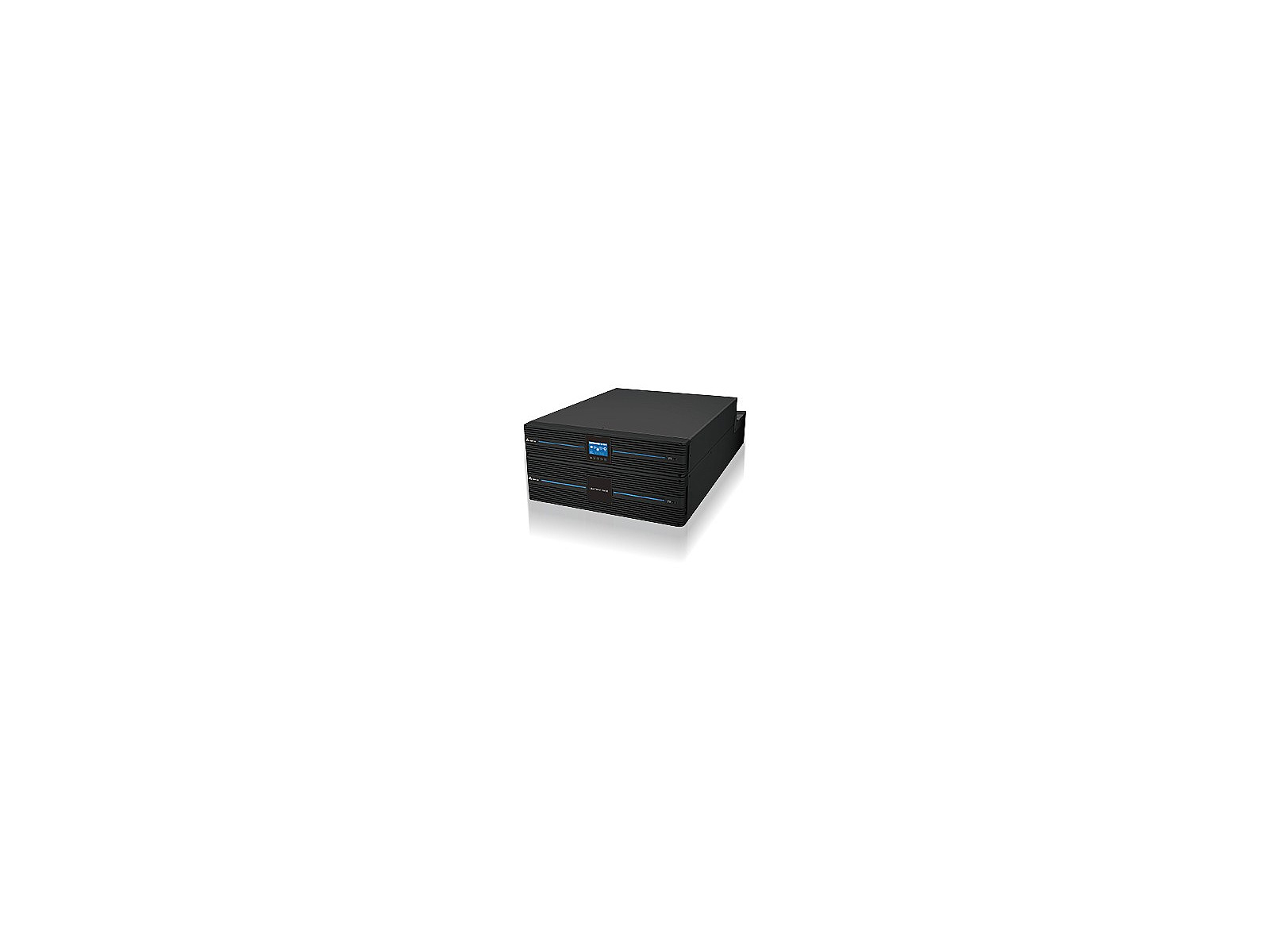

DELTA UPS UPS103R2RT0B035 Amplon RT-10K Standard; battery module 20x9Ah and bypass with distribution C13x6; C19x5

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1190950 Product code: UPS103R2RT0B035
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
3,988.98 €
Ready for dispatch
07.04.2026
starting from 0 €
Delivery options
  • Receiving goods at the Dateks office
    0.00 €
  • Delivery throughout Latvia.
    Within 1-2 working days
    28.99 €
Main product parameters All parameters
  • Battery capacity (VA): 10000
  • Output power (W): 10000
Description

This UPS DELTA UPS UPS103R2RT0B035 Amplon RT-10K Standard; battery module 20x9Ah and bypass with distribution C13x6; C19x5 with an output power of 10000 W and a battery capacity 10000 VA ensures safe power supply for high load systems with expandable battery configurations.

A UPS with a display provides direct access to the device's technical information. This reduces the need for external system solutions and facilitates monitoring during autonomous operation.

The use of a Lead-acid battery in a UPS device ensures stable operation over a wide load range and predictable discharge characteristics. This technology stands out for its high reliability, resistance to temperature fluctuations and well-researched service life, which facilitates technical maintenance and planning for battery replacement.

The presence of a IEC320 connection type in a UPS device ensures standardized device connection using removable power cables. Such a connector facilitates the replacement and maintenance of connected devices, ensures a secure electrical contact and broad compatibility with server and office equipment.

Warranty

DELTA provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.

All parameters
Model : Amplon RT-10K Standard
Display characteristics
Display : Is
Basic information
Battery capacity (VA) 10000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type : Lead acid
Charging time (hours) : 3
Output power (W) : 10000
Ports and equipment
Number of nests (total) : 11
Number of sockets (Battery Backup) : 11
RJ-45 : 0
Socket type : IEC320
USB : 1
More detailed specification
Accessories included -
Active power - 10000 W
Apparent power - 10 kVA
Backup time (100% load) - 3.5 min
Battery capacity - 9 Ah
Chassis type - Rack
Color - Black
Description -
Designation - CE+WEEE
dimension depth - 890 mm
dimension height - 270 mm
Dimensions - 440 x 750 x 218 mm
dimension weight - 50000 g
dimension width - 600 mm
ean - 4710901730949
Environment requirements - Operating temperature: 0 - 55 degrees C (40-50 degrees C after reducing the UPS parameters to 75% of its capacity) Operating humidity: 5 - 95% RH non-condensing Noise level: 50 dB
guarantee - 24
guarantee_type - external
I/O connectors - 1 x inpot dry contact
I/O connectors - 1 x Mini Slot
I/O connectors - 1 x REPO
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x RS-485
I/O connectors - 1 x USB (Type B)
I/O connectors - 3 x output dry contact
Input power ports - Terminal
name - UPS UPS103R2RT0B035 Amplon RT-10K Standard; battery module 20x9Ah and bypass with distribution C13x6; C19x5
No. of batteries - 20
Number of phases input - 1 (230V)
Other features -
Output power ports - 5 x IEC-C19
Output power ports - 6 x IEC-C13
producer - DELTA ELECTRONICS
Software -
Special functions - Graphical LCD display with LED indicators
UPS Architecture - on-line double conversion
vendpn - UPS103R2RT0B035
Weight - 85.5 kg
