Brand - Legrand
BrandPartCode - 310931
Category - UPS Accessories
Certificates - Certification - CE, UL / NEMKO
Data Act - Link
Description - Karta zarządzania sieciowego
Designation - CE+WEEE
dimension depth - 40 mm
dimension height - 230 mm
dimension weight - 225 g
dimension width - 190 mm
ean - 3414970911933
Features - Built-in display - No
Features - Flash memory - 512 MB
Features - LED indicators - Yes
Features - MIB support - RFC 1628
Features - Processor family - ARM
Features - Processor frequency - 800 MHz
Features - Product colour - Green, Grey
Features - Product type - Network management card
Features - RAM capacity - 128 MB
GTIN - 3414970911933
guarantee - 24
guarantee_type - external
LongDesc - The network interfaces for managing UPS do not require any external software. They include a proprietary system capable of real-time control of the operation of the UPS and managing numerous events (power failure, overload, bypass, problem, etc.) and as a result executing a series of actions.Available in external and internal version (in this case it is inserted in a dedicated slot in the UPS).Supply voltage 9 - 30 VDC (power supply included in external versions).

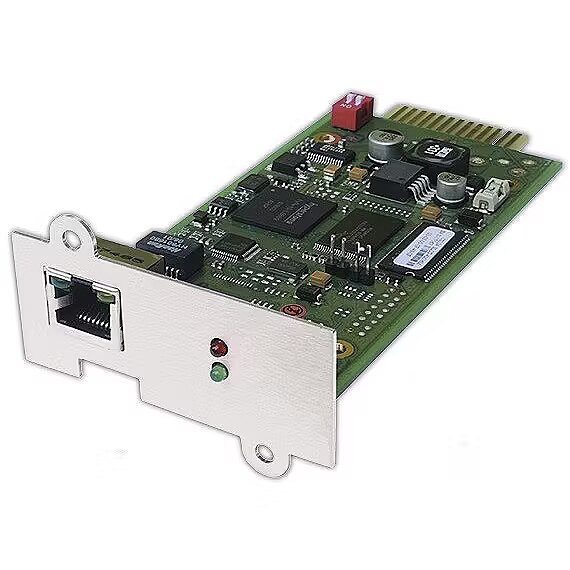

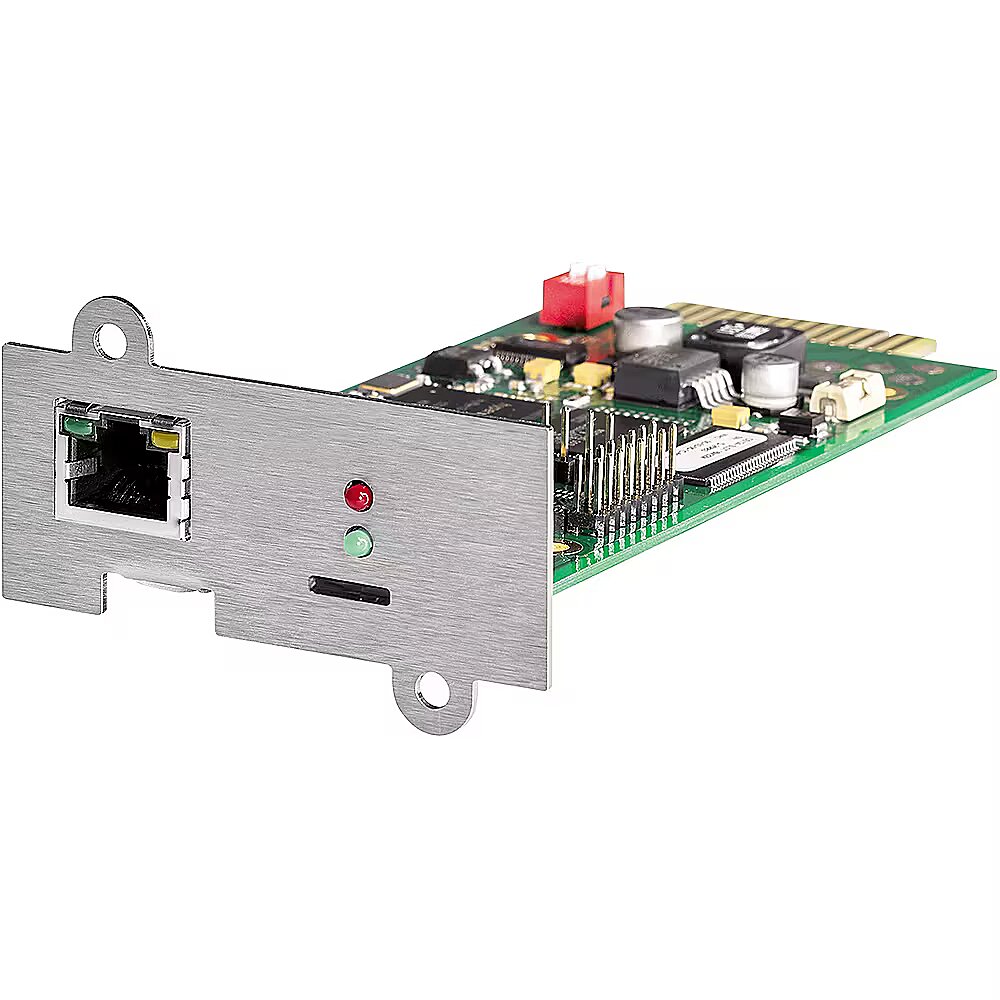

LongProductName - Network interface type CS141 Standard, Internal
LongSummaryDescription - Legrand CS141B SK. Product type: Network management card, Product colour: Green, Grey, MIB support: RFC 1628. Management protocols: SNMP v2/v3, Supported network protocols: IPv4, IPv6, HTTP, HTTPS, DNS, DHCP, SMTP, NTP, SFTP, UPSTCP (UNMS), MODBUS over IP, RCCMD. Interface type: RJ-45, Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s. Input voltage: 12 V, Input current: 0.15 A. Certification: CE, UL / NEMKO
name - KARTA SNMP CS141B SK SLOT
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - 0 - 70 °C
Packaging content - Quantity per pack - 1 pc(s)
Performance - Management protocols - SNMP v2/v3
Performance - Supported network protocols - IPv4, IPv6, HTTP, HTTPS, DNS, DHCP, SMTP, NTP, SFTP, UPSTCP (UNMS), MODBUS over IP, RCCMD
Performance - Syslog - Yes
Performance - Web-based management - Yes
Ports & interfaces - Cabling technology - 10/100
Ports & interfaces - Ethernet interface type - Fast Ethernet
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Ethernet LAN data rates - 10,100 Mbit/s
Ports & interfaces - Interface type - RJ-45
Ports & interfaces - Networking standards - IEEE 802.3, IEEE 802.3u
Power - Input current - 0.15 A
Power - Input voltage - 12 V
producer - Legrand
ProductName - CS141B SK
ShortSummaryDescription - Legrand CS141B SK, Network management card, Green, Grey, RFC 1628, ARM, 800 MHz, 512 MB
Title - Legrand CS141B SK
URL - https://ups.legrand.com/en/products/network-interfaces
vendpn - 310931
WarrantyInfo -
Weight & dimensions - Depth - 120 mm
Weight & dimensions - Height - 29 mm
Weight & dimensions - Weight - 66 g
Weight & dimensions - Width - 60 mm
