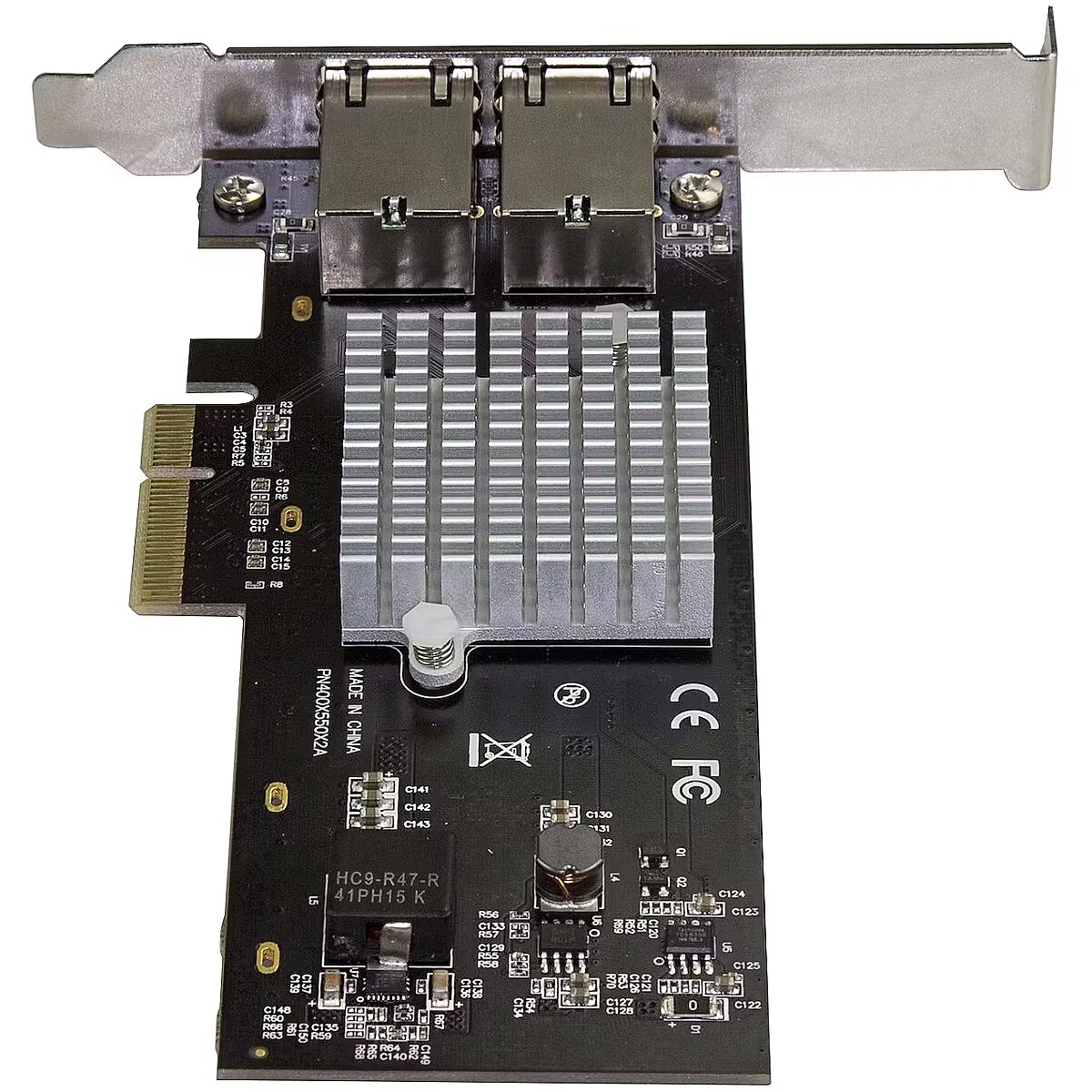

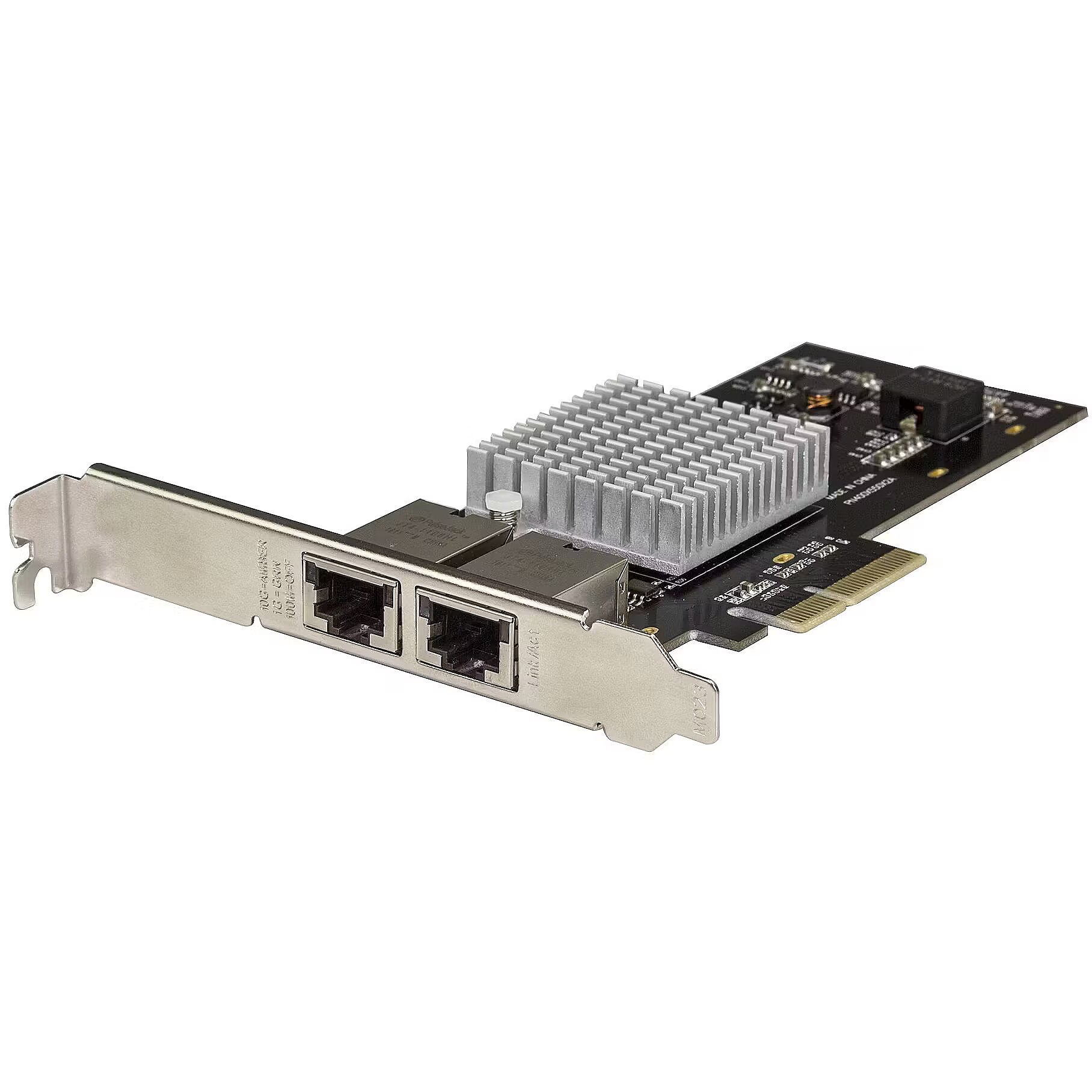

Startech 2-PORT NIC - PCIE 10G/NBASE-T IN

ARTIKEL1 - 2-PORT NIC - PCIE 10G/NBASE-T
ARTIKEL2 - IN
Brand - StarTech.com
BrandPartCode - ST10GPEXNDPI
Category - Network Cards
Design - Certification - CE, FCC, REACH
Design - Chipset - Intel X550AT
Design - Internal - Yes
Design - LED indicators - Activity, Link, Speed
Design - Product colour - Black
EANCode - 0065030874502
GRUPPE1 - Network
GRUPPE2 - Network Adapters
GTIN - 0065030874502
GTIN - 065030874502
GTIN - 0065030879538
GTIN - 065030879538
HERSTELLER - STARTECH
HSTNUMMER - ST10GPEXNDPI
Logistics data - Harmonized System (HS) code - 85176990
Logistics data - Master (outer) case height - 316 mm
Logistics data - Master (outer) case length - 436 mm
Logistics data - Master (outer) case width - 420 mm
Logistics data - Products per master (outer) case - 40 pc(s)
LongDesc - Add two Ethernet ports to a server or workstation through one PCI Express slot, with support for five network speeds: 10G/5G/2.5G/1G/100MbpsThis dual-port network card offers versatile and cost-efficient network connectivity, by increasing the available network bandwidth without having to replace your existing cabling infrastructure. The 5-speed network card lets you add two 10G/NBASE-T RJ45 ports to your server or desktop computer and access your network at multiple speeds: 10G, 5G, 2.5G, 1G, and 100Mbps.Cost-effective, multimode network connectivityCompatible with a broad range of operating systems, this versatile dual-port NIC is ideal for many business applications that require upgrades to servers or workstations. Fully compliant with 10GBASE-T and NBASE-T™ specifications, the network card is a cost-effective way to enhance your server or computer capabilities by adding two powerful 10-Gigabit Ethernet ports. (10G network speeds require Cat6a cable. All other speeds require Cat5e cable.)Connect to NBASE-T equipmentThe network card supports advanced NBASE-T technology, compatible with the latest multi-gigabit Ethernet switches and routers, such as new Cisco campus switches (including Catalyst 4500E, 3850 and 3560-CX). The card enables you to connect to NBASE-T based equipment at network speeds of 2.5Gbps or 5Gbps, over your existing Cat5e infrastructure, without having to upgrade to more expensive Cat6a.NBASE-T technology accelerates the speed of twisted pair Cat5e copper cabling over a distance of up to 100 meters. The Ethernet network card also supports 10Gbps network speeds if using Cat6a cabling, and 1Gbps network speeds if using Cat5e (or better) cabling.The Ethernet ports are based on the Intel® X550AT2 chipset, designed to deliver the power, performance, and enhanced capabilities you need for reliable network connections to your server or computer. The network card also supports advanced features including 9K jumbo frames and 802.1q VLAN tagging.Easy installationWith a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a standard-profile bracket for installation in a full-sized chassis and includes a low-profile/half-height bracket for installation in small form-factor computers.The StarTech.com Advantage
LongProductName - StarTech.com Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card (ST10GPEXNDPI)
LongSummaryDescription - StarTech.com Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black
Network - Auto MDIX IEEE - Yes
Network - Cabling technology - 10GBase-T
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000,2500,5000,10000 Mbit/s
Network - Full duplex - Yes
Network - iSCSI support - Yes
Network - Jumbo frames - 9000
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 10000 Mbit/s
Network - Networking standards - IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x
Network - VLAN tagging - Yes
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 5 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Flow control support - Yes
Other features - Quick start guide - Yes

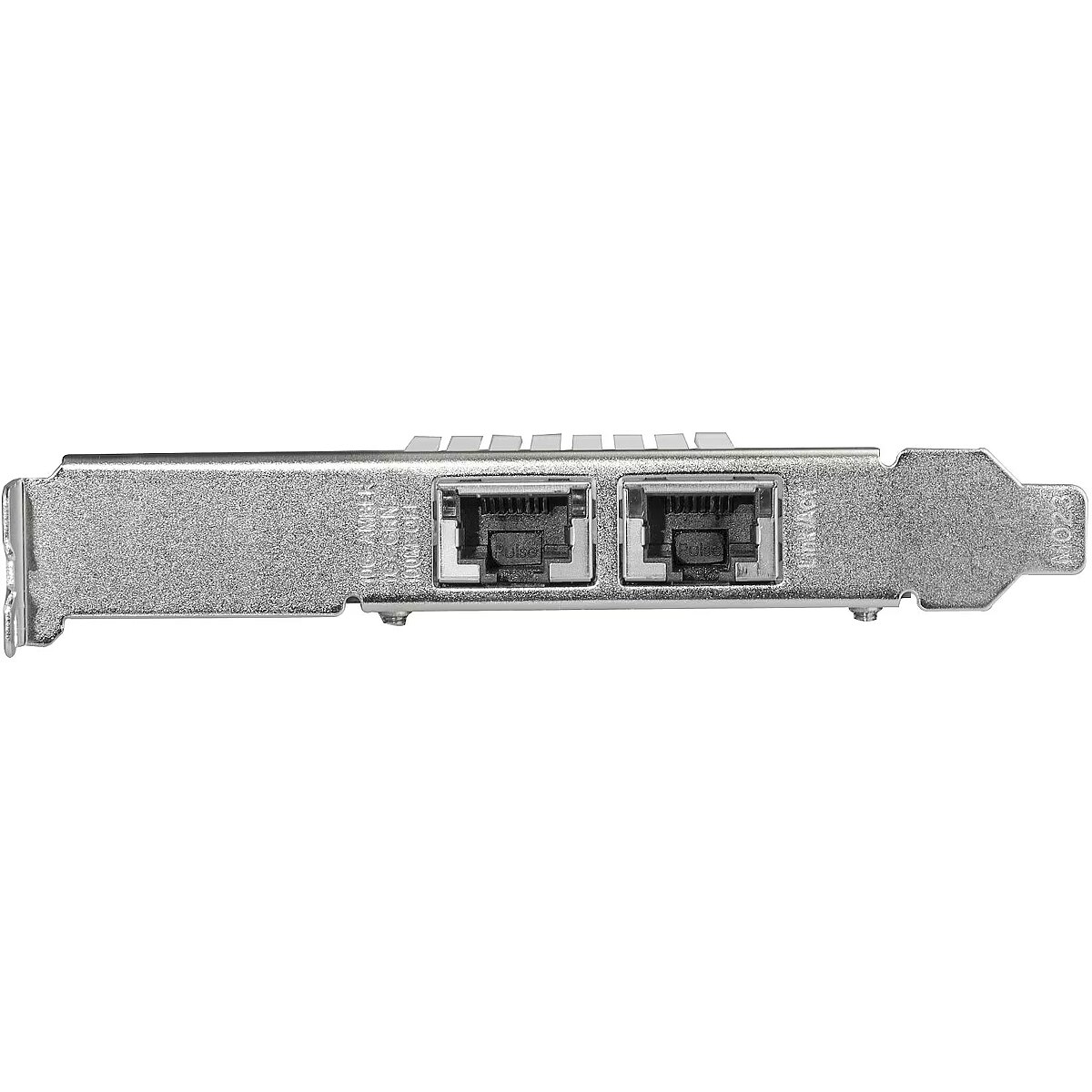

Packaging data - Low-profile bracket - Yes
Packaging data - Package depth - 286 mm
Packaging data - Package height - 116 mm
Packaging data - Package weight - 199 g
Packaging data - Package width - 221 mm
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Ethernet
Ports & interfaces - PCI version - 3.0
ProductName - Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card
ShortSummaryDescription - StarTech.com Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card, Internal, Wired, PCI Express, Ethernet, 10000 Mbit/s, Black
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Technical details - Compliance certificates - RoHS
Title - StarTech.com Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T & NBASE-T PCI Express Network Interface Adapter 10/5/2.5/1GbE Multi Gigabit Ethernet 5 Speed NIC LAN Card
URL - https://www.startech.com/en-us/ST10GPEXNDPI
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 228 mm
Weight & dimensions - Height - 132 mm
Weight & dimensions - Weight - 98 g
Weight & dimensions - Width - 15 mm
