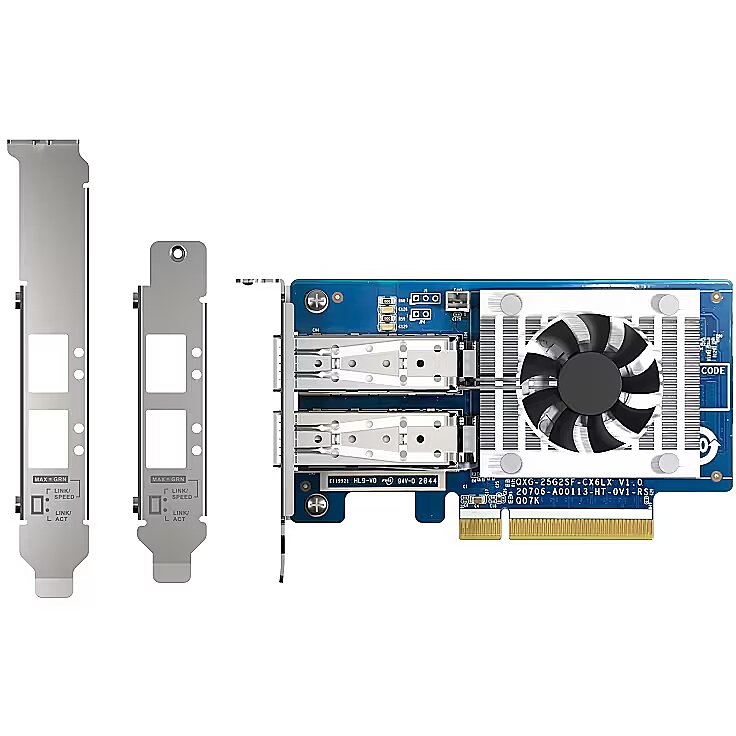

Accessories included - 1 x network card 1 x QIG 3 x brackets
Antenna - Not applicable
ARTIKEL1 - 2 PORT SFP28 25GBE NW EXP CARD
ARTIKEL2 - LOWPROFILE FORMFACT PCIEGEN4 X8
Brand - QNAP
BrandPartCode - QXG-25G2SF-CX6
Breite - 0.15
Category - Network Cards
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Chipset type -
Description - QXG-25G2SF-CX6 Dual port SFP28 25GB network expand card
Design - Component for - NAS
Design - Internal - Yes
Designation - CE+WEEE
dimension depth - 55 mm
dimension height - 190 mm
Dimensions -
dimension weight - 234 g
dimension width - 145 mm
ean - 4713213519066
EAN - 4713213519066
EANCode - 4713213519066
EAN_code - 4713213519066
Gewicht - 0.24
Gross Weight Kg - 0,32
GRUPPE1 - Network
GRUPPE2 - Firewire / Parallel / Serial
GTIN - 0885022021260
GTIN - 885022021260
GTIN - 4713213519066
guarantee - 24
guarantee_type - normal
HERSTELLER - QNAP
Hoehe - 0.06
HSTNUMMER - QXG-25G2SF-CX6
I/O ports - 1 x SFP
Interface - PCIe
Laenge - 0.19
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The QXG-25G2SF-CX6 features an NVIDIA Mellanox® ConnectX-6 Lx SmartNIC controller, supports PCIe Gen4 (backwards compatible with Gen3/ Gen2) and provides up to 25 Gbps transfer speeds. By using Port Trunking to combine multiple ports, up to 50GbE can be achieved for accelerating file sharing and intensive data transfer. With SR-IOV support, the QXG-25G2SF-CX6 greatly boosts network efficiency and is ideal for I/O-intensive and latency-sensitive virtualization applications and data centers.High-speed 25GbE NetworkingThe TS-h3088XU-RP supports 25GbE networking, and can be used with the QXG-25G2SF-CX6 to expand network connectivity. It can also be used with a 25GbE Switch to build a budget-friendly high-speed network environment.Supports Windows and Linux servers/workstationsBesides QNAP devices, the QXG-25G2SF-CX6 supports many platforms, including Windows 10, Windows Server, and Linux (driver required) which allows you to attain optimal business performance for a wider range of system applications and services. The higher bandwidth density with reduced links helps reduce cabling footprint and operational costs.
LongProductName - 2x 25G, SFP28, PCIe Gen4 x8
LongSummaryDescription - QNAP QXG-25G2SF-CX6. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 25000 Mbit/s
Manufacturer - Qnap
Manufacturer Code - QXG-25G2SF-CX6
Manufacturer Name - QNAP
Manufacturer_code - QXG-25G2SF-CX6
Name - Qnap QXG-25G2SF-CX6 network card QNA - accessories
name - QXG-25G2SF-CX6 Dual port SFP28 25GB network expand card
Network - Maximum data transfer rate - 25000 Mbit/s
Number of antennas - Not applicable
Other features - 25GbE dual-port network expansion card Controller: NVIDIA Mellanox ConnectX-6 Lx Transmission rate: 25Gbps/10Gbps
Packaging content - Mounting brackets included - Yes
Packaging content - Quick installation guide - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Fiber optic connector - SFP28
Ports & interfaces - Fiber ports quantity - 2
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Fiber
Ports & interfaces - PCI version - 4.0
producer - QNAP
ProductName - QXG-25G2SF-CX6
Security -
Short description - QNAP LAN Card 2x 25GbE SFP28 PCIe Erweiterungskarte QXG-25G2SF-CX6
ShortSummaryDescription - QNAP QXG-25G2SF-CX6, Internal, Wired, PCI Express, Fiber, 25000 Mbit/s
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Supported operating systems - Linux
Supported operating systems - QTS
Supported operating systems - QuTS hero
Supported operating systems - Windows
System Requirements -
System requirements - Linux operating systems supported - Yes
System requirements - Windows operating systems supported - Yes
Title - QNAP QXG-25G2SF-CX6 network card Internal Fiber 25000 Mbit/s
URL - https://www.qnap.com/en-us/product/qxg-25g2sf-cx6
vendpn - QXG-25G2SF-CX6
WarrantyInfo -
Weight - 0,24
