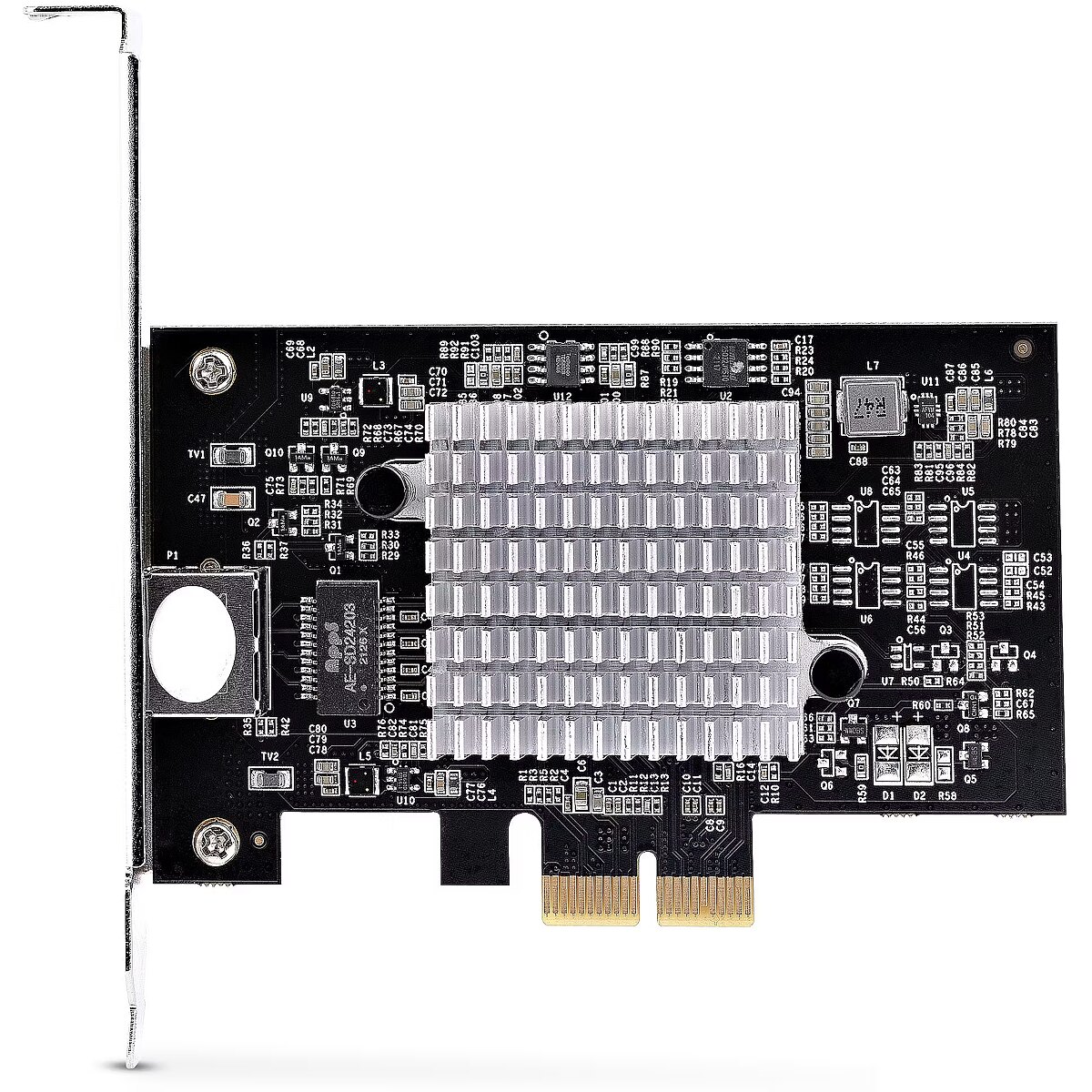

Startech 10G PCIE NETWORK ADAPTER CARD .

ARTIKEL1 - 10G PCIE NETWORK ADAPTER CARD
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - ST10GSPEXNB2
Breite - 0.15
Category - Network Cards
Design - Component for - PC
Design - Internal - Yes
Design - LED indicators - Yes
Design - Product colour - Black
EANCode - 0065030897549
Gewicht - 0.16
GRUPPE1 - Network
GRUPPE2 - Network Adapters
GTIN - 0065030897549
GTIN - 065030897549
HERSTELLER - STARTECH
Hoehe - 0.04
HSTNUMMER - ST10GSPEXNB2
Laenge - 0.22
Logistics data - Master (outer) case height - 320 mm
Logistics data - Master (outer) case length - 375 mm
Logistics data - Master (outer) case width - 445 mm
Logistics data - Products per master (outer) case - 40 pc(s)

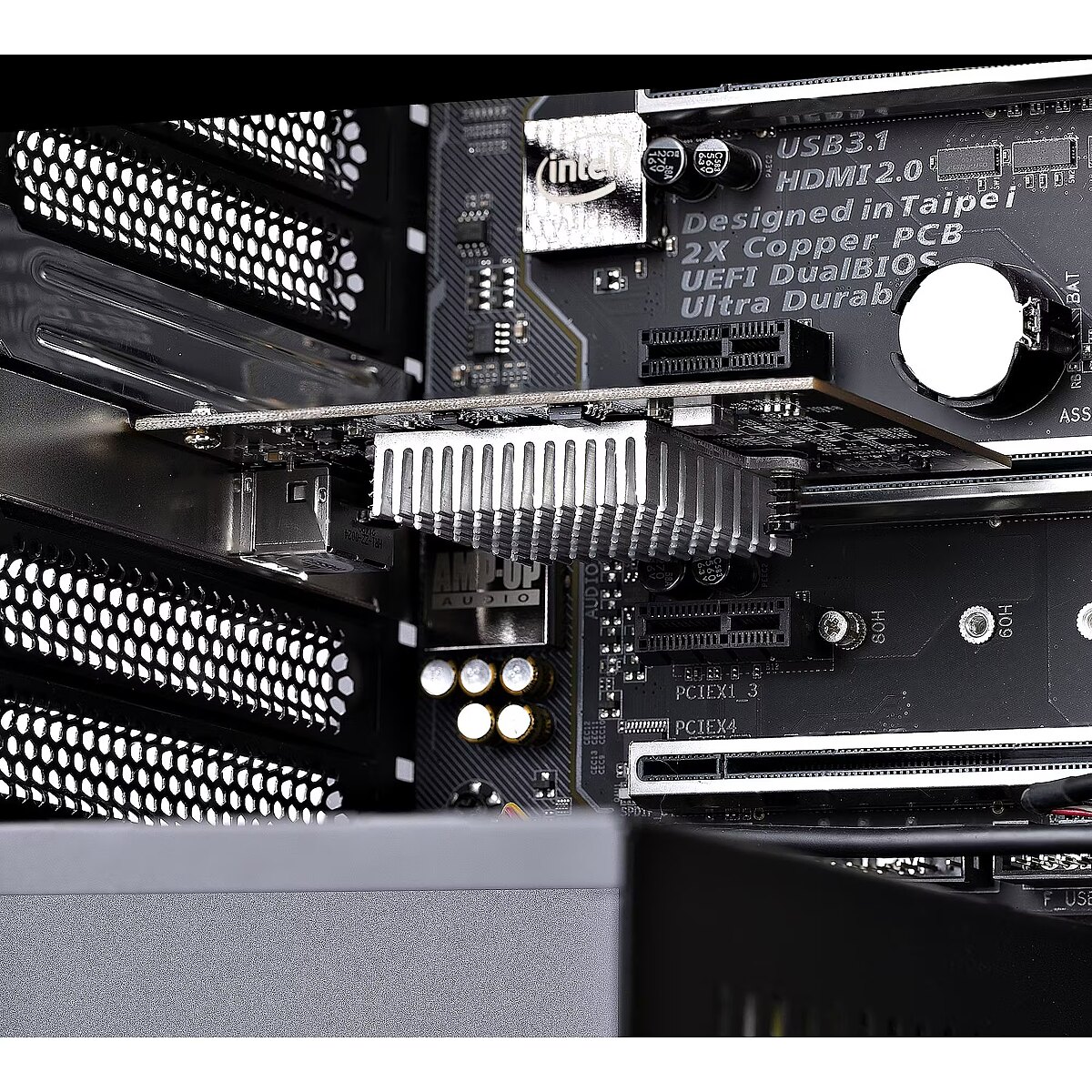

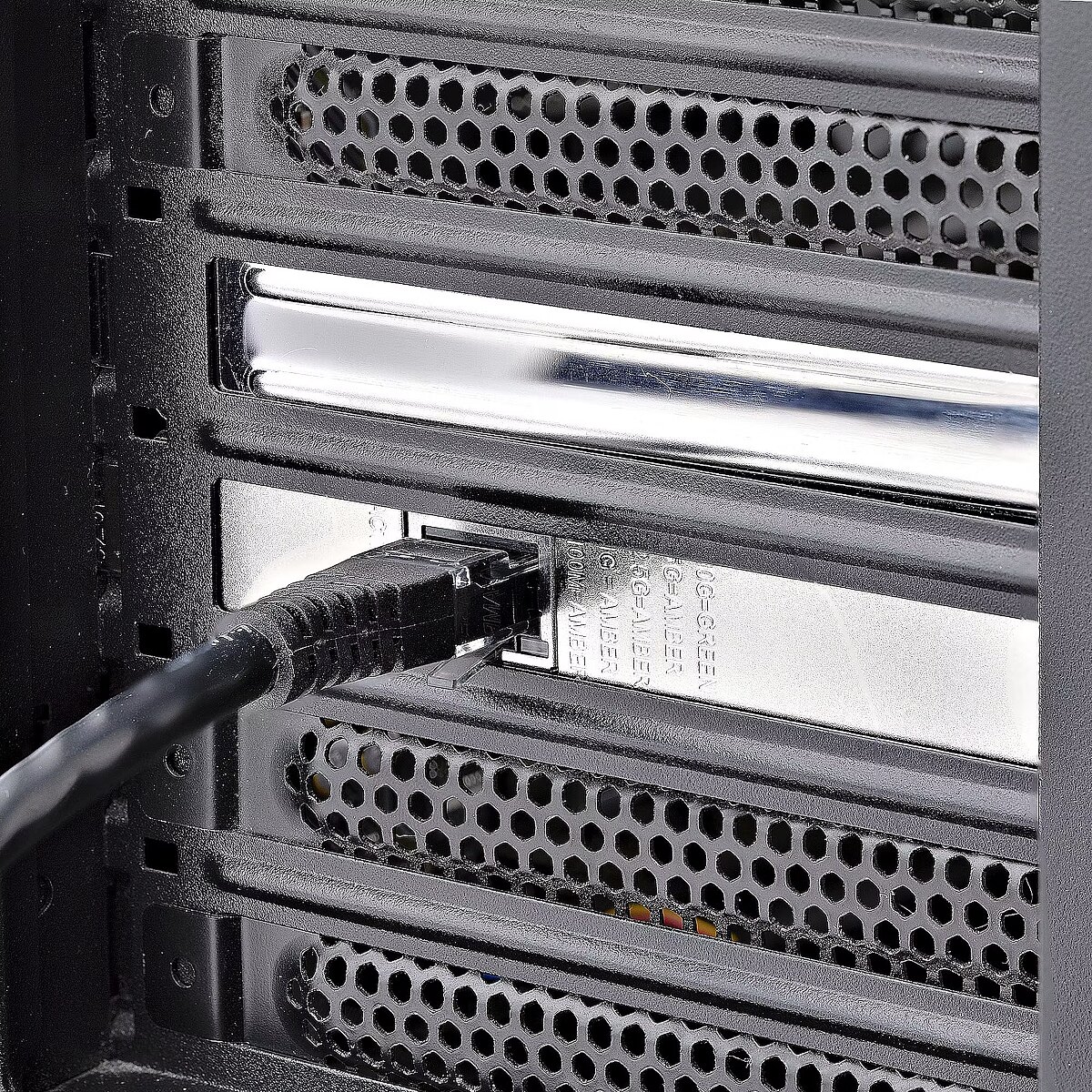

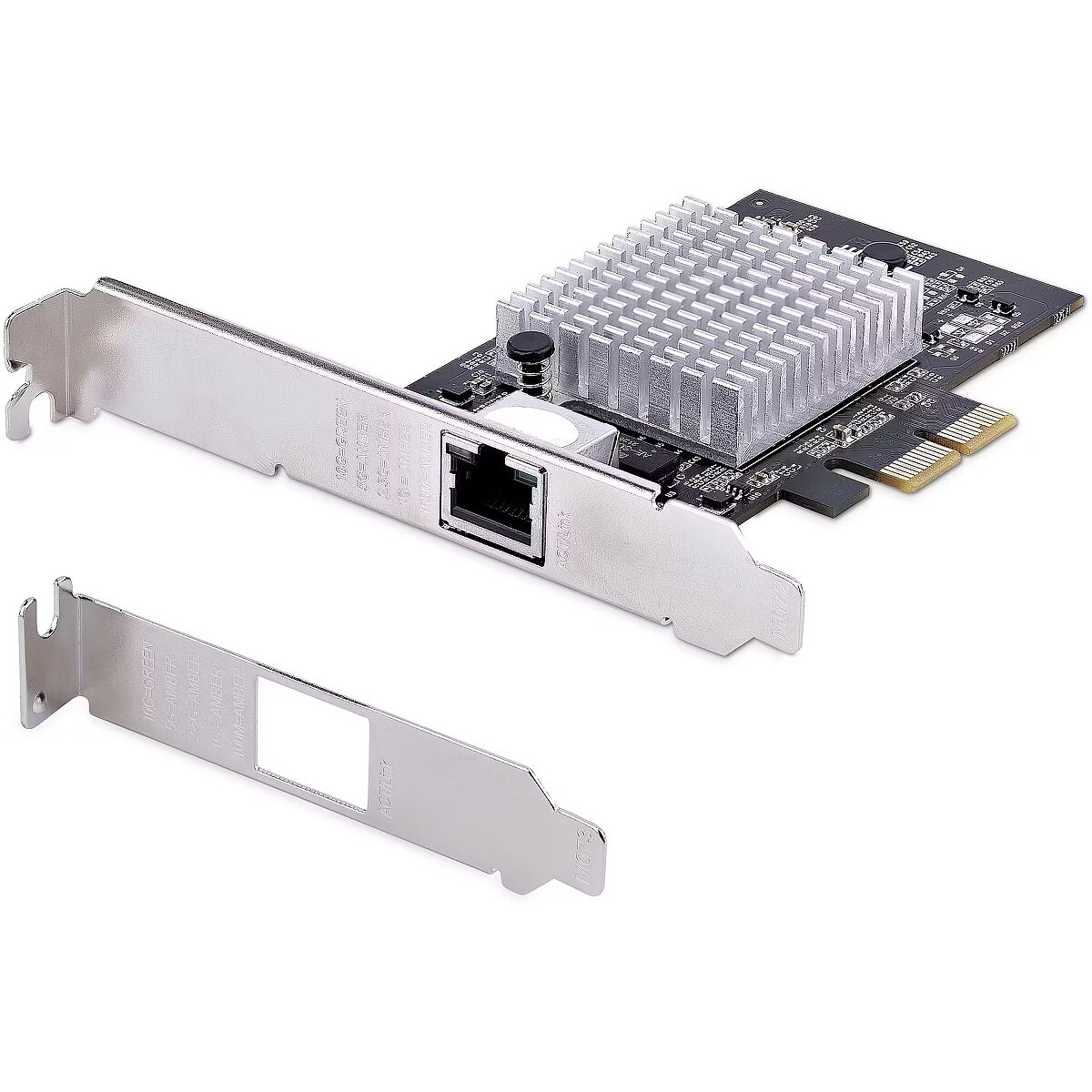

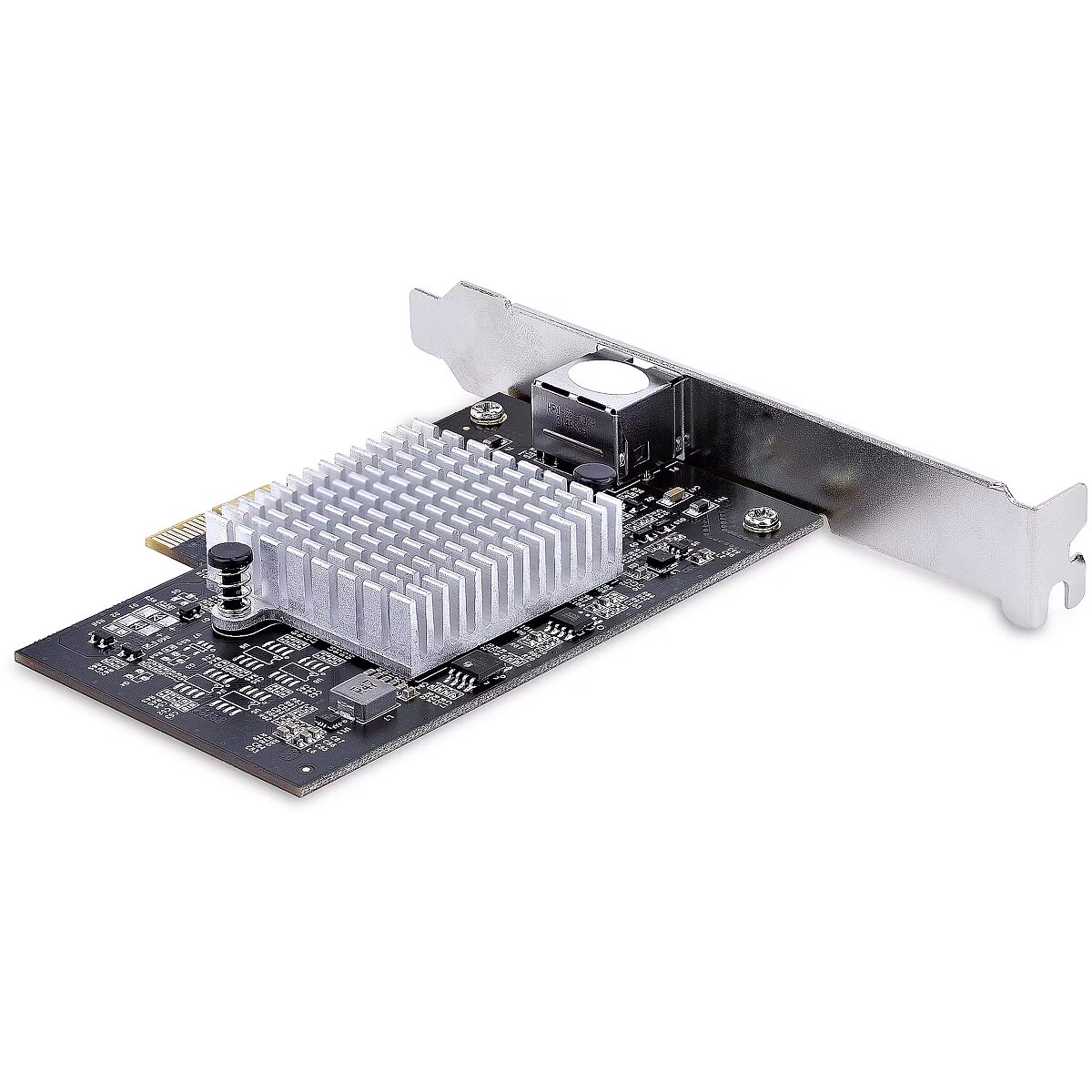

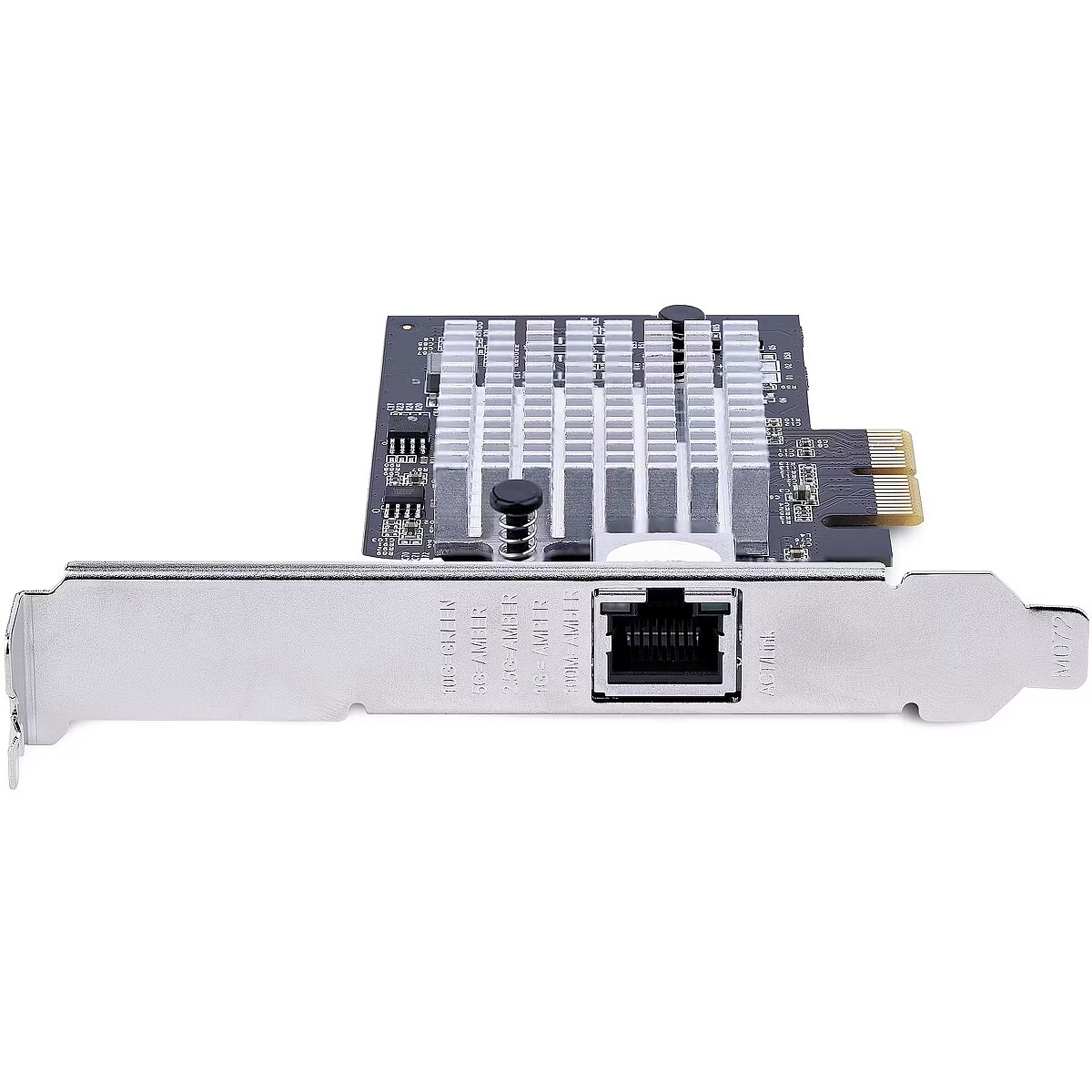

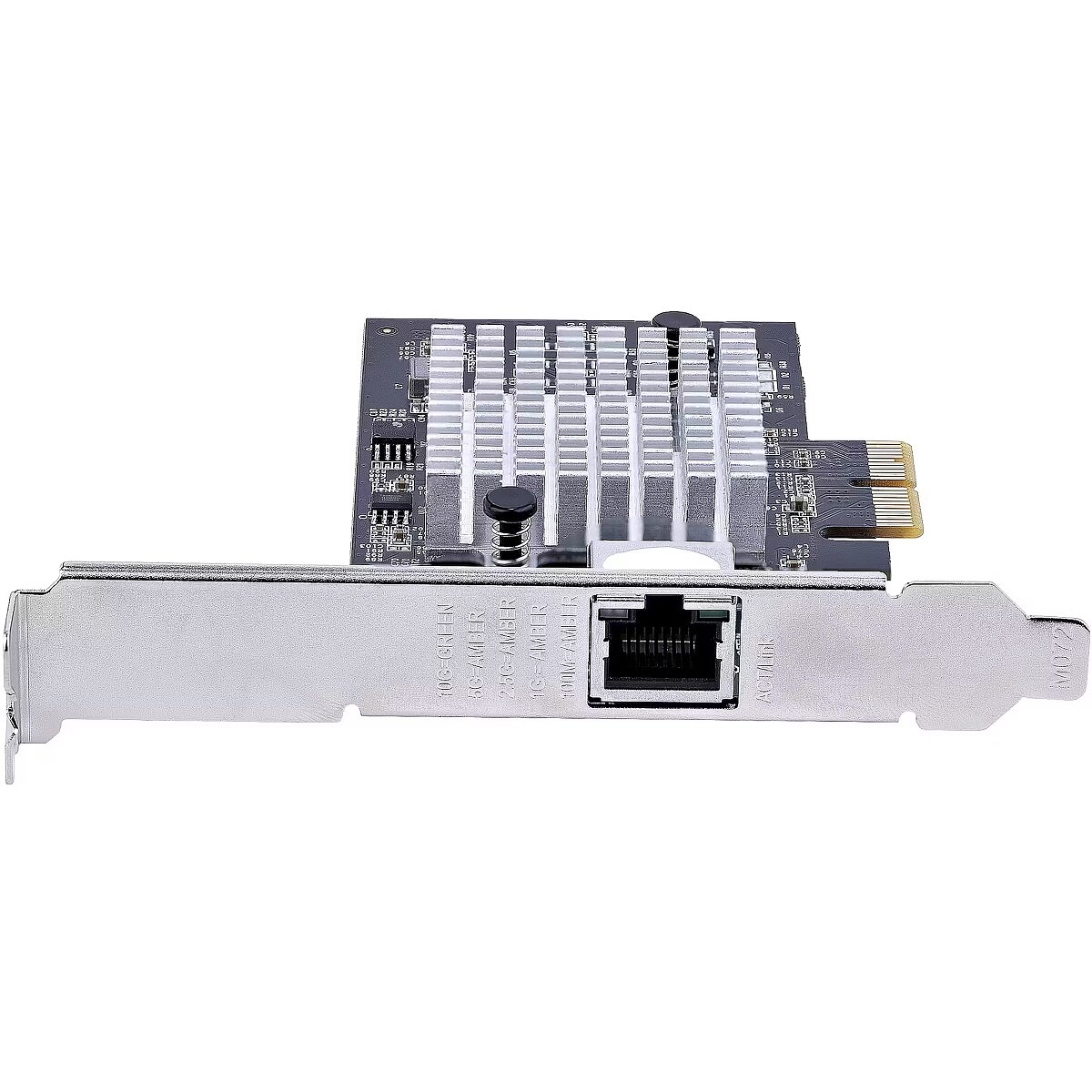

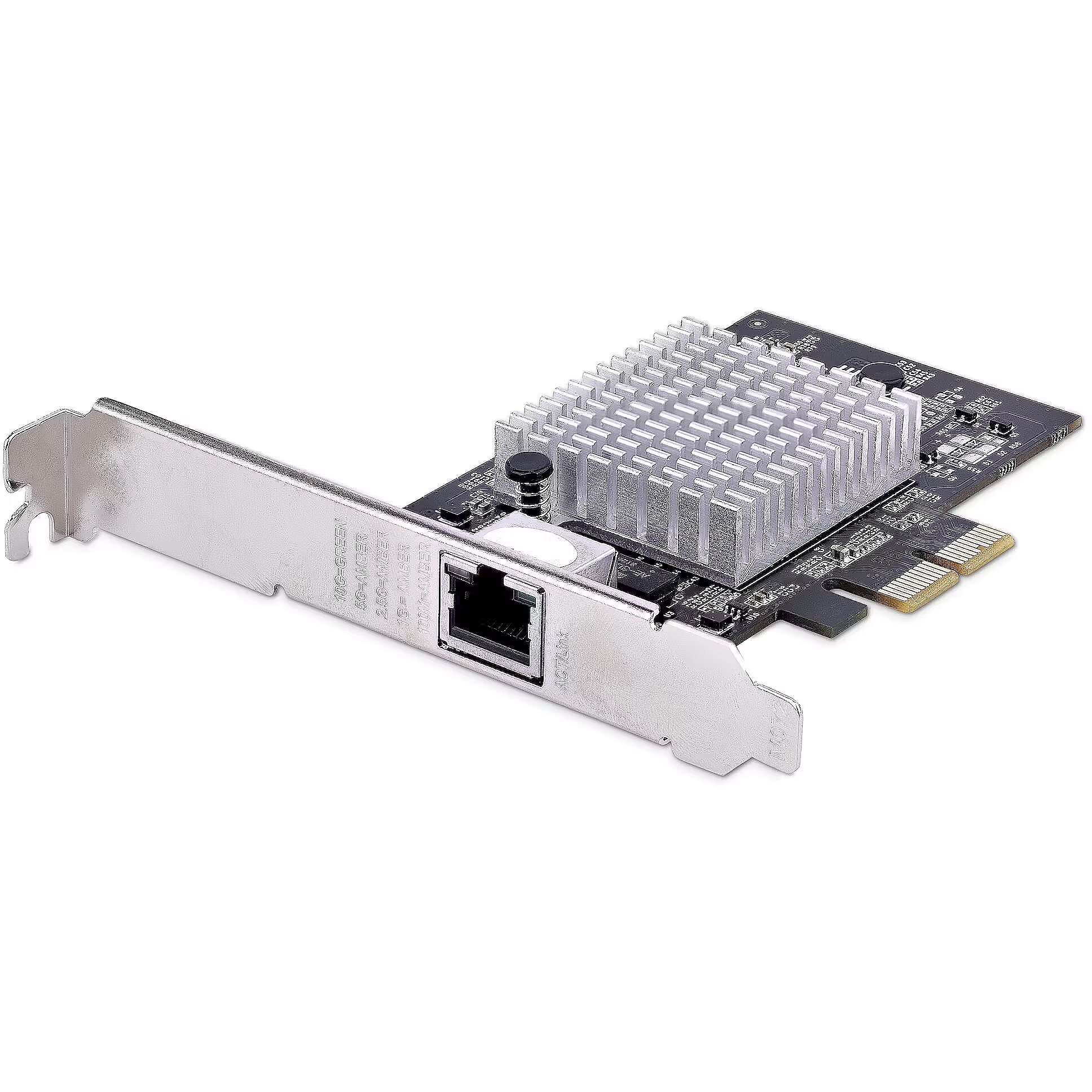

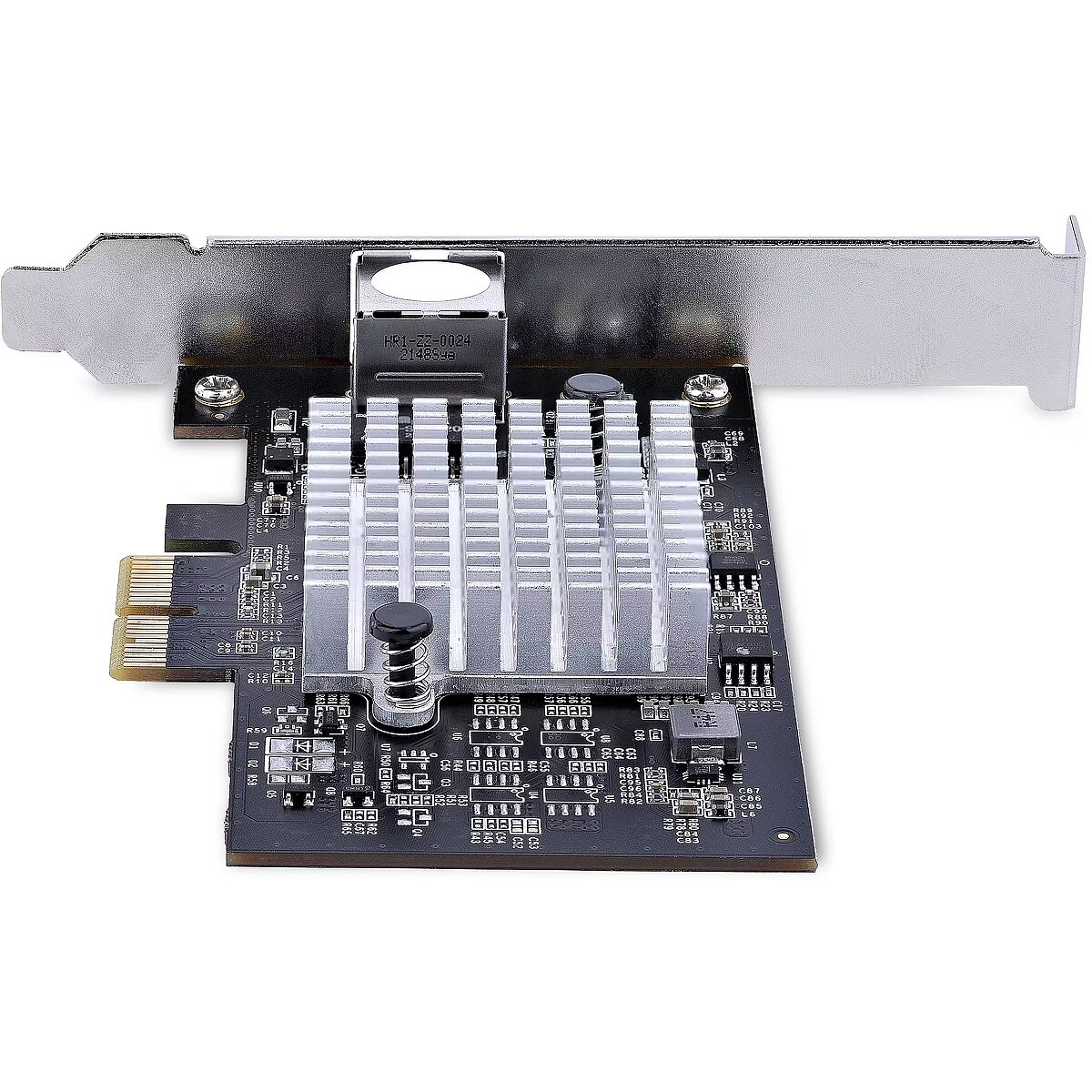

LongDesc - Six-Speed | AVB | PXE Boot | x2 PCIe 3.0 | Marvell AQC113CSInstall this single-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) into a server or computer to enable faster network speeds and enhanced network functionality. This card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps. The variable speeds permit access to legacy hardware. Alternatively, the 10GBASE-T and NBASE-T capabilities ensure compatibility with the latest network switches and network access points manufactured by Cisco®; HPE®; and Juniper®.Increased Network SpeedsThis PCIe network card provides access to increased bandwidth. It reduces network slowdown/degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and when streaming online content.NBASE-T technology maximizes the capability of Cat5e copper cabling over at distances of up to 100 meters. The Ethernet network card supports a 10 Gbps connection over copper using existing Cat6 (or better) copper cabling.Enhance Existing HardwareThe Network Interface Card connects via an available PCI Express x2 3.0/4.0 (or higher) expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various systems. This card is compatible with Windows, Windows Server, and Linux.Take advantage of advanced features such as Audio-Video Bridging (AVB), VLAN tagging, 16 K jumbo frame, full-duplex, secure boot, and PXE.The PCI Express 10G NIC is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
LongProductName - StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card w/Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T/NBASE-T (ST10GSPEXNB2)
LongSummaryDescription - StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T. Internal. Connectivity technology: Wired, Host interface: PCIe, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black
Network - Auto MDIX IEEE - Yes
Network - Cabling technology - 10GBase-T
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000,2500,5000,10000 Mbit/s
Network - Full duplex - Yes
Network - Jumbo frames - 16000
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 10000 Mbit/s
Network - Networking standards - IEEE 1588, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Operational conditions - Operating temperature (T-T) - 0 - 60 °C
Operational conditions - Storage temperature (T-T) - -10 - 70 °C
Packaging content - Mounting brackets included - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 145 mm
Packaging data - Package height - 35 mm
Packaging data - Package weight - 120 g
Packaging data - Package width - 210 mm
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Interface - Ethernet
Ports & interfaces - PCI Card form factor - Full-height (low-profile)
Ports & interfaces - PCI version - 3.0
ProductName - 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
ShortSummaryDescription - StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T, Internal, Wired, PCIe, Ethernet, 10000 Mbit/s, Black
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Title - StarTech.com 1-Port 10Gbps PCIe Network Adapter Card, Network Card for PC/Server, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
URL - https://www.startech.com/en-us/ST10GSPEXNB2
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 121 mm
Weight & dimensions - Height - 22 mm
Weight & dimensions - Weight - 70 g
Weight & dimensions - Width - 107 mm
