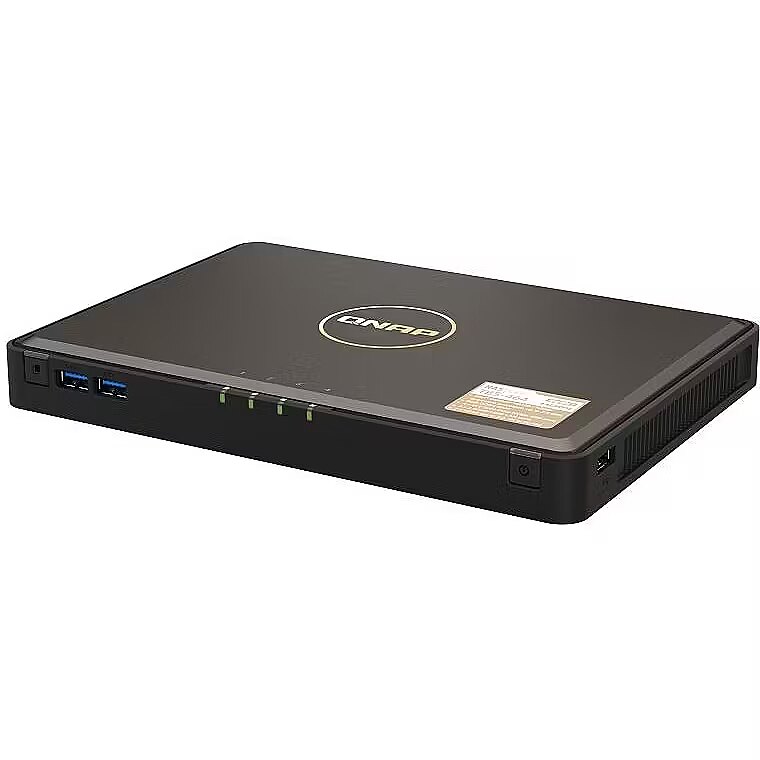

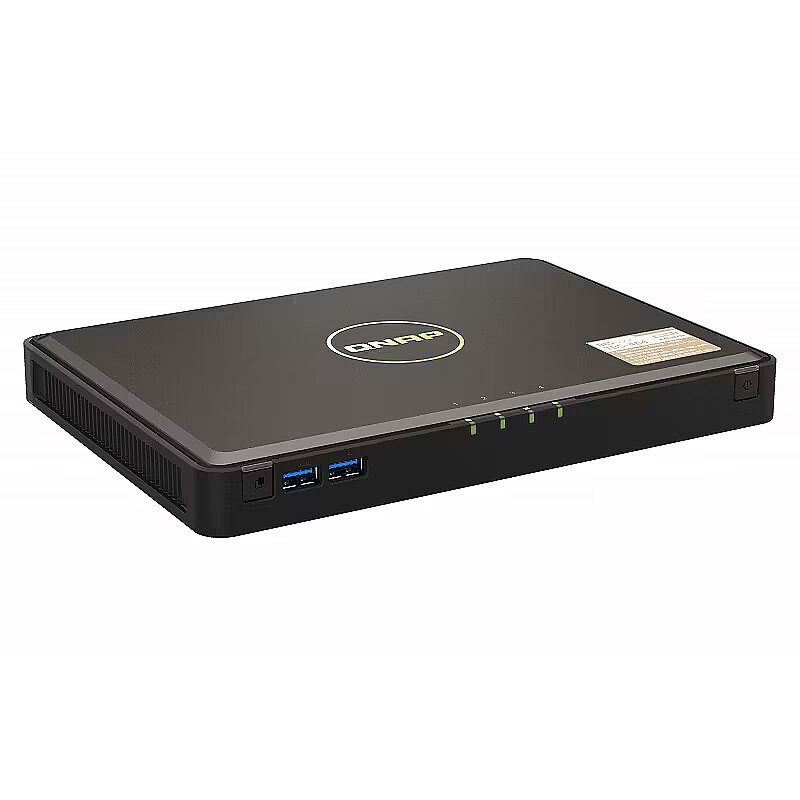

Qnap TBS-464-8G, 4-Bay M.2

Accessories included -
ARTIKEL1 - TBS-464-8G 4BAY M.2 2280
ARTIKEL2 - 8GB DDR4 2 X 2.5GBE
Brand - QNAP
BrandPartCode - TBS-464-8G
Breite - 0
Built-in flash memory - 4 GB
Built-in RAM memory - 8 GB
Category - NAS & Storage Servers
Category - Root/Smarthome/Networks and communication/NAS - file servers
Category Code - STS
Category_1 - Network and Servers
Category_2 - NAS
CPU - Intel® Celeron® N5105 4-core/4-thread processor, burst up to 2.9 GHz
Description - Stworzony tak, aby wszędzie pasować, NASbook TBS-464 z dyskami M.2 NVMe SSD jest idealny dla nowoczesnych biur, grup roboczych, spotkań i multimediów. Wyposażony w czterordzeniowy procesor Intel Celeron N5105/ N5095 (taktowanie do 2,9 GHz), TBS-464 posiada dwa porty 2,5GbE oraz porty USB 3.2 Gen 1 do przyspieszenia transferu plików i na potrzeby wszechstronnych aplikacji. Model TBS-464 zapewnia gniazda M.2 NVMe SSD i obsługę HybridMount do tworzenia hybrydowych środowisk pamięci masowej w chmurze, ma nawet dwa wyjścia 4K HDMI 2.0, funkcję transkodowania multimediów i oferuje aplikację KoiMeeter, umożliwiającą prowadzenie wideokonferencji i prezentacji bezprzewodowych dla małych firm i pracowników zdalnych.
Description - TBS-464 Compact, portable, versatile: Quad-core 4-bay M.2 NVMe SSD NASbook Built to fit in everywhere, the TBS-464 M.2 NVMe SSD NASbook is ideal for modern offices, workgroups, meetings and multimedia. Powered by an Intel Celeron N5105/ N5095 quad-core processor (burst up to 2.9 GHz), the TBS-464 has two 2.5GbE ports and USB 3.2 Gen 1 ports for accelerating file transfer and versatile applications. The TBS-464 provides M.2 NVMe SSD slots and supports HybridMount for creating hybrid cloud storage environments, has up to two 4K HDMI 2.0 outputs, media transcoding capabilities, and includes the KoiMeeter app for enabling video conferencing and wireless presentations for small businesses and remote workers.
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Chassis type - Desktop
Design - Cooling type - Active
Design - LED indicators - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimension depth - 95 mm
dimension height - 285 mm
Dimensions - 30 × 230 × 165 mm
dimension weight - 1738 g
dimension width - 200 mm
ean - 4713213519974
EAN - 4713213519974
EANCode - 4713213519974
Eans - 4713213519974
EAN_code - 4713213519974
Flash memory (ROM) - 4096 MB
Form factor (width) - M.2 2280
Full Description Line - NAS Ready-to-go|CPU Intel® Celeron® N5105 4-core/4-thread processor, burst up to 2.9 GHz|Drives/bays 4|2xHDMI|3xUSB 2.0|2xUSB 3.2|2xRJ45|Memory 8 GB|SSD|Power consumption 28 Watts|Power supply requirements 65W adapter (12VDC), 100-240VAC
Gross Weight Kg - 1,8
GRUPPE1 - Storage
GRUPPE2 - Raid System
GTIN - 4713213519974
guarantee - 24
guarantee_type - normal
HDMI Input/Output connectors - 2
HERSTELLER - QNAP SYSTEMS
Hoehe - 0
Housing - Desktop
HSTNUMMER - TBS-464-8G
I/O connectors - 2 x HDMI
I/O connectors - 2 x RJ-45 LAN
I/O connectors - 2 x USB 3.0
I/O connectors - 3 x USB 2.0
Laenge - 0
Logistics data - Harmonized System (HS) code - 84714100
LongSummaryDescription - QNAP TBS-464. Supported storage drive types: SSD, Supported storage drive interfaces: M.2, RAID levels: 0, 1, 5, 6, 10, JBOD. Processor family: Intel® Celeron®, Processor manufacturer: Intel, Processor model: N5105. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 8 GB. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Chassis type: Desktop, Cooling type: Active, Product colour: Black
Management, monitoring, configuration -
Manufacturer - Qnap
Manufacturer Code - TBS-464-8G
Manufacturer Name - QNAP
Manufacturer_code - TBS-464-8G
Max. number of disks - 4
Max memory size - 8 GB
Memory - 8 GB
Memory - Flash memory - 4000 MB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 8 GB
Memory type - DDR4
Name - QNAP TBS-464-8G
Name - Qnap TBS-464-8G NASbook 4bay QNA - SME/NASbook
name - TBS-464-8G 4x0HDD InCel N5105/N5095 8GBDDR4
NAS features - Ready-to-go
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100,1000,2500 Mbit/s
Network - iSCSI support - Yes
Network - Jumbo frames support - Yes
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network protocols -
Number of drives/bays - 4
Number of fans - 1
Number of HDDs installed - 0
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters -
Other features -
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - External power adapter - Yes
Packaging content - Power cables quantity - 1
Performance - Access Control List (ACL) - Yes
Performance - Backup features - Cloud
Performance - Backup function - Yes
Performance - Browser supported - Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Device class - Home & Home Office
Performance - Hot spare - Yes
Performance - Multilingual support - Yes
Performance - Noise level - 25 dB
Performance - On/off switch - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3
Performance - Snapshot - Yes
Performance - Type - NAS
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - USB 2.0 ports quantity - 3
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB port - Yes
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Power consumption (sleep) - 18 W
Power - Power consumption (typical) - 28 W
Power - Power supply location - External
Power - Power supply unit (PSU) capacity - 65 W
Power consumption - 28 Watts
Power supply - Zasilacz zewnętrzny 65W, 100240 V
Power supply requirements - 65W adapter (12VDC), 100-240VAC
Processor - Intel Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
Processor - CPU configuration (max) - 1
Processor - Number of processors supported - 1
Processor - On-board graphics card model - Intel® UHD Graphics
Processor - Processor boost frequency - 2.9 GHz
Processor - Processor cores - 4
Processor - Processor family - Intel® Celeron®
Processor - Processor frequency - 2 GHz
Processor - Processor manufacturer - Intel
Processor - Processor model - N5105
Processor - Processor threads - 4
Processor special features - Enhanced Intel SpeedStep Technology - Yes
Processor special features - Idle States - Yes
Processor special features - Intel 64 - Yes
Processor special features - Intel Trusted Execution Technology - No
Processor special features - Intel Virtualization Technology (VT-x) - Yes
Processor special features - Intel Virtualization Technology for Directed I/O (VT-d) - Yes
Processor special features - Intel VT-x with Extended Page Tables (EPT) - Yes
producer - QNAP
Producer - Qnap
ProducerCode - TBS-464-8G
ProductName - TBS-464
RAID - Yes
RAID levels - 0
RAID levels - 1
RAID levels - 5
RAID levels - 6
RAID levels - 10 (1+0)
RJ45 Input/Output connectors - 2
Shipping Box Depth Shipping/Package Box Dimensions - 29 cm
Shipping Box Height Shipping/Package Box Dimensions - 9.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.736 kg
Shipping Box Width Shipping/Package Box Dimensions - 20.5 cm
ShortDescription -
Short description - QNAP NAS TBS-464-8G (4 Bay) 4 x M.2 2280 PCIe Gen3 x2
ShortSummaryDescription - QNAP TBS-464, NAS, Desktop, Intel® Celeron®, N5105, Black
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Operating system installed - QNAP Turbo System
Software - Operating system version - 5.0.0
Software - Windows operating systems supported - Yes
SSD LED Indicators: - Yes
Stck_Kart - 8
Stck_Pal - 0
Storage - Disk roaming - Yes
Storage - Installed storage drive type - No
Storage - Number of M.2 (M & B) slots - 4
Storage - Number of storage drives supported - 4
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0, 1, 5, 6, 10, JBOD
Storage - RAID support - Yes
Storage - Storage drives installed - No
Storage - Supported file systems - FAT32, NTFS, ext3, ext4
Storage - Supported storage drive interfaces - M.2
Storage - Supported storage drive types - SSD
Storno - Y
Title - QNAP TBS-464 NAS Desktop Ethernet LAN Black N5105
Unit Box Height - 0.095
Unit Box Length - 0.29
Unit Box Width - 0.205
Unit Brutto Volume - 0.0056478 cubm
Unit Gross Weight - 1.736 kg
Unit Net Weight - 0.8 kg
USB 2.0 Input/Output connectors - 3
USB 3.2 Input/Output connectors - 2
Vendor Homepage - www.qnap.com/en/product/tbs-464
vendpn - TBS-464-8G
Warranty - 24 months
Weight - 0.8 kg
Weight - 1,73
Weight & dimensions - Depth - 165 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Package weight - 1.7 kg
Weight & dimensions - Weight - 800 g
Weight & dimensions - Width - 230 mm
