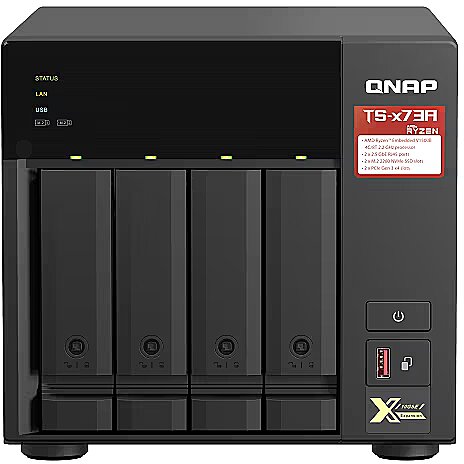

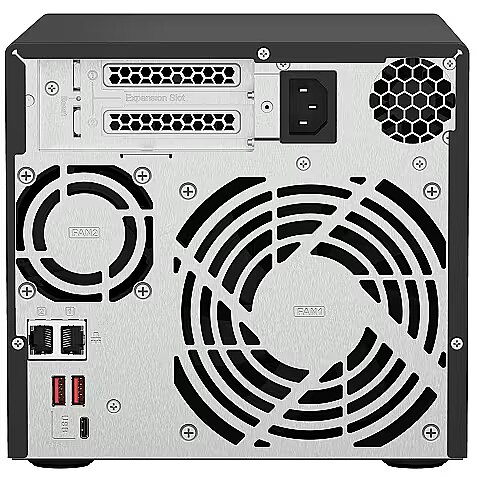

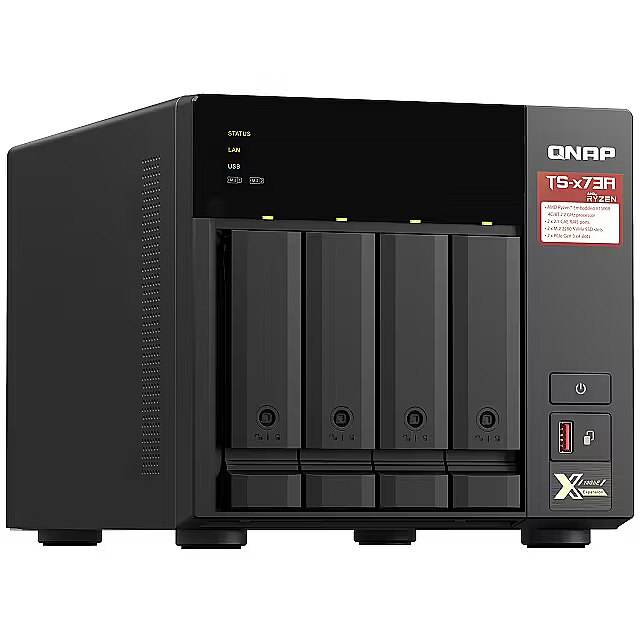

Qnap TS-473A-8G, 4-Bay

3.5" SATA Hot-swap Drive Bays - 4
Accessories included -
ARTIKEL1 - TS-473A-8G 4 BAY 2.2 GHZ 4C/8T
ARTIKEL2 - 8GB DDR4 2X 2.5GBE
Brand - QNAP
BrandPartCode - TS-473A-8G
Breite - 0.35
Built-in flash memory - 5 GB
Built-in RAM memory - 8 GB
Category - NAS & Storage Servers
Category - Root/Smarthome/Networks and communication/NAS - file servers
Category Code - STS
Category_1 - Network and Servers
Category_2 - NAS
Code - TS-473A-8G
CPU - AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
Description -
Description - TS-473A AMD Ryzen™ quad-core 2.2 GHz 2.5GbE NAS supports M.2 NVMe SSD and PCIe expansion for adding 10GbE high-speed connectivity and M.2 SSD; QTS and QuTS hero dual operating system for greater flexibility Featuring an AMD Ryzen™ V1000 series V1500B quad-core processor that delivers great system performance with up to quad-core / 8 threads and Turbo Core up to 2.2 GHz. The TS-473A features two 2.5GbE RJ45 ports and two PCIe Gen 3 slots for you to flexibly deploy 5GbE/10GbE networks. Two M.2 NVMe SSD slots for Qtier Technology and SSD Caching enable constant storage optimization. The TS-473A supports QTS and QuTS hero, allowing users to flexibly switch operating system based on their requirements.
Design - Chassis type - Tower
Design - Cooling type - Active
Design - Drive bay locking - Yes
Design - Fan diameter - 12 cm
Design - Fan diameter 2 - 6 cm
Design - LED indicators - LAN, Power, SSD, Status, USB
Design - Number of fans - 2 fan(s)
Design - Product colour - Black
Design > Chassis type - Tower
Design > Number of 3.5" bays - 4
Desktop/pedestal Mounting Type - Yes
dimension depth - 250 mm
dimension height - 380 mm
Dimensions - 188.2 × 199.3 × 280.8 mm
dimension weight - 6140 g
dimension width - 345 mm
EAN - 4713213518847
ean - 4713213518847
EANCode - 4713213518847
Eans - 4713213518847
EAN_code - 4713213518847
Expansion slots - 2 x PCIe 3.0 x 4
Fan - 6 cm
Fan - 12 cm
Flash memory (ROM) - 5120 MB
Form factor (width) - 2,5'' (SFF)
Form factor (width) - 3,5'' (LFF)
Full Description Line - CPU AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor|Drives/bays 4|Desktop/pedestal|3xUSB 3.2|1xUSB-C|2xRJ45|Memory 8 GB|DDR4|2xPCI-Express 3.0 4x|2xM.2|Power consumption 29.8 Watts
Gewicht - 6.16
Gross Weight Kg - 6,04
GRUPPE1 - Storage
GRUPPE2 - Raid System
GTIN - 4713213518847
guarantee - 24
guarantee_type - normal
HERSTELLER - QNAP SYSTEMS
Hoehe - 0.26
Hot-swapping support - Yes
Housing - Tower
HSTNUMMER - TS-473A-8G
I/O connectors - 1 x USB 3.1
I/O connectors - 2 x RJ-45 LAN
I/O connectors - 3 x USB 3.0
Laenge - 0.38
Link - https://www.qnap.com/en/product/ts-473a
Logistics data - Harmonized System (HS) code - 84714100
LongDesc - High performance AMD Ryzen™ processorThe TS-473A is powered by an AMD Ryzen™ V1000 series V1500 quad-core 2.2 GHz processor with up to 64GB RAM (ECC memory is supported*) and features USB 3.2 Gen 2 ports for speeds up to 10 Gb/s. The TS-473A also provides one USB Type-C port for supporting more devices to transfer large media files across devices, providing you with a more efficient workflow.Transform your network with a wallet-friendly 2.5GbE switchUpgrading your network shouldn’t break the bank, and 2.5GbE connectivity provides immediately noticeable improvements compared to standard 1GbE. QNAP offers 2.5GbE switches that supports Multi-Gigabit NBASE-T™ and allows you to use existing CAT5e cables to connect multiple computers and NAS, assisting organizations in implementing high-speed, secure and scalable network environments without going over budget.Switch operating systems for optimal data integrity and reliabilityThe TS-473A also supports QuTS hero - QNAP’s ZFS-based NAS operating system. Providing end-to-end data integrity, data reduction (inline data deduplication, compression and compaction), and much more, QuTS hero uses additional system resources to ensure an optimal environment for protecting business data.Obtain performance benefits from M.2 SSD cachingThe TS-473A features 2 M.2 NVMe SSD slots for you to enjoy SSD caching or Qtier auto tiering TechnologyImprove random data access speeds with an SSD cacheSSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.Maximize the value of SSDs with Qtier TechnologyQtier™ Technology empowers the TS-473A with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.Upgrade to 10GbE and abundant capability with PCIe expansionThe TS-473A features two PCIe Gen 3 x4 slots that allows for various expansion cards for expanding application potential.Easy and Secure File ManagementFile Station allows direct management of files stored on the TS-473A and in the cloud. Users can easily upload files from their PC, drag/drop files between folders, rename/delete files, and configure file/folder permissions to prevent unauthorized access. Microsoft Office Online can also be used to directly view/edit Microsoft Office documents stored on the TS-473A. Confidential/sensitive data can be encrypted to add extra security.Install a graphics card for GPU-accelerated computingGraphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-473A features PCIe slots to support low-profile graphics cards that do not need power cables, including NVIDIA® GeForce® GTX1650 graphics cards to boost performance of applications such as video editing , 4K UHD transcoding, imaging processing in QTS and performance of virtual machines via GPU passthrough.Build an affordable Fibre Channel SAN environmentCommon Fibre Channel Storage Area Networks (SAN) devices are often costly. By installing a QNAP 16Gb Fibre Channel card (QXP-16G2FC 16Gb) in the TS-473A, you can set a Fibre Channel Target using the iSCSI & Fibre Channel app. Moreover, the LUN Masking and Port Binding features provide an additional layer of data security.High-speed 2.5GbE VM Backup SolutionWith Hyper Data Protector, the TS-473A becomes an agentless backup tool for unlimited VMware® vSphere and Microsoft® Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression. With 2.5GbE connectivity, backup and restoration times are greatly reduced, providing a cost-effective solution for disaster recovery.QNAP Backup & Data Protection Solutions: Complete Apps & Utilities at Your FingertipsQNAP provides comprehensive solutions for virtually all data protection requirements. Discover an array of apps/utilities to help you back up various sources, including:- Boxafe – Google Workspace (G Suite) /Microsoft 365 SaaS backup- Hyper Data Protector – VMware vSphere/Microsoft Hyper-V VM backup- Hybrid Backup Sync – QNAP NAS/file server/macOS backup- NetBak Replicator – Windows backup- Snapshot – QNAP NAS protection/backupFlexible and economical storage expansionQNAP provides easy storage capacity expansion solutions. Here are several ways to expand your TS-473A storage as needed to accommodate data and business growth.Upgrade RAID CapacityHot-swap lower-capacity drives with larger-capacity drives to expand your NAS capacity so it can grow with your business.Attach Expansion EnclosuresConnect two TR-004 RAID expansion enclosures, or one 8-bay TL-D800S SATA 6 Gb/s JBOD, and use the QTS Storage & Snapshots Manager to easily handle NAS capacity expansion.Migrate to a New NASInstall your NAS hard drives into a larger QNAP NAS and retain all your existing data and configurations.More productivity applicationsQsirchQNAP’s powerful, Google-like search tool for quickly finding specific images, music, videos, documents, and emails by keywords, color, and more search conditions.BoxafeBackup/sync files, emails, calendars and contacts from Google™ Workspace and Microsoft® Office 365® into the TS-473A to safeguard enterprise cloud data.QuMagieAn AI-powered photo management app, supporting automated photo categorization with AI Albums, iOS® Live Photo display, and powerful search tool for ultimate photo management and sharing solution.
LongProductName - 4 x 3.5", AMD Ryzen Embedded V1500B 2.2GHz, 8GB SO-DIMM DDR4 (1 x 8 GB), 5GB Flash, LAN, 250W, 100-240V AC, 188.2 x 199.3 x 280.8 mm, 5.03 kg
LongSummaryDescription - QNAP TS-473A. Supported storage drive types: HDD & SSD, Storage drive interface: Serial ATA III, Supported storage drive interfaces: M.2, Serial ATA, Serial ATA II, Serial ATA III. Processor family: Ryzen Embedded, Processor manufacturer: AMD, Processor model: V1500B. Internal memory: 8 GB, Internal memory type: DDR4, Maximum RAM supported: 64 GB. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Chassis type: Tower, Cooling type: Active, Product colour: Black
M.2 Expansion slots - 2
Management, monitoring, configuration -
Manufacturer - Qnap
Manufacturer Code - TS-473A-8G
Manufacturer Name - QNAP
Manufacturer_code - TS-473A-8G
Max. number of disks - 4
Max memory size - 64 GB
Memory - 8 GB
Memory - ECC - Yes
Memory - Flash memory - 5000 MB
Memory - Internal memory - 8 GB
Memory - Internal memory type - DDR4
Memory - Maximum RAM supported - 64 GB
Memory - Memory form factor - SO-DIMM
Memory - Memory slots - 2
Memory > Internal memory type - DDR4
Memory > Internal RAM - 8 GB
Memory type - DDR4
Memory type - SODIMM DDR4
Name - QNAP 4-Bay QTS and QuTS hero NAS TS-473A-8G Up to 4 HDD/SSD Hot-Swap AMD Ryzen Ryzen V1500B Quad-Core Processor frequency 2.2 GHz 8 GB DDR4
Name - QNAP TS-473A-8G
Name - QNAP TS-473A-8G 4x3.5 - SME / NAS
name - TS-473A AMD Ryzen QC2. GHz.2.5GbE NAS 8 GB RAM
Network - DHCP server - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100,1000,2500 Mbit/s
Network - Jumbo frames support - Yes
Network - Wake-on-LAN ready - Yes
Network architecture - GigabitEthernet
Network interface - 2 x 10/100/1000/2500 Mbit/s
Network protocols -
Number of available memory slots - 1
Number of drives/bays - 4
Number of fans - 2
Number of HDDs installed - 0
Number of memory slots used - 1
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Other disk parameters -
Other features -
Other features > Drive bays - 4
Other features > Ethernet LAN (RJ-45) ports - 2
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 340 mm
Package features > Gross depth master carton - 520 mm
Package features > Gross height (mm) - 380 mm
Package features > Gross height master carton - 405 mm
Package features > Gross width (mm) - 250 mm
Package features > Gross width master carton - 365 mm
Package features > Net weight master carton - 12.4 kg
Package features > Packing quantity - 2 pc(s)
Package features > Palette Qty - 44 pc(s)
Package features > Paper/Pasteboard - 909.00 g
Package features > Plastic (No PET) - 101.00 g
Package features > Tare weight (kg) - 1.01 kg
Package features > Tare weight master carton - 1.307 kg
Package features > Volume (m3) - 0.0323 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC, LAN (RJ-45)
Packaging content - Number of screws - 24
Packaging content - Power cables quantity - 1
PCI-Express 3.0 4x Expansion slots - 2
Performance - Backup features - Cloud, USB drive, iSCSI LUN
Performance - Backup function - Yes
Performance - Browser supported - Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari
Performance - Built-in FTP server - Yes
Performance - Buzzer - Yes
Performance - Device class - Small & Medium Business
Performance - Disk scan - Yes
Performance - Noise level - 21.4 dB
Performance - On/off switch - Yes
Performance - Password authentication - Yes
Performance - Remotely operated - Yes
Performance - Reset button - Yes
Performance - S.M.A.R.T. support - Yes
Performance - Security algorithms - 256-bit AES, FIPS 140-2, SSH, SSL/TLS
Performance - Type - NAS
Ports & interfaces - Concurrent connections - 2000
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - PCI Express x4 (Gen 3.x) slots - 2
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Ports & interfaces - USB port - Yes
Ports & interfaces > Interface - 2x2.5GbE, 3xUSB Type A 3.2 Gen 2, 1xUSB Type C 3.2 Gen 1, 2xPCIe, 2xM.2 2280 PCIe Gen3 x1 slots
Power - AC input frequency - 50-60 Hz
Power - AC input voltage - 100 - 240 V
Power - Number of power supply units - 1
Power - Output current - 3.5 A
Power - Power consumption (HDD standby) - 19.576 W
Power - Power consumption (typical) - 29.792 W
Power - Power supply location - Built-in
Power - Power supply unit (PSU) capacity - 250 W
Power consumption - 29.8 Watts
Power supply - 250W, 100-240V AC, 50-60Hz, 3.5A
Processor - AMD Ryzen Embedded V1500B quad-core 2.2 GHz
Processor - On-board graphics card model - Not available
Processor - Processor cores - 4
Processor - Processor family - Ryzen Embedded
Processor - Processor frequency - 2.2 GHz
Processor - Processor manufacturer - AMD
Processor - Processor model - V1500B
Processor - Processor threads - 8
Processor > Processor family - AMD Ryzen
Processor > Processor frequency - 2.2 GHz
Processor > Processor model - Ryzen V1500B Quad-Core
producer - QNAP
Producer - Qnap
ProducerCode - TS-473A-8G
Producer product family - 4-Bay QTS and QuTS hero NAS
Producer product name - TS-473A-8G
ProductName - TS-473A
RJ45 Input/Output connectors - 2
Shipping Box Depth Shipping/Package Box Dimensions - 34.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 38 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 6.15 kg
Shipping Box Width Shipping/Package Box Dimensions - 25.5 cm
ShortDescription -
Short description - QNAP NAS TS-473A-8G (4 Bay)
ShortSummaryDescription - QNAP TS-473A, NAS, Tower, Ryzen Embedded, V1500B, Black
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Mac OS X 10.10 Yosemite
Software - Operating system installed - QNAP Turbo System
Software - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Software - Windows operating systems supported - Windows 10, Windows 7, Windows 8
Stck_Kart - 2
Stck_Pal - 8
Storage - Hot-swap drive bays - Yes
Storage - Installed storage drive type - No
Storage - Number of M.2 (M & B) slots - 2
Storage - Number of storage drives supported - 4
Storage - Number of system drives installed - 1
Storage - Online RAID expansion - Yes
Storage - Online RAID migration - Yes
Storage - RAID levels - 0, 1, 5, 6, 10, JBOD
Storage - RAID rebuild - Yes
Storage - RAID support - Yes
Storage - Storage drive interface - Serial ATA III
Storage - Storage drives installed - No
Storage - Storage drive sizes supported - 2.5,3.5,M.2
Storage - Supported storage drive interfaces - M.2, Serial ATA, Serial ATA II, Serial ATA III
Storage - Supported storage drive types - HDD & SSD
Storage - System drive capacity - 5 GB
Storage > Number of storage drives supported - Up to 4 HDD/SSD Hot-Swap
Storno - Y
Technical details > Gross weight - 6.2 kg
Technical details > Net weight - 5.19 kg
Technical details > Other features - System fan: 1x120mm, CPU fan: 1x60mm, Power Supply Unit: 250W, 100-240V AC, 50-60Hz, 3.5A
Technical details > Warranty - 36 month(s)
Title - QNAP TS-473A NAS Tower Ethernet LAN Black V1500B
Total number of memory slots - 2
Unit Box Height - 0.38
Unit Box Length - 0.345
Unit Box Width - 0.255
Unit Brutto Volume - 0.03343 cubm
Unit Gross Weight - 6.15 kg
Unit Net Weight - 5.04 kg
URL - https://www.qnap.com/en/product/ts-473a
USB-C Input/Output connectors - 1
USB 3.2 Input/Output connectors - 3
Vendor Homepage - www.qnap.com/en/product/ts-473a
vendpn - TS-473A-8G
Warranty - 36
Warranty - 36 months
WarrantyInfo -
Weight - 5.03 kg
Weight - 6,20
Weight & dimensions - Depth - 280.8 mm
Weight & dimensions - Height - 188.2 mm
Weight & dimensions - Weight - 5.03 kg
Weight & dimensions - Width - 199.3 mm
