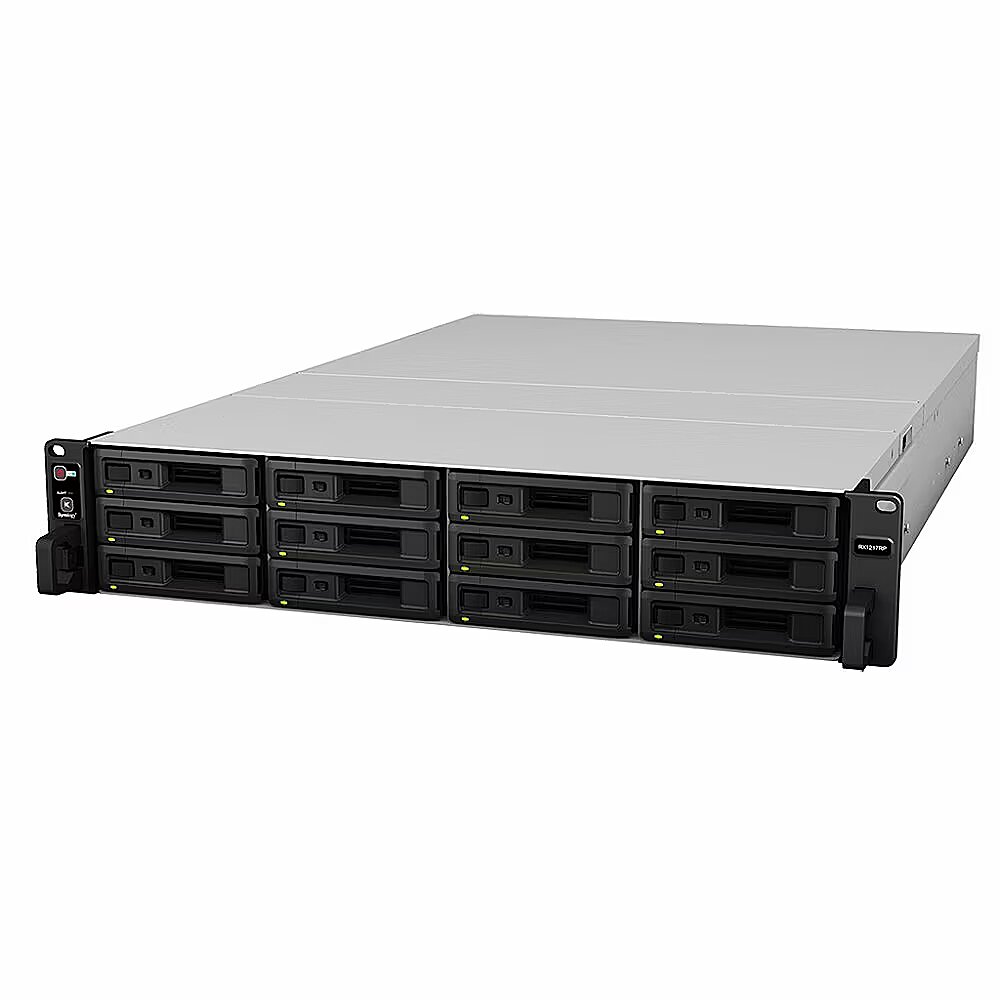

Synology Expansion Unit RX1217RP, 12-Bay

Accessories included - - Main Unit X 1
- FireWire X 1
- Power Cable X 2
- The cable extension: Infiniband X 1
- Quick Installation Guide X 1
Category Code - JBO
Category_1 - Network and Servers
Category_2 - NAS
Certificates - - FCC Class A
- CE Class A
- BSMI Class A
Code - RX1217RP
Compatible with - Link do kompatybilności
Description - Synology's solutions allow you to buy storage of smaller capacity and its expansion with the growth of the company. Models RX1217RP a 12-pocket expansion units allowing seamless increasing the storage capacity of selected servers, Synology RackStation.
Description - Synology gives you the flexibility to start with a smaller storage capacity and expand as your business starts to grow. RX1217 and RX1217RP are 12-bay storage expansion units designed to provide seamless capacity expansion for select Synology RackStations. For this Synology product we are offering additional*, paid, support packages provided by Tehnogroup. Technogroup support packages includes services like on-site support, on-site post-warranty and NBD replacement.. Please contact your Account Manager for individual price offer. *Synology product price do not include additional support package costs
Design > Chassis type - Rack
Design > Number of 3.5" bays - 12
dimension depth - 230 mm
dimension height - 860 mm
Dimensions - 88 mm x 430.5 mm x 692 mm
dimension weight - 18740 g
dimension width - 610 mm
EAN - 4711174722310
ean - 4711174722310
EAN_code - 4711174722310
Environment requirements - - Temperature 5 ° C to 35 ° C (40 ° F to 95 ° F)
- Storage temperature -20 ° C to 60 ° C (-5 ° F to 140 ° F)
- Relative humidity of 5% to 95% (relative humidity)
Full Description Line - Supported drives 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD|1xInfiniband|Rack 2U|Included Accessories Accessory Pack,AC Power Cord x2,Expansion Cable: Infiniband,Quick Installation Guide
Gross Weight Kg - 15
guarantee - 60
guarantee_type - normal
Important - Uzyskaj cenę specjalną na ten produkt wypełniając formularz rejestracji projektu. Odeślij do swojego handlowca lub  aleksandra.zienkiewicz@ab.pl
Included Accessories - Accessory Pack,
AC Power Cord x2,
Expansion Cable: Infiniband,
Quick Installation Guide
Infiniband Ports - 1
Link - https://www.synology.com/en-global/products/RX1217
Manufacturer - Synology
Manufacturer Code - RX1217RP
Manufacturer Name - Synology
Manufacturer_code - RX1217RP
name - RX1217RP 12-HDD rack 2U 2xPSU
Name - Synology Expansion Unit RX1217RP Up to 12 HDD/SSD Hot-Swap
Name - Synology RackStation RX1217RP, expansion module
Other features - - Case fan 80mm x 80mm x 3 pcs
- Easy to exchange the fan housing
- Sound level 54.2 dB (A)
Other features > Drive bays - 12
Other information - - Pocket / bays: 12
- Compatible disc type:
   3.5 "SATA HDD
   2.5 "SATA HDD
   2.5 "SATA SSD
- Maximum internal capacitance: 120 TB (10 TB HDD x 12) (Capacity may vary depending on the type of RAID)
- Infiniband port x 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 850 mm
Package features > Gross height (mm) - 220 mm
Package features > Gross width (mm) - 620 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 7 pc(s)
Package features > Paper/Pasteboard - 1200.00 g
Package features > Tare weight (kg) - 1.20 kg
Package features > Volume (m3) - 0.11594 m³
Package features > WEE classification - CL109:4:2017-04-01
Package features > WEEE tax - Yes
Ports & interfaces > Interface - 1 x InfiniBand
Power supply - - Restoring power Synchronized with the Synology RackStation
- Power supply / Adapter 2 X 500W
- Input voltage AC power 100V to 240V AC
- Supply frequency 50/60 Hz, single phase
- Energy consumption:
    71.32 W (access)
    31.20 W (HDD hibernation)
- British thermal unit:
    243.52 BTU / hr (access)
    106.53 BTU / hr (HDD hibernation)
producer - Synology
Producer product family - Expansion Unit
Producer product name - RX1217RP
Rack 2U Mounting Type - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 86.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 61 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 18.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 21.5 cm
Short description - Synology NAS Expansion Unit RX1217RP (12 Bay) 2U
Storage > Number of storage drives supported - Up to 12 HDD/SSD Hot-Swap
Supported drives - 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
Technical details > Gross weight - 18.4 kg
Technical details > Net weight - 17.2 kg
Technical details > Other features - Triple fan
Technical details > Warranty - 60 month(s)
Unit Box Height - 0.61
Unit Box Length - 0.865
Unit Box Width - 0.215
Unit Brutto Volume - 0.1134 cubm
Unit Gross Weight - 18.6 kg
Unit Net Weight - 13.4 kg
Vendor Homepage - www.synology.com/en-us/products/RX1217
vendpn - RX1217RP
Warranty - 60
Warranty - 60 months
Weight - 13.4 kg
Weight - 19,00
